Article number: BC073

12V-2X6 / 12VHPWR 90° CABLE PCI-E

Power for the next generation

The 12V-2x6 / 12VHPWR 90° Cable comes with an angled connector on one side for immaculate cable management with any ATX 3 be quiet! power supply. A perfect blend of aesthetics and function with single sleeves.

90° angled connector
Rated for 600W
Suitable for any graphics card with 12V-2x6 or 12VHPWR connector
Elegant look with black rubberized individual cable sleeves
Follows latest specifications for firm fit
3-years manufacturer’s warranty

Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. .

Characteristics

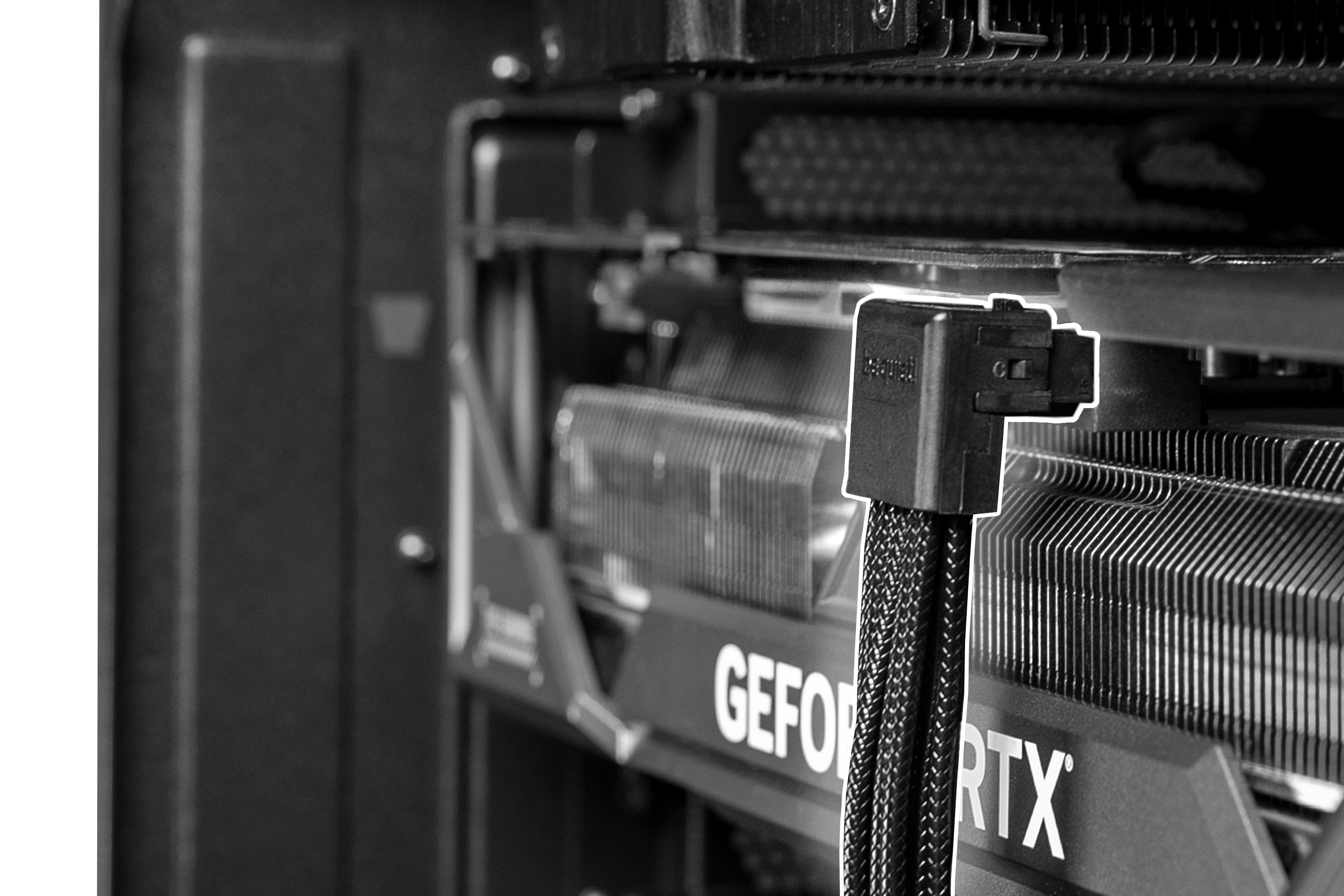

ANGLED CONNECTOR

No more worrying about bend radius

Thanks to the 90° angled connector, you can route the 12V-2x6 / 12VHPWR 90° Cable much closer to the graphics card. The usual recommended “do not bend before 40mm from the plug” rule for safe application and a tight fit no longer applies. This makes cable management much easier.

ALL-BLACK, ELEGANT DESIGN

Single-sleeved cables for a clean setup

A perfect blend of aesthetics and function, the 12V-2x6 / 12VHPWR 90° Cable features single-sleeved wires offering high durability and flexibility.

USE CABLE CORRECTLY

For a long lifespan

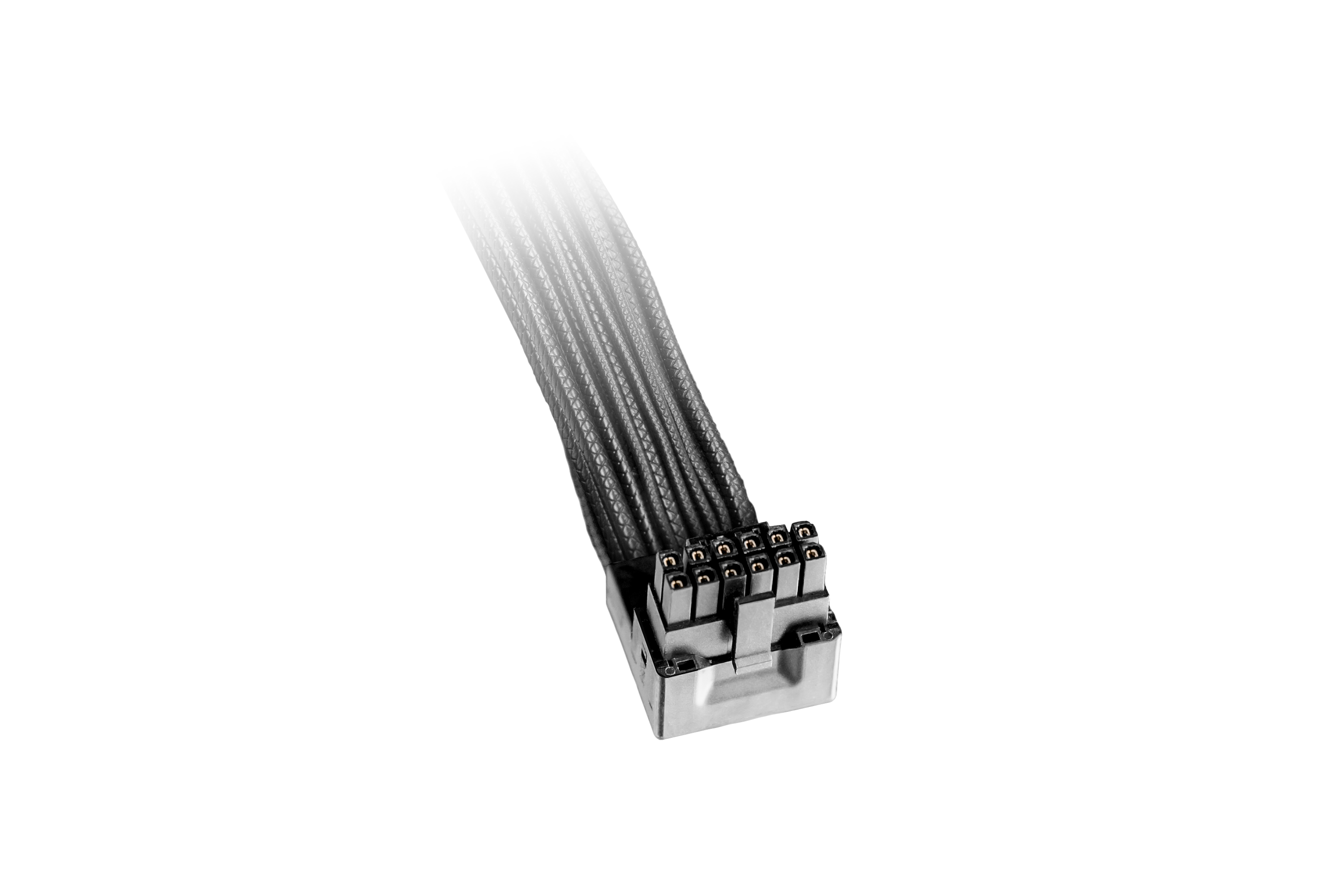

Note: This cable may not work with all graphics cards. Please make sure that the 4 sense lines are on the correct side of the female connector. Make sure that the connector is firmly seated and flush with your graphics card.

General data

Model	CH-7710
Connectors	1x 12V-2x6
Total cable length (mm)	700
Length to first connector (mm)	700
AWG	16
Individually sleeved	✓
Compatible to PSU series up from	Any be quiet! PSU with 12VHPWR or 12V-2x6 connector

open all / close all

						Service

									Warranty (Years)3

									International hotline / free of charge✓ / DE, FR, US

						Logistics data and RRP

									Article numberBC073

									EAN code4260052190968

									Dimensions, package (L x W x H), (mm)230 x 50 x 40

									Gross weight, package (kg)0.19

									Pieces per packaging unit100

									Dimensions, shipping box (L x W x H), (mm)475 x 425 x 275

									Gross weight, shipping box (kg)20.0

									RRP (€)19.90
