SILENT BASE 800

Window Silver

SILENT BASE 800

Window Silver

Unique Performance and Usability

be quiet! Silent Base 800 Silver offers the perfect symbiosis of noise prevention and cooling performance, good usability and extensive capacity for high-end hardware.

The innovative construction and pre-installed Pure Wings 2 fans assure excellent cooling performance and perfect air circulation. Numerous sound insulation features contribute to well-known whisper-quiet operation. On account of tool-free mounting and generous space for hardware and cable management the case offers a comfortable, first-class usability.

Thanks to Silent Base 800’s “form follows function” principle, every detail has a purpose and function. It’s truly a superior case ideal for high-end gaming gear and quiet systems.

No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
  • Outstanding performance thanks to an innovative construction that assures excellent cooling efficiency and a perfect air-circulation at well-known whisper-quiet operation
  • Excellent usability with simplest mounting and tool-free fitting of drives, an intelligent and adaptable cable solution, and air intake filters that are easily accessed for cleaning
  • Ample space and cutouts are provided for high-end components of today and tomorrow, including space for water cooling radiators
  • Three pre-installed Pure Wings 2 fans feature nine airflow-optimized fan blades and are decoupled from the case to move heat out with a minimum of vibration and the quietest possible operation

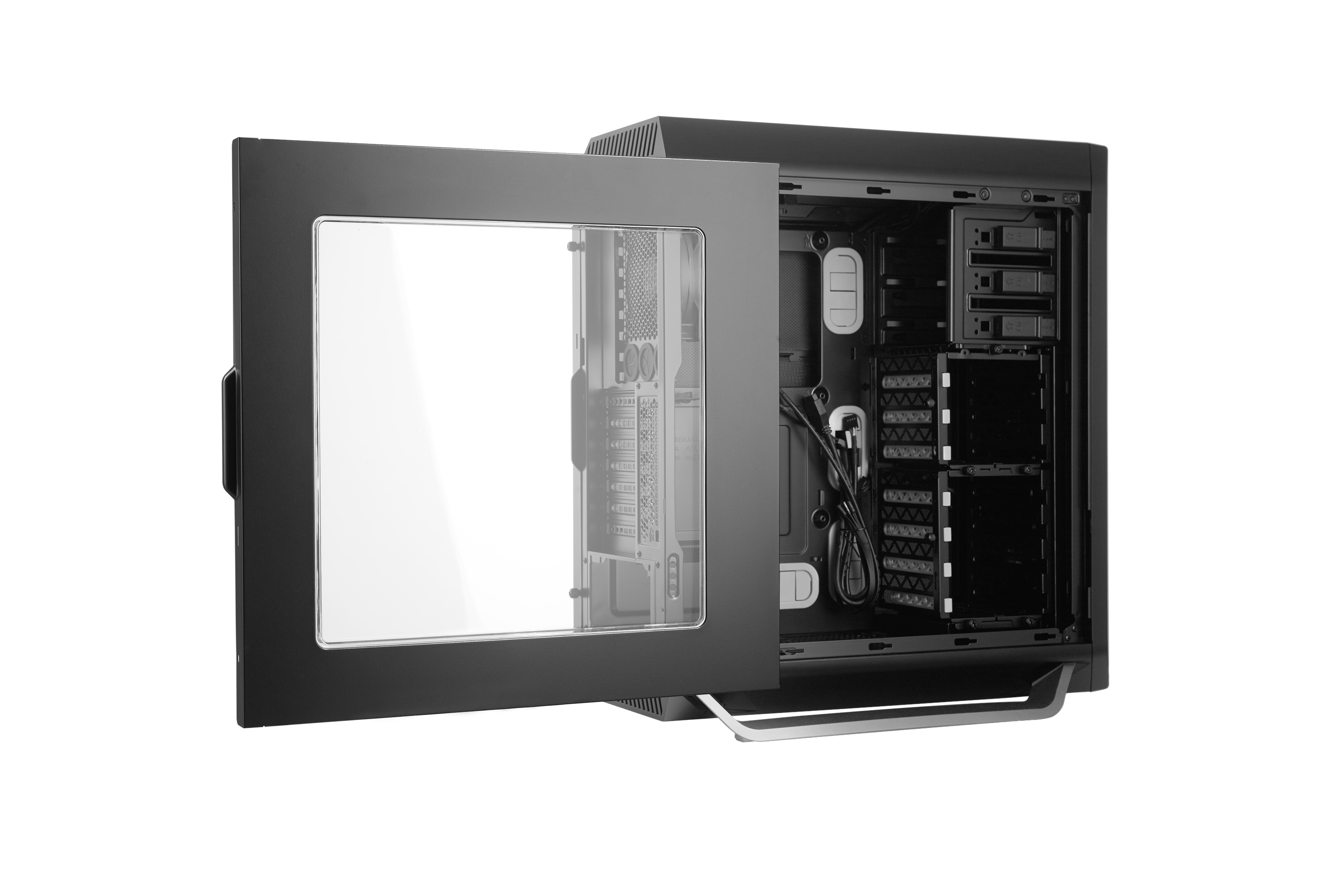

  • Side panel with double-glazed window provides a perfect view inside the PC system; the window is made from scratch and impact resisting material and offers a superb soundproofing
  • Professional cable management is supported with generous space for organizing cables, silicone rubber grommets, and carefully placed pass-throughs
  • Form follows function principle maximizes performance; the look of the case is based upon its intended function and purpose
  • Product conception, design and quality control in Germany

Very Silent Operation

  • The innovative construction of the side, bottom and top covers optimizes case airflow for perfect air circulation, reducing turbulence and generating superior cooling at lower fan speeds for exceedingly quiet operation
  • Sound insulation material on the side panel and the front also reduces vibrations and provides even more stability
  • The side panel with an innovative double-glazed window and a cavity of 9mm between the panes of the window provides superb sound insulation
  • Three pre-installed Pure Wings 2 fans (two Pure Wings 2 140mm in the front, and one Pure Wings 2 120mm at the rear) include an array of optimizations for quiet airflow
    • unique airflow-optimized fan blade design reduces noise-generating fan turbulence
    • high-quality sleeved bearing
    • switching, noise-cancelling circuitry
    • fans are decoupled from the case with special mounts, reducing transmission of vibration and noise
  • Hard drive cages feature unique, specially designed silicone rubber anti-vibration rails that fully decouple drives so as to eliminate any transmission of vibration to the case



Perfect Cooling

  • The upper and lower cover air ducts are designed both to channel cooling airflow. The rear opening allows air to enter the chassis while reducing the noise passing through the front panel
  • Adjustable side panel vent allows the user to fine tune airflow
  • Additional fan mounting of up to three fans at the top and the bottom
  • Water cooling ready for high-performance systems. Three areas are provided for radiators: below the top cover, in the HDD section, and in the rear of the case
  • Organized cable routing assures a better look, but more importantly it also provides for efficient airflow, better cooling, and therefore quieter operation



Engineering

  • The unique, specially designed front panel intake system allows cool air to enter the case while greatly eliminating almost all of the noise that is allowed back out
  • The top and bottom covers channel cooling air into the case and allow hot air to exit the top while greatly reducing the noise that is allowed to escape the case
  • The chassis is fitted with a side panel that offers more internal space, allowing use of high-end hardware and cooler such as the Dark Rock series
  • The U-shaped edges on the side panels reduce vibration and improve case stability
  • The side panel vent can be closed for silent operation, open or partially open in different amounts for increased air intake
  • The side panel window is made from scratch and impact resisting material and offers superb sound insulation due to the double-glazing of the window
  • The drive cages can be re-arranged to fit different hardware setups
  • All relevant openings are protected with removable, cleanable filters to keep your system clean of heat-trapping dust



Excellent Usability

  • Generous space and flexibility supports all manner of high-end hardware
  • Thoughtful design supports professional cable management:
    • innovative side panel design provides more space for cable management behind the M/B tray
    • silicone rubber grommets on the M/B tray hold cables from shifting
  • Motherboard tray is provided with large, convenient cut-outs for CPU cooler back plates that will ensure compatibility with current and future CPU sockets
  • Tool-less drive mounting allows drive configuration and reconfiguration in minutes
    • tool-less mounting system for 5.25” drives like ODD, fan controllers etc.
    • the silicone rubber rails allow fast and secure tool-less 3.5” HDD mounts
    • the case can fit four 2.5” SSD
    • one mounting bay is in each 3.5” HDD cage
    • two additional mounting bays behind the M/B tray
  • Easy to remove dust filters are user-friendly and easy to clean



Outstanding Service and Support

  • 3-year manufacturer's warranty
  • Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm CET: +49 (0) 40-736 76 86 - 98
All models at a glance:

Product Series

General data

ModelSilent Base 800 Window Silver
Color optionSilver
Motherboard compatibilityATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm)495 x 230 x 542
Case size incl. stands (L x W x H), (mm)495 x 266 x 559
Volume (l)-
PSU form factorATX PS/2
Net weight (kg)9.31
Expansion slots7

Infographics

open all / close all

Pre-installed fans

Fan at top-
Fan at front2x Pure Wings 2 140mm
Fan at side-
Fan at rear1x Pure Wings 2 120mm
Fan at bottom-
Dimensions (L x W x H), (mm)Front: 140 x 140 x 25, Rear: 120 x 120 x 25
Fan speed at 100% PWM / 12V (rpm)Front: 1,000, Rear: 1,500
Airflow at 100% PWM / 12V (CFM / m3/h)Front: 61.2 / 103.97, Rear: 51.4 / 87.32
Air Pressure at 100% PWM / 12V (mm H2O)Front: 0.76, Rear: 1.25
Noise level at 100% PWM / 12V (dB(A))Front: 18.8, Rear: 19.2
Voltage range (V DC)5–12
Input power (W)Front: 1.08, Rear: 1.04
Input current (A)0.09
Connector3-pin
Lifespan (h / 25°C)80,000
Fan controller0

Maximum fan installation

Maximum fans-
Top (mm)2 x 140/120
Front (mm)-
Side (mm)-
Rear (mm)-
Bottom (mm)1 x 140/120
PSU shroud-

Optional radiator installation

Top (mm)240 / 280
Front (mm)120 / 140
Side (mm)-
Rear (mm)120
Bottom (mm)-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)290
Maximum dimensions incl. bottom fan (mm)160

Graphics card

HDD cage (in height of graphics card) installed (mm)290
HDD cage (in height of graphics card) removed (mm)400
Maximum PCIe slots with vertical graphics card (pcs.)-

Drive bay capacity

5.25 bays (pcs.)3
3.5 slots (scope of delivery)7
3.5 slots (max.)7
2.5 slots (scope of delivery)4
2.5 slots (max.)4

Cooling

Max.construction height of CPU cooler unit (mm)167
Airflow channelFront, Top, Rear, Bottom

Lighting

LED illumination-
LEDs (pcs.)-
LED type-
LEDs synchronizable with controller/motherboard-

I/O Panel

USB 3.2 Gen. 2 Type C-
USB 3.2 Type A2
USB 2.02
HD Audio I/O1
Qi charger / Quick Charging Option (W)1

Insulation and damping

Top panel insulation mats-
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray-

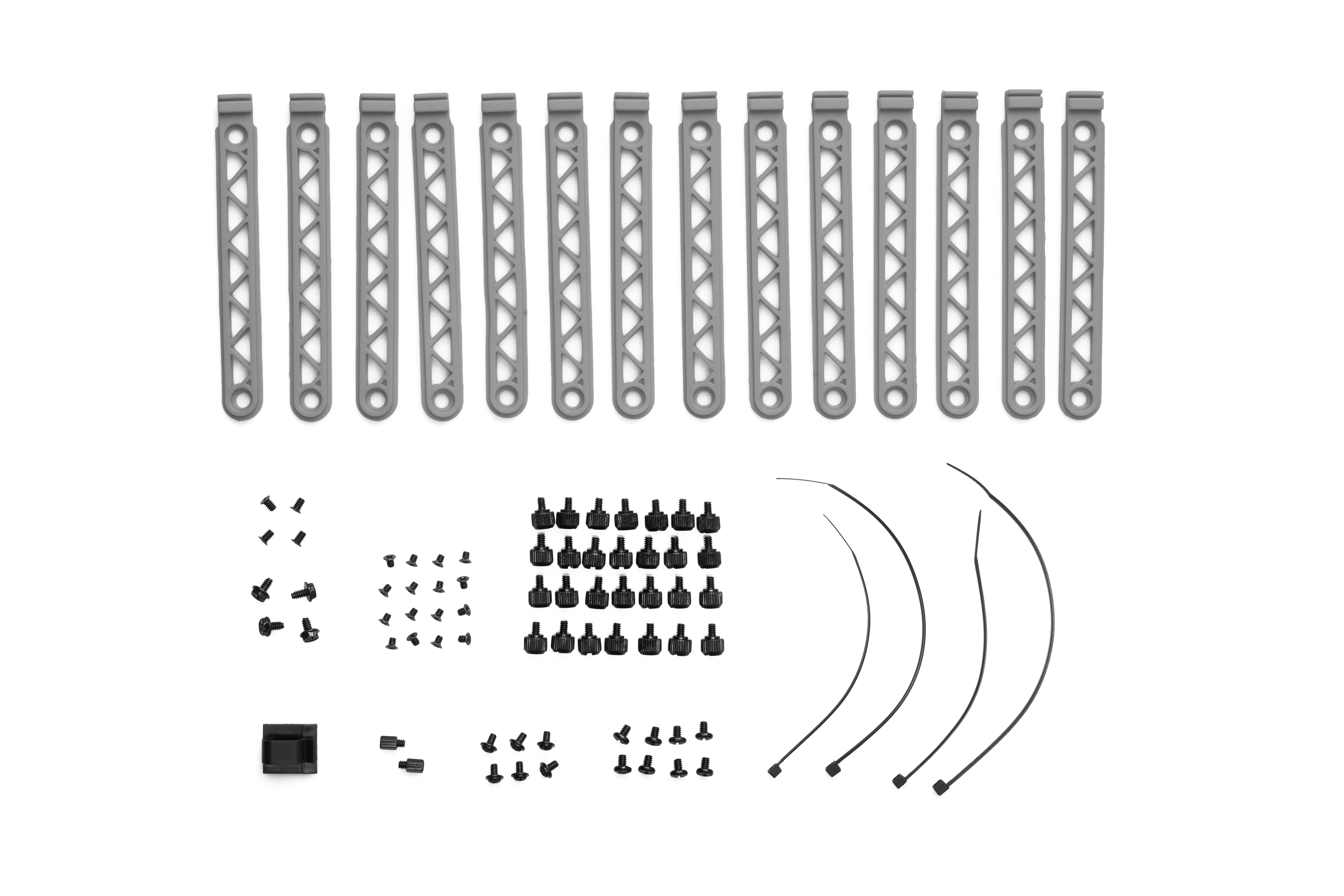

Scope of delivery

Screw set (Drives/Motherboard)
Additional standoffs (pcs.)2
SSD bracket for PSU shroud-
LED strips (pcs.)0
Cable ties (pcs.)4
Screw box-
VGA holder-
VGA holder for inverted layout-
Mesh Front Panel-
ODD Bracket-
Fan / Radiator bracket for multi mounting panel-

Removeable dust filters

Top-
Front1
Side-
Bottom1

Material

Top coverABS
Front panelABS
Side panel0.7mm Steel
Side panel windowDouble-glazed window
StandsNylon / Fiber / Rubber

Safety certification

Approvals-

Environmental directives

RoHS-
Reach-
WEEE-
Triman-

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data and RRP

Article numberBGW03
EAN code4260052184332
Dimensions, package (L x W x H), (mm)651 x 305 x 572
Gross weight, package (kg)11.06
Pieces per packaging unit1
RRP (€)156.00
