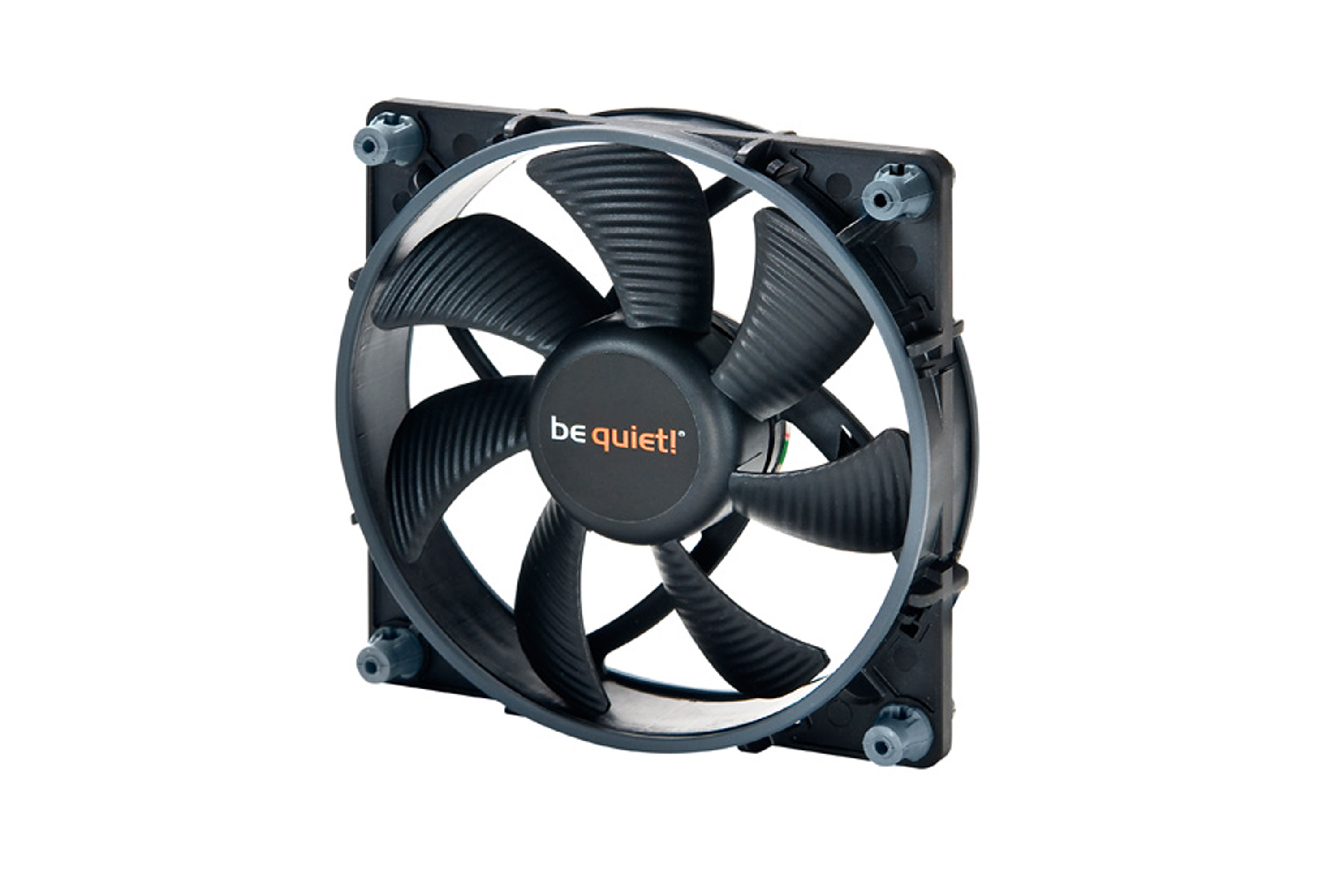

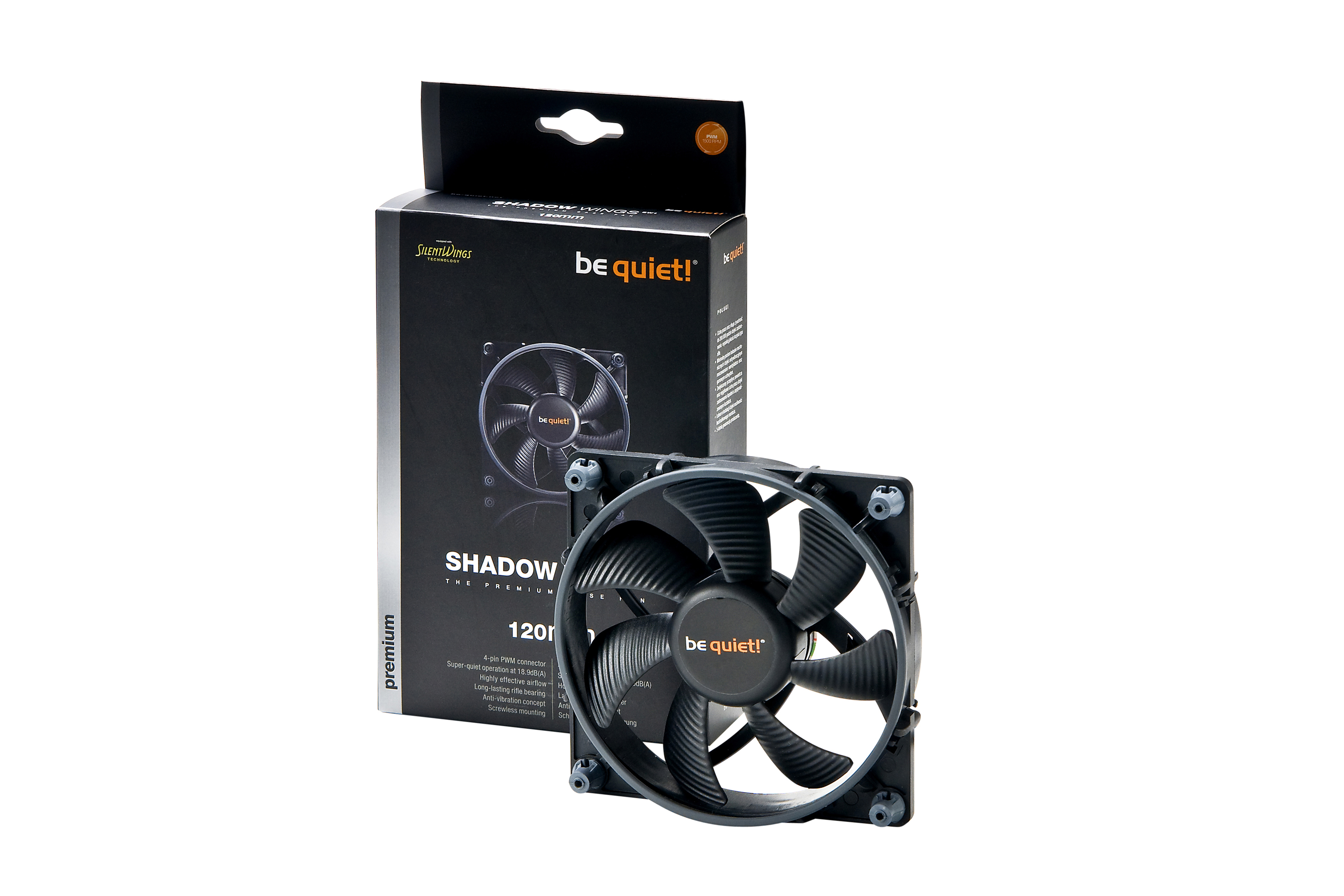

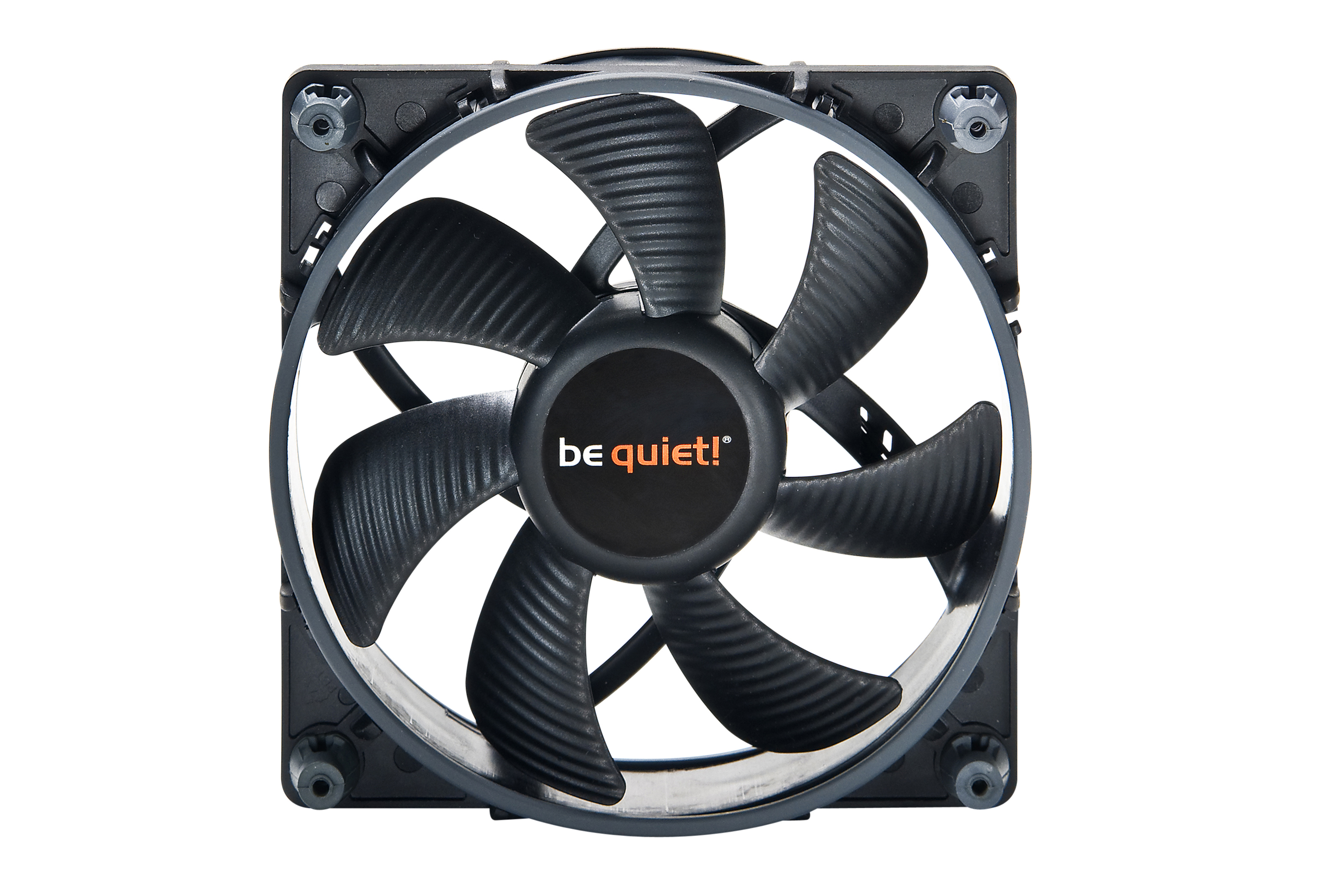

SHADOW WINGS
120mm PWM
SHADOW WINGS
120mm PWMWhisper Quiet and Perfect Cooling
be quiet! Shadow Wings 120mm PWM offers whisper-quiet operation for gaming or entertainment PCs and home theater systems. Key features include:
- Low-noise operation of up to 18.9dB(A)
- Reliable rifle-bearing technology
- Airflow-optimized surface structure of the fan blades
- PWM controlled fan speed through the motherboard
- Simple assembly due to screwless installation
- High-quality IC motor controller reduces electrical noise
- Rubberized fan frame for less vibration
- Product conception, design and quality control in Germany
- 3-year manufacturer’s warranty
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
Very quiet operation
- Low-noise operation due to high-quality rifle bearing. The parallel arrangement of recesses on the outer side of the bearing shaft ensure uniform circulation of the high-quality oil and make the fan very quiet. Mechanical noise is minimized by antivibration fasteners and the rubberized fan frame. The high-quality IC motor controller reduces electrical noise sources.
Long service life
- Reliable cooling for up to 200,000 hours thanks to the high-quality rifle bearing.
High air flow
- The flow-optimized surface structure of the fan blades produce more air flow in combination with smooth running.
Simple assembly
- Screwless installation makes handling simple.
Service
- 3 year manufacturer guarantee.
All models at a glance:
General data
| Model | Shadow Wings 120mm 1500rpm |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 1,500 |
| Noise level at 100% PWM / 12V (dB(A)) | 18.9 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 50.5 / 85 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.63 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 22 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | ✓ |
| Screw fixing | - |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 450 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 50.5 / 85 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.63 |
| Noise level at 100% PWM / 12V (dB(A)) | 18.9 |
| Lifespan (h / 25°C) | 200.000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 ~ 12 |
| Input current (A) | - |
| Safety current (A) | 0.20 |
| Input power (W) | 1.08 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | - |
| Push pins | 5 |
| hard plastic washer | 5 |
| Others | - |
Safety certification
| Approvals | CE, RoHS, WEEE, RU, Tüv |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BL026 |
| EAN code | 4260052182666 |
| Dimensions, package (L x W x H), (mm) | 185 x 41 x 124 |
| Gross weight, package (kg) | 0.234 |
| Pieces per packaging unit | 48 |
| Dimensions, shipping box (L x W x H), (mm) | 400 x 395 x 370 |
| Gross weight, shipping box (kg) | 11.24 |
| RRP (€) | 16.90 |
