Article number: BK002

Shadow Rock LP is ready for modern mainstream CPUs like Intel's Core i5 or AMD's Ryzen 5 series, or for special applications such as small form factor builds.

More information.

SHADOW ROCK LP

Compact Cooling, Significant Quiet

Fitting everything you want into a HTPC or Small Form Factor PC can be tough, quietly cooling those cramped components is far tougher. Shadow Rock LP is the ultra-compact CPU cooler from be quiet! that solves that problem.

Featuring four 6mm heat pipes, a Pure Wings 2 120mm PWM fan with airflow-optimized fan blades as well as an user-friendly mounting solution, Shadow Rock LP generates only 25.5dB(A) noise under maximum load yet boasts generous 130W TDP cooling capacity.

Shadow Rock LP is a space-saving wonder that brings be quiet!’s premium cooling technology to restricted spaces at a very attractive price point.

No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.

HIGH COOLING EFFICIENCY

Quiet and reliable cooling of your components

Shadow Rock LP offers a high cooling capacity of 130W TDP and is especially perfect for use in compact systems.

HIGH-PERFORMANCE HEAT PIPES

Offering fast and reliable heat transfer

Four 6mm heat pipes carry the heat efficiently and quickly to optimum locations on the cooling fins. This way the cooler achieves the best possible mixture of premium cooling performance in a restricted space and remarkably quiet operation.

WHISPER-SILENT PURE WINGS 2 FAN

Even at 100% fan speed, overall noise is a mere 25.5dB(A)

The Pure Wings 2 120mm PWM fan supports the best balance of perfect cooling and quiet operation. Nine silence-optimized fan blades generate high airflow characteristics that reduce noise-generating turbulences. The fan’s durable rifle-bearing technology contributes to a long lifespan of up to 80,000 hours.

EASY ACCESS, EVEN IN COMPACT PC ENCLOSURES

Highly convenient and compact design

Low-profile is a space-saving design that allows you easy access to components even in the very tight confines of compact PCs. This cooler also makes it possible to mount it from atop the motherboard, which adds further convenience.

“As our first low-profile cooler Shadow Rock LP has been developed with ultra-compact PC builds in mind. Anyone building a small form factor system is ought to keep Shadow Rock LP in mind.”

Marco Marquardt, Product Developer BU PC Cases

All models at a glance:

Product Series

General data

ModelShadow Rock LP
TDP (W)130
Color optionSilver
Overall dimensions without mounting material (L x W x H), (mm)134 x 122 x 50
Total weight (kg)0.39
Socket compatibility Intel1700 / 1200 / 1150 / 1151 / 1155 / 2011 Square ILM
Socket compatibility AMDAM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm)14.8 / 18.6 / 25.5
Number of fans1
Lighting connector-

Infographics

open all / close all

Heatsink specifications

Dimensions (L x W x H), (mm)134 x 122 x 75
Fin materialAluminum
Surface treatmentBrushed
Base materialCopper
CPU contact surfaceCNC machined
Heatpipe number / Diameter (mm)4 / 6
Decoupled fan mounting-

Fan specifications

Fan modelPure Wings 2 120mm PWM
Fan dimensions (mm)120 x 120 x 25
Speed @ 100% PWM (rpm)1500
Airflow at 100% PWM / 12V (CFM / m3/h)51.4 / 87.0
Air Pressure at 100% PWM / 12V (mm H2O)1.25
Bearing technologyRifle
Motor technology4-pole fan motor
Rated Voltage (V)12
Input current (A)0.20
Input power (W)2.4
Connector4-pin PWM
Lighting connector-
Cable length (mm)220
Lifespan (h / 25°C)80,000
Y-Cable-

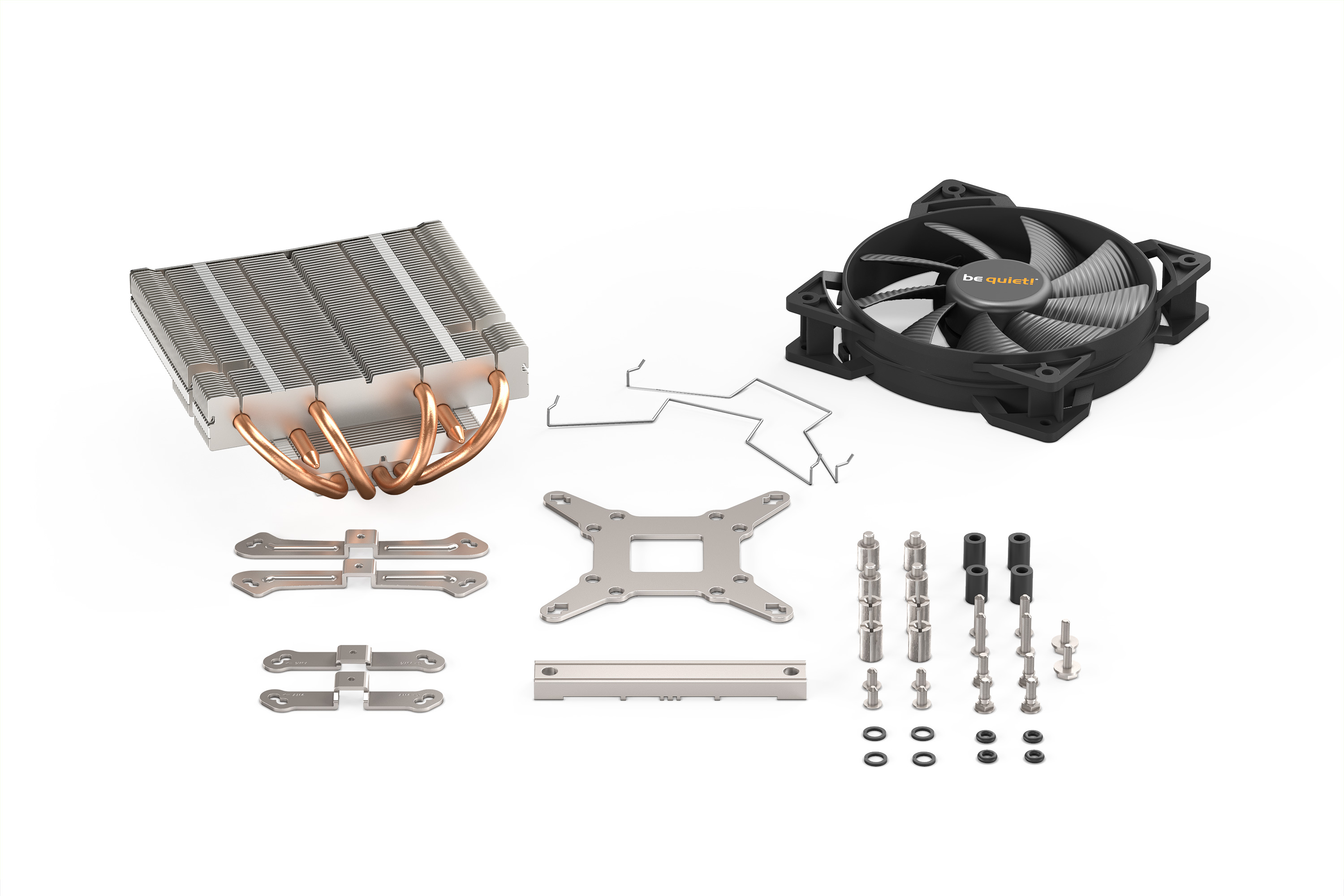

Accessories

Thermal grease (Type)Applied
Mounting setIntel & AMD
Screwdriver-
Y-Cable-
User manual languagesCN, DE, EN, ES, FR, JP, PL, RU, TW

Safety certification

ApprovalsCE, UL, TÜV

Environmental directives

RoHS
WEEE
Triman

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR, US

Logistics data and RRP

Article numberBK002
EAN code4260052184226
Dimensions, package (L x W x H), (mm)160 x 140 x 170
Gross weight, package (kg)0.8
Pieces per packaging unit18
Dimensions, shipping box (L x W x H), (mm)500 x 360 x 436
Gross weight, shipping box (kg)15.9
RRP (€)49.90
