premium
Article number: BG025

SILENT BASE 601

Orange

Excellent silence and usability

be quiet! Silent Base 601 Orange delivers the perfect combination of maximum silence and an excellent usability for remarkably quiet configurations.

  • Noise dampening vents provide excellent air permeability with maximum silence
  • Extra thick insulation mats of 10mm in the front, top and sides
  • Two preinstalled Pure Wings 2 140mm fans
  • 3-step fan controller caters for up to three fans
  • The PSU shroud provides a neat interior
  • Ready for radiators up to 360mm
  • Three years manufacturer’s warranty
  • Product conception, design and quality control in Germany

NOISE DAMPENING VENTS

Minimize noise and maximize airstream

The air inlets on the front cater for maximum silence with a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.

SUPERB NOISE DAMPENING

Extra thick insulation for maximum stability and silence

The front, top and sides are equipped with extra thick dampening mats of 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

PRE-INSTALLED PURE WINGS 2 fans

Whisper-quiet operation

Two pre-installed Pure Wings 2 140mm fans with airflow-optimized fan blades ensure a perfect airflow and solid cooling. The integrated 3-step fan controller caters for up to three fans.

FUNCTIONAL PSU SHROUD

Offering a neat interior

The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 120mm fan on the top. With the small cover detached a 360mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.

CONVENIENT TO HANDLE

Easy access for all kinds of modifications

The high-end side panels provide a mounting system with push-pins for secure and user-friendly detachment. By depressing the push-pins the locking mechanism releases the upper part of the side panel and this hovers safely until removed manually. Excellent usability for fast and easy access to the interior of the case.

GENEROUS SPACE, SMART DESIGN

Designed for all kinds of high-end hardware

Despite its compact design the Silent Base 601 provides generous dimensions and cutouts even for installing an E-ATX motherboard. The smart arrangement of components also allows multiple graphics cards and large coolers to fit in well.

EASY INSTALLATION OF RADIATORS

Optimized for water-cooled systems

With its optimized design Silent Base 601 is the perfect case for water cooling. Radiators of up to 360mm can be installed at the front, top and rear. Using the detachable bracket radiators can be installed very quickly and easily at the top.

All models at a glance:

Features

General data

ModelSilent Base 601 Orange
PSU form factorATX PS/2
Motherboard compatibilityE-ATX (30.5 x 27.5) / ATX / M-ATX / Mini-ITX

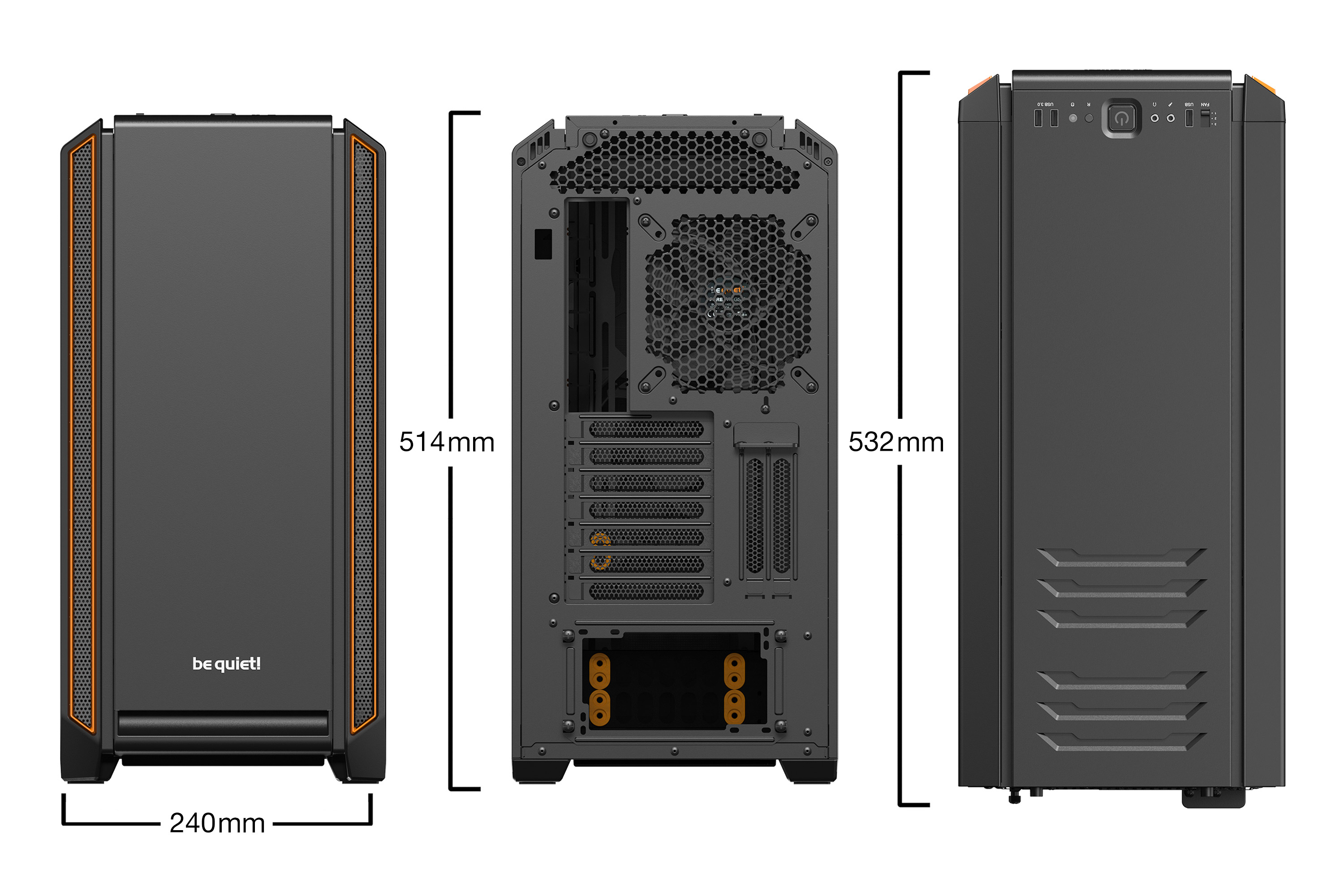

Case size excl. stands (L x W x H), (mm)532 x 240 x 481
Installation of motherboards with backplate
Case size incl. stands (L x W x H), (mm)532 x 240 x 514
Dimensions side panel window (L x W), (mm)440 x 498
Color optionOrange
Weight (kg)10.49
USB 2.01
USB 3.2 Gen. 12
USB 3.2 Gen. 2 Type C-
HD Audio I/OMic + Audio
Expansion slots7 + 2
Fan mounting locationsFront / Rear / Top / PSU Shroud
Qi charger / Quick Charging Option-

Infographics

open all / close all

Material

Top coverABS / Steel
Side panelABS / Steel
Side panel window-
Front panelABS / Steel
StandsABS

Drive bay capacity

5.25 bays-
3.5 slots (max.)7
3.5 slots (scope of delivery)3
2.5 slots (max.)14
2.5 slots (scope of delivery)6

Pre-installed fans

Fan @ top-
Fan @ front1x Pure Wings 2 140mm
Fan @ rear1x Pure Wings 2 140mm
Dimensions (L x W x H), (mm)Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed @ 100% PWM / 12V (rpm)1000
Noise level @ 100% PWM / 12V (dB(A))18.8
Airflow @ 100% PWM / 12V (CFM / m3/h)61.2 / 104
Air Pressure @ 100% PWM / 12V (mm H2O)0.76
Voltage range (V DC)5 - 12
Input power (W)1.44
Input current (A)0.12
Connector3-pin
Lifespan (h / 25°C)80,000
Fan controller3-step fan controller (3x 3-pin)

Optional fan installation

Front (mm)2x 140 / 2x 120
Top (mm)3x 140 / 3x 120
Bottom (mm)-
Side panel (mm)-
PSU shroud1x 120

Optional radiator installation

Front (mm)120 / 140 / 240 / 280 / 360
Top (mm)120 / 240 / 360
Bottom (mm)-
Rear (mm)120 / 140

Cooling

Max.construction height of CPU cooler unit (mm)185
Airflow channelFront / Top / Rear

Lighting

RGB LED illumination-
LEDs synchronizable with RGB controller/motherboard-
Expandable RGB controller-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)288
Maximum dimensions incl. bottom fan (mm)288

Graphics card

HDD cage (in height of graphics card) installed (mm)287
HDD cage (in height of graphics card) removed (mm)449

Insulation and damping

Top panel insulation mats
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray

Removeable dust filters

Front1
Bottom1
Side panel0

Accessories

Screw set (Drives/Motherboard)
Rubber rail (pcs.)-
Standoff (pcs.)1 (for E-ATX)
LCS bracket (pcs).0
HDD slot cover (pcs.)0
Upper fan bracket (pcs.)0
HDD panel rubber grommet (pcs.)-
SSD bracket for PSU shroud0
LED strips (pcs.)-
Cable ties (pcs.)6 (Velcro)

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data, RRP

Article numberBG025
EAN code4260052186992
CertificationsCE / RoHS
Dimensions, package (L x W x H), (mm)565 x 325 x 615
Gross weight, package (kg)12.50
Pieces per packaging unit1
RRP (€)119.90
