SILENT BASE 601

Window Orange

SILENT BASE 601

Window Orange

Excellent silence and usability

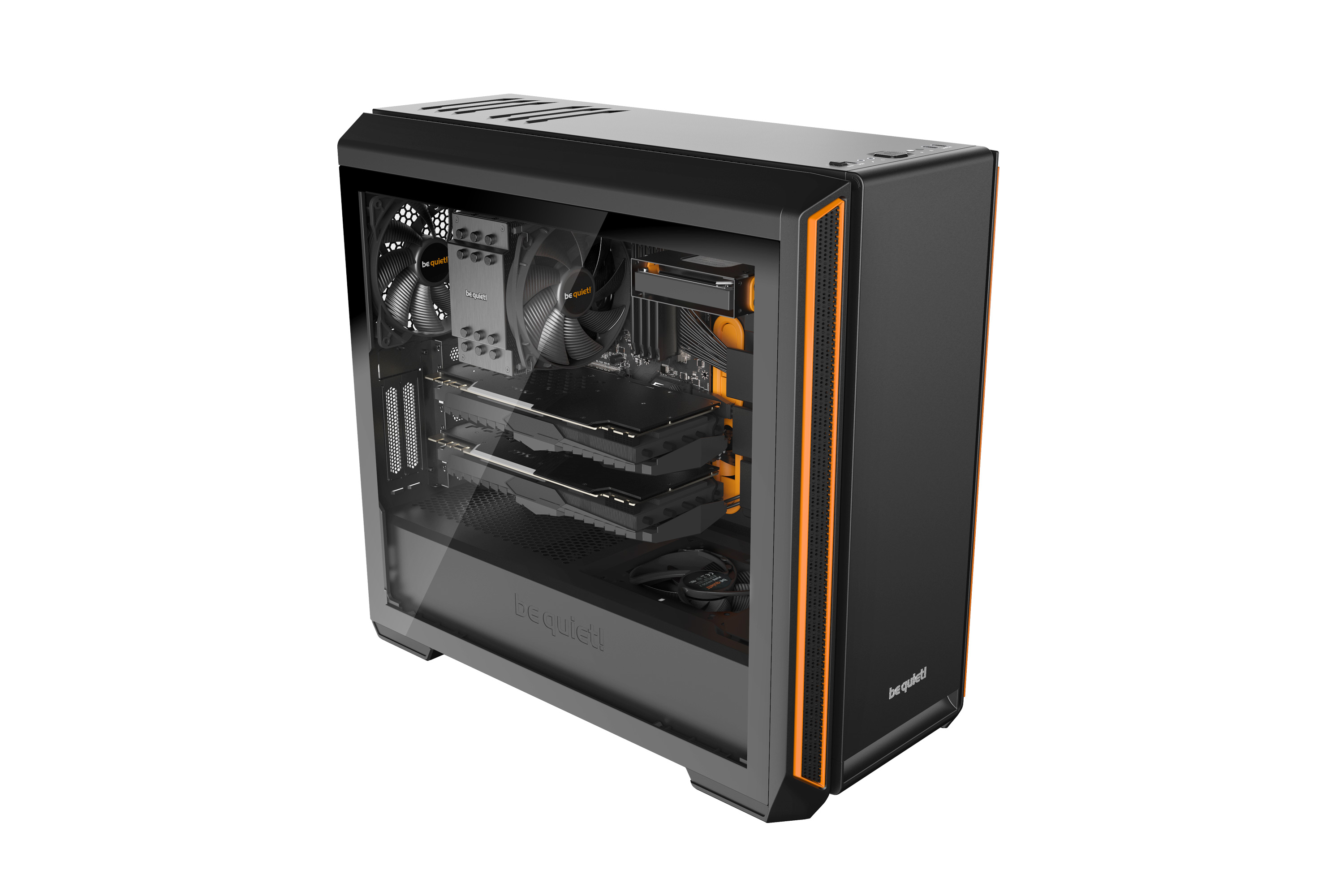

be quiet! Silent Base 601 Window Orange delivers the perfect combination of maximum silence and an excellent usability for remarkably quiet configurations.

  • Noise dampening vents provide excellent air permeability with maximum silence
  • Extra thick insulation mats of 10mm in the front, top and sides
  • 2 preinstalled Pure Wings 2 140mm fans
  • 3-step fan controller caters for up to three fans
  • PSU shroud and smart HDD slot covers provide a neat interior
  • Ready for radiators up to 360mm
  • Side panel made of tinted and tempered glass
  • 3 years manufacturer’s warranty
  • Product conception, design and quality control in Germany
No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.

NOISE DAMPENING VENTS

Minimize noise and maximize airstream

The air inlets on the front cater for maximum silence with a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.

SUPERB NOISE DAMPENING

Extra thick insulation for maximum stability and silence

The front, top and sides are equipped with extra thick dampening mats of 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

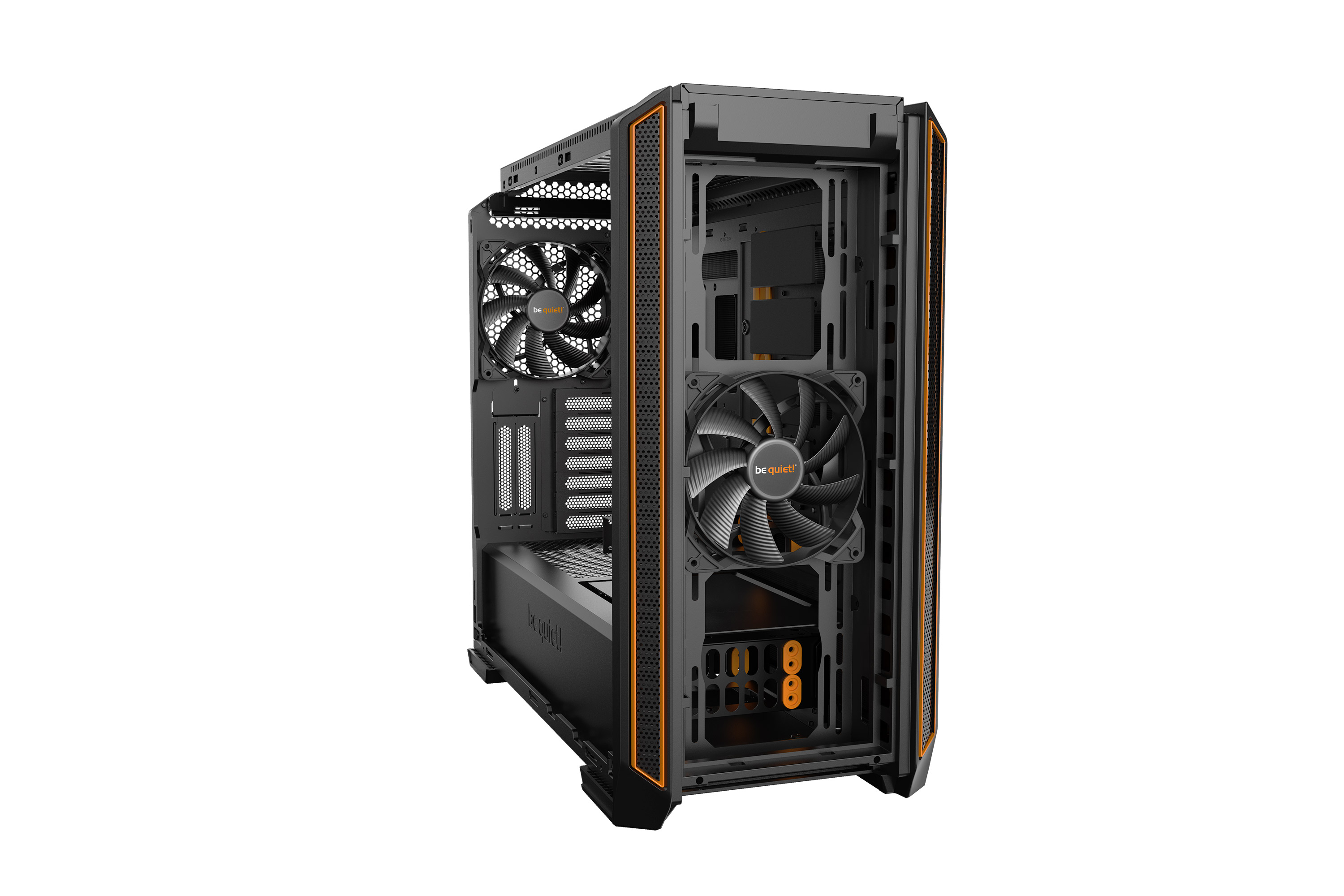

PRE-INSTALLED PURE WINGS 2

Whisper-quiet operation

2 pre-installed Pure Wings 2 140mm fans with airflow-optimized fan blades ensure a perfect airflow and solid cooling. The integrated 3-step fan controller caters for up to 3 fans.

FUNCTIONAL PSU SHROUD

Offering a neat interior

The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 120mm fan on the top. With the small cover detached a 360mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.

CONVENIENT TO HANDLE

Easy access for all kinds of modifications

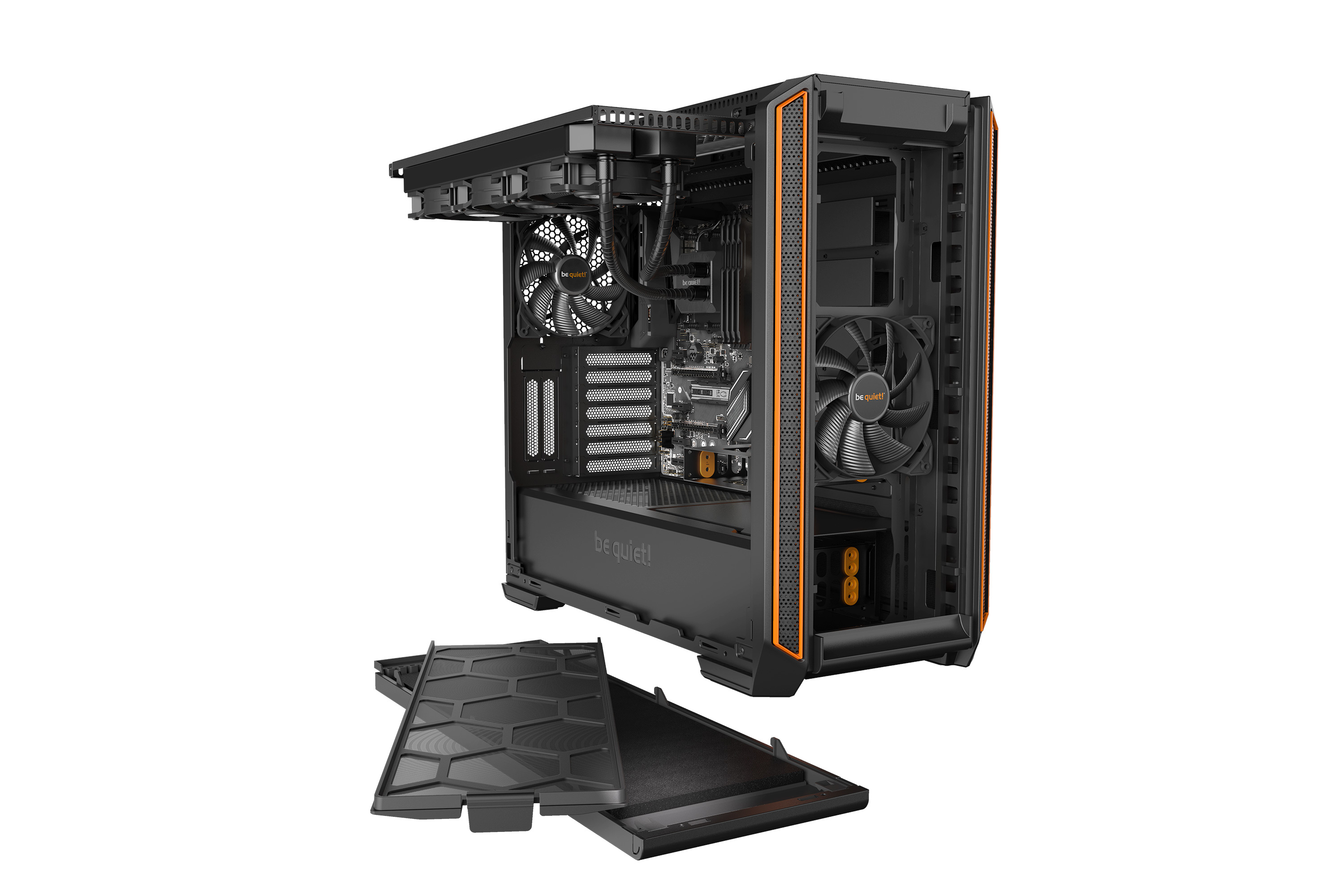

The high-end side panels provide a mounting system with push-pins for secure and user-friendly detachment. By depressing the push-pins the locking mechanism releases the upper part of the side panel and this hovers safely until removed manually. Excellent usability for fast and easy access to the interior of the case.

GENEROUS SPACE, SMART DESIGN

Designed for all kinds of high-end hardware

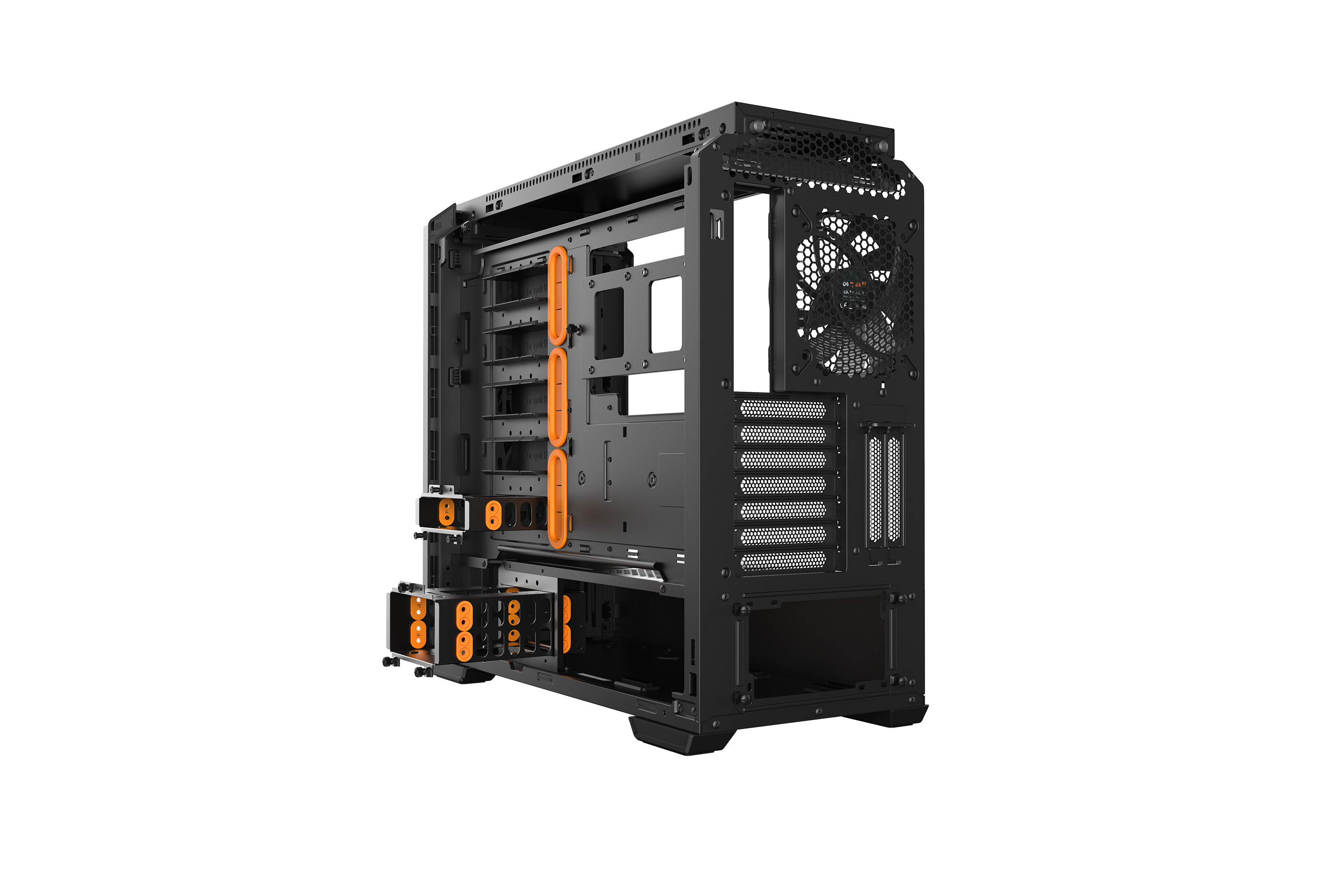

Despite its compact design the Silent Base 601 Window provides generous dimensions and cutouts even for installing an E-ATX motherboard. The smart arrangement of components also allows multiple graphics cards and large coolers to fit in well.

EASY INSTALLATION OF RADIATORS

Optimized for water-cooled systems

With its optimized design Silent Base 601 Window is the perfect case for water cooling. Radiators of up to 360mm can be installed at the front, top and rear. Using the detachable bracket radiators can be installed very quickly and easily at the top.

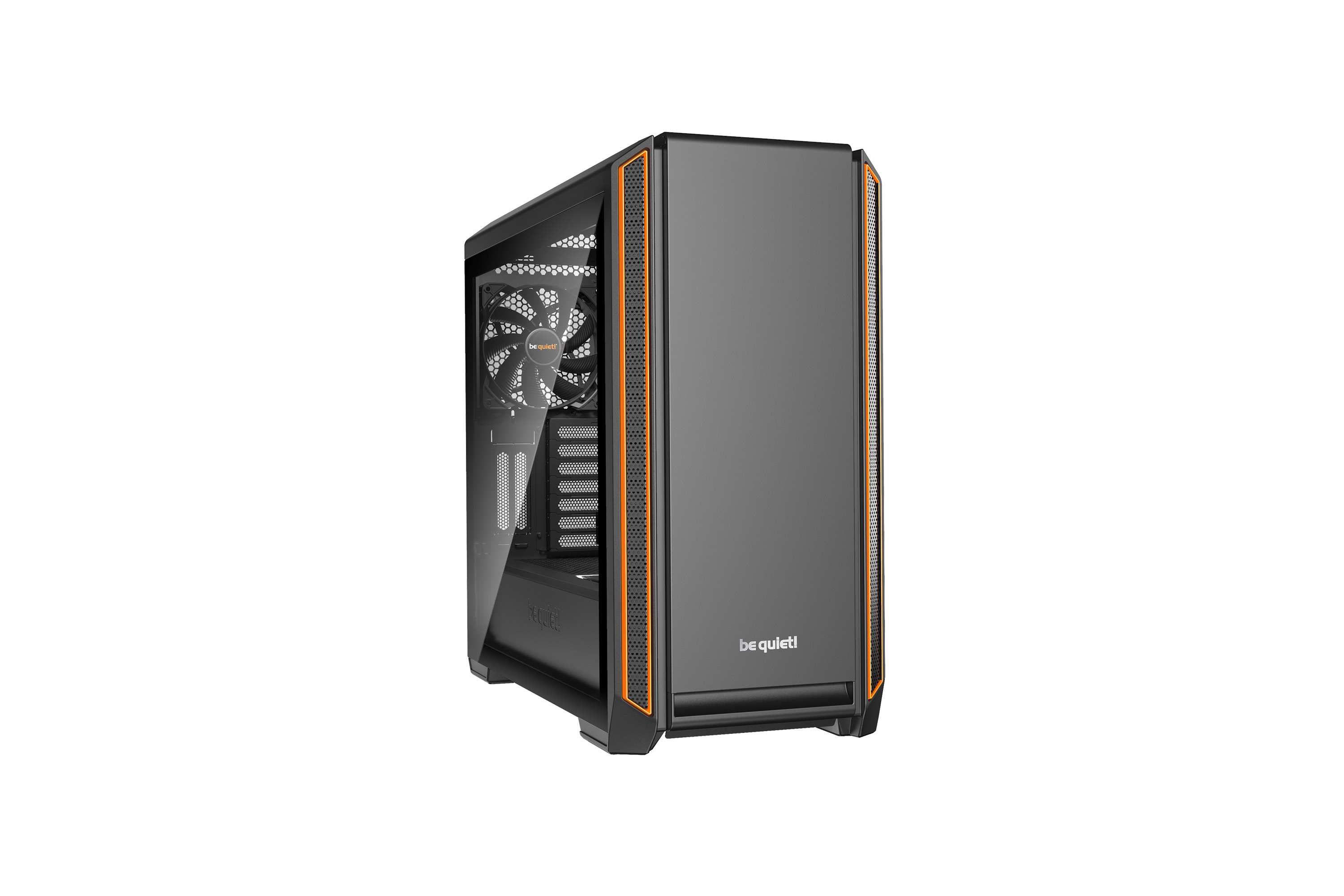

GLASS WINDOW

A perfect view inside your PC

The elegant, windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.

“Everything about this case has been developed to provide a maximum silent experience. Equipped with extra thick noise-dampening mats this case Silent Base 601 holds up even to the highest standards in terms of noise reduction.”

Bryan Lu, Leader of PC Cases

All models at a glance:

Product Series

General data

ModelSilent Base 601 Window Orange
Color optionOrange
Motherboard compatibilityE-ATX (30.5 x 27.5cm) / ATX / M-ATX / Mini-ITX

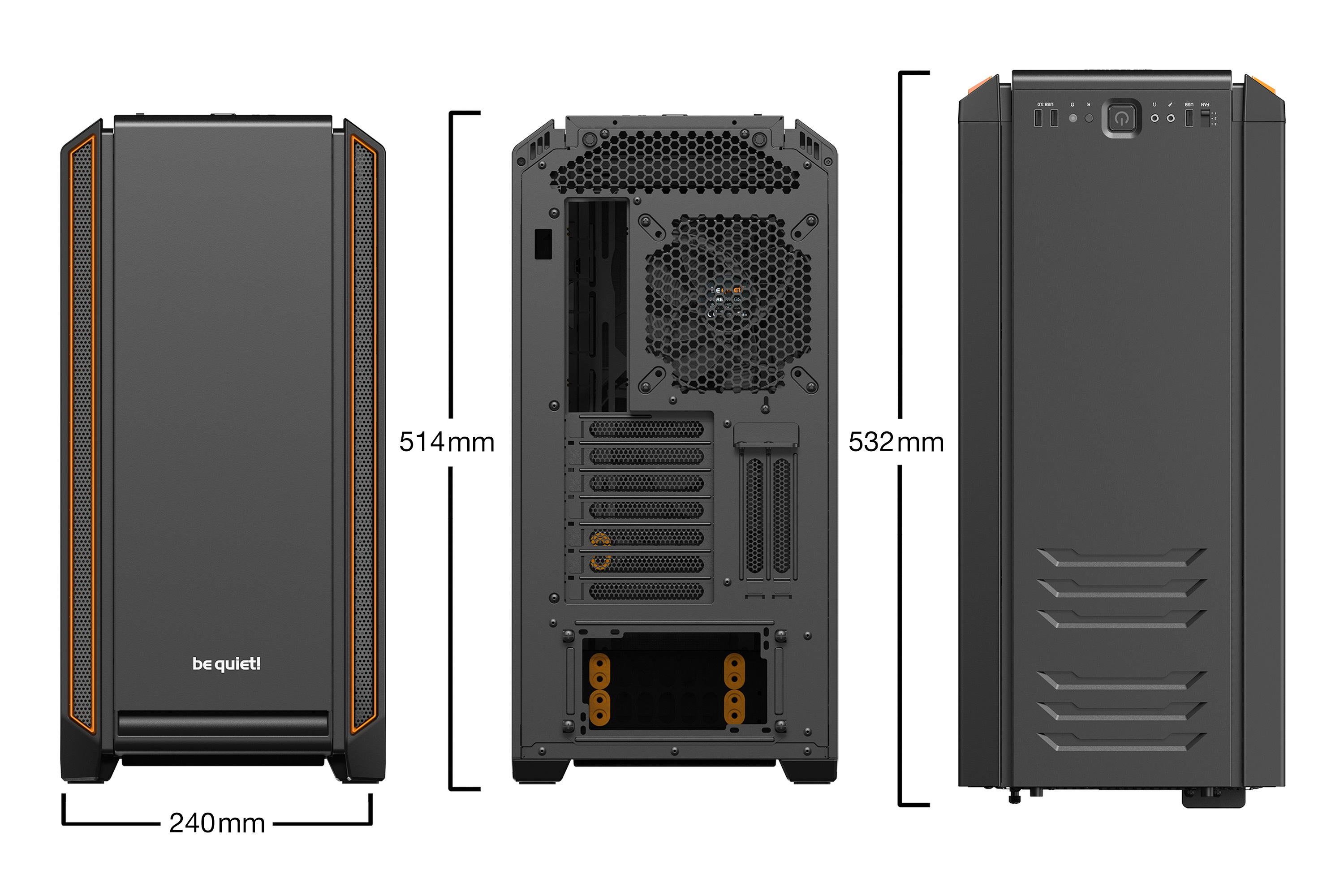

Case size excl. stands (L x W x H), (mm)553 x 245 x 484
Case size incl. stands (L x W x H), (mm)553 x 245 x 502
Volume (l)65.57
PSU form factorATX PS/2
Net weight (kg)11.2
Expansion slots7 + 2

Infographics

open all / close all

Pre-installed fans

Fan at top-
Fan at front1x Pure Wings 2 140mm
Fan at side-
Fan at rear1x Pure Wings 2 140mm
Fan at bottom-
Dimensions (L x W x H), (mm)Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm)1000
Airflow at 100% PWM / 12V (CFM / m3/h)61.2 / 104.0
Air Pressure at 100% PWM / 12V (mm H2O)0.76
Noise level at 100% PWM / 12V (dB(A))18.8
Voltage range (V DC)5 - 12
Input power (W)1.4
Input current (A)0.12
Connector3-pin
Lifespan (h / 25°C)80,000
Fan controller3-step fan controller (3x 3-pin)

Maximum fan installation

Maximum fans8
Top (mm)3x 120 / 3x 140
Front (mm)3x 120 / 3x 140
Side (mm)-
Rear (mm)1x 140
Bottom (mm)-
PSU shroud1x 120

Optional radiator installation

Top (mm)120 / 240 / 360
Front (mm)120 / 140 / 240 / 280 / 360
Side (mm)-
Rear (mm)120 / 140
Bottom (mm)-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)288
Maximum dimensions incl. bottom fan (mm)288

Graphics card

HDD cage (in height of graphics card) installed (mm)287
HDD cage (in height of graphics card) removed (mm)449
Maximum PCIe slots with vertical graphics card (pcs.)2

Drive bay capacity

5.25 bays (pcs.)-
3.5 slots (scope of delivery)3
3.5 slots (max.)7
2.5 slots (scope of delivery)6
2.5 slots (max.)14

Cooling

Max.construction height of CPU cooler unit (mm)185
Airflow channelFront / Top / Rear

Lighting

LED illumination-
LEDs (pcs.)-
LED type-
LEDs synchronizable with controller/motherboard-

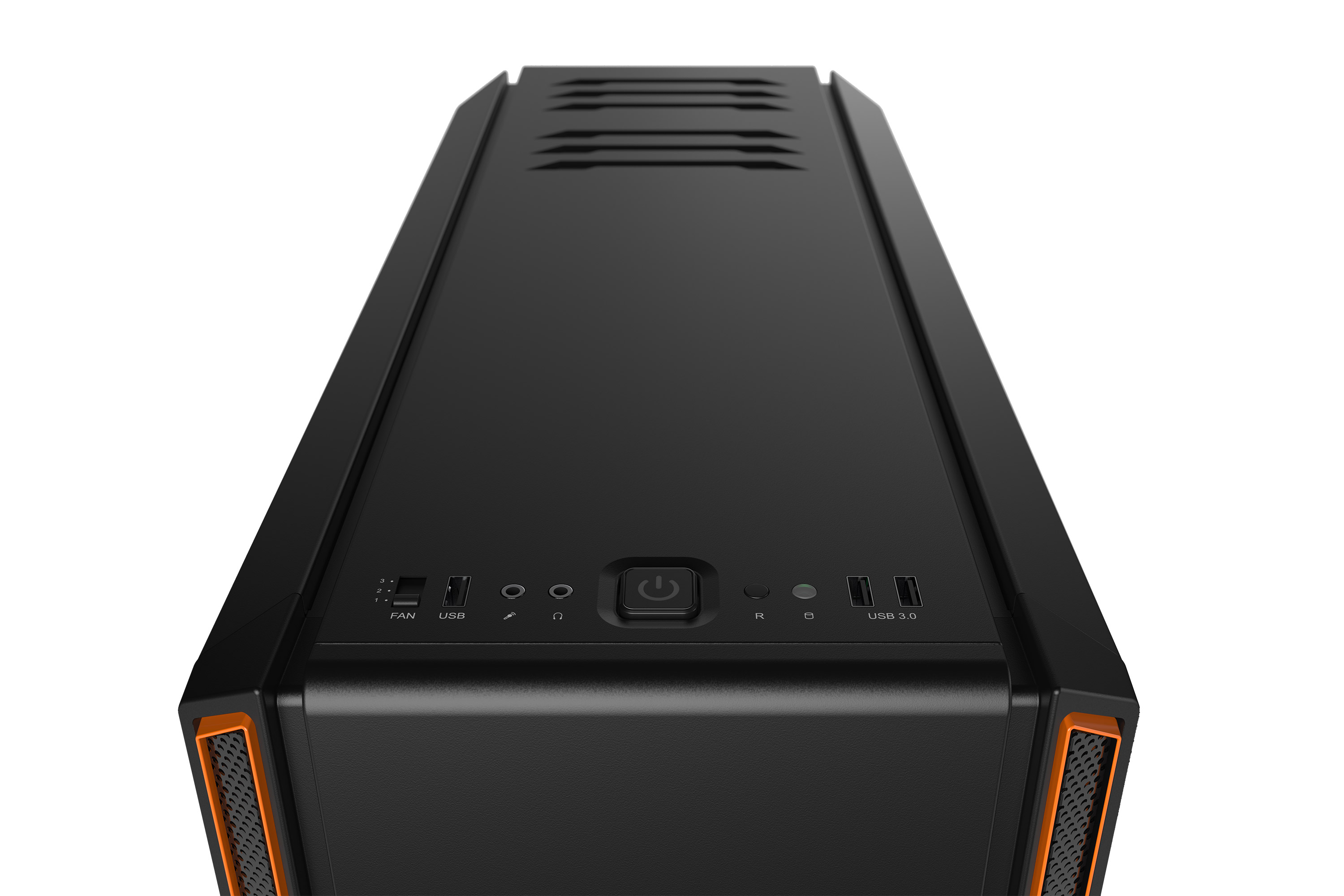

I/O Panel

USB 3.2 Gen. 2 Type C-
USB 3.2 Type A2
USB 2.01
HD Audio I/OMic + Audio
Qi charger / Quick Charging Option (W)-

Insulation and damping

Top panel insulation mats
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray

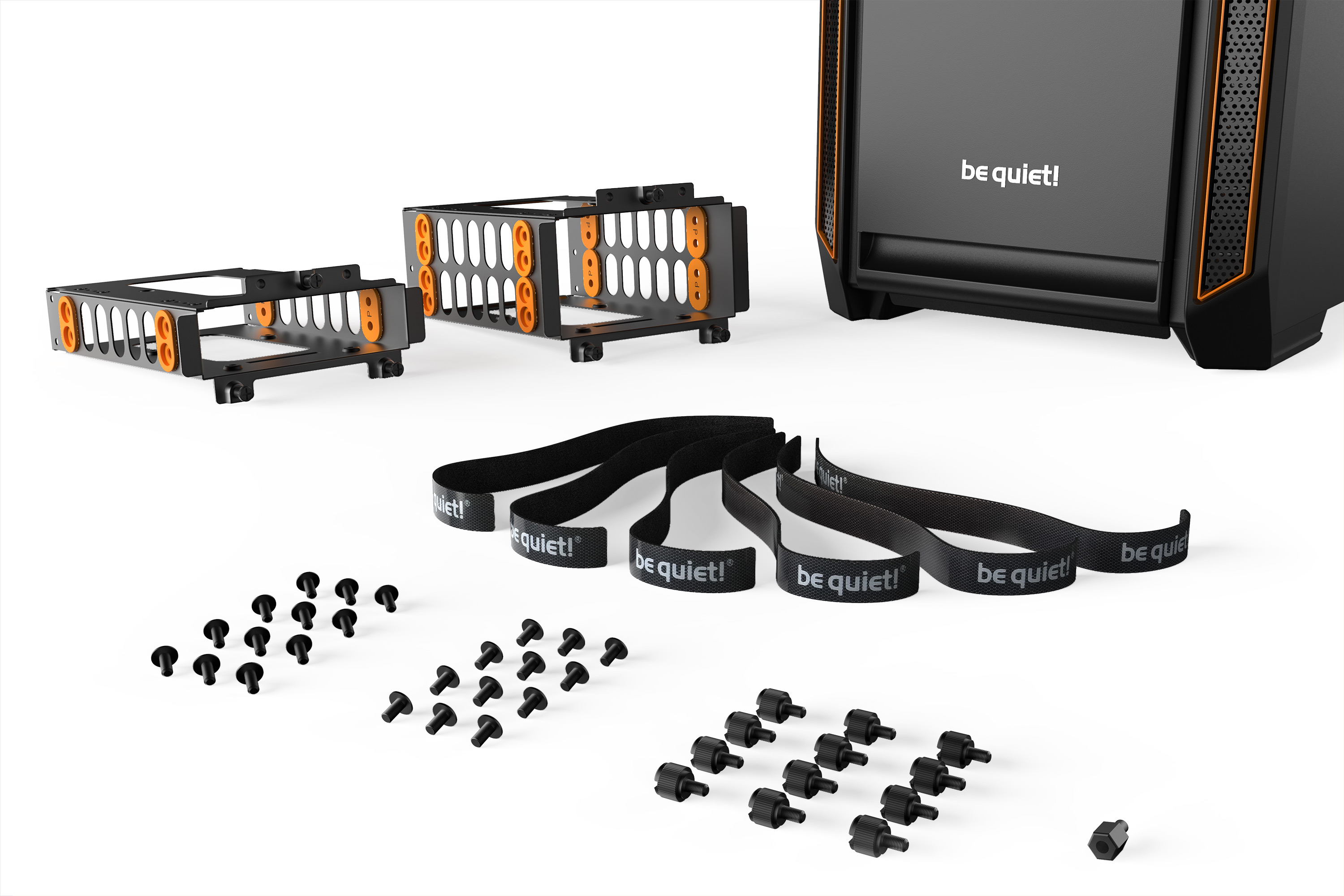

Scope of delivery

Screw set (Drives/Motherboard)
Additional standoffs (pcs.)1 (for E-ATX)
SSD bracket for PSU shroud-
LED strips (pcs.)-
Cable ties (pcs.)6 (Velcro)
Screw box-
VGA holder-
VGA holder for inverted layout-
Mesh Front Panel-
ODD Bracket-
Fan / Radiator bracket for multi mounting panel-

Removeable dust filters

Top-
Front1
Side-
Bottom1

Material

Top coverABS / Steel
Front panelABS / Steel
Side panel-
Side panel windowTempered glass / Steel
StandsABS

Safety certification

ApprovalsCE, UKCA

Environmental directives

RoHS
Reach
WEEE-
Triman

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR, US

Logistics data and RRP

Article numberBGW25
EAN code4260052187029
Dimensions, package (L x W x H), (mm)566 x 325 x 615
Gross weight, package (kg)13.23
Pieces per packaging unit1
RRP (€)164.90
