Article number: BG029



Excellent silence and usability

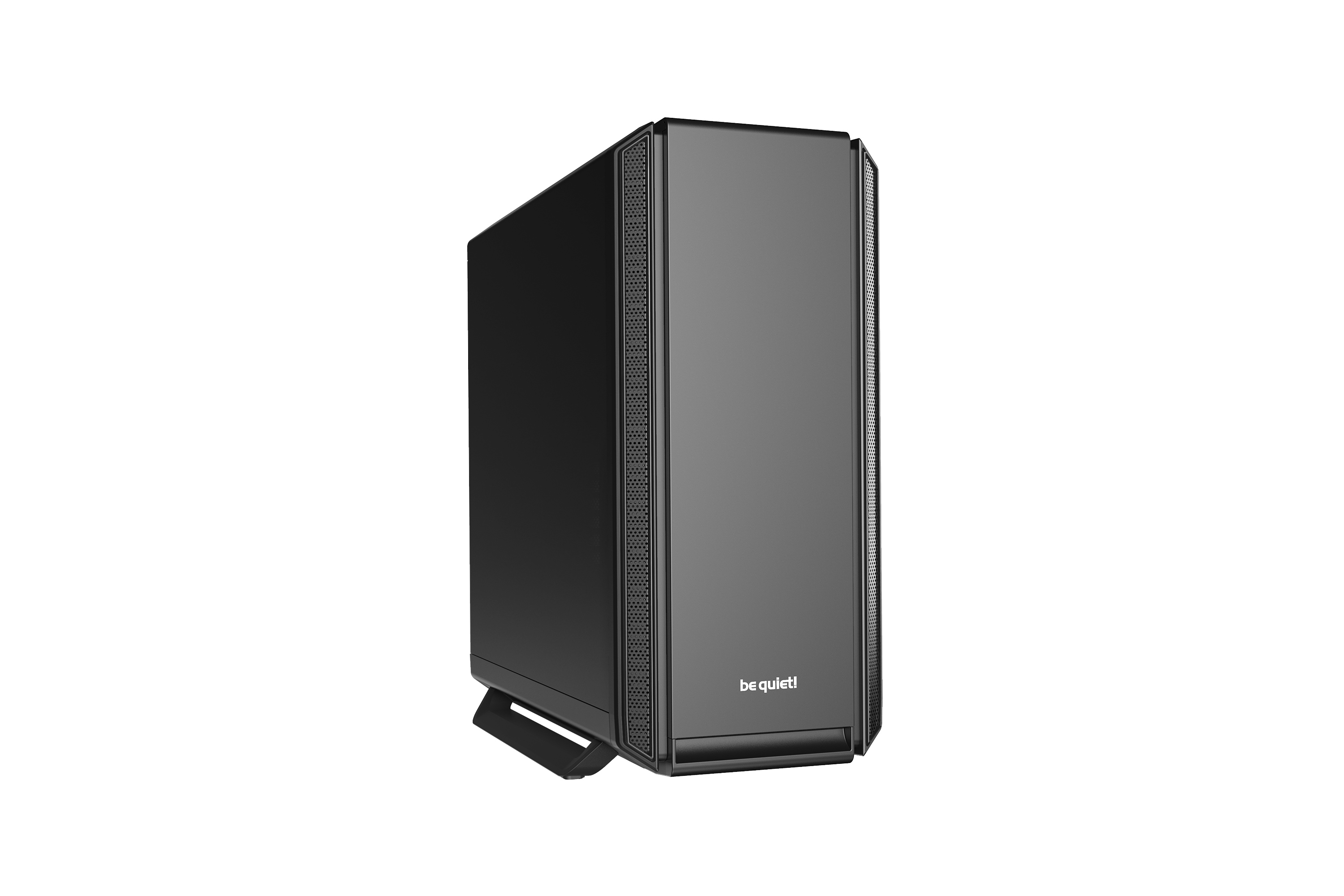

be quiet! Silent Base 801 Black delivers the perfect combination of maximum silence and an excellent usability for remarkably quiet configurations.

  • Noise dampening vents provide excellent air permeability with maximum silence
  • Extra thick insulation mats of 10mm
  • Three preinstalled Pure Wings 2 140mm fans
  • Detachment of the side panels with push pins
  • The PSU shroud provides a neat interior
  • Decoupled motherboard tray can be relocated for an inverted layout
  • Full metal body provides stability
  • Ready for radiators up to 420mm
  • Three years manufacturer’s warranty


Minimize noise and maximize airstream

The air inlets on the front cater for maximum silence with a constant amount of air permeability. The specially designed vents reroute the inflowing air twice to reduce airborne noise.


Extra thick insulation for maximum stability and silence

The front, top and sides are equipped with extra thick dampening mats of 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket, motherboard tray and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.


Whisper-quiet operation

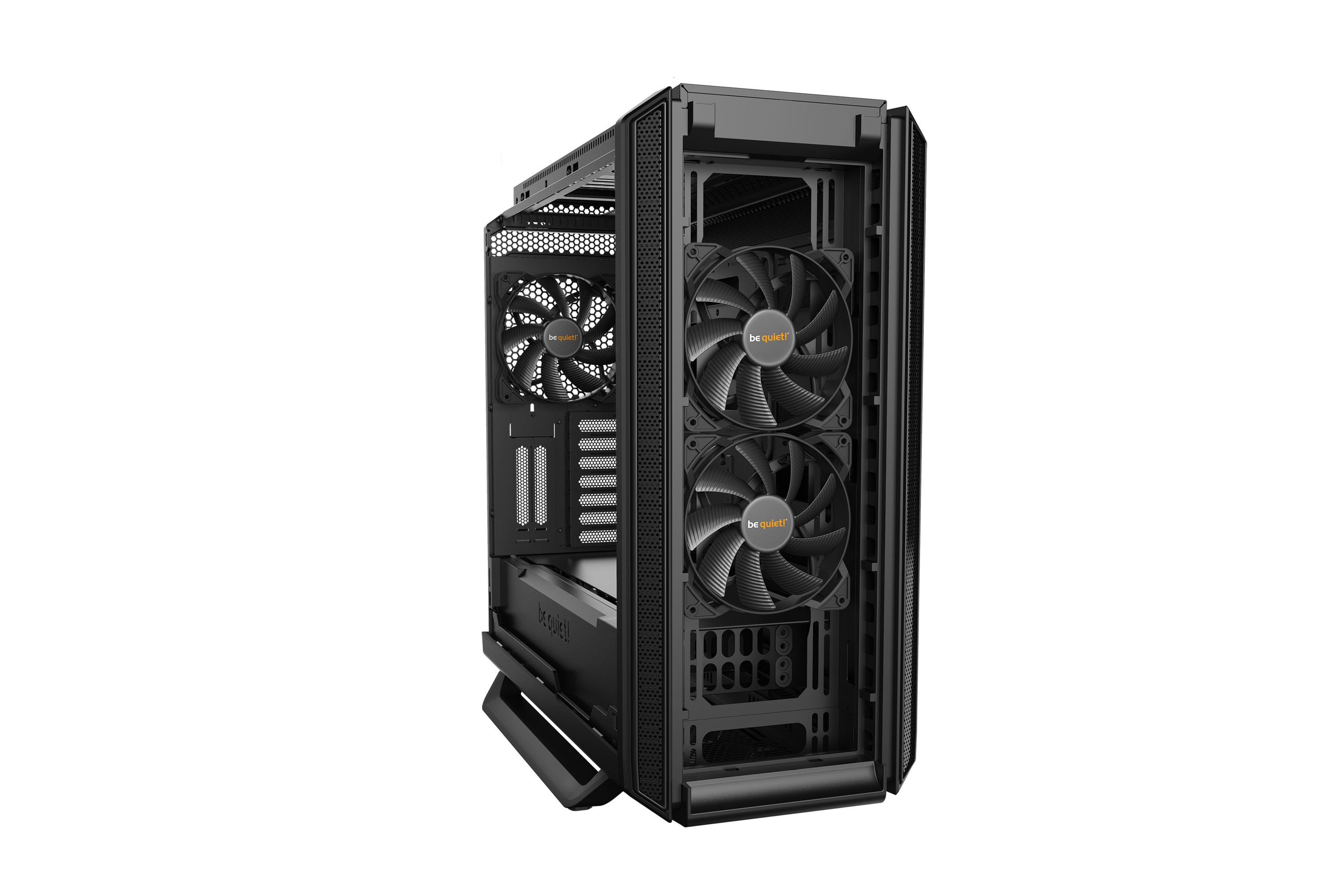

Three preinstalled Pure Wings 2 140mm fans with airflow-optimized fan blades ensure a perfect airflow and solid cooling. The integrated 3-step fan controller allows to set the speed of up to six fans manually or connect all to one PWM signal.


Offering a neat interior

The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm or 420mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.


Easy access for all kinds of modifications

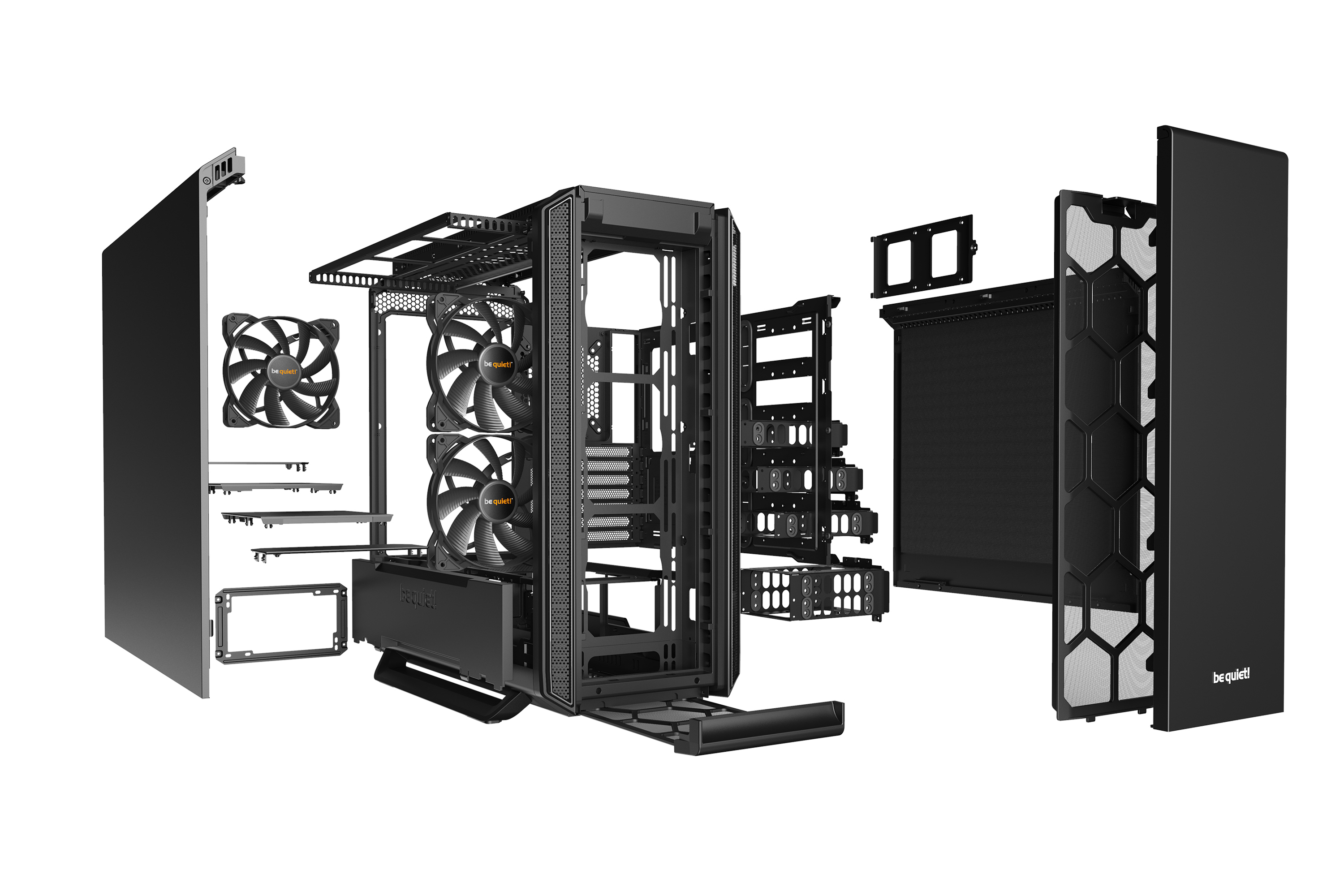

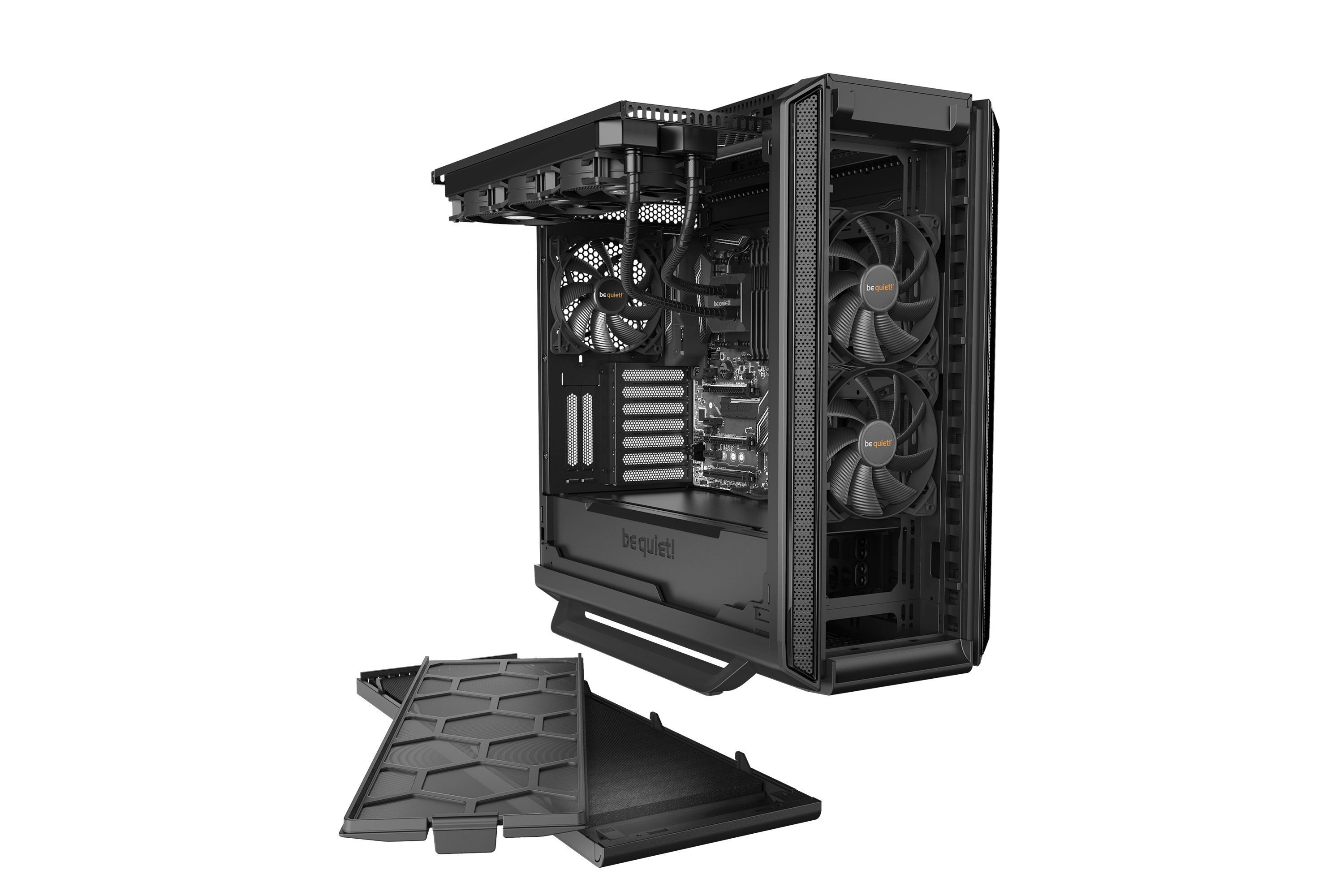

The high-end side panels provide a mounting system with push-pins for secure and user-friendly detachment. By depressing the push-pins the locking mechanism releases the upper part of the side panel and this hovers safely until removed manually. Excellent usability for fast and easy access to the interior of the case.


Designed to fit individual requirements

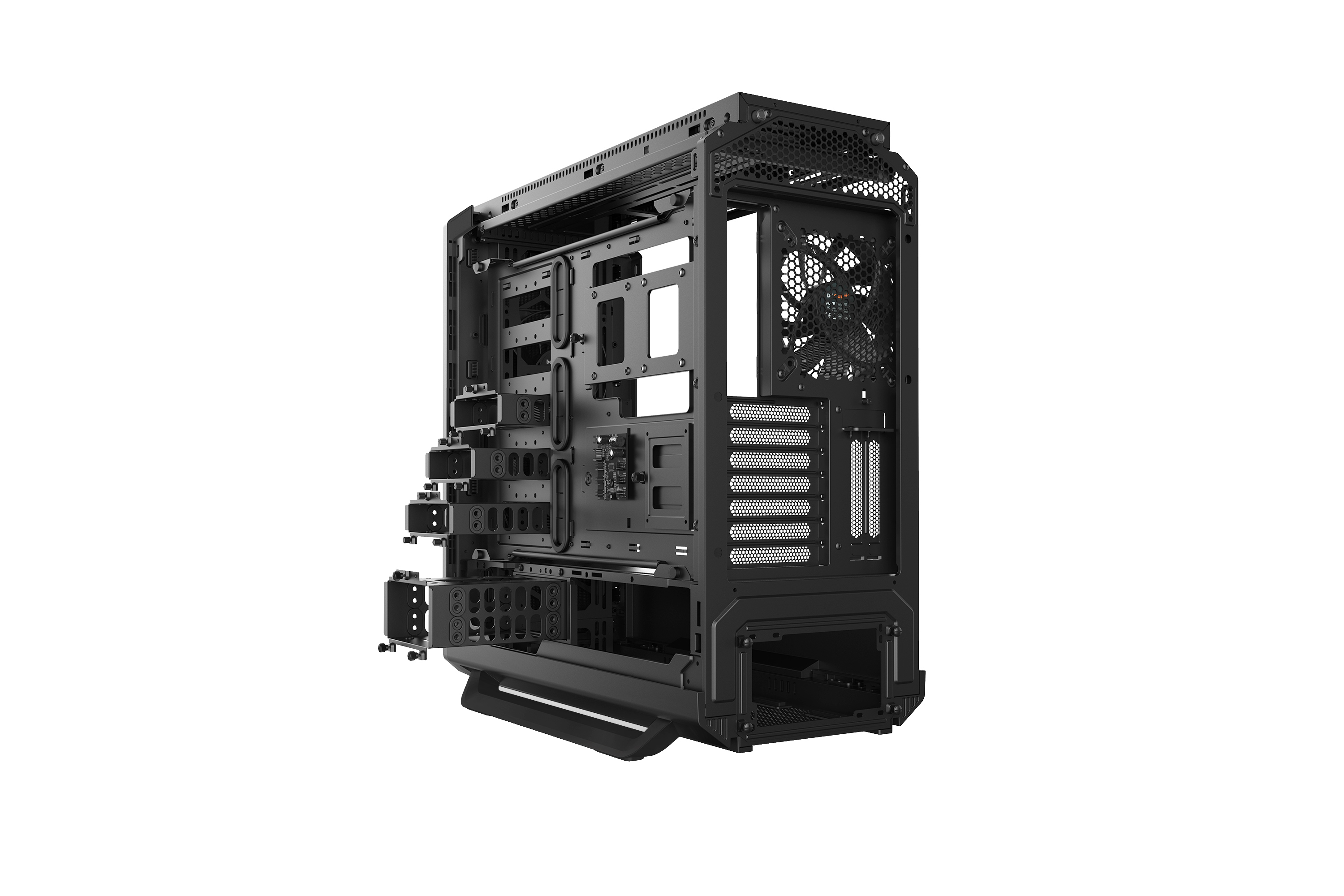

The motherboard tray is decoupled and can be installed alongside the left panel in an inverted layout. It is also removable for use as a test bench.


Designed for all kinds of high-end hardware

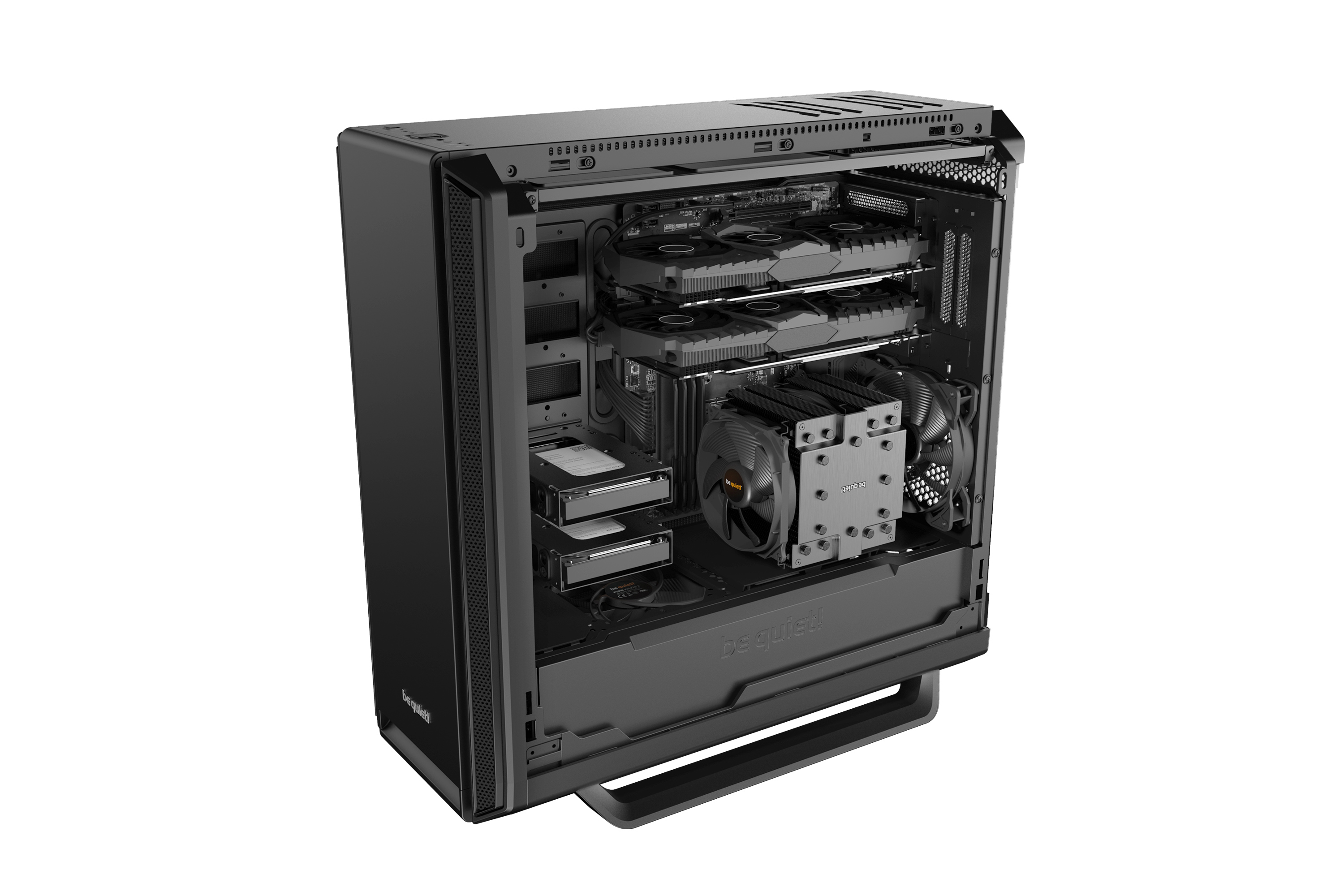

The Silent Base 801 provides generous dimensions and cutouts to install most kinds of hardware, even an E-ATX motherboard. The smart arrangement of components allows multiple graphics cards and large coolers to fit in well. Three HDD cages are included and can be installed for individual needs.


Optimized for water-cooled systems

With its optimized design Silent Base 801 is the perfect case for water cooling. Radiators of up to 420mm can be installed at the front, top and rear. Using the detachable bracket radiators can be installed very quickly and easily at the top.

All models at a glance:


General data

ModelSilent Base 801 Black
PSU form factorATX PS/2
Motherboard compatibilityE-ATX / ATX / M-ATX / Mini-ITX

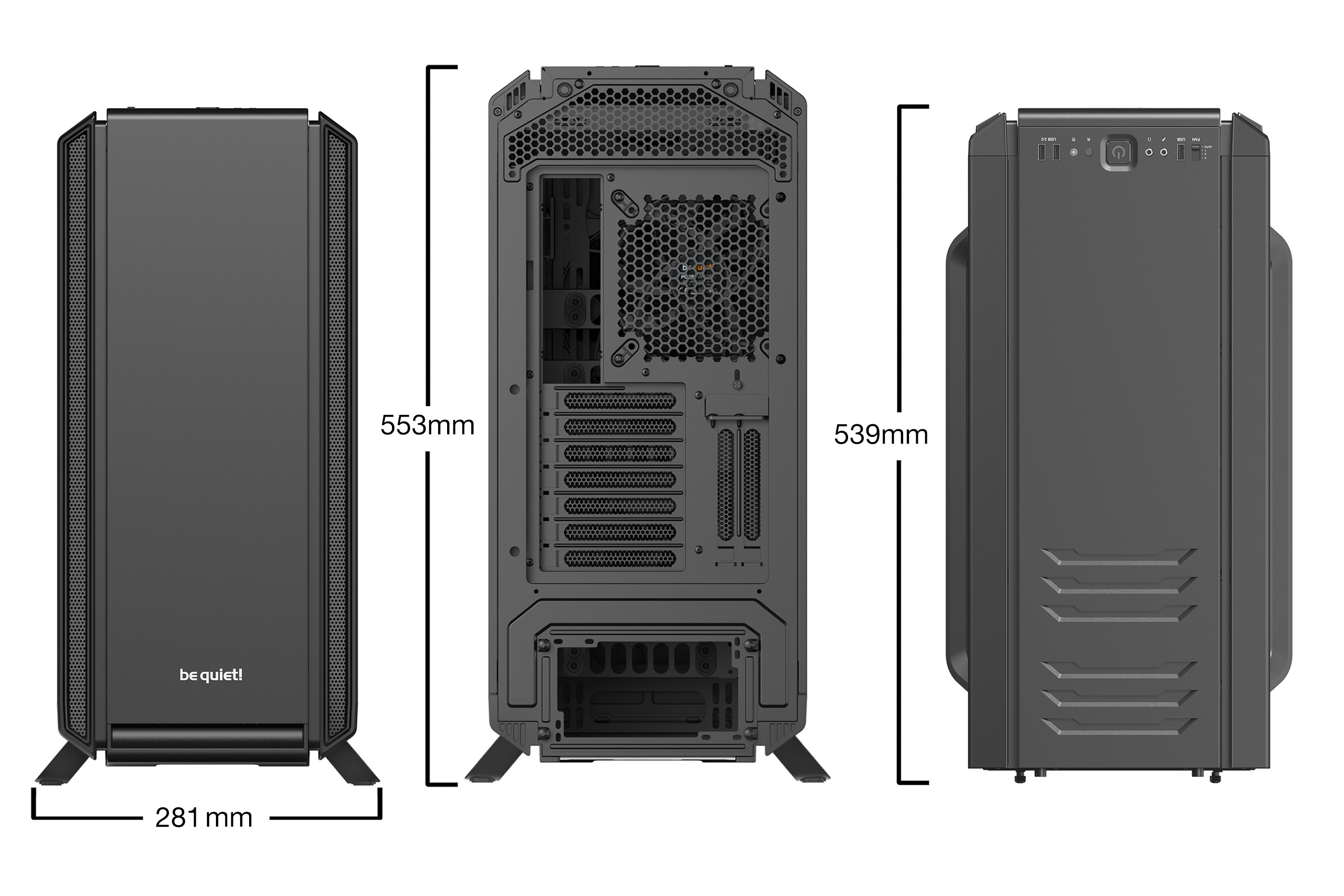

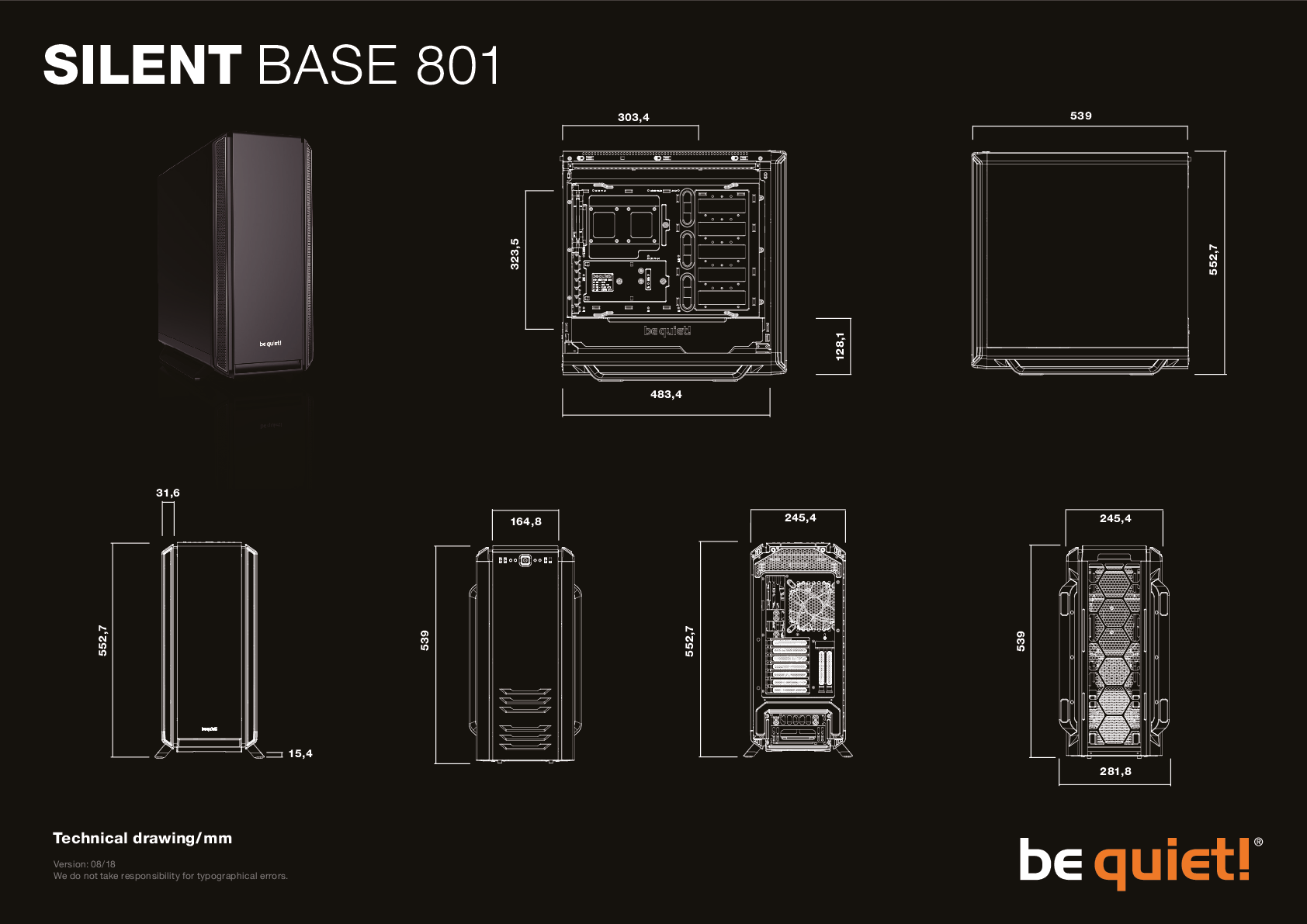

Case size excl. stands (L x W x H), (mm)539 x 245 x 507
Installation of motherboards with backplate
Case size incl. stands (L x W x H), (mm)539 x 281 x 553
Dimensions side panel window (L x W), (mm)440 x 498
Color optionBlack
Weight (kg)10.82

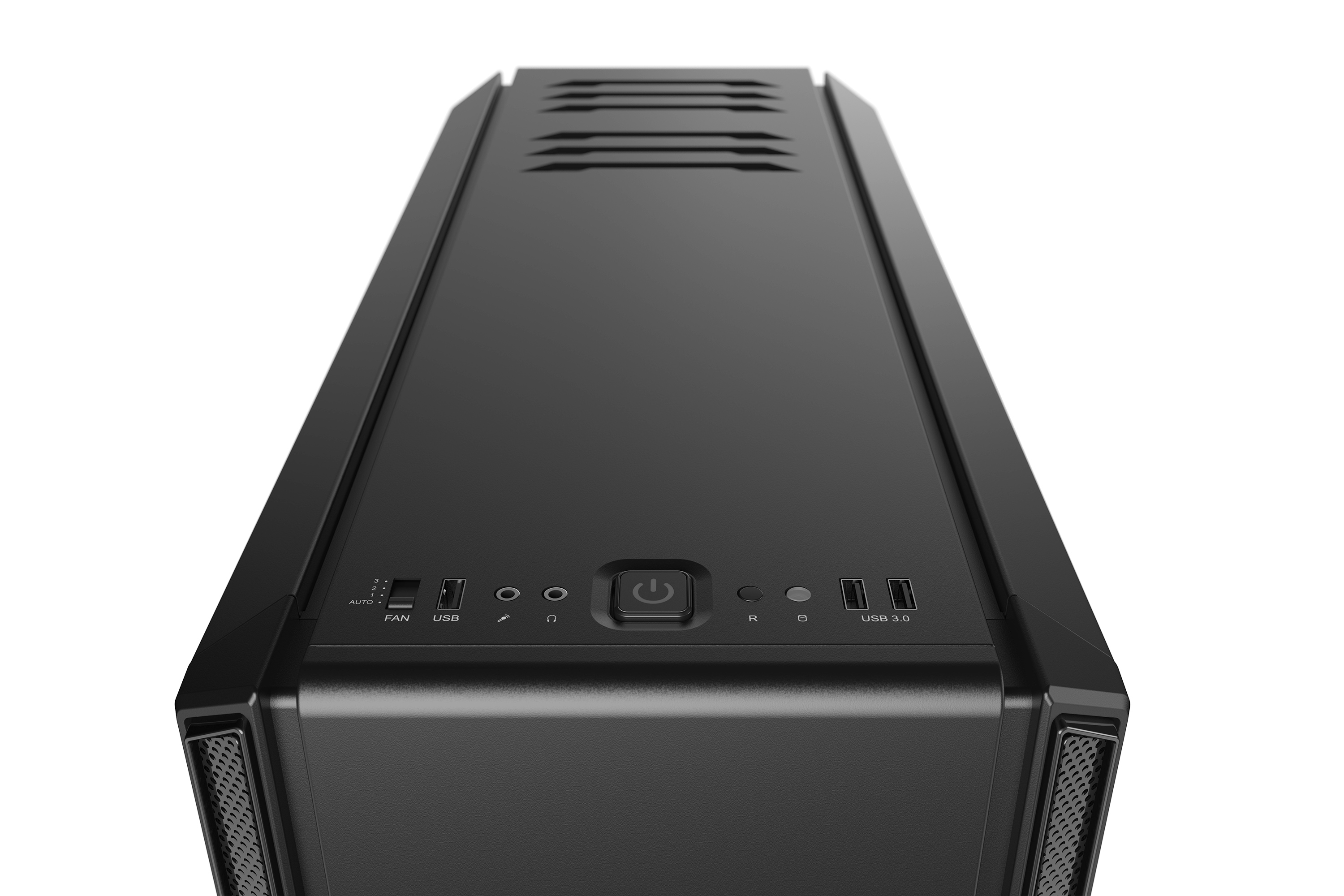

USB 2.01
USB 3.2 Gen. 12
USB 3.2 Gen. 2 Type C-
HD Audio I/OMic + Audio
Expansion slots7 + 2
Fan mounting locationsFront / Rear / Top / PSU Shroud
Qi charger / Quick Charging Option-


open all / close all


Top coverABS / Steel
Side panelABS / Steel
Side panel window-
Front panelABS / Steel

Drive bay capacity

5.25 bays-
3.5 slots (max.)7
3.5 slots (scope of delivery)5
2.5 slots (max.)15
2.5 slots (scope of delivery)11

Pre-installed fans

Fan @ top-
Fan @ front2x Pure Wings 2 140mm
Fan @ rear1x Pure Wings 2 140mm
Dimensions (L x W x H), (mm)Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
Fan speed @ 100% PWM / 12V (rpm)1000
Noise level @ 100% PWM / 12V (dB(A))18.8
Airflow @ 100% PWM / 12V (CFM / m3/h)61.2 / 104
Air Pressure @ 100% PWM / 12V (mm H2O)0.76
Voltage range (V DC)5 - 12
Input power (W)1.44
Input current (A)0.12
Lifespan (h / 25°C)80,000
Fan controller4-step fan controller (6x 3-pin) with PWM Hub

Optional fan installation

Front (mm)1x 120 / 1x 140
Top (mm)3x 120 / 3x 140
Bottom (mm)-
Side panel (mm)-
PSU shroud1x 120 / 1x 140

Optional radiator installation

Front (mm)120 / 140 / 240 / 280 / 360 / 420
Top (mm)120 / 240 / 360
Bottom (mm)-
Rear (mm)120 / 140

Cooling height of CPU cooler unit (mm)185
Airflow channelFront / Top / Rear


RGB LED illumination-
LEDs synchronizable with RGB controller/motherboard-
Expandable RGB controller-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)288
Maximum dimensions incl. bottom fan (mm)288

Graphics card

HDD cage (in height of graphics card) installed (mm)287
HDD cage (in height of graphics card) removed (mm)449

Insulation and damping

Top panel insulation mats
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray

Removeable dust filters

Side panel-

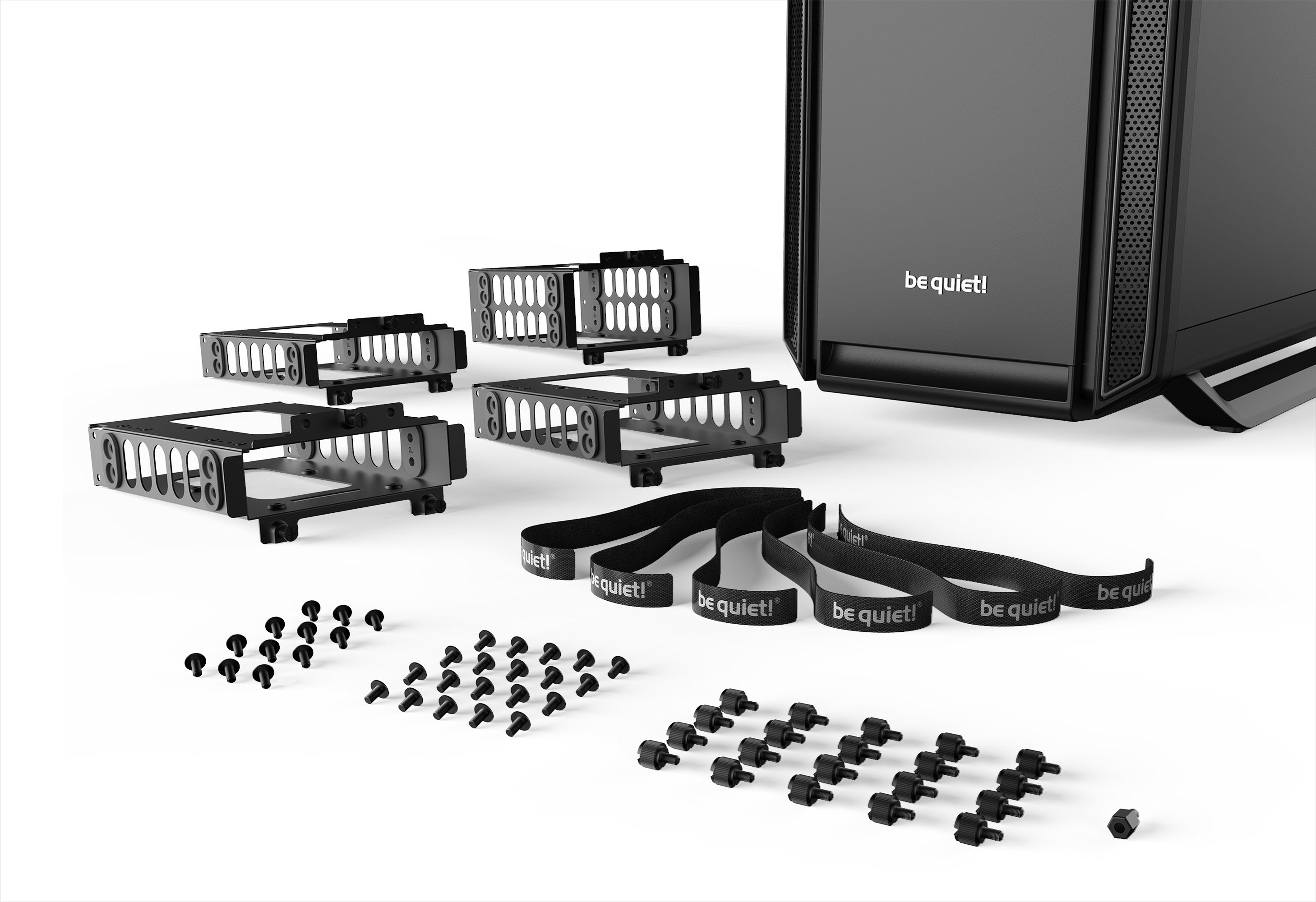

Screw set (Drives/Motherboard)
Rubber rail (pcs.)-
Standoff (pcs.)1 (for E-ATX)
LCS bracket (pcs).-
HDD slot cover (pcs.)-
Upper fan bracket (pcs.)-
HDD panel rubber grommet (pcs.)-
SSD bracket for PSU shroud-
LED strips (pcs.)-
Cable ties (pcs.)6 (Velcro)


Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data, RRP

Article numberBG029
EAN code4260052187067
CertificationsCE / RoHS
Dimensions, package (L x W x H), (mm)651 x 323 x 615
Gross weight, package (kg)12.78
Pieces per packaging unit1
RRP (€)139.90
