Article number: BGW35

PURE BASE 500

Window White

Outstanding price-performance ratio

be quiet! Pure Base 500 Window White combines customizable and silence features with a compact and sophisticated design.

  • Exchangeable top cover for silent or high-performance systems
  • 2 preinstalled Pure Wings 2 140mm fans
  • Insulation mats on the front, sides and the regular top cover
  • Water cooling ready for radiators of up to 360mm
  • Generous space for high-end graphics cards and large coolers
  • Various options to install up to 5 SSDs in total
  • PSU shroud and smart cable routing options provide a neat interior
  • Easy PSU installation from the back of the case
  • Side panel made of tempered glass
No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.

REGULAR TOP COVER

Perfect for silent air-cooled systems

The regular top cover perfectly rounds off the design of the Pure Base 500. An insulation mat attached underneath ensures a silent operation. It is the perfect choice for air-cooled systems and regular, silent PC configurations. Strong magnets make sure the top covers fits firmly.

HIGH-PERFORMANCE TOP COVER

Maximum airflow for water-cooled configurations

For all who strive for maximum performance and especially with water-cooled systems, the extremely air-permeable top cover is the right choice. It is made of light meshed fabrics, ensuring the highest airflow possible.

TWO PREINSTALLED PURE WINGS 2

Whisper-quiet operation

Two preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the front and rear fans are both 140mm models, resulting in very quiet operation. Up to three 140mm fans can be installed in addition.

NOISE DAMPENING

Achieving great silence and stability

The front, sides and regular top cover are equipped with insulation mats that result in great stability and improved noise dampening capabilities. The dust filters on the front and bottom are easy to remove for cleaning.

SOPHISTICATED DESIGN

Generous space for high-end hardware

The Pure Base 500 provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator up to 240mm.

EYE-CATCHING FEATURES

And great cable routing possibilities

Pure Base 500 offers various possibilities for installing up to 5 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.

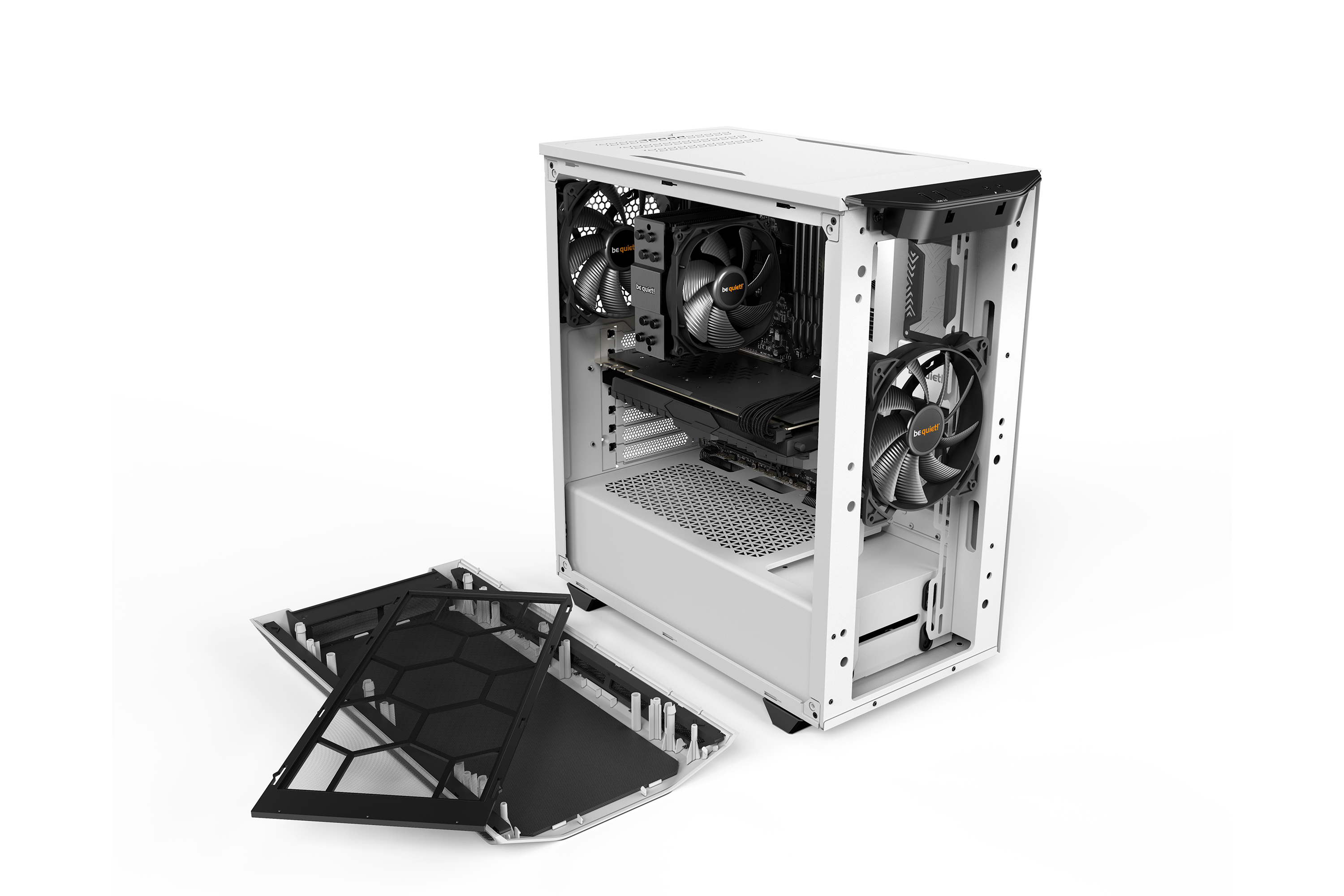

FUNCTIONAL PSU SHROUD

Offering a neat interior

The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.

TEMPERED GLASS WINDOW

A perfect view inside your PC

The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tempered glass with white painted side bars.

“Equipped with highly functional features in a compact design, Pure Base 500 is the smooth entry into the world of silent PC buildings.”

Bryan Lu, Leader of PC Cases

All models at a glance:

Product Series

General data

ModelPure Base 500 Window White
Color optionWhite
Motherboard compatibilityATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm)450 x 232 x 443
Case size incl. stands (L x W x H), (mm)450 x 232 x 463
Volume (l)46.25
PSU form factorATX PS/2
Net weight (kg)7.53
Expansion slots7

Infographics

open all / close all

Pre-installed fans

Fan at top-
Fan at front1x Pure Wings 2 140mm
Fan at side-
Fan at rear1x Pure Wings 2 140mm
Fan at bottom-
Dimensions (L x W x H), (mm)Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm)900
Airflow at 100% PWM / 12V (CFM / m3/h)55.8 / 94.8
Air Pressure at 100% PWM / 12V (mm H2O)0.6
Noise level at 100% PWM / 12V (dB(A))17.1
Voltage range (V DC)12
Input power (W)1.08
Input current (A)0.09
Connector3-pin
Lifespan (h / 25°C)80,000
Fan controller-

Maximum fan installation

Maximum fans6
Top (mm)2x 120 / 2x 140
Front (mm)3x 120 / 2x 140
Side (mm)-
Rear (mm)1x 140
Bottom (mm)-
PSU shroud-

Optional radiator installation

Top (mm)120 / 240
Front (mm)120 / 140 / 240 / 280 / 360
Side (mm)-
Rear (mm)120 / 140
Bottom (mm)-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)258
Maximum dimensions incl. bottom fan (mm)225

Graphics card

HDD cage (in height of graphics card) installed (mm)369
HDD cage (in height of graphics card) removed (mm)369
Maximum PCIe slots with vertical graphics card (pcs.)-

Drive bay capacity

5.25 bays (pcs.)-
3.5 slots (scope of delivery)2
3.5 slots (max.)2
2.5 slots (scope of delivery)5
2.5 slots (max.)5

Cooling

Max.construction height of CPU cooler unit (mm)190
Airflow channelFront / Top / Rear

Lighting

LED illumination-
LEDs (pcs.)-
LED type-
LEDs synchronizable with controller/motherboard-

I/O Panel

USB 3.2 Gen. 2 Type C-
USB 3.2 Type A2
USB 2.0-
HD Audio I/OMic + Audio
Qi charger / Quick Charging Option (W)-

Insulation and damping

Top panel insulation mats
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan-
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray-

Scope of delivery

Screw set (Drives/Motherboard)
Additional standoffs (pcs.)-
SSD bracket for PSU shroud-
LED strips (pcs.)-
Cable ties (pcs.)6 / 4 (Velcro)
Screw box-
VGA holder-
VGA holder for inverted layout-
Mesh Front Panel-
ODD Bracket-
Fan / Radiator bracket for multi mounting panel-

Removeable dust filters

Top-
Front1
Side-
Bottom1

Material

Top coverABS
Front panelABS
Side panelSteel
Side panel windowTempered glass
StandsABS

Safety certification

ApprovalsCE, UKCA

Environmental directives

RoHS
Reach
WEEE-
Triman

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR, US

Logistics data and RRP

Article numberBGW35
EAN code4260052187807
Dimensions, package (L x W x H), (mm)510 x 285 x 494
Gross weight, package (kg)8.49
Pieces per packaging unit1
RRP (€)104.90
