be quiet! Pure Base 500 Window Red combines customizable and silence features with a compact and sophisticated design.
The regular top cover perfectly rounds off the design of the Pure Base 500 Window Red. An insulation mat attached underneath ensures a silent operation. It is the perfect choice for air-cooled systems and regular, silent PC configurations. Strong magnets make sure the top covers fits firmly.
For all who strive for maximum performance and especially with water-cooled systems, the extremely air-permeable top cover is the right choice. It is made of light meshed fabrics, ensuring the highest airflow possible.
Two preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the front and rear fans are both 140mm models, resulting in very quiet operation. Up to three 140mm fans can be installed in addition.
The front, sides and regular top cover are equipped with insulation mats that result in great stability and improved noise dampening capabilities. The dust filters on the front and bottom are easy to remove for cleaning.

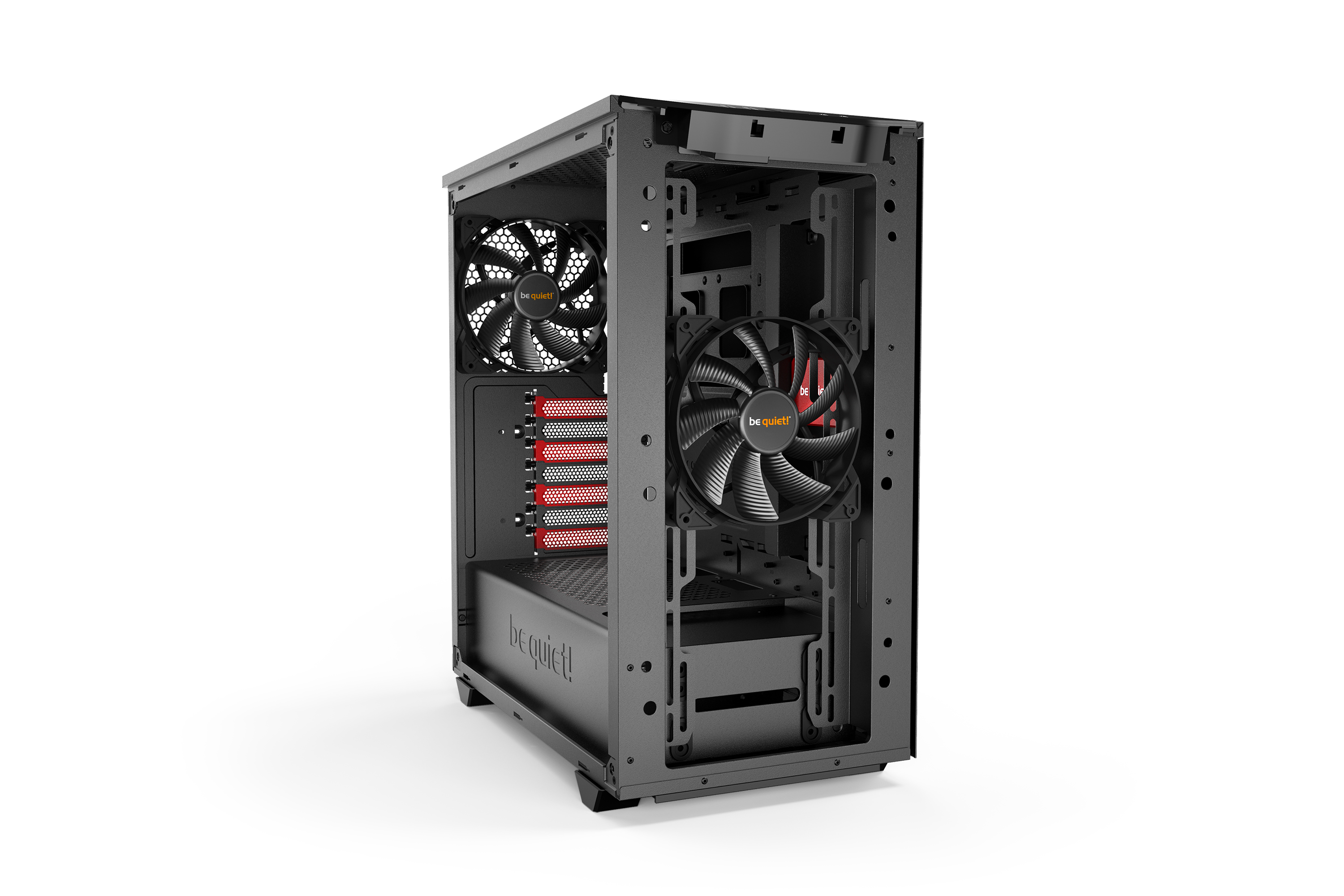

The Pure Base 500 Window Red provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator up to 240mm.
Pure Base 500 Window Red offers various possibilities for installing up to five SSDs in total. Two can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
|Model||Pure Base 500 Window Red|
|PSU form factor||ATX PS/2|
|Motherboard compatibility||ATX / M-ATX / Mini-ITX|
|Installation of motherboards with backplate||✓|

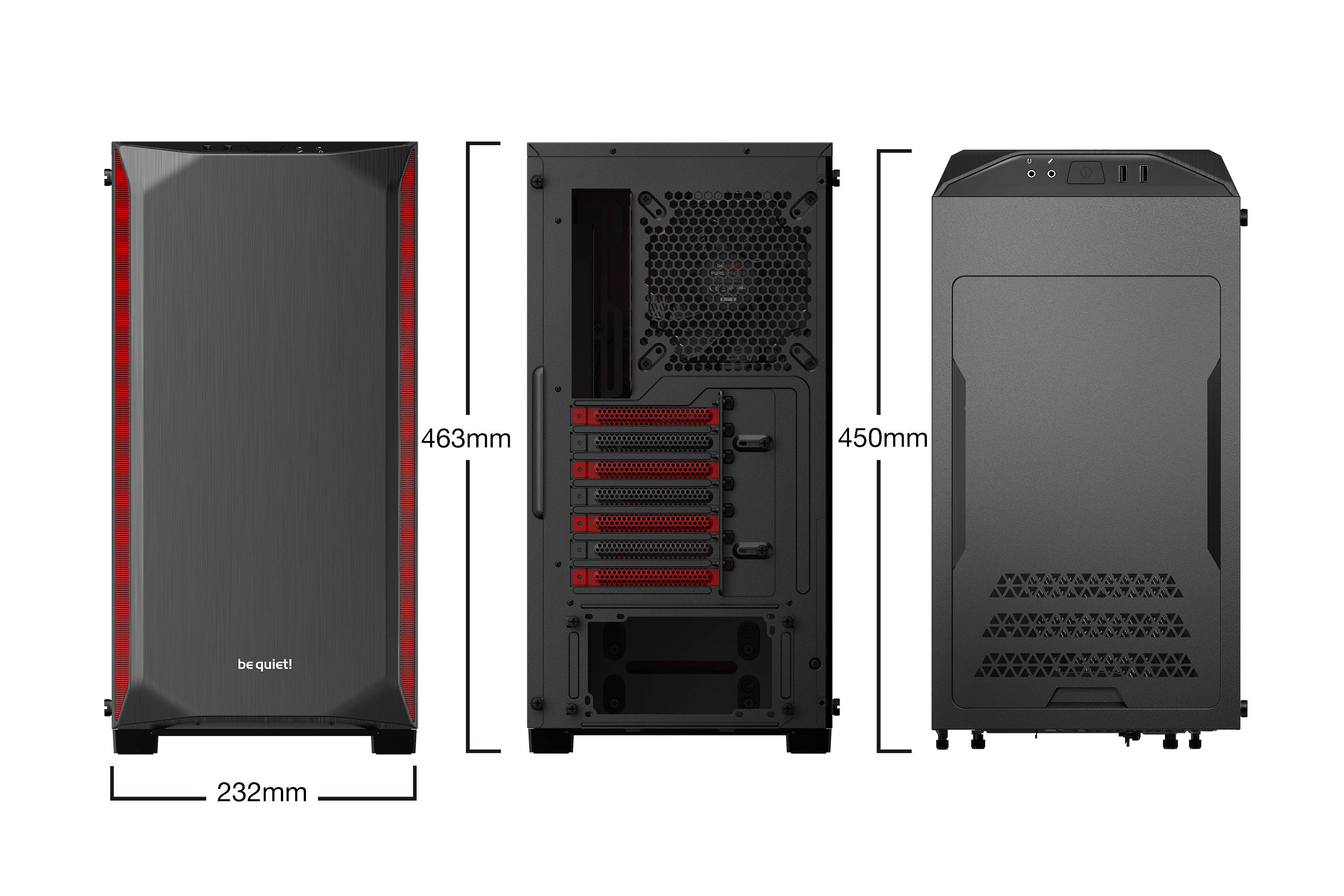

|Case size excl. stands (L x W x H), (mm)||450 x 232 x 443|
|Case size incl. stands (L x W x H), (mm)||450 x 232 x 463|
|Dimensions side panel window (L x W), (mm)||400 x 431|
|USB 3.2 Gen. 1||2|
|USB 3.2 Gen. 2 Type C||-|
|HD Audio I/O||Mic + Audio|
|Fan mounting locations||6|
|Qi charger / Quick Charging Option||-|
|Side panel window||4mm tempered glass|
|3.5 slots (max.)||2|
|3.5 slots (scope of delivery)||2|
|2.5 slots (max.)||5|
|2.5 slots (scope of delivery)||5|
|Fan @ top||-|
|Fan @ front||1x Pure Wings 2 140mm|
|Fan @ rear||1x Pure Wings 2 140mm|
|Dimensions (L x W x H), (mm)||Front: 140 x 140 x 25 / Rear: 140 x 140 x 25|
|Fan speed @ 100% PWM / 12V (rpm)||900|
|Noise level @ 100% PWM / 12V (dB(A))||17.1|
|Airflow @ 100% PWM / 12V (CFM / m3/h)||55.8 / 94.8|
|Air Pressure @ 100% PWM / 12V (mm H2O)||0.6|
|Voltage range (V DC)||12|
|Input power (W)||1.08|
|Input current (A)||0.09|
|Lifespan (h / 25°C)||80,000|
|Front (mm)||3x 120 / 2x 140|
|Top (mm)||2x 120 / 2x 140|
|Side panel (mm)||-|
|Front (mm)||120 / 140 / 240 / 280 / 360|
|Top (mm)||120 / 240|
|Rear (mm)||120 / 140|
|Max.construction height of CPU cooler unit (mm)||190|
|Airflow channel||Front / Top / Rear|
|RGB LED illumination||-|
|LEDs synchronizable with RGB controller/motherboard||-|
|Expandable RGB controller||-|
|Maximum dimensions excl. bottom fan (mm)||258|
|Maximum dimensions incl. bottom fan (mm)||225|
|HDD cage (in height of graphics card) installed (mm)||369|
|HDD cage (in height of graphics card) removed (mm)||369|
|Top panel insulation mats||✓|
|Front panel insulation mats||✓|
|Side panel insulation mats||✓|
|Anti-vibration decoupled HDD||✓|
|Anti-vibration decoupled fan||-|
|Anti-vibration decoupled PSU||✓|
|Anti-vibration decoupled motherboard-tray||-|
|Screw set (Drives/Motherboard)||✓|
|Rubber rail (pcs.)||-|
|LCS bracket (pcs).||-|
|HDD slot cover (pcs.)||-|
|Upper fan bracket (pcs.)||-|
|HDD panel rubber grommet (pcs.)||-|
|SSD bracket for PSU shroud||-|
|LED strips (pcs.)||-|
|Cable ties (pcs.)||6 / 4 (Velcro)|
|International hotline / free of charge||✓ / DE, FR|
|Certifications||CE / RoHS|
|Dimensions, package (L x W x H), (mm)||510 x 285 x 494|
|Gross weight, package (kg)||8.49|
|Pieces per packaging unit||1|
