Article number: BGW62

SHADOW BASE 800 DX

White

Buy online

Add to comparison

Support

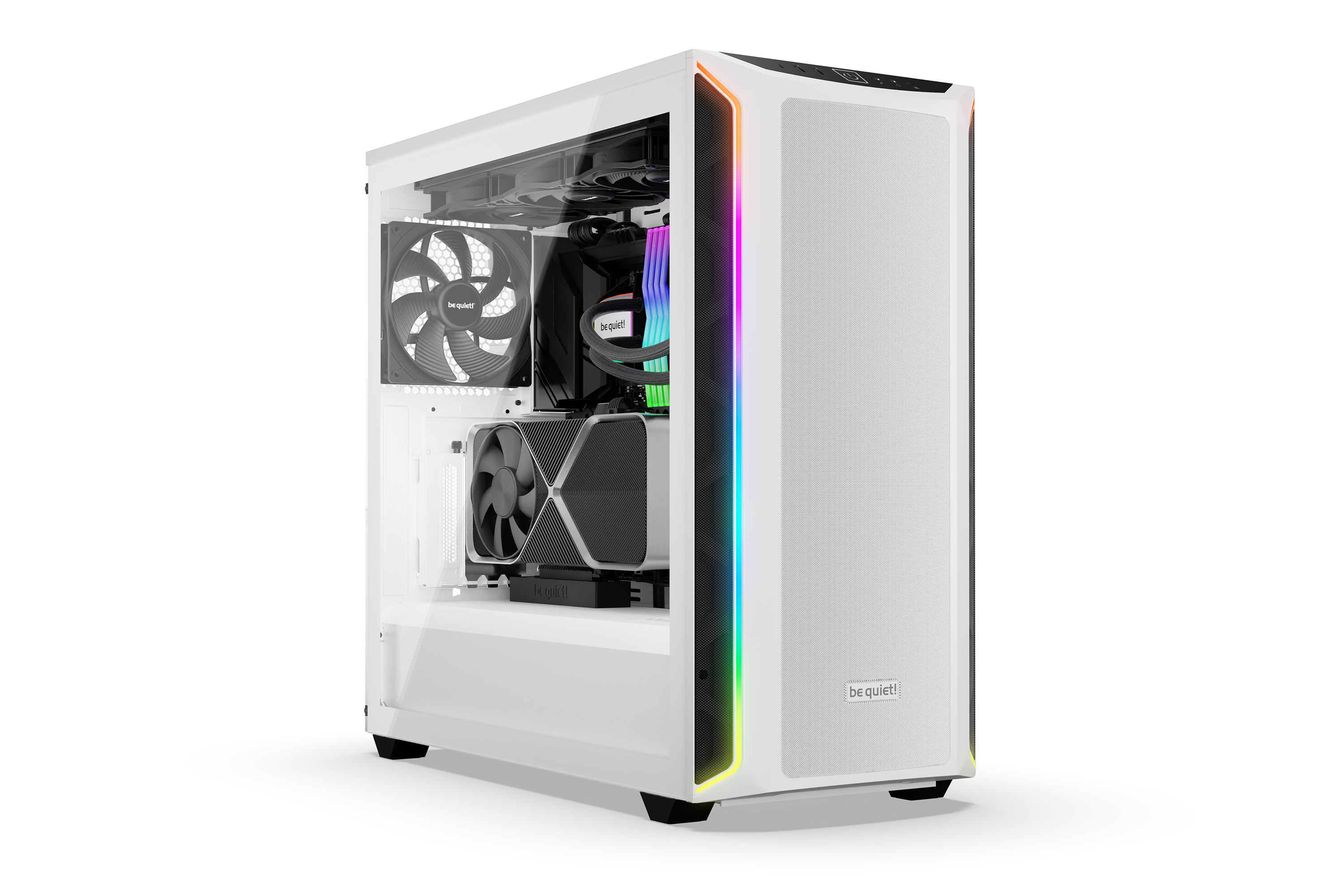

SHADOW BASE 800 DX

White

Exceptional airflow, maximum space

Shadow Base 800 DX White is an airflow-optimized midi-tower with ARGB LEDs at the front that offers silent operation with enough space for extensive components such as graphics cards, 420mm radiators or E-ATX motherboards.

Exceptionally high airflow thanks to an open mesh design
3 Pure Wings 3 140mm PWM fans offer high airflow with quiet operation
Spacious design offers enough room for even the largest components
Subtle ARGB illumination with integrated ARGB controller
Simple and tool-less HDD and SSD installation
Easy to use cable bar for a tidy look
Tempered glass side window allows a superb view

Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. .

Characteristics

HIGH AIRFLOW AND MAXIMUM PERFORMANCE

Airflow all the way

For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 DX White with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.

PURE WINGS 3 FANS

Performant, yet quiet operation

With its 3 pre-installed Pure Wings 3 140mm PWM fans, Shadow Base 800 DX White provides enough airflow to cool the most demanding components. Despite their performance, Pure Wings 3 offer quiet operation. Even at maximum speed, the fans operate at only 21.9dB(A).

SIZE MATTERS

Generous dimensions for radiators up to 420mm

With its remarkably large dimensions, Shadow Base 800 DX White sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.

ELEGANT ARGB ILLUMINATION

LED strips at the front

ARGB LEDs at the front panel offer multiple colors and modes to individualize the look of the case. You can optionally synchronize lighting with your motherboard or an ARGB controller.

NEAT INTERIOR

Professional Cable Management

No matter the size or number of components built into the Shadow Base 800 DX White, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.

MODERN I/O PORT

State-of-the-art connectivity for your system

A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors complement the I/O panel and make it a multi-purpose interface for any type of hardware.

TEMPERED GLASS WINDOW

A perfect view inside your PC

The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tempered glass with white painted side bars.

"What is the only thing better than Airflow? More Airflow. Shadow Base 800 is the epitome of a performance-orientated case and I am sure that it will conquer the hearts of gamers by storm!"

Bryan Lu, Leader of PC Cases

All models at a glance:

Product Series

General data

Model	Shadow Base 800 DX White
Color option	White
Motherboard compatibility	E-ATX / ATX / M-ATX / Mini-ITX

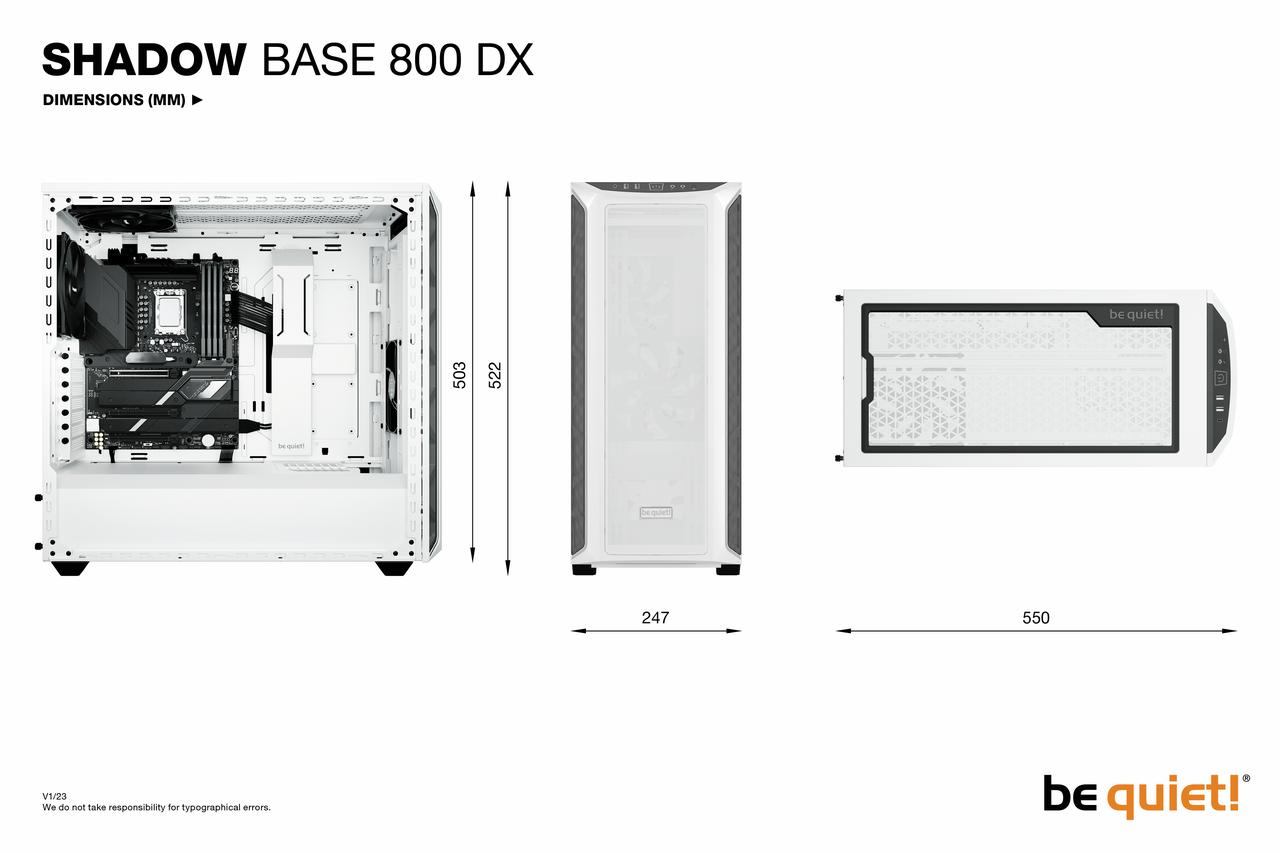

Case size excl. stands (L x W x H), (mm)	550 x 247 x 503
Case size incl. stands (L x W x H), (mm)	550 x 247 x 522
Volume (l)	62.74
PSU form factor	ATX PS/2
Net weight (kg)	11.8
Expansion slots	7

Infographics

open all / close all

						Pre-installed fans

									Fan at top1x Pure Wings 3 140mm PWM

									Fan at front1x Pure Wings 3 140mm PWM

									Fan at side-

									Fan at rear1x Pure Wings 3 140mm PWM

									Fan at bottom-

									Dimensions (L x W x H), (mm)Front: 140 x 140 x 25 / Rear:  140 x 140 x 25 / Top: 140 x 140 x 25

									Fan speed at 100% PWM / 12V (rpm)1200

									Airflow at 100% PWM / 12V (CFM / m3/h)57.4 / 97.5

									Air Pressure at 100% PWM / 12V (mm H2O)0.96

									Noise level at 100% PWM / 12V (dB(A))21.9

									Voltage range (V DC)12

									Input power (W)3.6

									Input current (A)0.3

									Connector4-pin PWM

									Lifespan (h / 25°C)80,000

									Fan controller-

						Maximum fan installation

									Maximum fans8

									Top (mm)3x 140 / 3x 120

									Front (mm)3x 140 / 3x 120

									Side (mm)-

									Rear (mm)1x 140 / 1x 120

									Bottom (mm)1x 140 / 1x 120

									PSU shroud-

						Optional radiator installation

									Top (mm)120 / 140 / 240 / 280 / 360 / 420

									Front (mm)120 / 140 / 240 / 280 / 360 / 420

									Side (mm)-

									Rear (mm)120

									Bottom (mm)-

						PSU compatibility

									Maximum dimensions excl. bottom fan (mm)305

									Maximum dimensions incl. bottom fan (mm)260

						Graphics card

									HDD cage (in height of graphics card) installed (mm)430

									HDD cage (in height of graphics card) removed (mm)430

									Maximum PCIe slots with vertical graphics card (pcs.)7

						Drive bay capacity

									5.25 bays (pcs.)-

									3.5 slots (scope of delivery)2

									3.5 slots (max.)4

									2.5 slots (scope of delivery)4

									2.5 slots (max.)8

						Cooling

									Max.construction height of CPU cooler unit (mm)180

									Airflow channelFront / Top / Rear / Bottom

						Lighting

									LED illumination✓

									LEDs (pcs.)40

									LED typeARGB - 5V

									LEDs synchronizable with controller/motherboard✓

						I/O Panel

									USB 3.2 Gen. 2 Type C1

									USB 3.2 Type A2

									USB 2.0-

									HD Audio I/OMic + Audio

									Qi charger / Quick Charging Option (W)-

						Insulation and damping

									Top panel insulation mats-

									Front panel insulation mats-

									Side panel insulation mats✓

									Anti-vibration decoupled HDD✓

									Anti-vibration decoupled fan-

									Anti-vibration decoupled PSU✓

									Anti-vibration decoupled motherboard-tray-

						Scope of delivery

									Screw set (Drives/Motherboard)✓

									Additional standoffs (pcs.)-

									SSD bracket for PSU shroud-

									LED strips (pcs.)0

									Cable ties (pcs.)6 (Velcro) / 4 (Velcro)

									Screw box-

									VGA holder-

									VGA holder for inverted layout-

									Mesh Front Panel-

									ODD Bracket-

									Fan / Radiator bracket for multi mounting panel-

						Removeable dust filters

									Top-

									Front1

									Side-

									Bottom1

						Material

									Top coverABS

									Front panelABS

									Side panelSteel

									Side panel windowTempered glass

									StandsABS

						Safety certification

									ApprovalsCE, UKCA

						Environmental directives

									RoHS✓

									Reach✓

									WEEE✓

									Triman✓

						Service

									Warranty (Years)3

									International hotline / free of charge✓ / DE, FR, US

						Logistics data and RRP

									Article numberBGW62

									EAN code4260052190623

									Dimensions, package (L x W x H), (mm)575 x 319 x 628

									Gross weight, package (kg)13.2

									Pieces per packaging unit1

									RRP (€)169.9
