Article number: BGW70

LIGHT BASE 900 DX

White
Buy online
Add to comparison
Support

LIGHT BASE 900 DX

White

Exceptional from every angle

Be prepared for virtually any PC component available and make Light Base 900 DX White your creative show case.

  • Fully windowed front and side panel for a stunning panoramic view on all your PC components
  • Impressive illumination from every angle with a massive ARGB LED strip
  • Can be switched to inverted or horizontal layout in literal seconds thanks to intuitive handling
  • Extra spacious design for up to two 420mm radiators at the same time and an E-ATX motherboard
  • For easy installation of radiators and fans outside of the case, the brackets in the top and bottom can be removed quickly
  • Support for motherboards with backside connector design
  • 2 ARGB and fan hubs with 12 connectors in total
No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.

Characteristics

LOOK AT ME!

Panorama design for perfect visibility

You deserve to show off what you got. Large window panels on the front and the side allow you to watch your PC components at work anytime. This makes Light Base 900 DX White the perfect choice as your show case.

BRIGHT LIGHTS

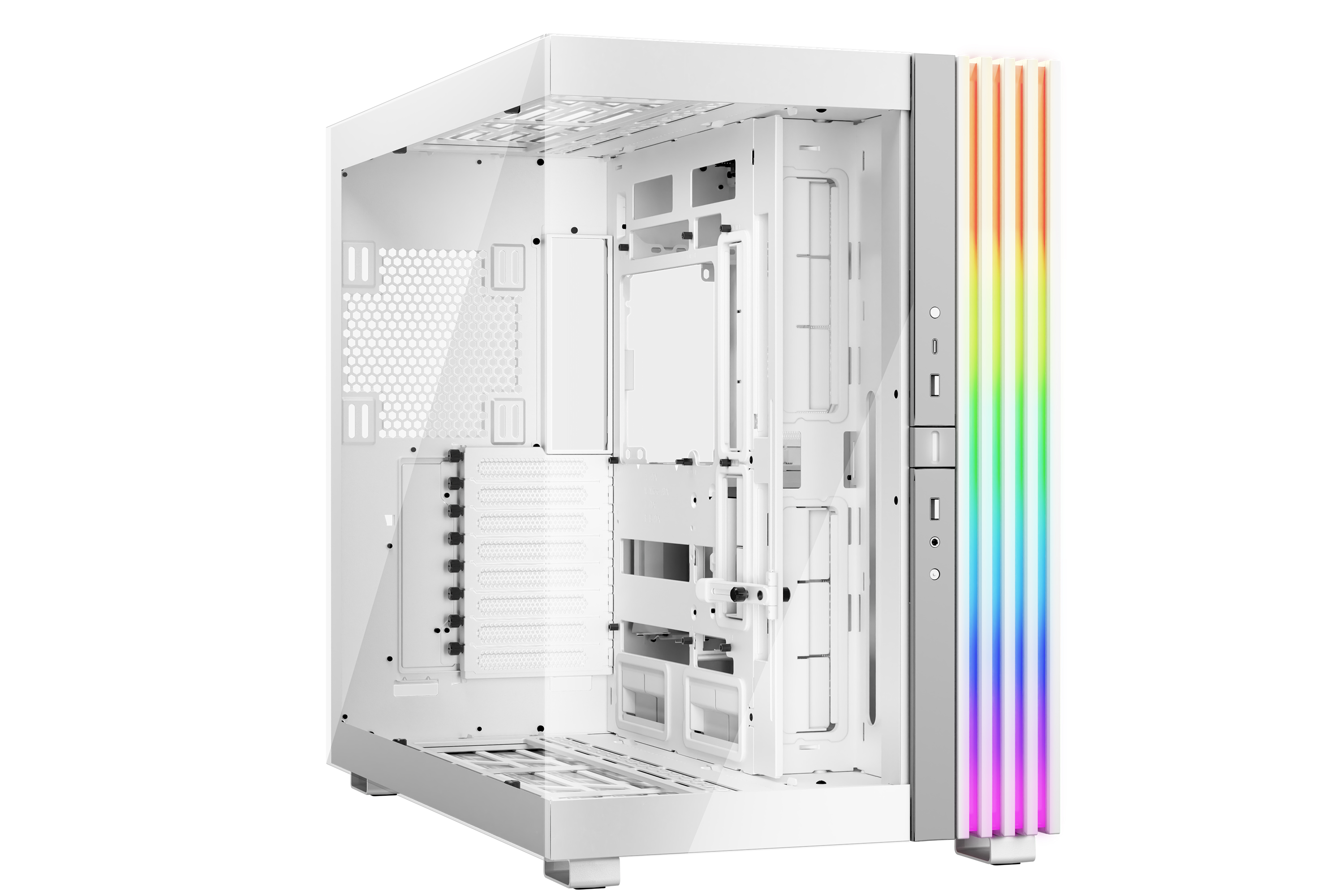

3 meters of LEDs

Light Base 900 DX White is predetermined for the big show. Nothing proves that more than the massive ARGB LED strip which is visible from all angles. The 3m long strip consists of 172 LEDs. With an included ARGB controller button and even more colors and modes with motherboard synchronization, you can make Light Base 900 DX White truly your own. Express yourself!

UP, UP, DOWN, DOWN, LEFT, RIGHT, LEFT, RIGHT…

Change the layout in literal seconds

It takes longer to read this text than to invert Light Base 900 DX White. With its relocatable feet, you can invert the PC case literally in seconds. You can also choose a horizontal layout, which is executed just as quick. No matter which layout your gaming room requires: Light Base 900 DX White delivers.

MAKE IT YOUR CASE

Large dimensions for endless creativity

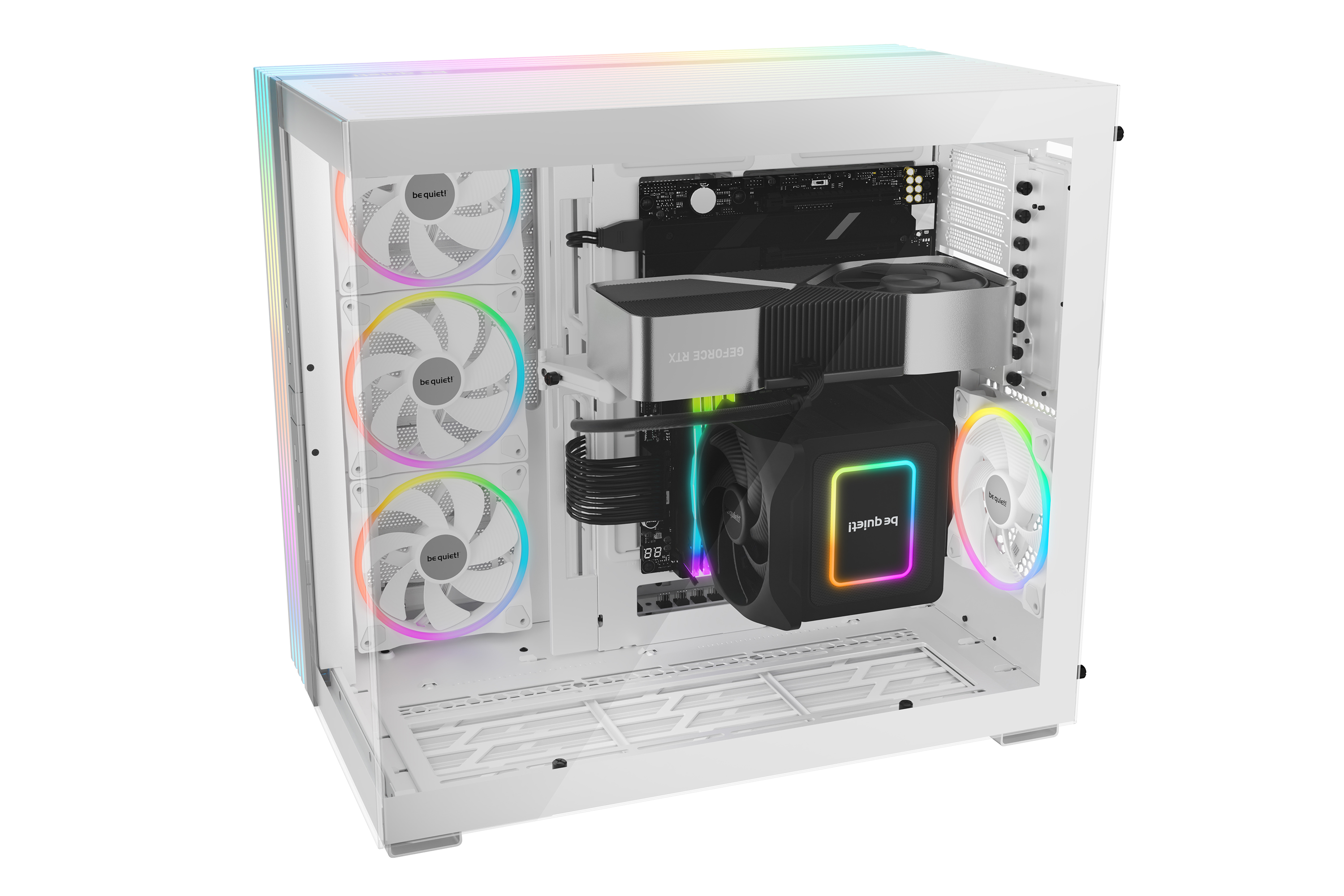

Light Base 900 DX White features no preinstalled fans. However, up to 10 fans can be installed in total, making Light Base 900 DX White extremely versatile. With its extra spacious design, it can hold up to 420mm radiators simultaneously, an E-ATX motherboard and even the most powerful graphics cards. Thanks to the two-chamber design, drives and cables are neatly tucked in the back and do not get in the way of airflow.

MAXIMUM USABILITY

A new level of convenience

The detachable radiator and fan brackets in the top and bottom make installation of your cooling setup very easy. Each bracket fits a 420mm radiator, which can be installed at the same time. On top of that, you can install another radiator with up to 360mm length in the side, for a whopping 3 radiators. On top of that, Light Base 900 DX White comes with 2 ARGB and PWM hubs that offer 12 connectors in total. Their positions at the top and bottom allow you to conveniently connect your hardware.

HOLD MY GPU

For a neat interior

Light Base 900 DX White features a flexible VGA holder that subtly prevents your GPU from sagging. The best part: This holder works in any orientation and with a horizontally or vertically installed graphics card. The result is a clean look even if you use big and heavy graphics cards.

ON THE FLIPSIDE...

Support for motherboards with backside connector design

The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view.

"What is a PC case other than a home for our components? Light Base is the fully glazed villa. And one with a marvelous architecture! Light Base is incredibly quick and easy to invert and can even be set horizontally for a retro feel."

Marco Marquardt, Product Developer BU PC Cases

All models at a glance:

Product Series

General data

ModelLight Base 900 DX White
Color optionWhite
Motherboard compatibilityE-ATX / XL-ATX / ATX / M-ATX / Mini-ATX

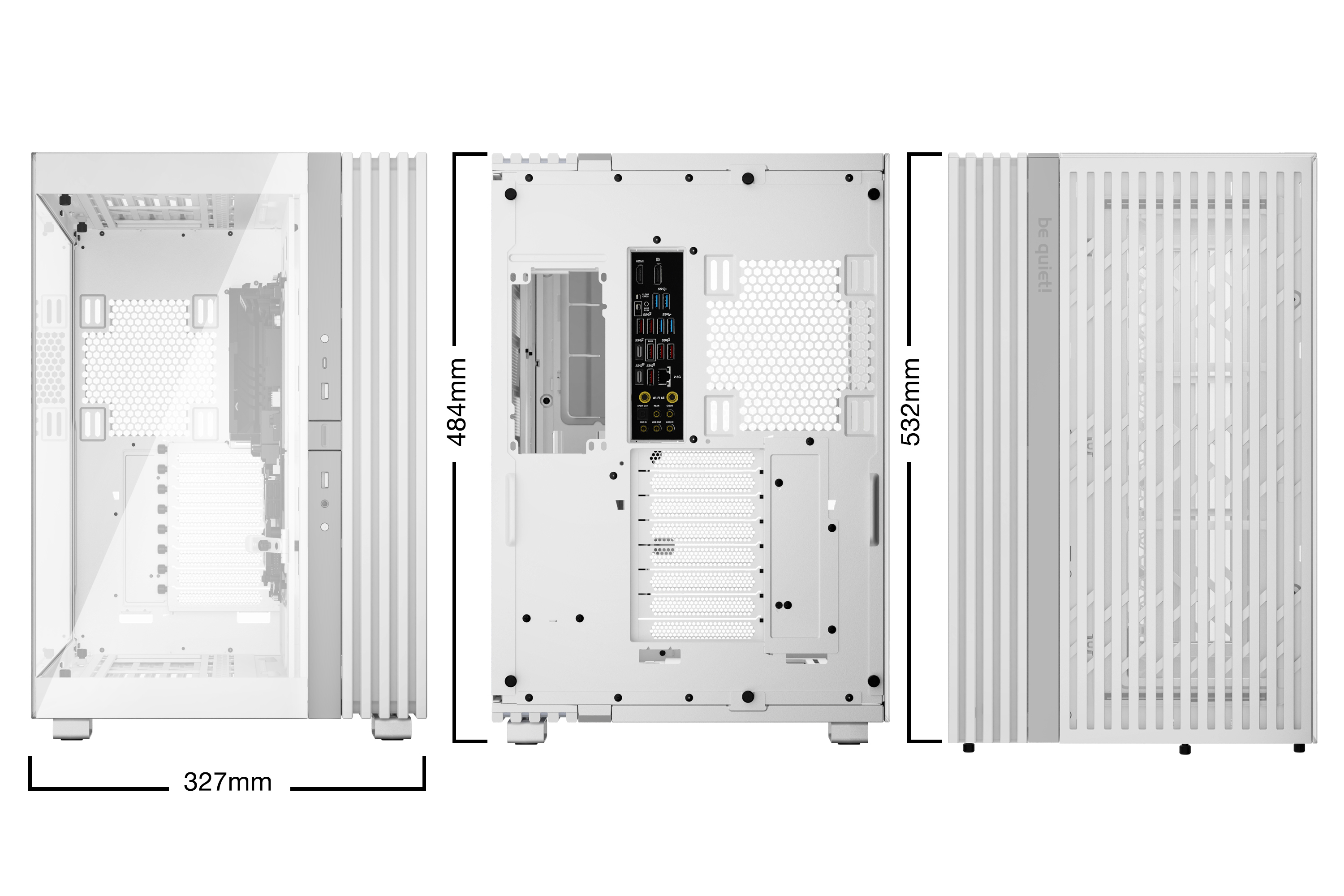

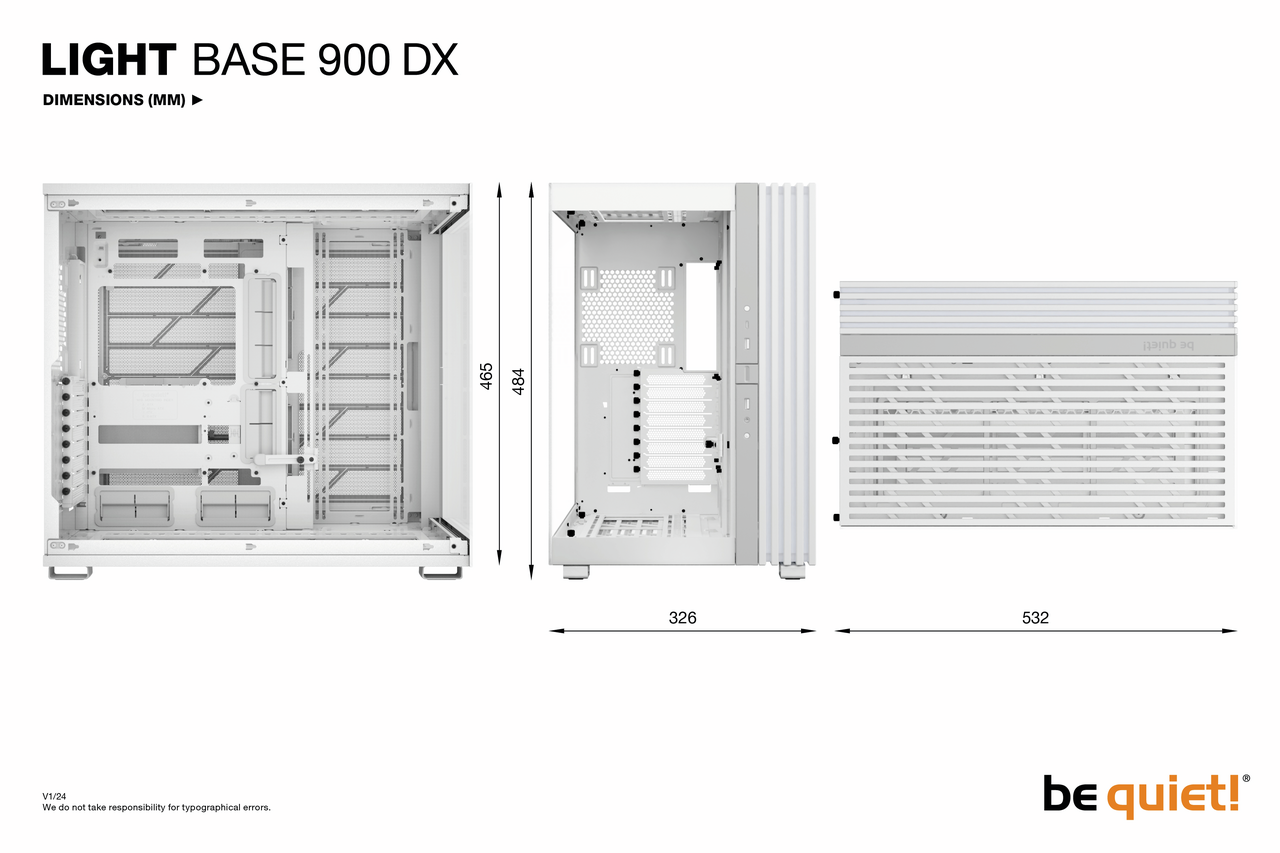

Case size excl. stands (L x W x H), (mm)532 x 327 x 465
Case size incl. stands (L x W x H), (mm)532 x 327 x 484
Volume (l)68
PSU form factorATX PS/2
Net weight (kg)16.8
Expansion slots8

Infographics

open all / close all

Pre-installed fans

Fan at top-
Fan at front-
Fan at side-
Fan at rear-
Fan at bottom-
Dimensions (L x W x H), (mm)-
Fan speed at 100% PWM / 12V (rpm)-
Airflow at 100% PWM / 12V (CFM / m3/h)-
Air Pressure at 100% PWM / 12V (mm H2O)-
Noise level at 100% PWM / 12V (dB(A))-
Voltage range (V DC)-
Input power (W)-
Input current (A)-
Connector-
Lifespan (h / 25°C)-
Fan controller-

Maximum fan installation

Maximum fans10
Top (mm)3x 140 / 3x 120
Front (mm)-
Side (mm)3x 140 / 3x 120
Rear (mm)1x 140 / 1x 120
Bottom (mm)3x 140 / 3x 120
PSU shroud-

Optional radiator installation

Top (mm)120 / 140 / 240 / 280 / 360 / 420
Front (mm)-
Side (mm)120 / 140 / 240 / 280 / 360
Rear (mm)120 / 140
Bottom (mm)120 / 140 / 240 / 280 / 360 / 420

PSU compatibility

Maximum dimensions excl. bottom fan (mm)225
Maximum dimensions incl. bottom fan (mm)225

Graphics card

HDD cage (in height of graphics card) installed (mm)495
HDD cage (in height of graphics card) removed (mm)495
Maximum PCIe slots with vertical graphics card (pcs.)4

Drive bay capacity

5.25 bays (pcs.)-
3.5 slots (scope of delivery)1
3.5 slots (max.)2
2.5 slots (scope of delivery)4
2.5 slots (max.)6

Cooling

Max.construction height of CPU cooler unit (mm)190
Airflow channel-

Lighting

LED illumination✓
LEDs (pcs.)172
LED typeARGB - 5V
LEDs synchronizable with controller/motherboard✓

I/O Panel

USB 3.2 Gen. 2 Type C1
USB 3.2 Type A2
USB 2.0-
HD Audio I/OMic + Audio
Qi charger / Quick Charging Option (W)-

Insulation and damping

Top panel insulation mats-
Front panel insulation mats-
Side panel insulation mats-
Anti-vibration decoupled HDD✓
Anti-vibration decoupled fan✓
Anti-vibration decoupled PSU✓
Anti-vibration decoupled motherboard-tray-

Scope of delivery

Screw set (Drives/Motherboard)✓
Additional standoffs (pcs.)1
SSD bracket for PSU shroud-
LED strips (pcs.)-
Cable ties (pcs.)12
Screw box-
VGA holder✓
VGA holder for inverted layout✓
Mesh Front Panel-
ODD Bracket-
Fan / Radiator bracket for multi mounting panel-

Removeable dust filters

Top1
Front-
Side1
Bottom1

Material

Top coverSteel
Front panelGlass
Side panelSteel
Side panel windowGlass
StandsABS

Safety certification

ApprovalsCE, UKCA

Environmental directives

RoHS✓
Reach-
WEEE✓
Triman✓

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data and RRP

Article numberBGW70
EAN code4260052191767
Dimensions, package (L x W x H), (mm)572 x 431 x 632
Gross weight, package (kg)17.7
Pieces per packaging unit1
RRP (€)179.90
