Article number: BGW68

LIGHT BASE 600 LX

White

Exceptional from every angle

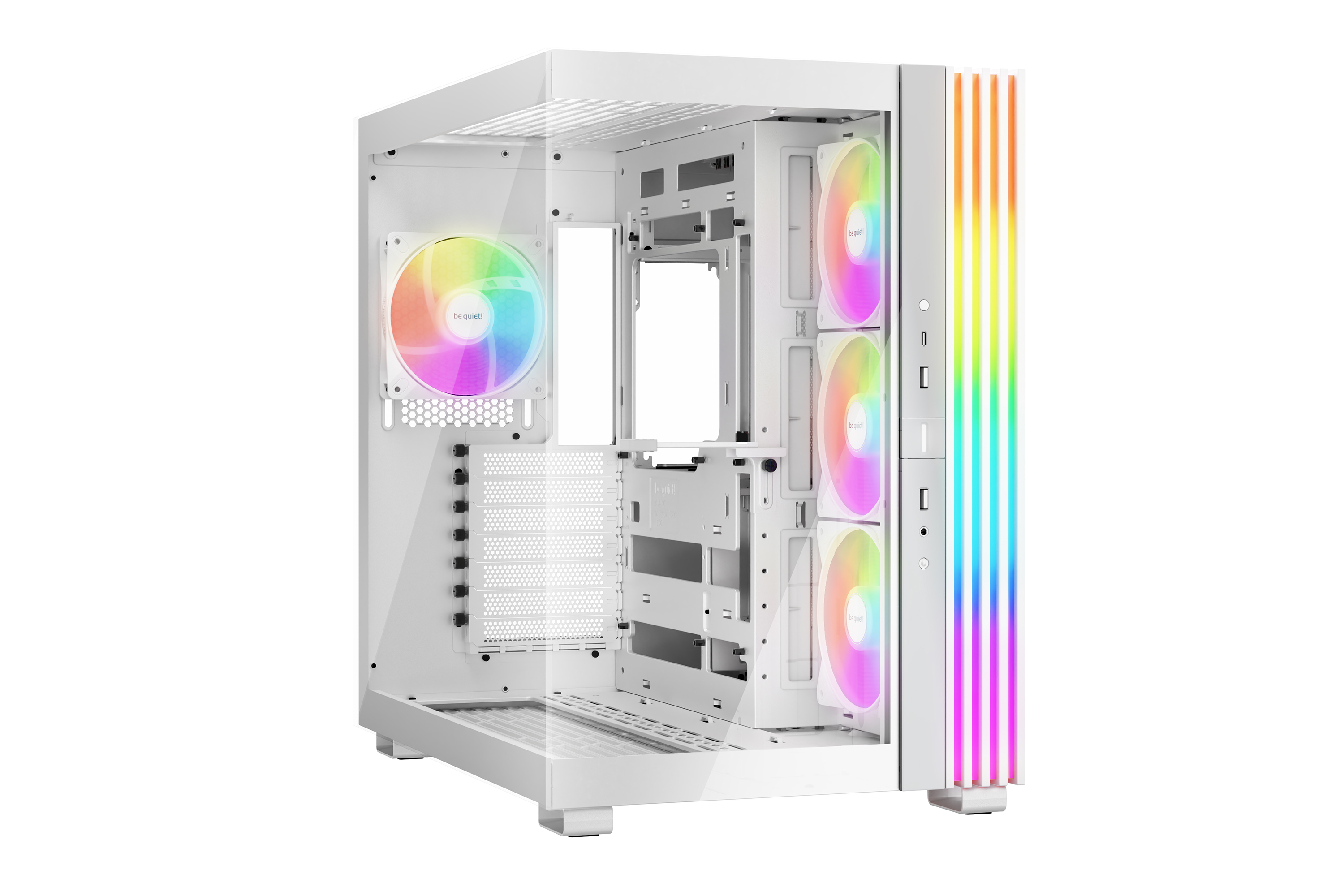

Be prepared for virtually any PC component available and make Light Base 600 LX White with ARGB fans your creative show case.

  • Fully windowed front and side panel for a stunning panoramic view on all your PC components
  • Impressive illumination from every angle with a massive ARGB LED strip
  • 4 Light Wings LX 120mm PWM White fans for high airflow and quiet operation
  • Can be switched to inverted or horizontal layout in literal seconds thanks to intuitive handling
  • Spacious design for up to two 360mm radiators at the same time and an ATX motherboard
  • Support for motherboards with backside connector design
No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.

LOOK AT ME!

Panorama design for perfect visibility

You deserve to show off what you got. Large window panels on the front and the side allow you to watch your PC components at work anytime. This makes Light Base 600 LX White the perfect choice as your show case.

BRIGHT LIGHT

1.33 meters of LEDs

Light Base 600 LX White is predetermined for the big show. Nothing proves that more than the massive ARGB LED strip which is visible from all angles. The 1.33m long strip and consists of 77 LEDs. With an included ARGB controller button and even more colors and modes with motherboard synchronization, you can make Light Base 600 LX White truly your own. Express yourself!

LED CASE FANS

Optimized fan blades for high airflow

Light Base 600 LX White comes with 4 pre-installed Light Wings LX fans. One fan is installed as rear exhaust, 3 Light Wings LX 120mm PWM White fans with reversed fan blades are pre-installed on the side mounting. The reverse fans make sure your system is still an eye-catcher when installed as a side intake. Their 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure that this fan provides the performance that is needed, even in demanding configurations.

UP, UP, DOWN, DOWN, LEFT, RIGHT, LEFT, RIGHT…

Change the layout in literal seconds

It takes longer to read this text than to invert Light Base 600 LX White. With its relocatable feet, you can invert the PC case literally in seconds. You can also choose a horizontal layout, which is executed just as quick. No matter which layout your gaming room requires: Light Base 600 LX White delivers.

MAKE IT YOUR CASE

Large dimensions for endless creativity

The 4 pre-installed fans can be expanded to up to 10 in total, making Light Base 600 LX White extremely versatile. With its spacious design, it can hold up two 360mm radiators simultaneously, an ATX motherboard and even the most powerful graphics cards. Thanks to the dual chamber design, drives and cables are neatly tucked in the back and do not get in the way of airflow.

MAXIMUM USABILITY

A new level of convenience

Next to the radiators you can install in the top and the bottom, you can install another radiator with up to 240mm length in the side, for a whopping 3 radiators. On top of that, Light Base 600 LX White comes with 2 ARGB and PWM hubs that offer 12 connectors in total. Their positions at the top and bottom allow you to conveniently connect your hardware.

HOLD MY GPU

For a neat interior

Light Base 600 LX White features a flexible VGA holder that subtly prevents your GPU from sagging. The best part: This holder works in any orientation and with a horizontally or vertically installed graphics card. The result is a clean look even if you use big and heavy graphics cards.

ON THE FLIPSIDE...

Support for motherboards with backside connector design

The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view.

"What is a PC case other than a home for our components? Light Base is the fully glazed villa. And one with a marvelous architecture! Light Base is incredibly quick and easy to invert and can even be set horizontally for a retro feel."

Marco Marquardt, Product Developer BU PC Cases

All models at a glance:

Product Series

General data

ModelLight Base 600 LX White
Color optionWhite
Motherboard compatibilityATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm)450 x 305 x 435
Case size incl. stands (L x W x H), (mm)450 x 305 x 455
Volume (l)59.7
PSU form factorATX PS/2
Net weight (kg)12.1
Expansion slots7

Infographics

open all / close all

Pre-installed fans

Fan at top-
Fan at front-
Fan at side3x Light Wings LX Reversed 120mm PWM White
Fan at rear1x Light Wings LX 120mm PWM White
Fan at bottom-
Dimensions (L x W x H), (mm)120 x 120 x 25
Fan speed at 100% PWM / 12V (rpm)1600 / 1500
Airflow at 100% PWM / 12V (CFM / m3/h)51.5 / 87.5 | 48.8 / 83.0
Air Pressure at 100% PWM / 12V (mm H2O)1.34 / 1.04
Noise level at 100% PWM / 12V (dB(A))25.5 / 28.5
Voltage range (V DC)5-13.2 / 5-12
Input power (W)3.8 / 1.2
Input current (A)0.32 / 0.1
Connector4-pin PWM
Lifespan (h / 25°C)60,000
Fan controller2x 12 ports

Maximum fan installation

Maximum fans10
Top (mm)2x 140 / 3x 120
Front (mm)-
Side (mm)3x 120
Rear (mm)1x 120
Bottom (mm)2x 140 / 3x 120
PSU shroud-

Optional radiator installation

Top (mm)120 / 240 / 360
Front (mm)-
Side (mm)120 / 240
Rear (mm)120
Bottom (mm)120 / 240 / 360

PSU compatibility

Maximum dimensions excl. bottom fan (mm)<200
Maximum dimensions incl. bottom fan (mm)<200

Graphics card

HDD cage (in height of graphics card) installed (mm)400
HDD cage (in height of graphics card) removed (mm)400
Maximum PCIe slots with vertical graphics card (pcs.)4

Drive bay capacity

5.25 bays (pcs.)-
3.5 slots (scope of delivery)1
3.5 slots (max.)2
2.5 slots (scope of delivery)2
2.5 slots (max.)4

Cooling

Max.construction height of CPU cooler unit (mm)170
Airflow channel-

Lighting

LED illumination
LEDs (pcs.)77
LED typeARGB - 5V
LEDs synchronizable with controller/motherboard

I/O Panel

USB 3.2 Gen. 2 Type C1
USB 3.2 Type A2
USB 2.0-
HD Audio I/OMic + Audio
Qi charger / Quick Charging Option (W)-

Insulation and damping

Top panel insulation mats-
Front panel insulation mats-
Side panel insulation mats-
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray-

Scope of delivery

Screw set (Drives/Motherboard)
Additional standoffs (pcs.)1
SSD bracket for PSU shroud-
LED strips (pcs.)-
Cable ties (pcs.)12
Screw box-
VGA holder
VGA holder for inverted layout
Mesh Front Panel-
ODD Bracket-
Fan / Radiator bracket for multi mounting panel-

Removeable dust filters

Top-
Front-
Side1
Bottom-

Material

Top coverSteel
Front panelGlass
Side panelSteel
Side panel windowGlass
StandsABS

Safety certification

ApprovalsCE, UKCA

Environmental directives

RoHS
Reach-
WEEE
Triman

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data and RRP

Article numberBGW68
EAN code4260052191743
Dimensions, package (L x W x H), (mm)523 x 390 x 554
Gross weight, package (kg)14.6
Pieces per packaging unit1
RRP (€)184.90
