Article number: BGW83
LIGHT BASE 500 BLACK
LIGHT BASE 500 BLACK
Core performance and aesthetics
Light Base 500 stands for a clean design and the core values of gaming: performance, accessibility and functionality.
- Angled slide-out fan frame on the side routes air directly to the GPU
- Fans can be installed in the lowered fan bay to line up perfectly with the case floor
- 4 preinstalled Pure Wings 3 120mm PWM f ans for extraordinary airflow
- Spacious design for radiators up to 360mm, an ATX motherboard, 2 HDDs and SSDs at the same time
- 2 possible PSU positions enable backside connector motherboards
- Zero RGB for an unobtrusive and elegant appearance in any room
- 3-year manufacturer’s warranty
Characteristics
ELEVATED ELEGANCE
Cool design, cooler GPUThe angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.
4 PREINSTALLED PURE WINGS 3

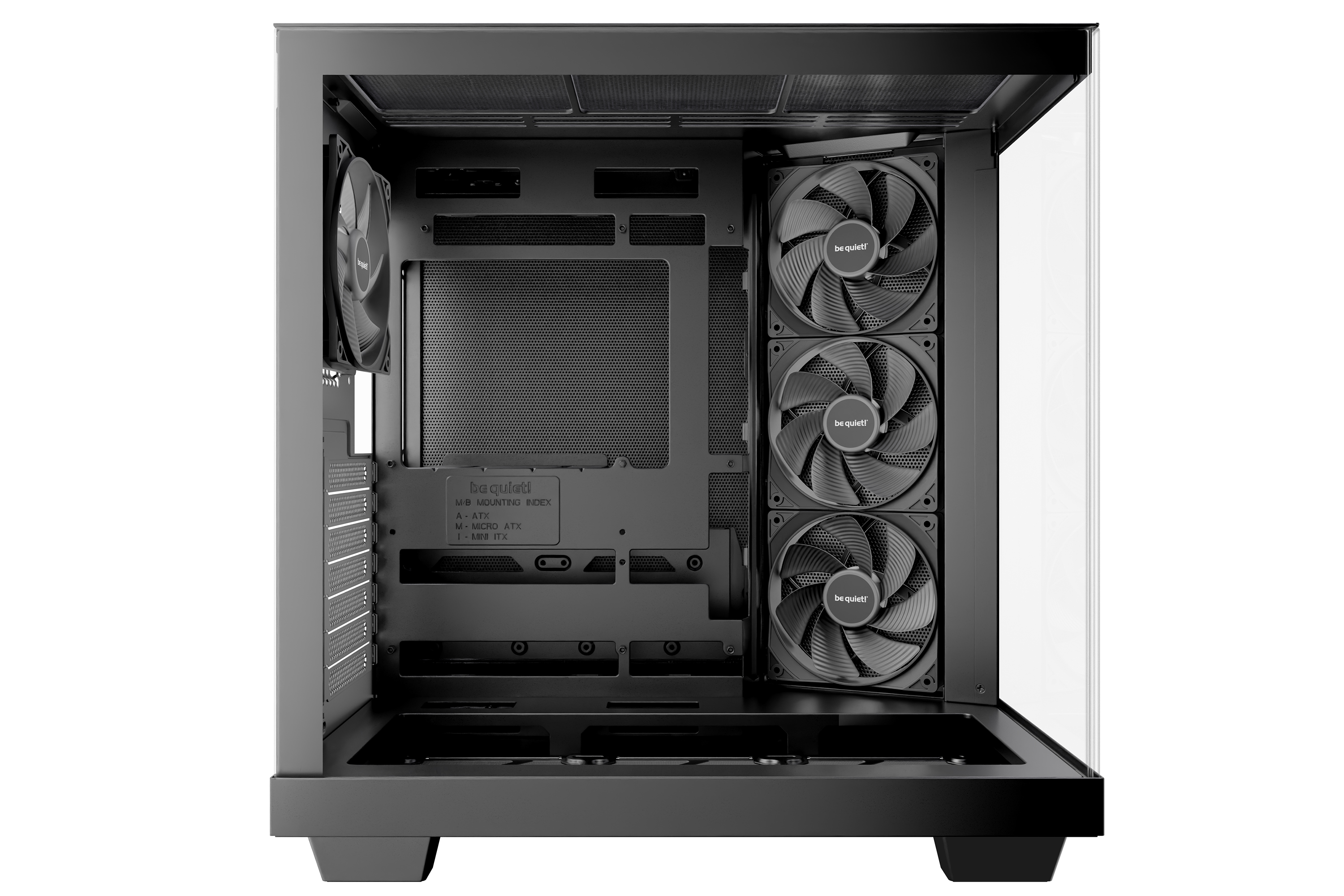

Wait, how many fans?!Light Base 500 features 4 preinstalled Pure Wings 3 fans. The rear exhaust fan is a Pure Wings 3 120mm PWM, the intake fans on the side are Pure Wings 3 120mm PWM fans with reversed fan blades. All fans are optimized for maximum airflow, while reducing noise-generating turbulences with their specially shaped fan blades at the same time. The reversed fan blades make sure that their pretty side is visible at all times.
SPACIOUS DESIGN

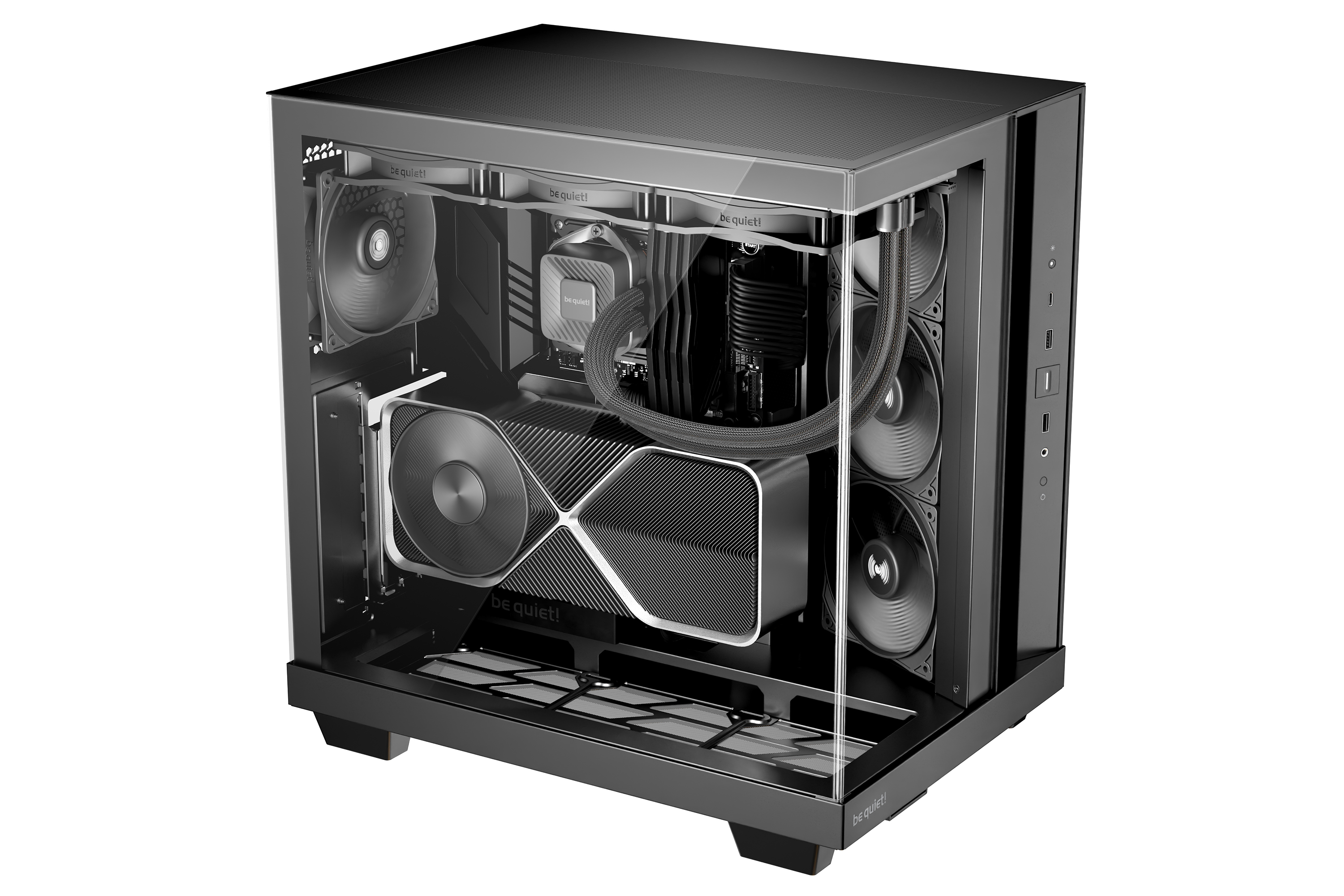

Size matters after allLight Base 500 might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 2 HDDs and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.
BUSINESS IN THE FRONT...
... PARTY IN THE BACK!The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!
NO ARGB
Join the dark sideDo you prefer a stealthy look? If so: we’ve got you covered with the Light Base 500, a perfect blend of the classic be quiet! style with no LED lighting and modern form. Enjoy your next gaming session without flashing lights in your peripheral view.
All models at a glance:
General data
| Model | Light Base 500 Black |
| Color option | Black |
| Motherboard compatibility | ATX / M-ATX / Mini-ITX support BTF MB |

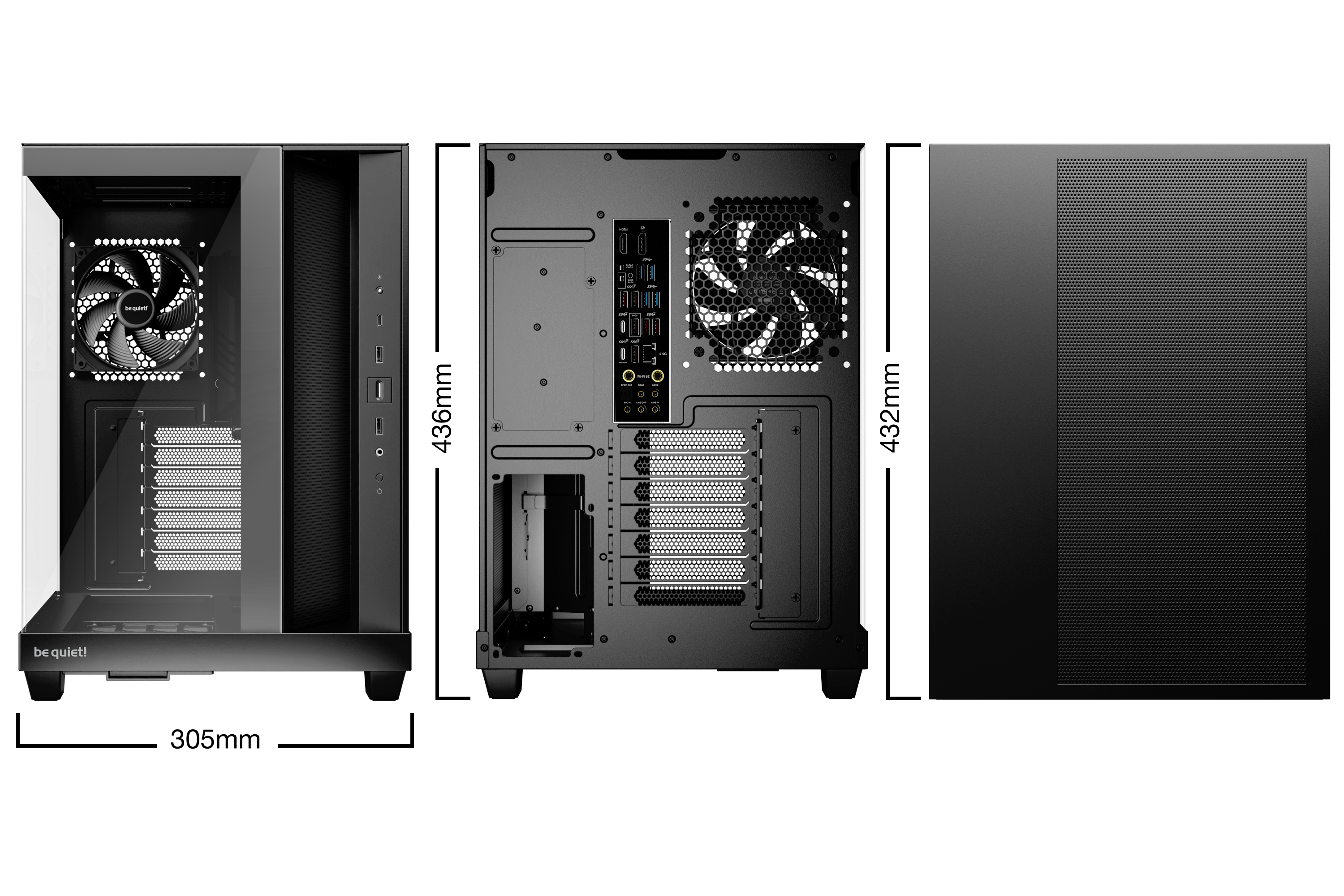

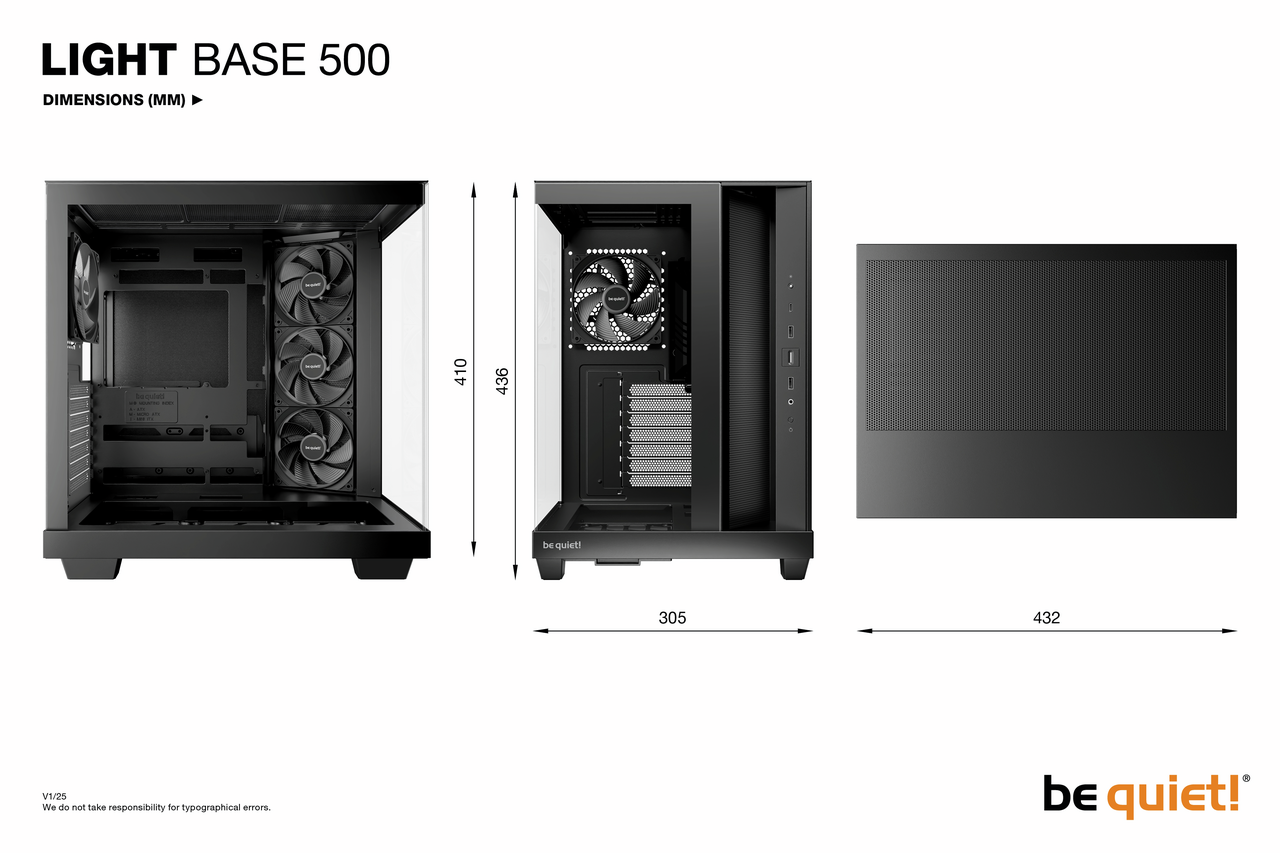

| Case size excl. stands (L x W x H), (mm) | 432 x 305 x 410 |
| Case size incl. stands (L x W x H), (mm) | 432 x 305 x 436 |
| Volume (l) | 49,6L |
| PSU form factor | ATX PS/2 |
| Net weight (kg) | 10,91 |
| Expansion slots | 7 |
Infographics
Pre-installed fans
| Fan at top | - |
| Fan at front | - |
| Fan at side | 3x Pure Wings 3 Reverse 120mm PWM Black |
| Fan at rear | 1x Pure Wings 3 120mm PWM Black |
| Fan at bottom | - |
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Fan speed at 100% PWM / 12V (rpm) | 1600 | 1500 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 51.5 / 87.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.34 |
| Noise level at 100% PWM / 12V (dB(A)) | 25.5 |
| Voltage range (V DC) | 5 - 13.2 |
| Input power (W) | 3.8 |
| Input current (A) | 0.32 |
| Connector | 4-pin PWM |
| Lifespan (h / 25°C) | 60,000 |
| Fan controller | 2x 12 Ports |
Maximum fan installation
| Maximum fans | 10 |
| Top (mm) | 2x 140 / 3x 120 |
| Front (mm) | - |
| Side (mm) | 3x120 |
| Rear (mm) | 1x 120 / 1x 140 |
| Bottom (mm) | 3x 120 |
| PSU shroud | - |
Optional radiator installation
| Top (mm) | 120 / 240 / 280 / 360 |
| Front (mm) | - |
| Side (mm) | 120 / 240 |
| Rear (mm) | 120 |
| Bottom (mm) | - |
PSU compatibility
| Maximum dimensions excl. bottom fan (mm) | <200 |
| Maximum dimensions incl. bottom fan (mm) | <200 |
Graphics card
| HDD cage (in height of graphics card) installed (mm) | 400 |
| HDD cage (in height of graphics card) removed (mm) | 400 |
| Maximum PCIe slots with vertical graphics card (pcs.) | 4 |
Drive bay capacity
| 5.25 bays (pcs.) | - |
| 3.5 slots (scope of delivery) | 2 |
| 3.5 slots (max.) | 2 |
| 2.5 slots (scope of delivery) | 2 |
| 2.5 slots (max.) | 2 |
Cooling
| Max.construction height of CPU cooler unit (mm) | 185 |
| Airflow channel | - |
Lighting
| LED illumination | - |
| LEDs (pcs.) | - |
| LED type | - |
| LEDs synchronizable with controller/motherboard | - |

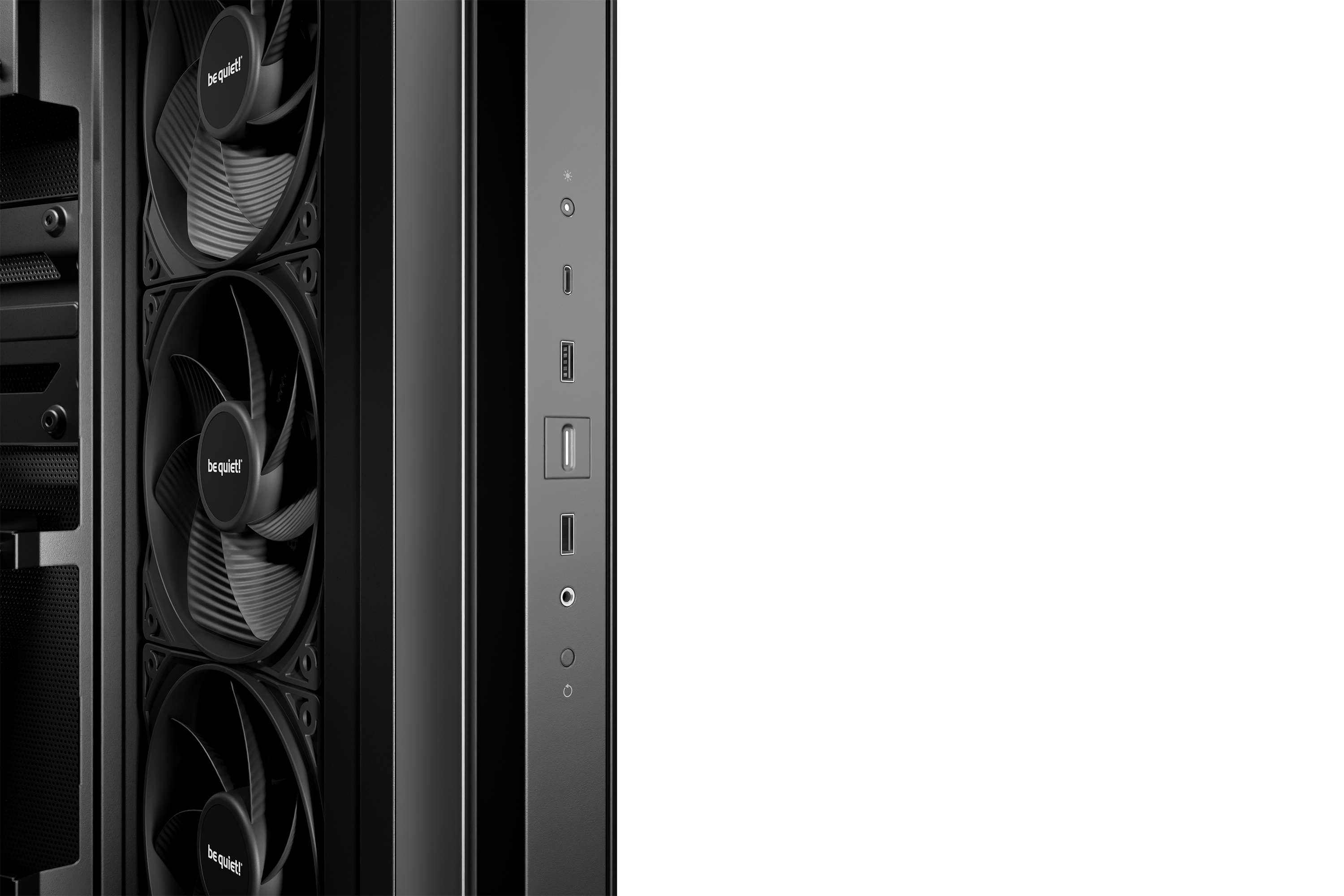

I/O Panel
| USB 3.2 Gen. 2 Type C | 1 |
| USB 3.2 Type A | 2 |
| USB 2.0 | - |
| HD Audio I/O | Mic + Audio |
| Qi charger / Quick Charging Option (W) | - |
Insulation and damping
| Top panel insulation mats | - |
| Front panel insulation mats | - |
| Side panel insulation mats | - |
| Anti-vibration decoupled HDD | ✓ |
| Anti-vibration decoupled fan | ✓ |
| Anti-vibration decoupled PSU | ✓ |
| Anti-vibration decoupled motherboard-tray | - |

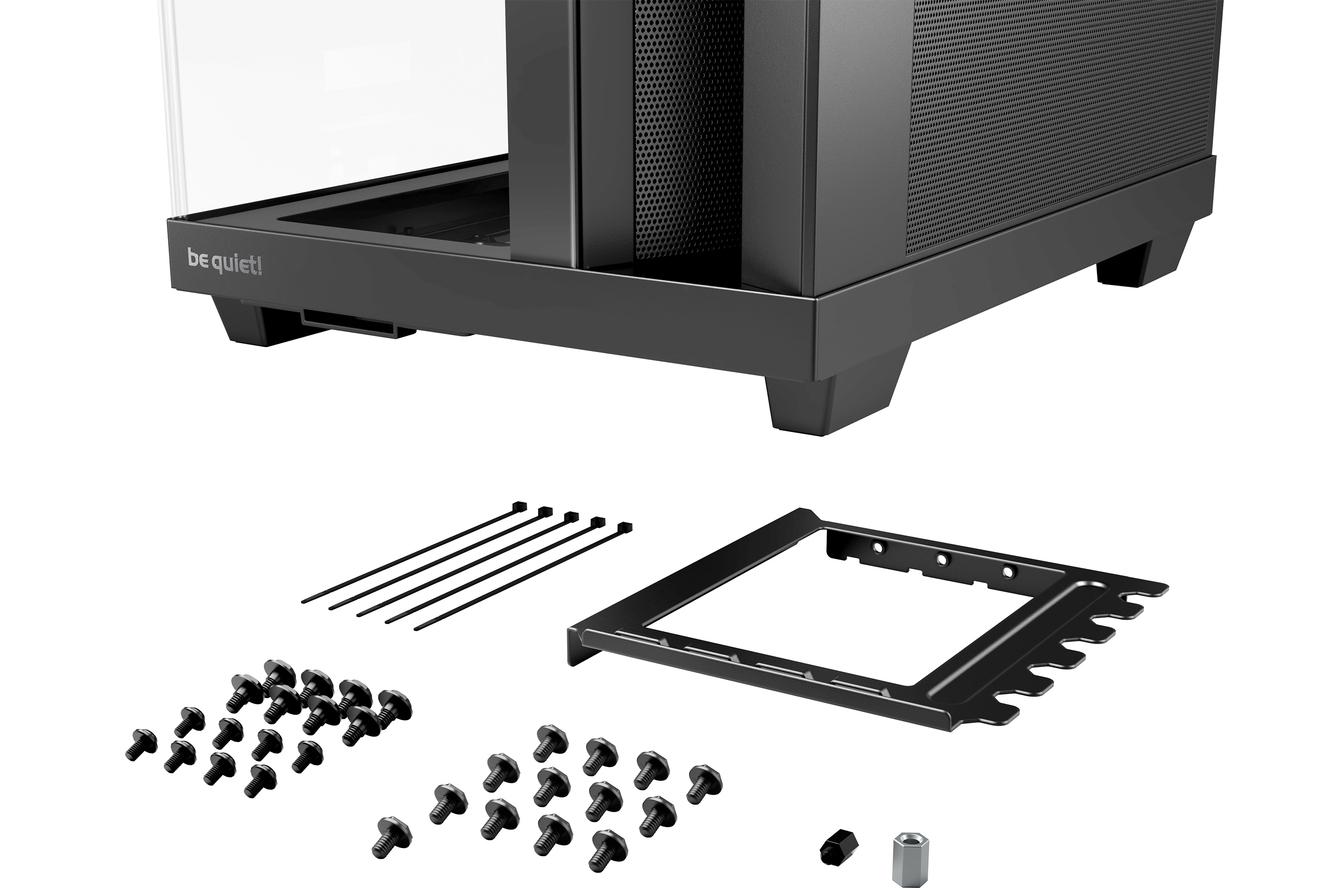

Scope of delivery
| Screw set (Drives/Motherboard) | ✓ |
| Additional standoffs (pcs.) | 1 |
| SSD bracket for PSU shroud | - |
| LED strips (pcs.) | - |
| Cable ties (pcs.) | 5 |
| Screw box | - |
| VGA holder | ✓ |
| VGA holder for inverted layout | ✓ |
| Mesh Front Panel | - |
| ODD Bracket | - |
| Fan / Radiator bracket for multi mounting panel | - |
Removeable dust filters
| Top | - |
| Front | - |
| Side | 1 |
| Bottom | 1 |
Material
| Top cover | Steel |
| Front panel | Glass |
| Side panel | Glass |
| Side panel window | Steel |
| Stands | ABS |
Safety certification
| Approvals | CE, UKCA |
Environmental directives
| RoHS | ✓ |
| Reach | - |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BGW83 |
| EAN code | 4260052193808 |
| Dimensions, package (L x W x H), (mm) | 493 x 388 x 515 |
| Gross weight, package (kg) | 14.6 |
| Pieces per packaging unit | 1 |
| RRP (€) | 119.90 |
