Article number: BGW85

LIGHT BASE 500 LX BLACK

Core performance and aesthetics

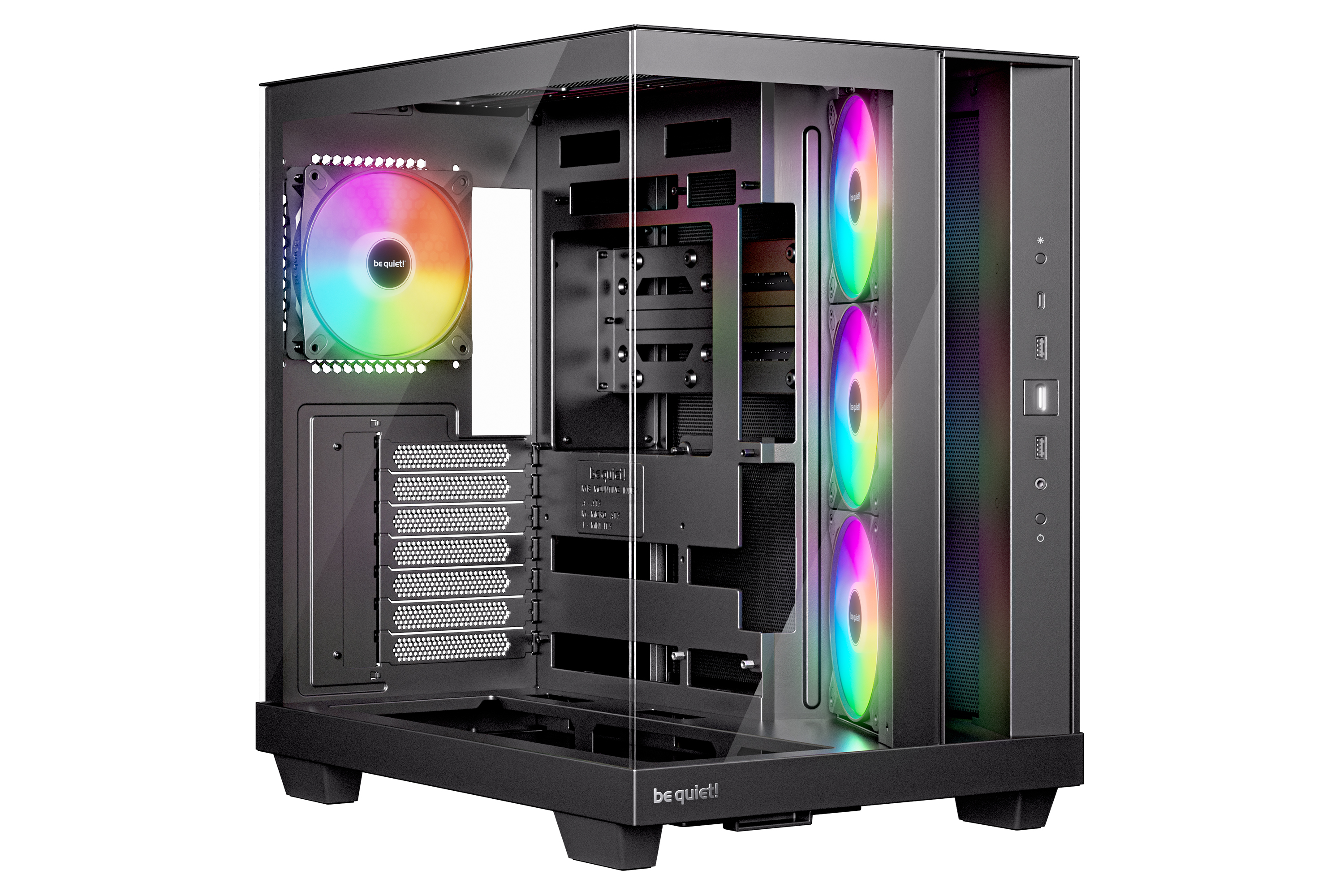

Light Base 500 LX Black stands for a clean design and the core values of gaming: performance, accessibility and functionality.

Angled slide-out fan frame on the side routes air directly to the GPU
Fans can be installed in the lowered fan bay to line up perfectly with the case floor
4 preinstalled Light Wings LX 120mm PWM fans for extraordinary airflow and impressive illumination
ARGB controller button and ARGB fan hub
Spacious design for radiators up to 360mm, and ATX motherboards
2 possible PSU positions enable backside connector motherboards
Dust filters in the side and the bottom

Characteristics

ELEVATED ELEGANCE

Cool design, cooler GPU

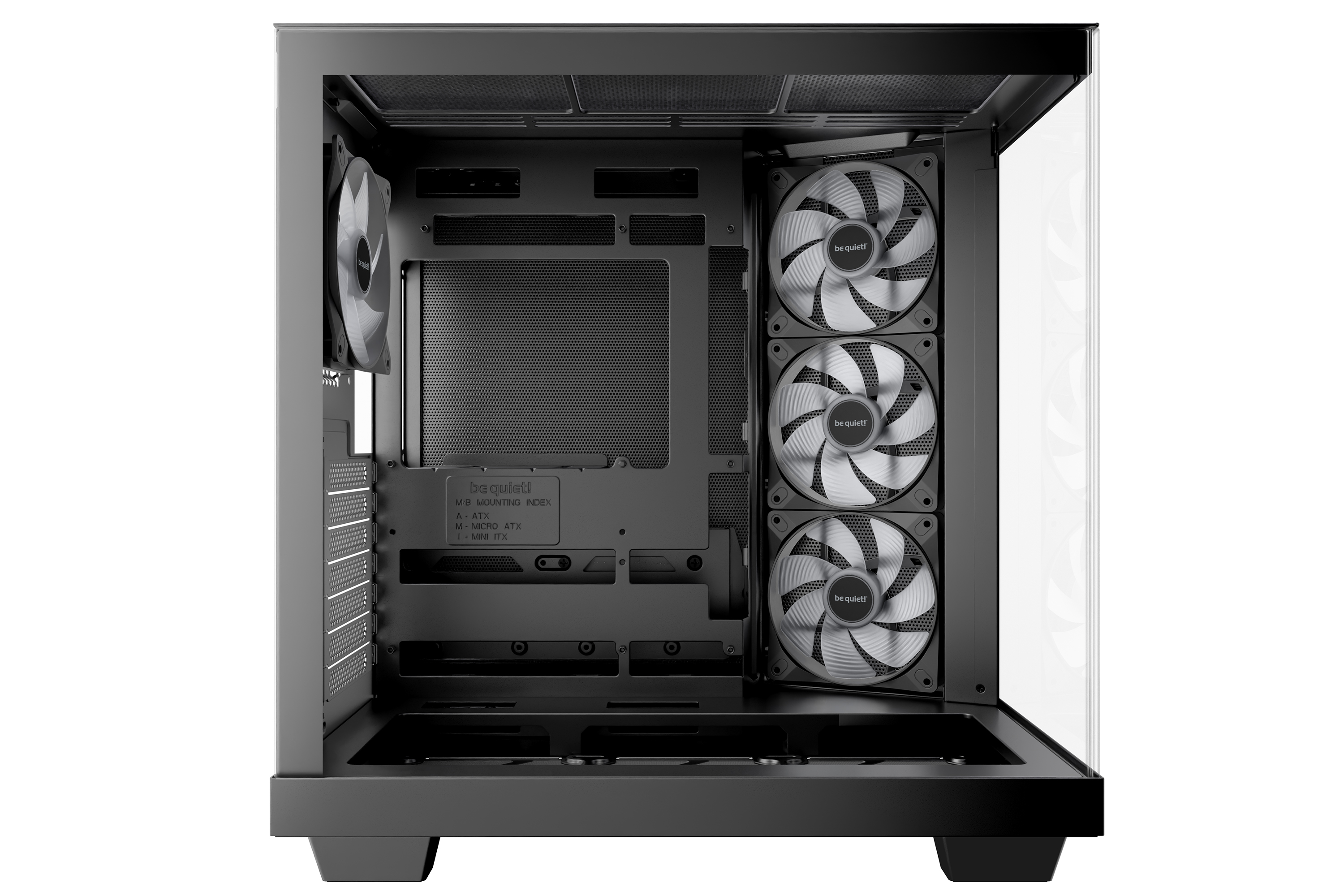

The angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat triangular cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.

4 PREINSTALLED LIGHT WINGS LX

Wait, how many fans?!

Light Base 500 LX Black features 4 preinstalled Light Wings LX fans. The rear fan is a Light Wings LX 120mm, the fans on the side are Light Wings LX 120mm PWM fans with reversed fan blades. All fans feature 16 LEDs inside their hub of the impeller, making for an unmistakable ARGB illumination. The reversed fan blades make sure that their pretty side is visible at all times.

SPACIOUS DESIGN

Size matters after all

Light Base 500 LX Black might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 1 HDD and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.

BUSINESS IN THE FRONT...

... Party in the back!

The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!

YES TO ARGB

Join the light side

For those who appreciate subtle illumination without compromising on performance, the Light Base 500 LX Black adds a touch of sophistication to the core design thanks to the included Light Wings LX fans. An ARGB controller button with predefined lighting effects and colors is integrated into the I/O panel. The preinstalled rear fan and daisy-chained side fans are connected to a 6-way ARGB and PWM hub, leaving 4 free connectors for additional devices.

All models at a glance:

Product Series

General data

Model	Light Base 500 LX Black
Color option	Black
Motherboard compatibility	ATX / M-ATX / Mini-ATX

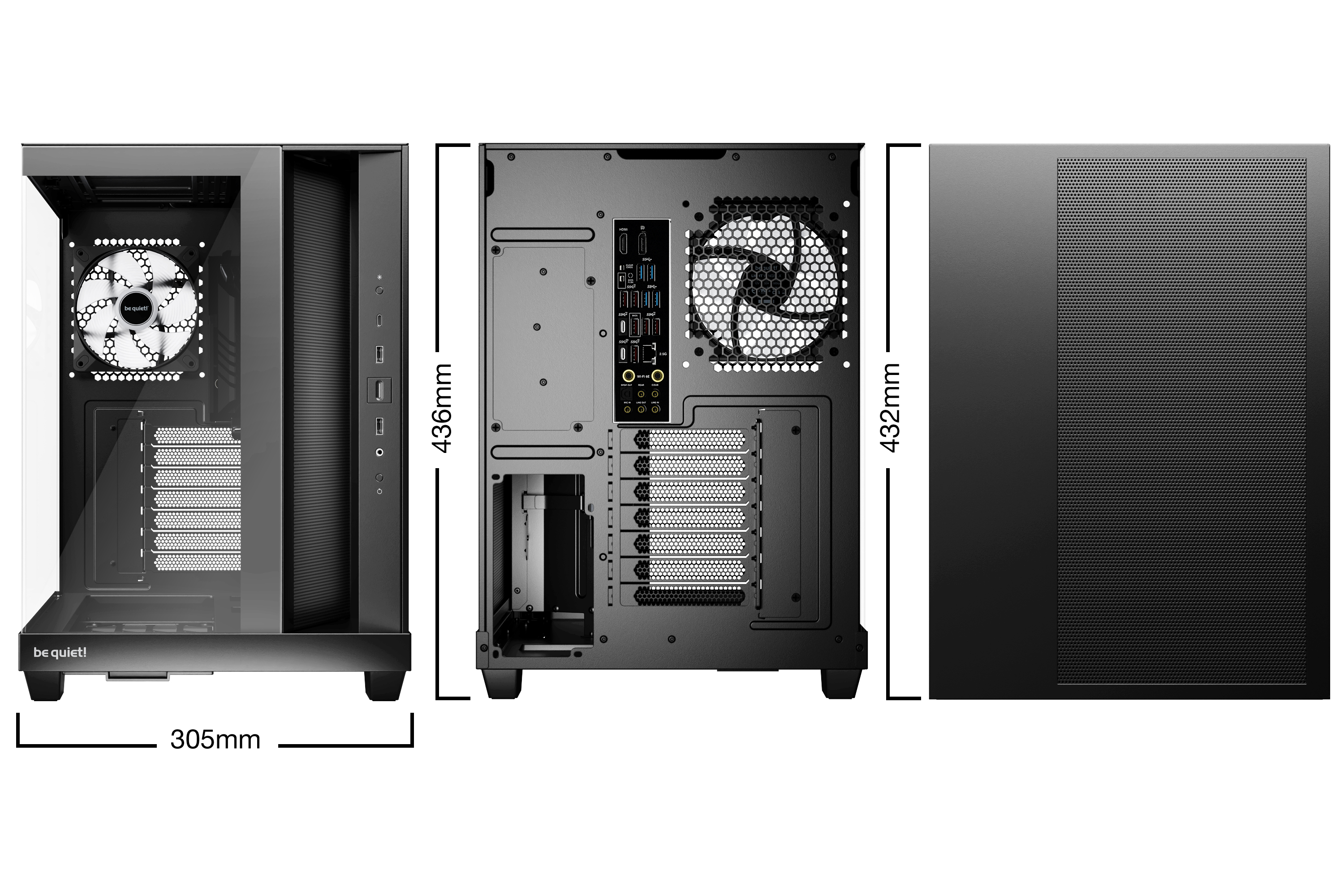

Case size excl. stands (L x W x H), (mm)	432 x 305 x 410
Case size incl. stands (L x W x H), (mm)	432 x 305 x 436
Volume (l)	49,6
PSU form factor	ATX PS/2
Net weight (kg)	10,95
Expansion slots	7

Infographics

					Pre-installed fans

								Fan at top-

								Fan at front-

								Fan at side3x Light Wings LX Reverse 120mm PWM Black

								Fan at rear1x Light Wings LX 120mm PWM Black

								Fan at bottom-

								Dimensions (L x W x H), (mm)120 x 120 x 25

								Fan speed at 100% PWM / 12V (rpm)1600 | 1500

								Airflow at 100% PWM / 12V (CFM / m3/h)51.5 / 87.5

								Air Pressure at 100% PWM / 12V (mm H2O)1.34

								Noise level at 100% PWM / 12V (dB(A))25.5

								Voltage range (V DC)5 - 13.2

								Input power (W)3.8

								Input current (A)0.32

								Connector4-pin PWM

								Lifespan (h / 25°C)60,000

								Fan controller2x 12 Ports

					Maximum fan installation

								Maximum fans10

								Top (mm)2x 140 / 3x 120

								Front (mm)-

								Side (mm)3x120

								Rear (mm)1x 120 / 1x 140

								Bottom (mm)3x 120

								PSU shroud-

					Optional radiator installation

								Top (mm)120 / 240 / 280 / 360

								Front (mm)-

								Side (mm)120 / 240

								Rear (mm)120

								Bottom (mm)-

					PSU compatibility

								Maximum dimensions excl. bottom fan (mm)<200

								Maximum dimensions incl. bottom fan (mm)<200

					Graphics card

								HDD cage (in height of graphics card) installed (mm)400

								HDD cage (in height of graphics card) removed (mm)400

								Maximum PCIe slots with vertical graphics card (pcs.)4

					Drive bay capacity

								5.25 bays (pcs.)-

								3.5 slots (scope of delivery)1

								3.5 slots (max.)1

								2.5 slots (scope of delivery)2

								2.5 slots (max.)2

					Cooling

								Max.construction height of CPU cooler unit (mm)185

								Airflow channel-

					Lighting

								LED illumination✓

								LEDs (pcs.)-

								LED type-

								LEDs synchronizable with controller/motherboard✓

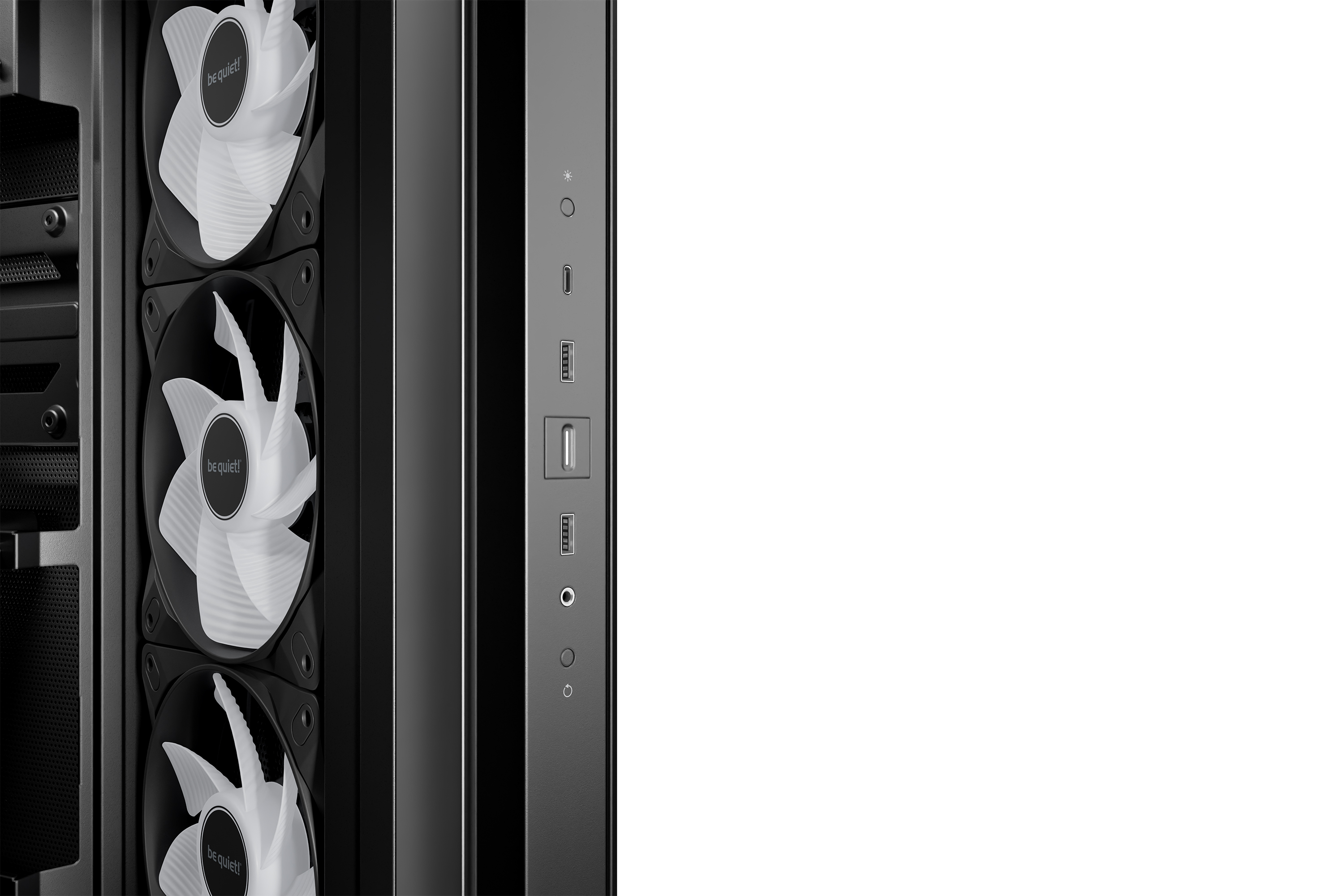

					I/O Panel

								USB 3.2 Gen. 2 Type C1

								USB 3.2 Type A2

								USB 2.0-

								HD Audio I/OMic + Audio

								Qi charger / Quick Charging Option (W)-

					Insulation and damping

								Top panel insulation mats-

								Front panel insulation mats-

								Side panel insulation mats-

								Anti-vibration decoupled HDD✓

								Anti-vibration decoupled fan✓

								Anti-vibration decoupled PSU✓

								Anti-vibration decoupled motherboard-tray-

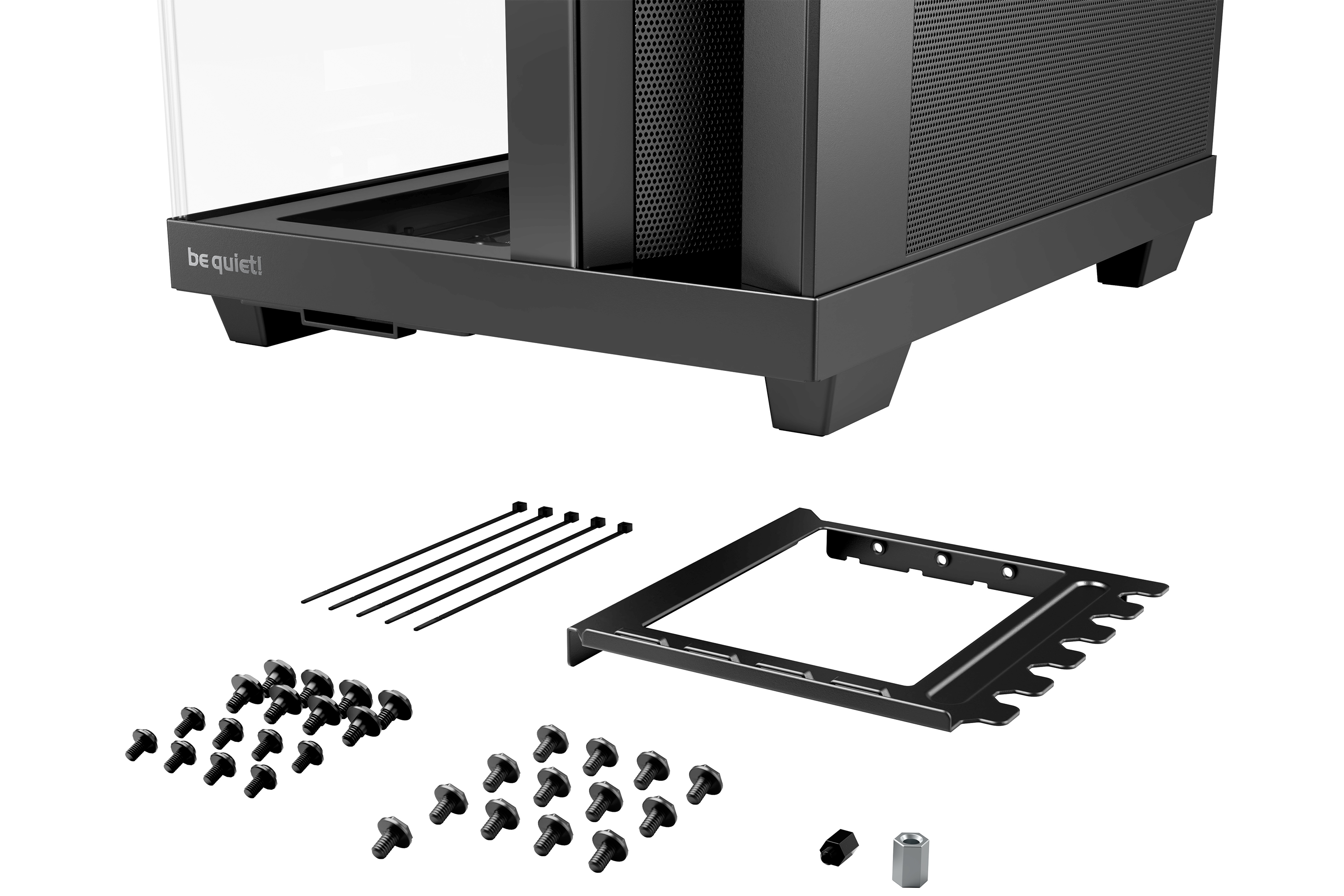

					Scope of delivery

								Screw set (Drives/Motherboard)✓

								Additional standoffs (pcs.)1

								SSD bracket for PSU shroud-

								LED strips (pcs.)-

								Cable ties (pcs.)5

								Screw box-

								VGA holder✓

								VGA holder for inverted layout✓

								Mesh Front Panel-

								ODD Bracket-

								Fan / Radiator bracket for multi mounting panel-

					Removeable dust filters

								Top-

								Front-

								Side1

								Bottom1

					Material

								Top coverSteel

								Front panelGlass

								Side panelGlass

								Side panel windowSteel

								StandsABS

					Safety certification

								ApprovalsCE / RoHS

					Environmental directives

								RoHS✓

								Reach-

								WEEE✓

								Triman✓

					Service

								Warranty (Years)3

								International hotline / free of charge✓ / DE, FR

					Logistics data and RRP

								Article numberBGW85

								EAN code4260052193884

								Dimensions, package (L x W x H), (mm)493 x 388 x 515

								Gross weight, package (kg)14.6

								Pieces per packaging unit1

								RRP (€)144.90
