Article number: BL086

SHADOW WINGS 2

140mm

World-class quiet and solid cooling

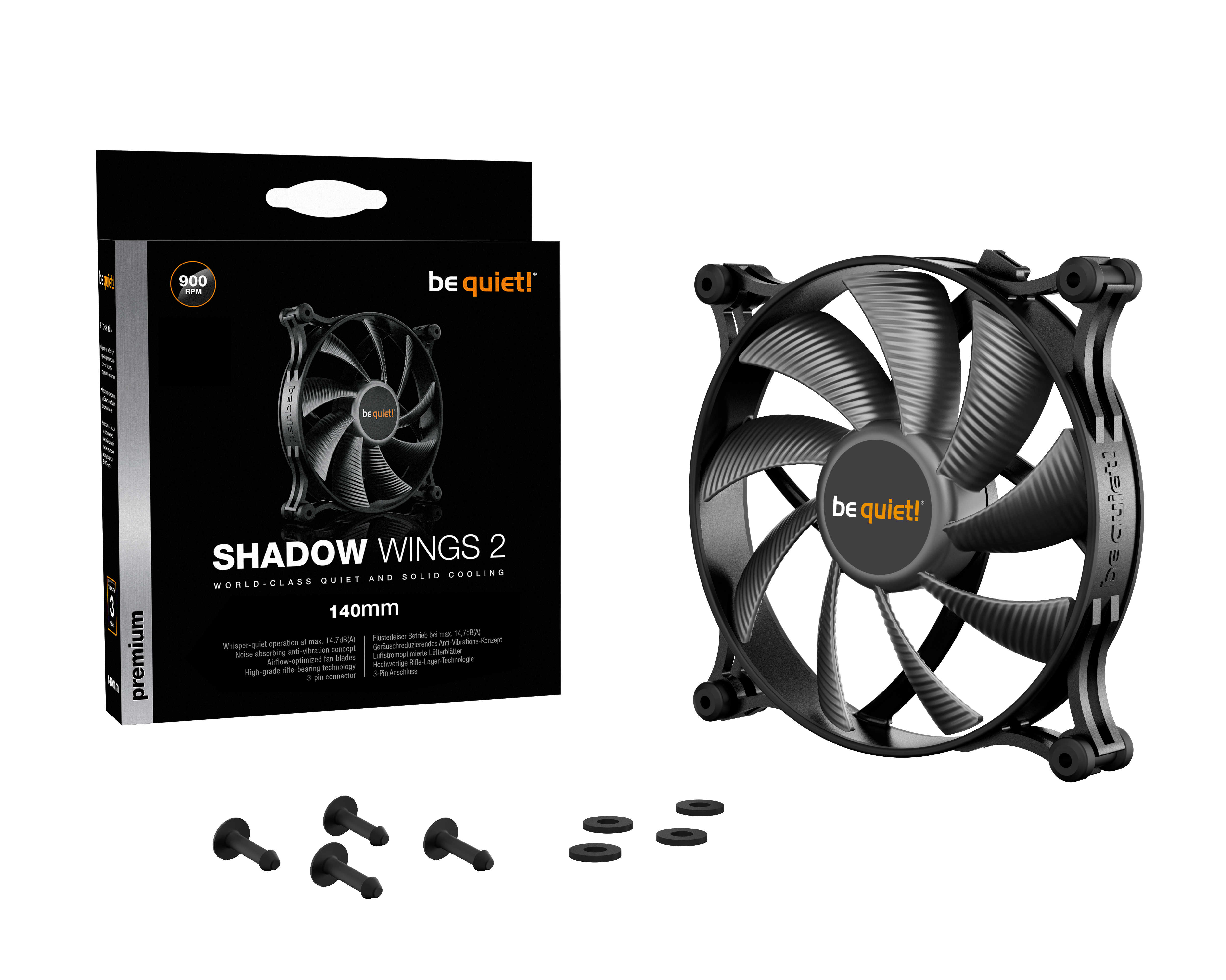

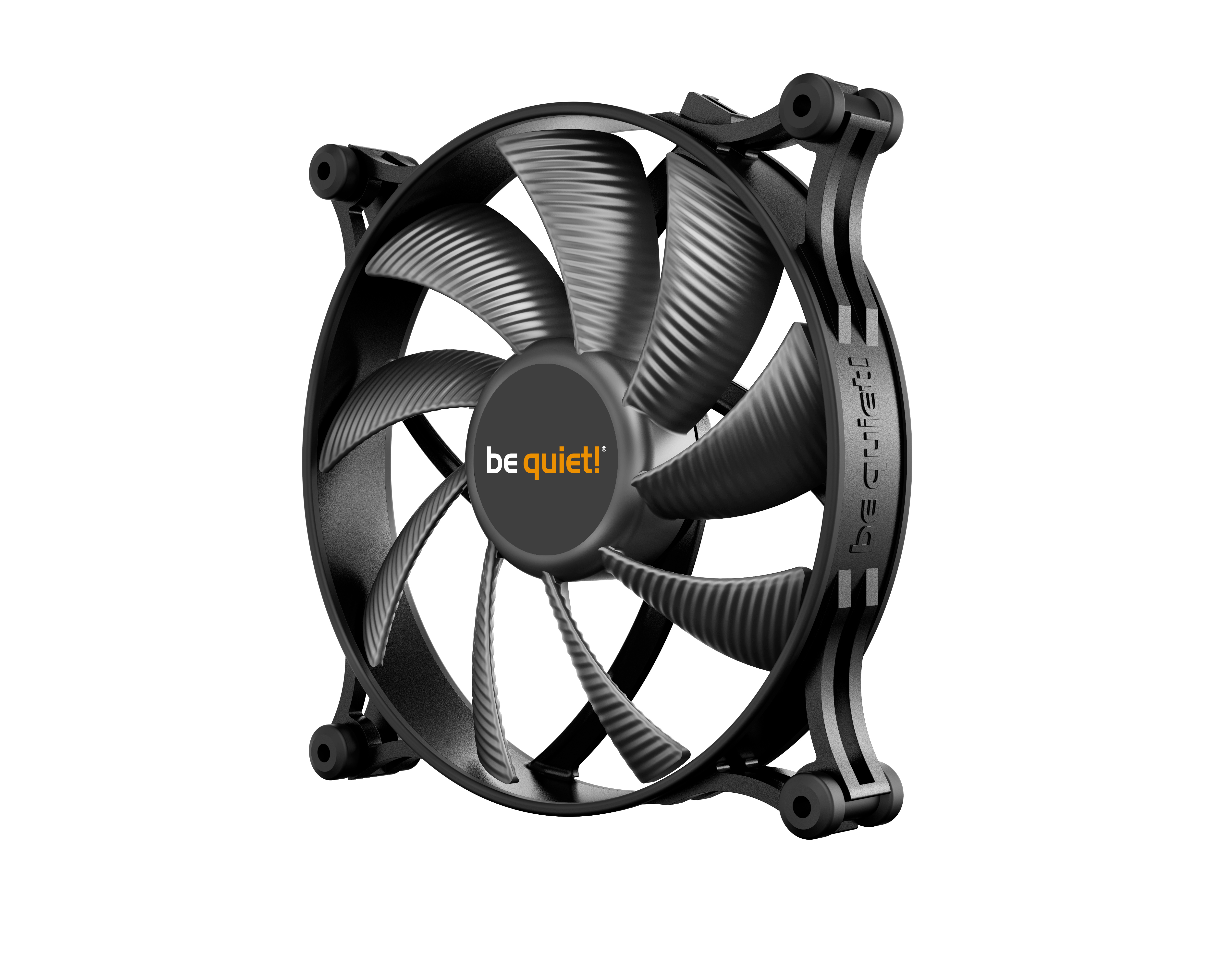

be quiet! Shadow Wings 2 140mm offers whisper-quiet operation and reliable cooling at low revolutions per minute. Key features include:

  • Low-noise operation of up to 14.7dB(A)
  • Airflow-optimized fan blades
  • Anti-vibration mounting system prevents transmission of vibrations
  • Rubberized fan frame minimizes vibrations
  • High-grade rifle-bearing technology
  • Secure and easy installation with push-pins
  • Product conception, design and quality control in Germany
  • 3-year manufacturer’s warranty

Shadow Wings 2 fans are the perfect choice for all who appreciate maximum silence for their PC case.

WHISPER-QUIET OPERATION

Due to airflow-optimized fan blades

The Shadow Wings 2 140mm fan blades have been optimized to ensure maximum airflow, resulting in a whisper-quiet operation yet solid cooling. They operate at only 14.7 dB(A) even at its maximum speed of 900 rpm. The perfect choice for all who appreciate maximum silence for their PC case.

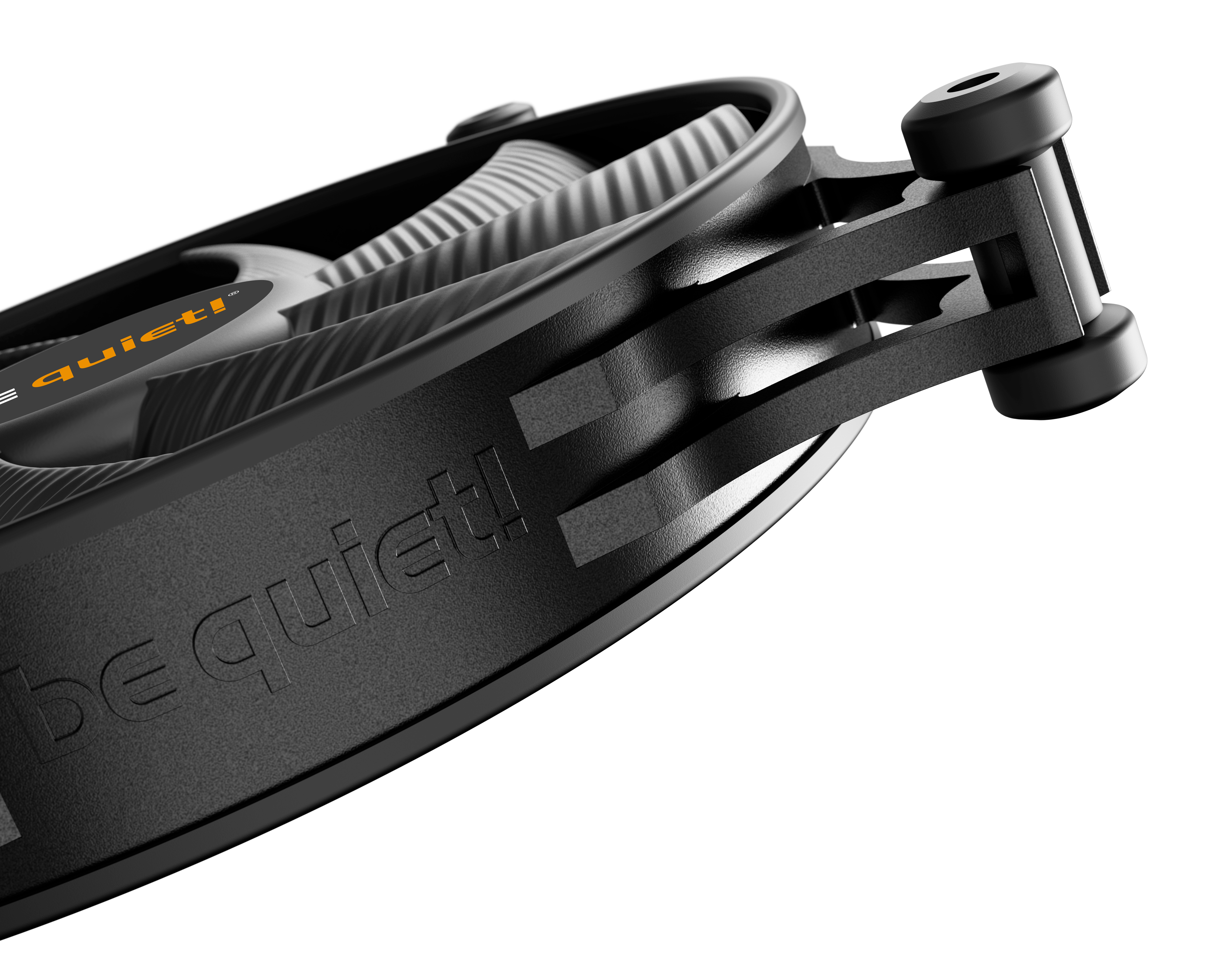

ANTI-VIBRATION CONCEPT

Reducing vibrations to a minimum

Removable anti-vibration mountings on all four edges of the fan reduce vibrations transmitted to the PC case. In addition, the fan is equipped with a rubberized frame that reinforces the anti-vibration concept and ensures vibrations are reduced to an absolute minimum.

RIFLE BEARING TECHNOLOGY

Gives the fan a very long lifespan

The Shadow Wings 2 140mm is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.

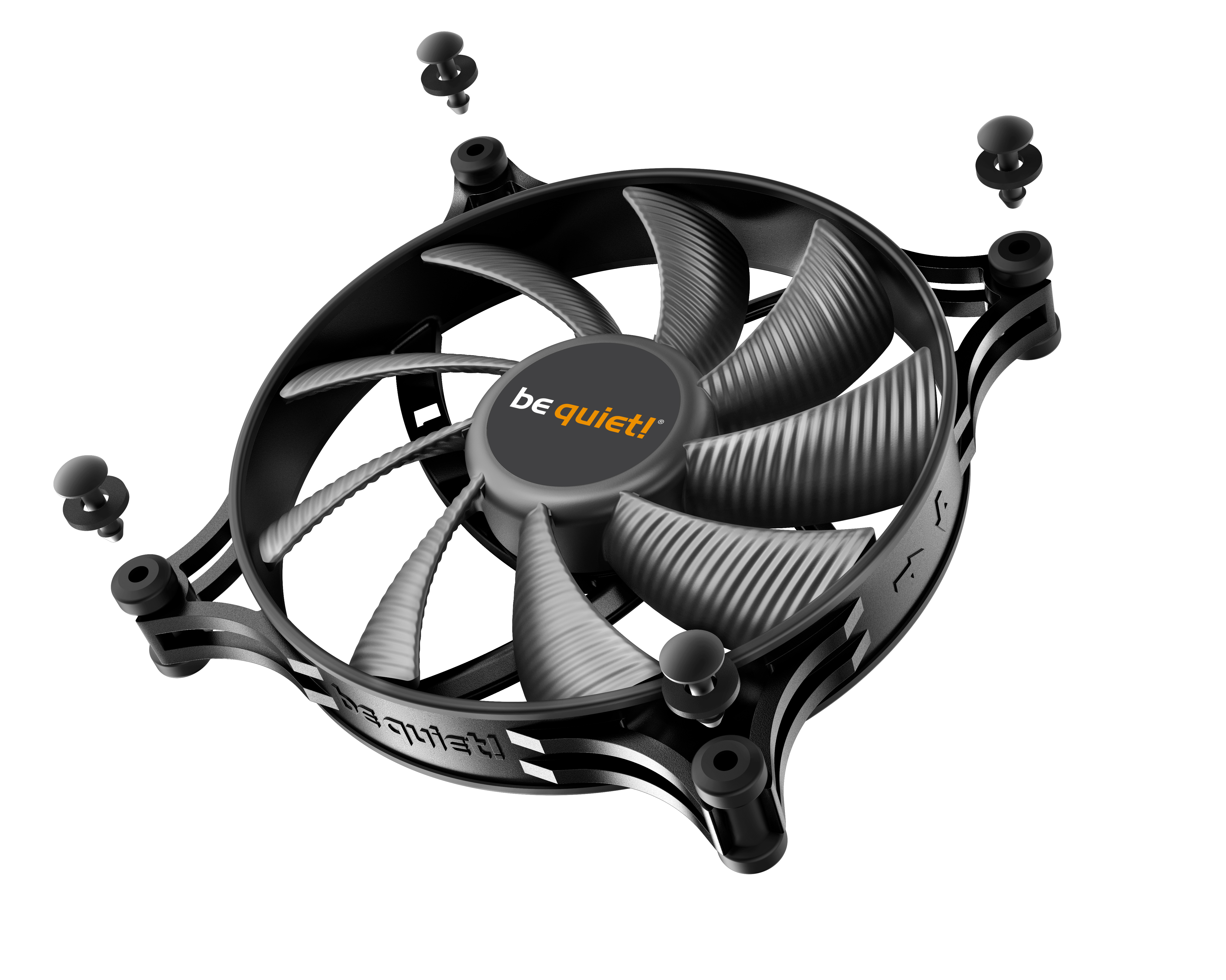

PUSH-PIN MOUNTING

For user-friendly installation

With the Shadow Wings 2 anti-vibration mounting system the fan is simple to install. The push-pins ensure a very fast and secure installation without needing screws.

All models at a glance:

Features

General data

Model Shadow Wings 2 140mm
Dimensions (mm) 140
+SilentWings -
Fan speed @ 100% PWM / 12V (rpm) 900
Air flow @ 100% PWM / 12V (cfm / m3/h) 49.8 / 85
Air pressure @ 100% PWM / 12V (mm H2O) 0.58
Noise level @ 100% PWM / 12V (dB(A)) 14.7

Infographics

open all / close all

Mechanical specifications

Dimensions (L x W x H), (mm) 140 x 140 x 25
Bearing technology Rifle
Motor technology 4-pole fan motor
Weight incl. fixed cables (kg) 0.175
Push pin fixing
Screw fixing -

Cables / Connectors

Connector 3-Pin
Cable length (mm) 500
Cable sleeve -

Performance / Noise

Air flow @ 100% PWM / 12V (cfm / m3/h) 49.8 / 85
Air pressure @ 100% PWM / 12V (mm H2O) 0.58
Noise level @ 100% PWM / 12V (dB(A)) 14.7
Lifespan (h / 25°C) 80000

Electrical specifications

Rated voltage DC (V) 12
Operating voltage DC (V) 6 - 12
Current consumption (A) 0.30
Safety current (A) 0.30
Input power (W) 3.60

Accessories

3-pin to 4-pin 12V-connector -
12V to 7V adapter -
12V to 5V adapter -
Screws -
Push pins 4
Silica gel washer 4
Others -

Safety certification

Approvals CE, TÜV, UL

Service

Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Article number BL086
EAN code 4260052186886
Dimensions, package (L x W x H), (mm) 175 x 140 x 28
Gross weight, package (kg) 0.203
Pieces per packaging unit 72
Dimensions, shipping box (L x W x H), (mm) 460 x 380 x 340
Gross weight, shipping box (kg) 15.71
RRP (€) 17.90
