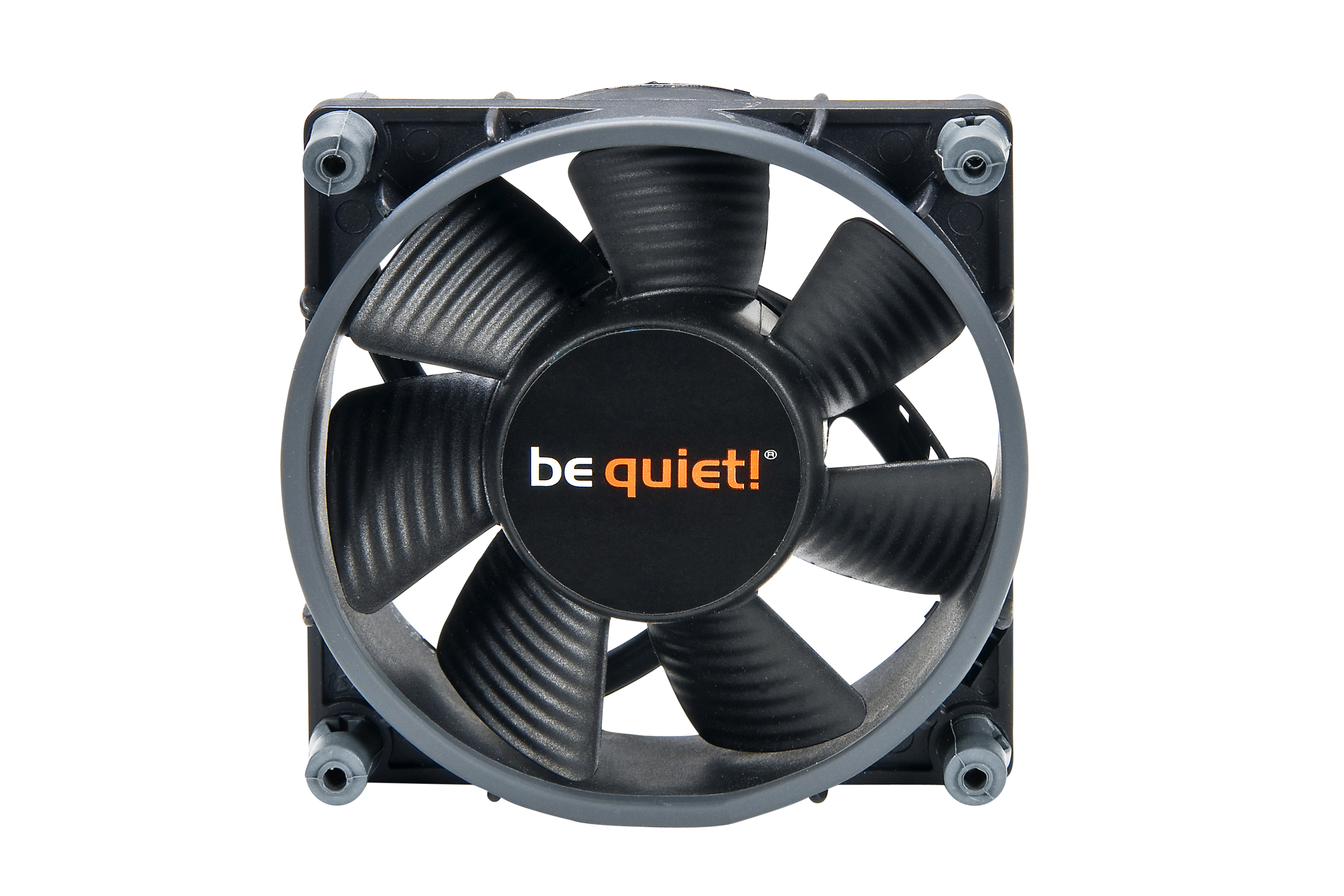

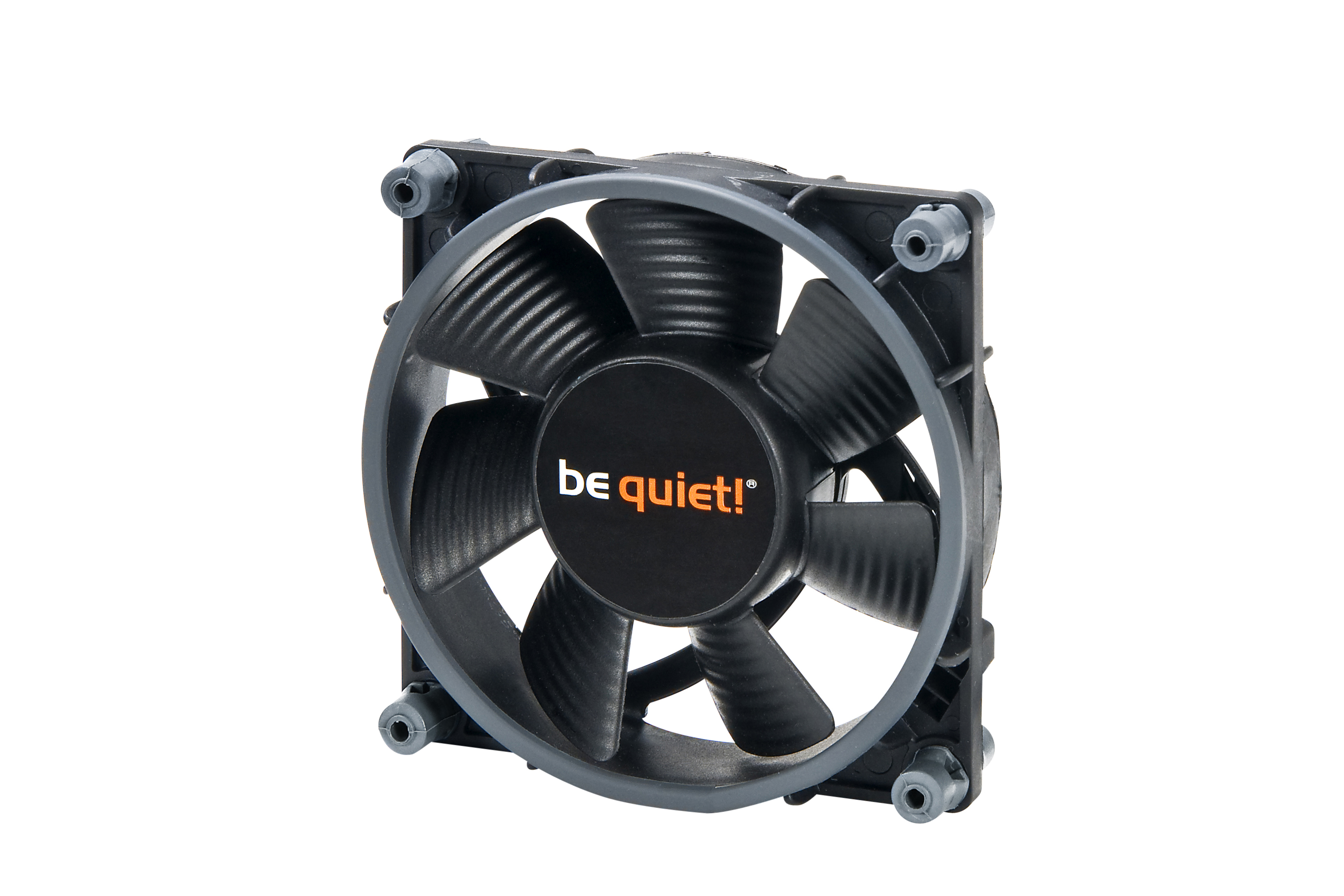

SHADOW WINGS

80mm Low-Speed

SHADOW WINGS

80mm Low-Speed

Whisper Quiet and Perfect Cooling

be quiet! Shadow Wings 80mm low-speed offers whisper-quiet operation for gaming or entertainment PCs and home theater systems. Key features include:

  • Low-noise operation of up to 8.4dB(A)
  • Reliable rifle-bearing technology
  • Airflow-optimized surface structure of the fan blades
  • Fan spinning at low speed for minimal noise levels
  • Simple assembly due to screwless installation
  • High-quality IC motor controller reduces electrical noise
  • Rubberized fan frame for less vibration
  • Product conception, design and quality control in Germany
  • 3-year manufacturer’s warranty
No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.

Very quiet operation

  • Low-noise operation due to high-quality rifle bearing. The parallel arrangement of recesses on the outer side of the bearing shaft ensure uniform circulation of the high-quality oil and make the fan very quiet. Mechanical noise is minimized by antivibration fasteners and the rubberized fan frame. The high-quality IC motor controller reduces electrical noise sources.

Long service life

  • Reliable cooling for up to 200,000 hours thanks to the high-quality rifle bearing.

High air flow

  • The flow-optimized surface structure of the fan blades produce more air flow in combination with smooth running.

Simple assembly

  • Screwless installation makes handling simple.

Service

  • 3 year manufacturer guarantee.
All models at a glance:

Product Series

General data

ModelShadow Wings 80mm 1400rpm
Dimensions (mm)80
Color optionBlack
Lighting-
Fan speed at 100% PWM / 12V (rpm)1,400
Noise level at 100% PWM / 12V (dB(A))8.4
Airflow at 100% PWM / 12V (CFM / m3/h)14.8 / 23.8
Air Pressure at 100% PWM / 12V (mm H2O)0.97

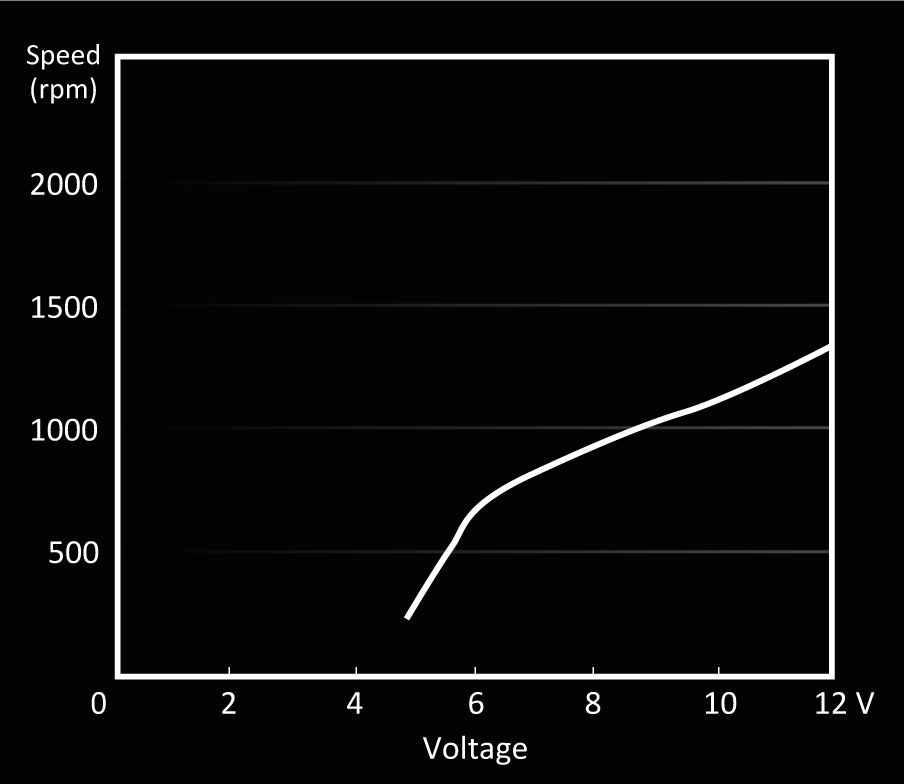

Infographics

open all / close all

Mechanical specifications

Dimensions (L x W x H), (mm)80 x 80 x 25
Weight incl. fixed cables (g)15
Bearing technologyRifle
Motor technology4-pole fan motor
Push pin fixing
Screw fixing-

Cables / Connectors

Daisy-chain compatible-
Lighting connector-
Connector3-pin
Cable length (mm)450
Cable sleeve-

Performance / Noise

Airflow at 100% PWM / 12V (CFM / m3/h)14.8 / 23.8
Air Pressure at 100% PWM / 12V (mm H2O)0.97
Noise level at 100% PWM / 12V (dB(A))8.4
Lifespan (h / 25°C)200.000
Zero RPM mode-

Electrical specifications

Rated Voltage DC (V)12
Operating Voltage DC (V)5 ~ 12
Current consumption (A)0.07
Safety current (A)0.12
Input power (W)0.84
Rated Current LED (A)-

Accessories

3-pin to 4-pin 12V-connector-
12V to 7V adapter
12V to 5V adapter-
Screws-
Push pins5
hard plastic washer5
Others-

Safety certification

ApprovalsCE, RoHS, WEEE, RU, Tüv

Environmental directives

RoHS
WEEE
Triman

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data and RRP

Article numberBL050
EAN code4260052182680
Dimensions, package (L x W x H), (mm)147 x 85 x 41
Gross weight, package (kg)0.16
Pieces per packaging unit48
Dimensions, shipping box (L x W x H), (mm)365 x 320 x 280
Gross weight, shipping box (kg)8.40
RRP (€)11.50

SHADOW WINGS | 80mm Low-Speed
Article number: BL050
