Article number: BL072

LIGHT WINGS

120mm PWM

Impressive lighting, superior cooling

Light Wings 120mm PWM offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.

•    ARGB lighting on front and rear
•    Multiple colors and modes for an individual look thanks to 18 LEDs
•    7 silence-optimized fan blades for high airflow and low noise-generating turbulences
•    Very quiet operation with max. 20.6dB(A)
•    Long life rifle-bearing gives an operating lifetime of 60,000 hours
•    3-year manufacturer’s warranty

If you are looking for a quiet case fan with an impressive look from every angle, Light Wings 120mm PWM is your fan of choice.

No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.

IMPRESSIVE LIGHTING

Lots of illumination possibilities

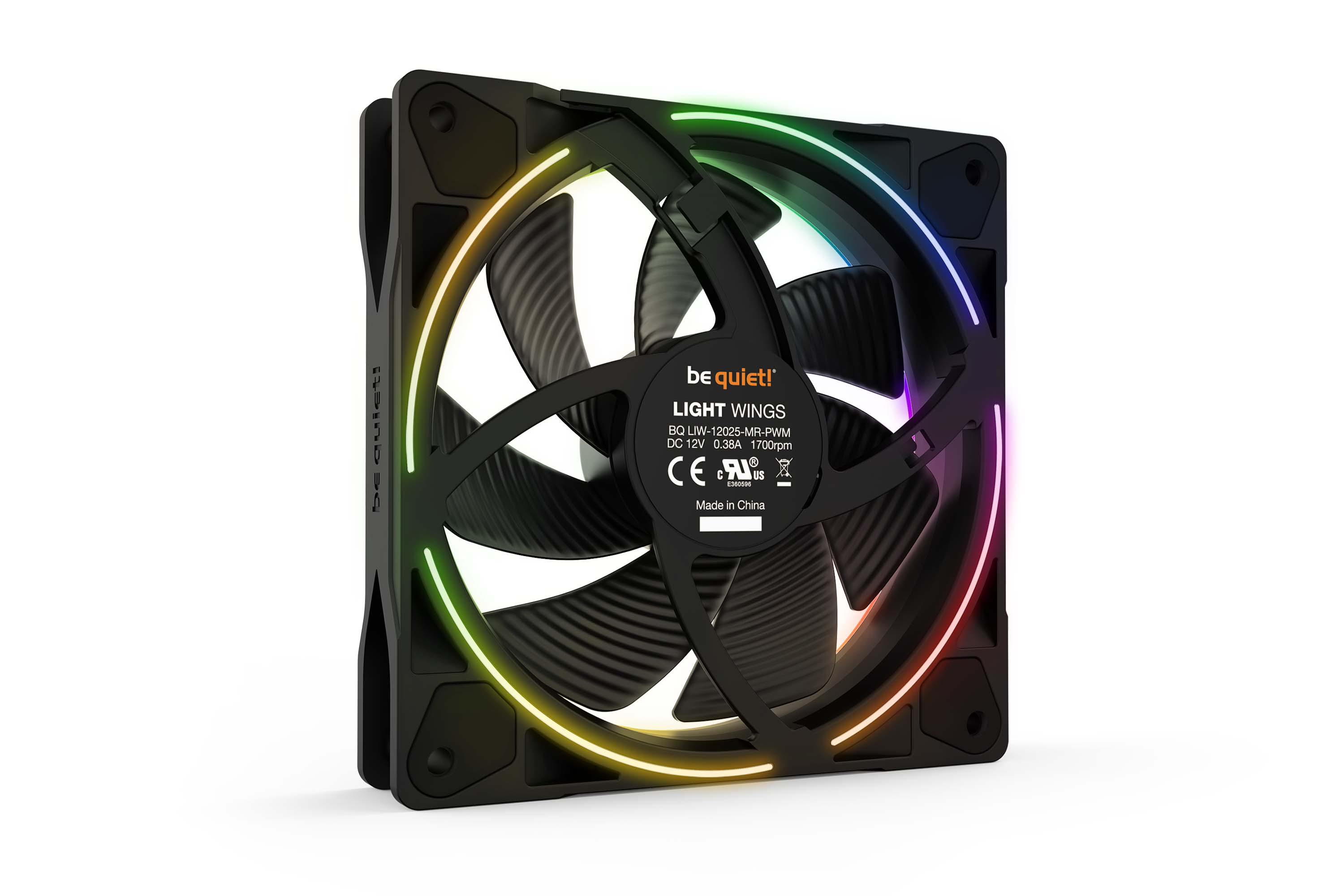

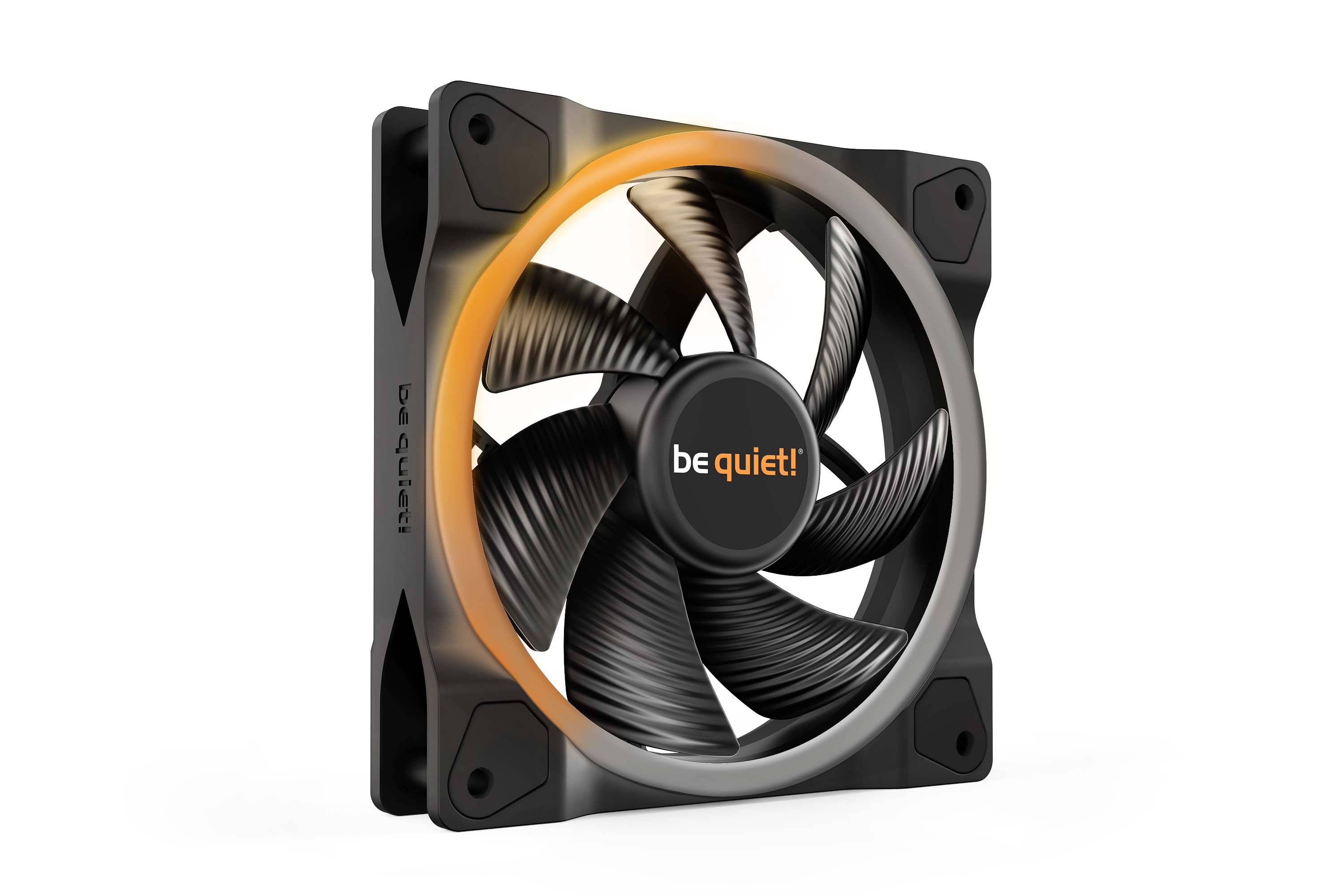

Light Wings 120mm PWM offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 18 ARGB LEDs give you many opportunities to individualize your PC build.

PERFECT CASE FAN

Fan blades optimized for high airflow

With optimization for maximum airflow, Light Wings 120mm PWM is the right choice for any case configuration that demands high cooling performance. Its seven airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Light Wings 120mm PWM provides the performance that is needed, even in demanding configurations.

VERY QUIET OPERATION

Acclaimed be quiet! low noise level

A highly optimized impeller achieves the silent operation be quiet! is famous for. With a noise level of 20.6dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to very silent and powerful operation. All features combine to make Light Wings 120mm PWM the fan of choice for silent show cases and gaming systems alike.

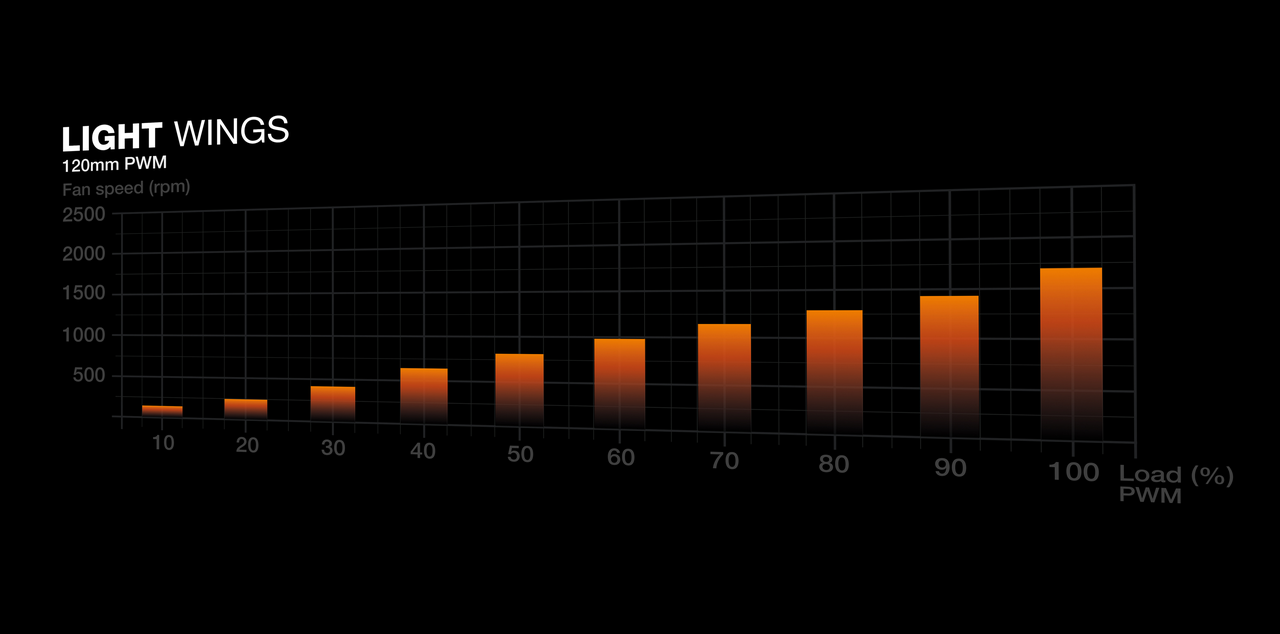

VARIABLE FAN SPEED FUNCTION

Adjusts the fan speed and associated noise level

Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.

“It was our goal from scratch not only to build an ARGB fan, but one that holds up to the high standards we have at be quiet! And the results speak for themselves: years of development pay off with this performant and silent fan, which is the very first ARGB fan of be quiet!”

Christian Joppien, Head of Global Product Management

All models at a glance:

Product Series

General data

ModelLight Wings 120mm PWM
Dimensions (mm)120
Color optionBlack
LightingARGB LED
Fan speed at 100% PWM / 12V (rpm)1700
Noise level at 100% PWM / 12V (dB(A))20.6
Airflow at 100% PWM / 12V (CFM / m3/h)41.5 / 70.5
Air Pressure at 100% PWM / 12V (mm H2O)1.66

Infographics

open all / close all

Mechanical specifications

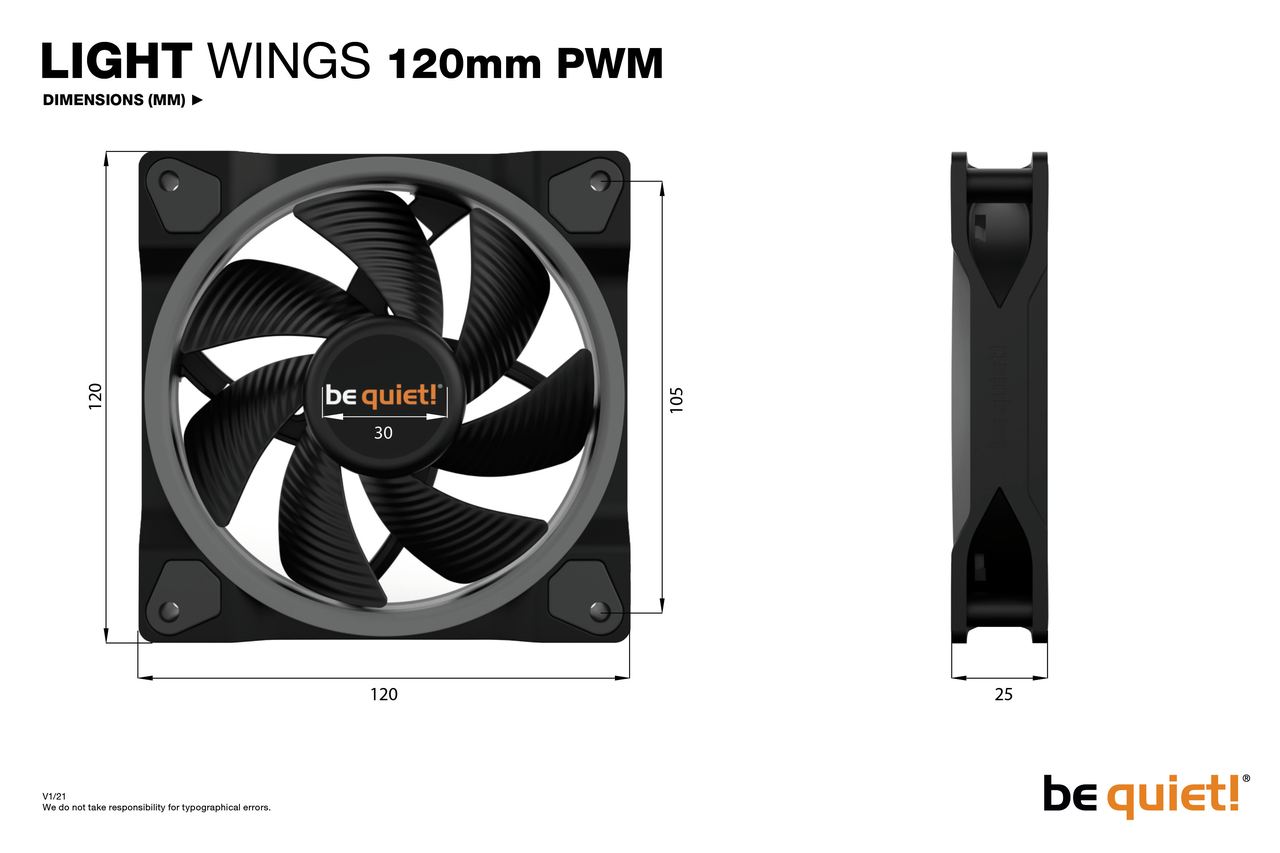

Dimensions (L x W x H), (mm)120 x 25 x 120
Weight incl. fixed cables (g)200
Bearing technologyRifle
Motor technology4-pole fan motor
Push pin fixing-
Screw fixing

Cables / Connectors

Daisy-chain compatible
Lighting connector5V 3-pin ARGB
Connector4-pin PWM
Cable length (mm)500
Cable sleeve-

Performance / Noise

Airflow at 100% PWM / 12V (CFM / m3/h)41.5 / 70.5
Air Pressure at 100% PWM / 12V (mm H2O)1.66
Noise level at 100% PWM / 12V (dB(A))20.6
Lifespan (h / 25°C)60,000
Zero RPM mode-

Electrical specifications

Rated Voltage DC (V)12
Operating Voltage DC (V)5 - 13.2
Current consumption (A)0.07
Input current (A)0.07
Safety current (A)0.38
Input power (W)4.6
Rated Current LED (A)0.60

Accessories

3-pin to 4-pin 12V-connector-
12V to 7V adapter-
12V to 5V adapter-

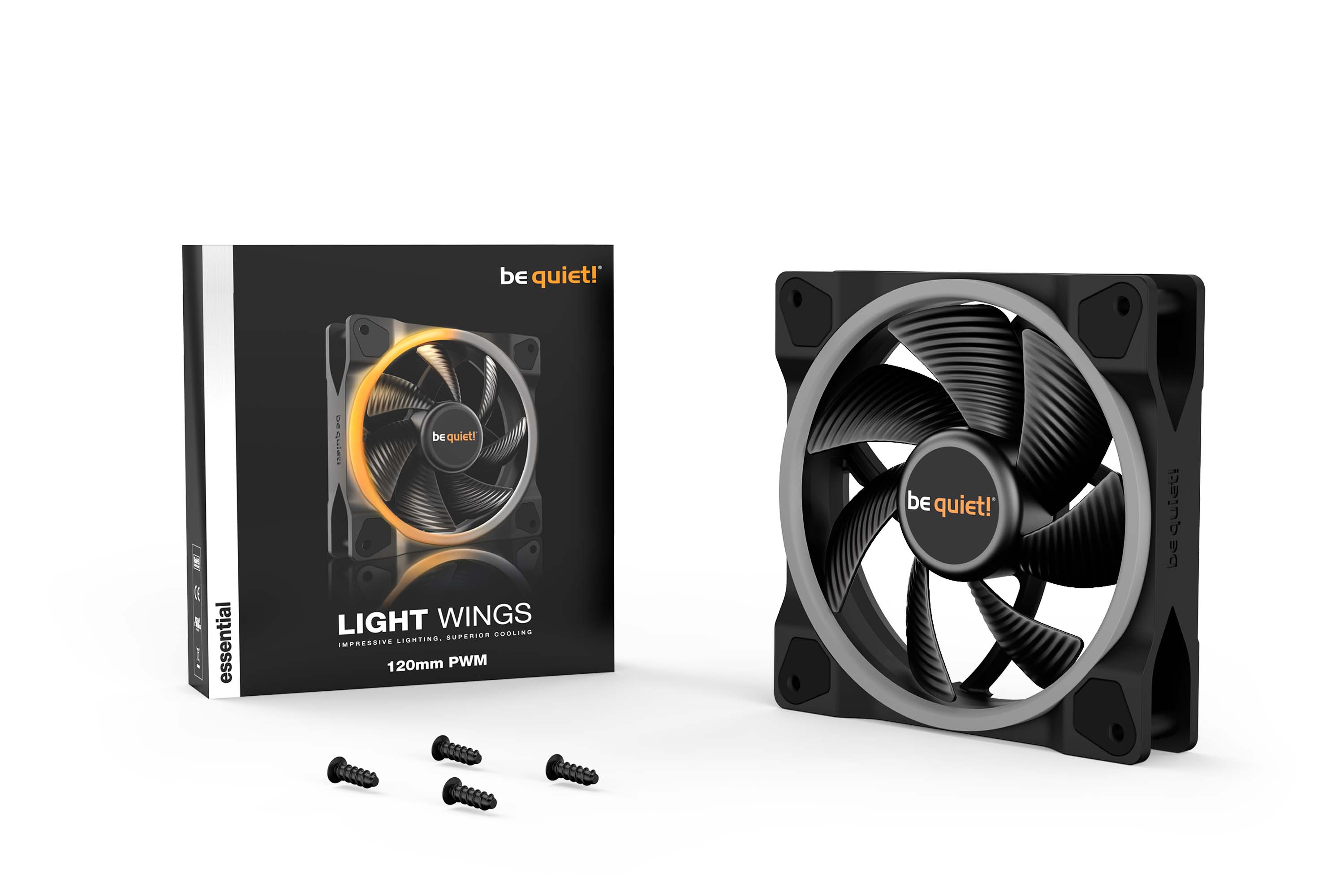

Screws4
Push pins-
hard plastic washer-
Others-

Safety certification

ApprovalsCE / UL

Environmental directives

RoHS
WEEE
Triman

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR, US

Logistics data and RRP

Article numberBL072
EAN code4260052188767
Dimensions, package (L x W x H), (mm)153 x 29.5 x 133
Gross weight, package (kg)0.27
Pieces per packaging unit30
Dimensions, shipping box (L x W x H), (mm)418 x 325 x 182
Gross weight, shipping box (kg)8.64
RRP (€)25.50
