Article number: BL045

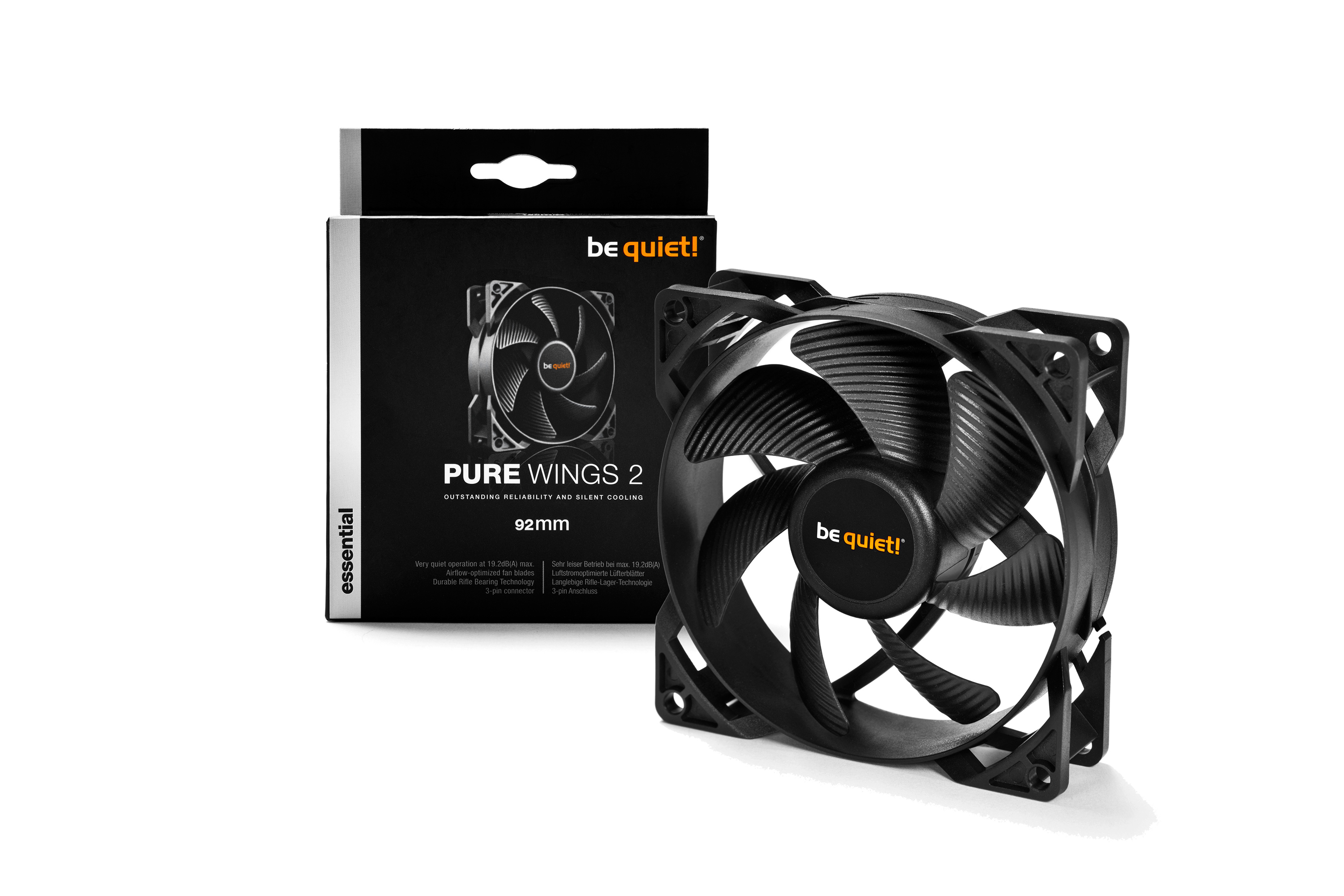

PURE WINGS 2
92mmOutstanding price-performance ratio
The Pure Wings 2 92mm fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems. The most important features include:
- 7 airflow-optimized fan blades that reduce noise-generating turbulence
- Long life rifle-bearing gives an operating lifetime of 80,000 hours
- Even at maximum speed, operates at only 18.6dB(A)
- Product conception, design and quality control in Germany
- 3-year warranty
Pure Wings 2 92mm fans offer outstanding reliability and quiet operation at great price-for-performance ratio. They are the ultimate reason to put the well-known be quiet! silent cooling in your PC.
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
VERY QUIET OPERATION
Achieves a great price-for-performance ratioThe Pure Wings 2 92mm fan operates at only 18.6dB(A) even at maximum speed. The perfect choice for silent home and office PCs as well as gaming and multimedia systems.
SILENCE-OPTIMIZED FAN BLADES
For even better coolingThanks to its surface-optimized fan blades the airflow is enhanced, noise-generating turbulences are minimized and the air pressure is increased. This feature is the key to effective cooling.
RIFLE BEARING TECHNOLOGY
Gives the fan a very long lifespanThe Pure Wings 2 92mm is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.
“It must be next to impossible to find another fan at this segment with such high performance and yet the quiet operation Pure Wings 2 offers.”
Lea Brock, Head of Social Media and Content
All models at a glance:
General data
| Model | Pure Wings 2 92mm |
| Dimensions (mm) | 92 |
| Color option | Black |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 1900 |
| Noise level at 100% PWM / 12V (dB(A)) | 18.6 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 33.15 / 56.02 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.65 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 92 x 25 x 92 |
| Weight incl. fixed cables (g) | 82 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 3-pin |
| Cable length (mm) | 460 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 33.15 / 56.02 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.65 |
| Noise level at 100% PWM / 12V (dB(A)) | 18.6 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 12 |
| Input current (A) | 0.15 |
| Safety current (A) | 0.32 |
| Input power (W) | 3.84 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / TÜV / UL |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BL045 |
| EAN code | 4260052183380 |
| Dimensions, package (L x W x H), (mm) | 127 x 27 x 94 |
| Gross weight, package (kg) | 0.102 |
| Pieces per packaging unit | 144 |
| Dimensions, shipping box (L x W x H), (mm) | 630 x 390 x 245 |
| Gross weight, shipping box (kg) | 15.85 |
| RRP (€) | 11.50 |
