Article number: BL124

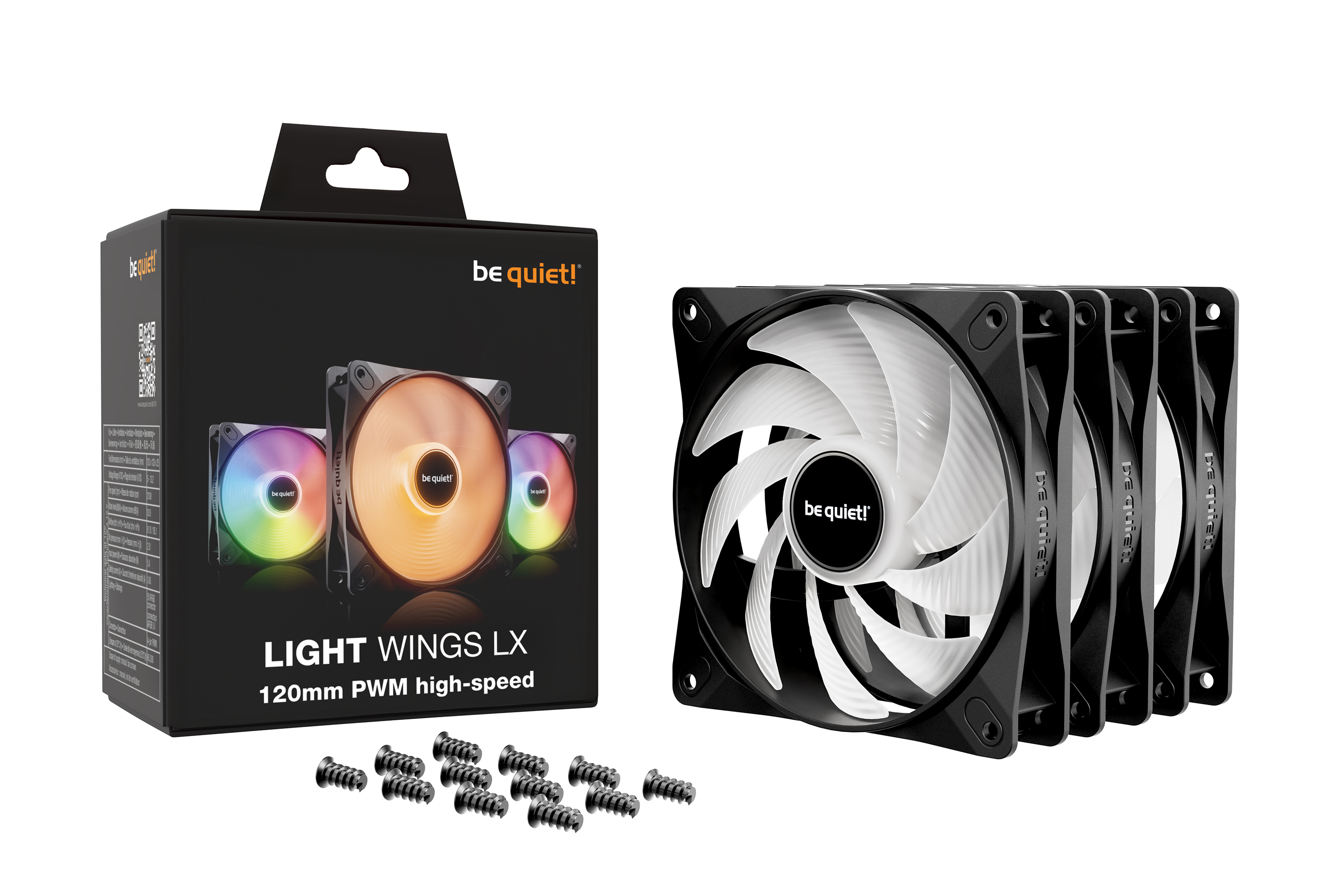

LIGHT WINGS LX
120mm PWM HS 3-PackGreat performance and impressive lighting
The Light Wings LX 120mm PWM high-speed Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.
• 3-fan bundle
• Illuminated hub and frosted fan blades for unmistakable lighting effects that visually
upgrade every PC system
• Multiple colors and modes for an individual look thanks to 16 LEDs
• 9 optimized fan blades with perfect angle for extraordinary air pressure
• Innovative closed loop motor keeps the rpm no matter the resistance
• ARGB connection cable with daisy chain option
• Low starting rpm for very quiet operation
• Long life rifle-bearing gives an operating lifetime of 60,000 hours
• 3-year manufacturer’s warranty
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
SHOW WHAT YOU GOT
A fan made for show casesLight Wings LX 120mm PWM high-speed undeniably upgrades all kind of PC cases with its spectacular lighting. Especially show cases with an emphasis on ARGB illumination benefit from this fan. Add a bunch of them to your showcase and let friends and family gaze in awe.
IMPRESSIVE LIGHTING
Lots of illumination possibilities16 LEDs are located inside the hub of the impeller of the Light Wings LX 120mm PWM high-speed and shine outwards onto the frosted fan blades. This creates an unmistakable look and enables you to express your creativity.
FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressureWith a remarkably high air pressure of up to 2.51mm/H2O , Light Wings LX 120mm PWM high-speed is the best choice for water-cooled and air-cooled systems alike. The 9 optimized fan blades provide enough air pressure to make this fan work great even in demanding configurations.
INNOVATIVE TECHNOLOGY
Closed loop motor for persistent rpmLight Wings LX 120mm PWM high-speed features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Light Wings LX 120mm PWM high-speed always operates at the desired speed, no matter the air resistance.
DAISY CHAIN IT!
One connector for all your Light Wings LX fansThe ARGB connection cable comes with an input and an output connector. The input can be used to connect the fan to your motherboard or to an ARGB controller, but also to daisy-chain it with the output connector of other Light Wings LX fans.
RIFLE BEARING TECHNOLOGY
Makes Light Wings LX a long-lasting companionLight Wings LX 120mm PWM high-speed is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 60,000 hours.
"Light Wings LX is like a party for your PC! It's a radiant rainbow of coolness, yet highly performant - it's the total package!"
Stefanie Pirsich, Social Media Manager & Content Creator
All models at a glance:
General data
| Model | Light Wings LX 120mm PWM high-speed Triple Pack |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | ARGB LED |
| Fan speed at 100% PWM / 12V (rpm) | 2100 |
| Noise level at 100% PWM / 12V (dB(A)) | 30.9 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 61.8 / 105.1 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.51 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Weight incl. fixed cables (g) | 135 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | ✓ |
| Lighting connector | 5V 3-pin ARGB |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 61.8 / 105.1 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.51 |
| Noise level at 100% PWM / 12V (dB(A)) | 30.9 |
| Lifespan (h / 25°C) | 60,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.15 |
| Input current (A) | 0.15 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Rated Current LED (A) | 0.39 |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 12 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL124 |
| EAN code | 4260052191620 |
| Dimensions, package (L x W x H), (mm) | 164 x 122 x 80 |
| Gross weight, package (kg) | 0.48 |
| Pieces per packaging unit | 20 |
| Dimensions, shipping box (L x W x H), (mm) | 428 x 269 x 320 |
| Gross weight, shipping box (kg) | 10.28 |
| RRP (€) | 54.90 |
