essential
Article number: BL038

PURE WINGS 2

92mm PWM

Outstanding price-performance ratio

Pure Wings 2 92mm PWM fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems.

  • Seven airflow-optimized fan blades reduce noise-generating turbulence
  • Long life rifle-bearing gives an operating lifetime of 80,000 hours
  • Even at maximum speed, operates at only 19.6 dB(A)
  • PWM controlled fan speed through the motherboard
  • German product conception, design and quality control
  • 3-years manufacturer’s warranty

Pure Wings 2 92mm PWM fans offer outstanding reliability and quiet operation at great price-for-performance ratio. They are the ultimate reason to put well-known be quiet! silent cooling in your PC.


VERY QUIET OPERATION

Achieves a great price-for-performance ratio

The Pure Wings 2 92mm PWM fan operates at only 19.6dB(A) even at maximum speed. The perfect choice for silent home and office PCs as well as gaming and multimedia systems.

SILENCE-OPTIMIZED FAN BLADES

For even better cooling

Thanks to its surface-optimized fan blades the airflow is enhanced, noise-generating turbulences are minimized and the air pressure is increased. This feature is the key to effective cooling.

VARIABLE FAN SPEED FUNCTION

Varies the fan speed and noise level of the fan

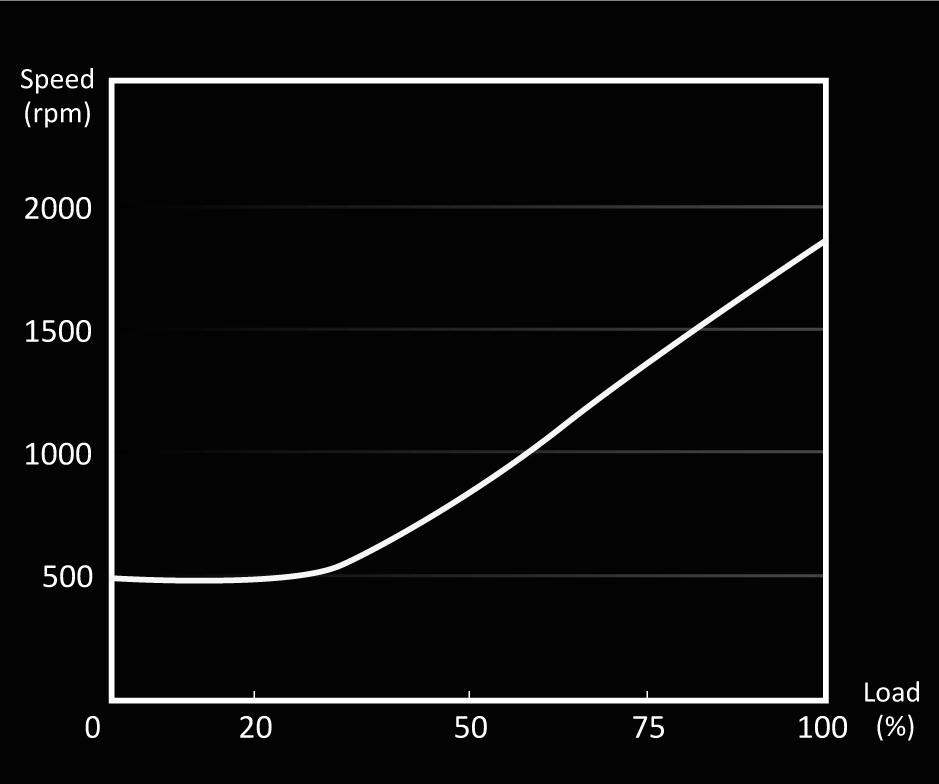

Pulse Width Modulation (PWM) allows compatible 4-pin controllers - including those built into many motherboards - to intelligently vary the speed and thus the noise level of the fan. With PWM your system can ramp up the cooling when it’s needed, or operate in maximum quiet mode when it’s not.

RIFLE BEARING TECHNOLOGY

Gives the fan a very long lifespan

The Pure Wings 2 92mm PWM is the hallmark of outstanding reliability. This is achieved by its high-quality rifle bearing technology, which assures a very long lifespan of up to 80,000 hours.

All models at a glance:

Features

General data

ModelPure Wings 2 92mm PWM
Dimensions (mm)92
+SilentWings-
Fan speed @ 100% PWM / 12V (rpm)1900
Air Flow @ 100% PWM / 12V (CFM / m3/h)33.15 / 56.02
Air Pressure @ 100% PWM / 12V (mm H2O)1.65
Noise level @ 100% PWM / 12V (dB(A))19.6
Color optionBlack

Infographics

open all / close all

Mechanical specifications

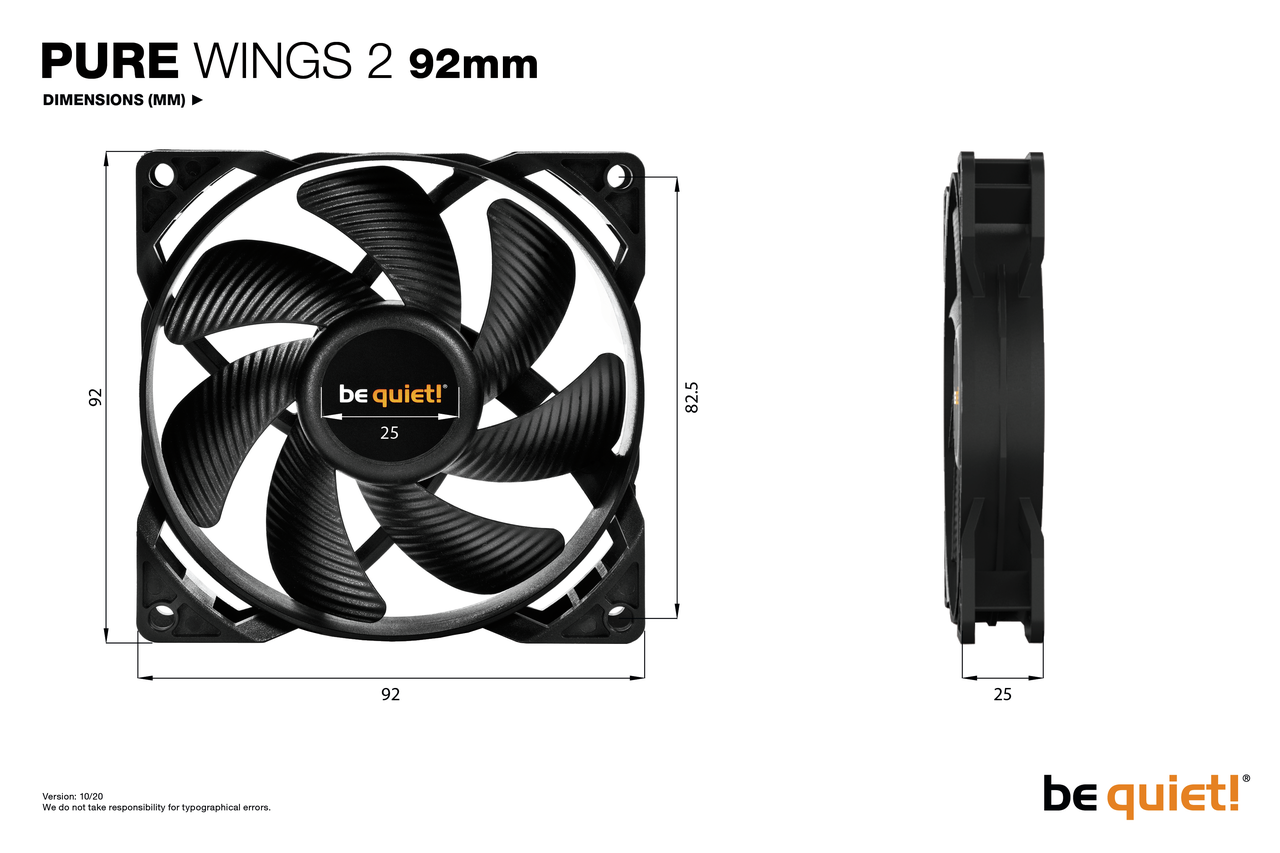

Dimensions (L x W x H), (mm)92 x 92 x 25
Bearing technologyRifle
Motor technology4-pole fan motor
Weight incl. fixed cables (kg)0.083
Push pin fixing-
Screw fixing

Cables / Connectors

Connector4-pin PWM
Cable length (mm)460
Cable sleeve-

Performance / Noise

Air Flow @ 100% PWM / 12V (CFM / m3/h)33.15 / 56.02
Air Pressure @ 100% PWM / 12V (mm H2O)1.65
Noise level @ 100% PWM / 12V (dB(A))19.6
Lifespan (h / 25°C)80,000

Electrical specifications

Rated Voltage DC (V)12
Operating Voltage DC (V)5 - 12
Current consumption (A)0.10
Safety current (A)0.32
Input power (W)3.84

Accessories

3-pin to 4-pin 12V-connector-
12V to 7V adapter-
12V to 5V adapter-
Screws4
Push pins-
Silica gel washer-
Others-

Safety certification

ApprovalsCE / TÜV / UL

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data, RRP

Article numberBL038
EAN code4260052184394
Dimensions, package (L x W x H), (mm)127 x 94 x 27
Gross weight, package (kg)0.104
Pieces per packaging unit144
Dimensions, shipping box (L x W x H), (mm)630 x 390 x 245
Gross weight, shipping box (kg)15.85
RRP (€)10.90

Pure Wings 2 | 92mm PWM
Article number: BL038

Documents

Images

Video
