Article number: BL136
PURE WINGS 3
120mm PWM Reverse White 3-Pack
PURE WINGS 3
120mm PWM Reverse White 3-PackPerformant, Progressive, Quiet
With low minimum rpm and reversed fan blades, the Pure Wings 3 120mm PWM Reverse White Triple Pack is the perfect choice for side or bottom air intakes. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system.
- 3 fans included
- 7 optimized and reversed fan blades with perfect angle for extraordinary air pressure
- Reversed fan blades are ideal as side or bottom intake
- Pure Wings 3 can be operated with very low minimum rpm for very quiet operation
- Product conception, design and quality control in Germany
Characteristics
REVERSED FAN BLADES
Fan blades optimized for high airflowWith optimization for maximum airflow, Pure Wings 3 120mm PWM Reverse White Triple Pack is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 120mm PWM Reverse White Triple Pack provides the performance that is needed, even in demanding configurations.
PERFECT CASE FAN
Perfect choice as a side or bottom intakePure Wings 3 120mm PWM Reverse White Triple Pack is perfect as intake fan for spaces that are in the center of attention, for example as a side or bottom air intake of a fishtank-style PC case. With its reversed fan blades, you always keep the front of these sleek fans in your view.
ICONIC DESIGN
Streamlined look makes it an instant timeless classicPure Wings 3 120mm PWM Reverse White Triple Pack trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 120mm PWM Reverse White Triple Pack a timeless classic and elegant addition to every gaming PC, especially in show cases like the Light Base series as a side or bottom intake .
RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 120mm PWM Reverse White Triple Pack a long-lasting companionPure Wings 3 120mm PWM Reverse White Triple Pack is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.
All models at a glance:
General data
| Model | Pure Wings 3 120mm | PWM Reverse White Triple-Pack |
| Dimensions (mm) | 120 |
| Color option | White |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 1500 |
| Noise level at 100% PWM / 12V (dB(A)) | 28.5 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 47.1 / 80.0 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.17 |
Infographics

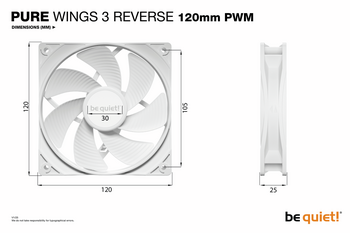

Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 142 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 47.1 / 80.0 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 1.17 |
| Noise level at 100% PWM / 12V (dB(A)) | 28.5 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.07 |
| Safety current (A) | 0.32 |
| Input power (W) | 3.84 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | - |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BL136 |
| EAN code | 4260052193822 |
| Dimensions, package (L x W x H), (mm) | 132 x 80 x 122 |
| Gross weight, package (kg) | 0.506 |
| Pieces per packaging unit | 20 |
| Dimensions, shipping box (L x W x H), (mm) | 423 x 264 x 304 |
| Gross weight, shipping box (kg) | 10.58 |
| RRP (€) | 34.90 |
