Article number: BL140
PURE WINGS 3
120mm PWM HS 3-Pack

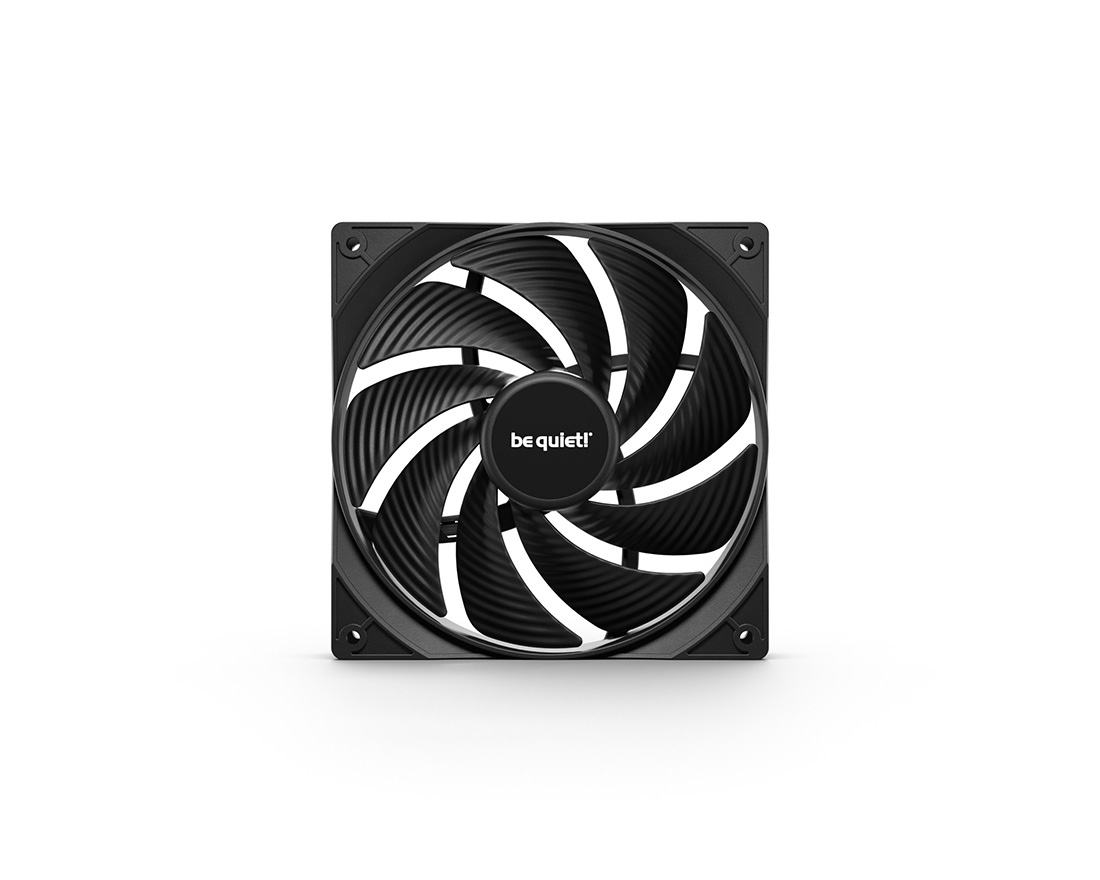

PURE WINGS 3
120mm PWM HS 3-PackPERFORMANT, PROGRESSIVE, QUIET
Pure Wings 3 120mm PWM high-speed Triple Pack is the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor.
- 3 fans included
- Innovative closed loop motor keeps the rpm no matter the resistance
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 can be operated with very low minimum rpm for very quiet operation
- Product conception, design and quality control in Germany
Characteristics
INNOVATIVE TECHNOLOGY
Closed loop motor for persistent rpmPure Wings 3 120mm PWM high-speed Triple Pack features a closed loop motor. This technology is comparable with the cruise control in cars. When working against resistance, for example a fan grill or radiator, fans spin slower as a result. The closed loop motor technology constantly monitors the current fan speed and increases it to the target rpm, if necessary. As a result, Pure Wings 3 120mm PWM high-speed Triple Pack always operates at the desired speed, no matter the resistance.
OPTIMIZED TO THE MAX
For unprecedented air pressure in its classThe fan frame outlet is newly designed to minimize air leaks. This benefits especially the radiator performance of Pure Wings 3 120mm PWM high-speed Triple Pack. To reach even higher performance, the fan blades are optimized as well: Their angle is adjusted to achieve even more air pressure, adding up to the extraordinary performance of Pure Wings 3 120mm PWM high-speed Triple Pack.
FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressureWith a remarkably high air pressure of up to 2.41mm/H2O, Pure Wings 3 120mm PWM high-speed Triple Pack is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan work great even in demanding configurations.
ICONIC DESIGN
Streamlined look makes it an instant timeless classicPure Wings 3 120mm PWM high-speed Triple Pack trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 120mm PWM high-speed Triple Pack a timeless classic and elegant addition to every gaming PC.
RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 a long-lasting companionPure Wings 3 120mm PWM high-speed Triple Pack is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.
All models at a glance:
General data
| Model | Pure Wings 3 120mm | PWM high-speed Triple Pack |
| Dimensions (mm) | 120 |
| Color option | Black |
| Lighting | - |
| Fan speed at 100% PWM / 12V (rpm) | 2100 |
| Noise level at 100% PWM / 12V (dB(A)) | 30.9 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 59.6 / 101.2 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.41 |
Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 25 x 120 |
| Weight incl. fixed cables (g) | 149 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 460 |
| Cable sleeve | - |
Performance / Noise
| Airflow at 100% PWM / 12V (CFM / m3/h) | 59.6 / 101.2 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.41 |
| Noise level at 100% PWM / 12V (dB(A)) | 30.9 |
| Lifespan (h / 25°C) | 80,000 |
| Zero RPM mode | - |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Input current (A) | 0.13 |
| Safety current (A) | 0.3 |
| Input power (W) | 3.6 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | ✓ |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BL140 |
| EAN code | 4260052193860 |
| Dimensions, package (L x W x H), (mm) | 132 x 80 x 122 |
| Gross weight, package (kg) | 0.506 |
| Pieces per packaging unit | 20 |
| Dimensions, shipping box (L x W x H), (mm) | 427 x 355 x 330 |
| Gross weight, shipping box (kg) | 10.58 KG |
| RRP (€) | 34.90 |
