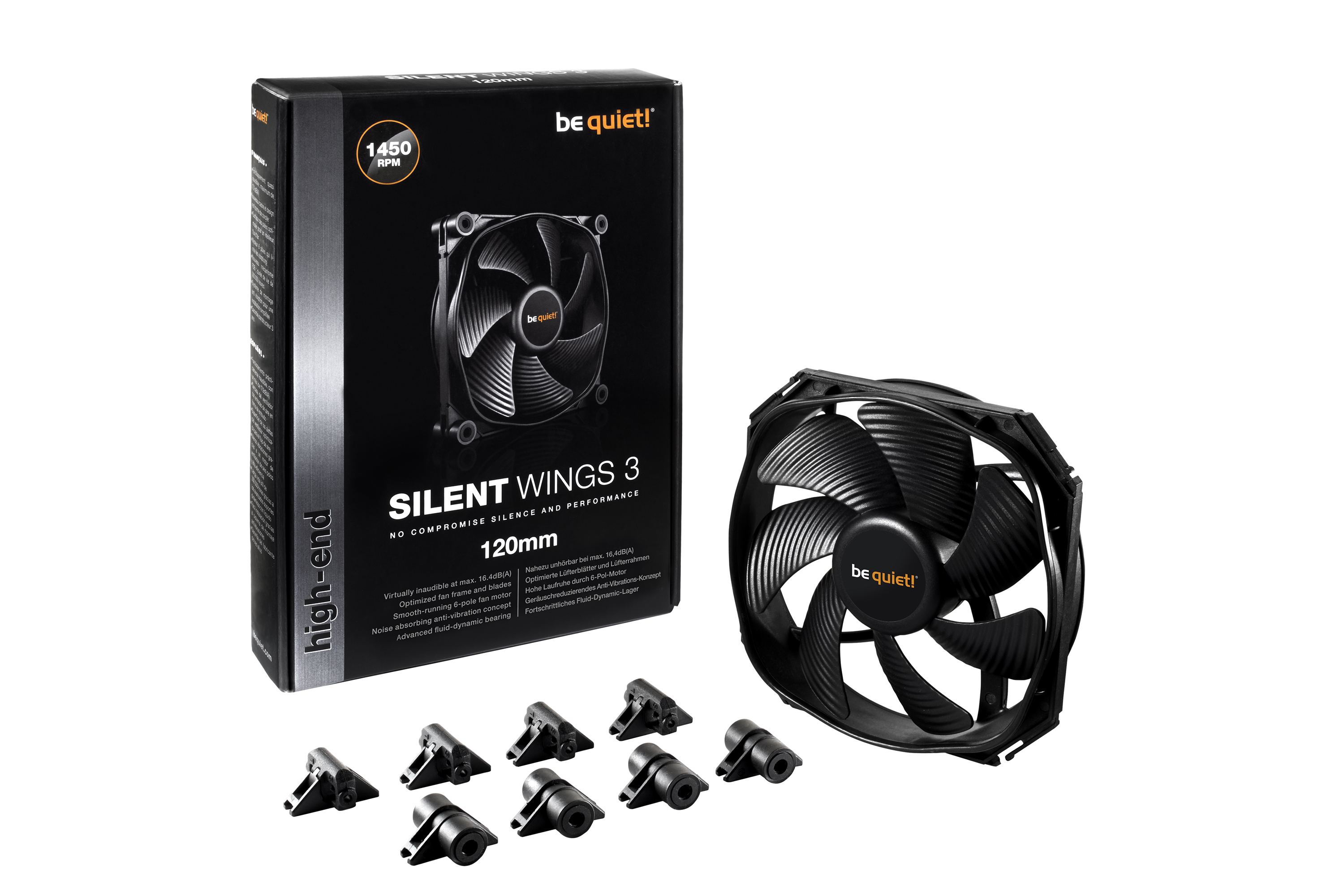

SILENT WINGS 3
120mmNo Compromise Silence and Performance

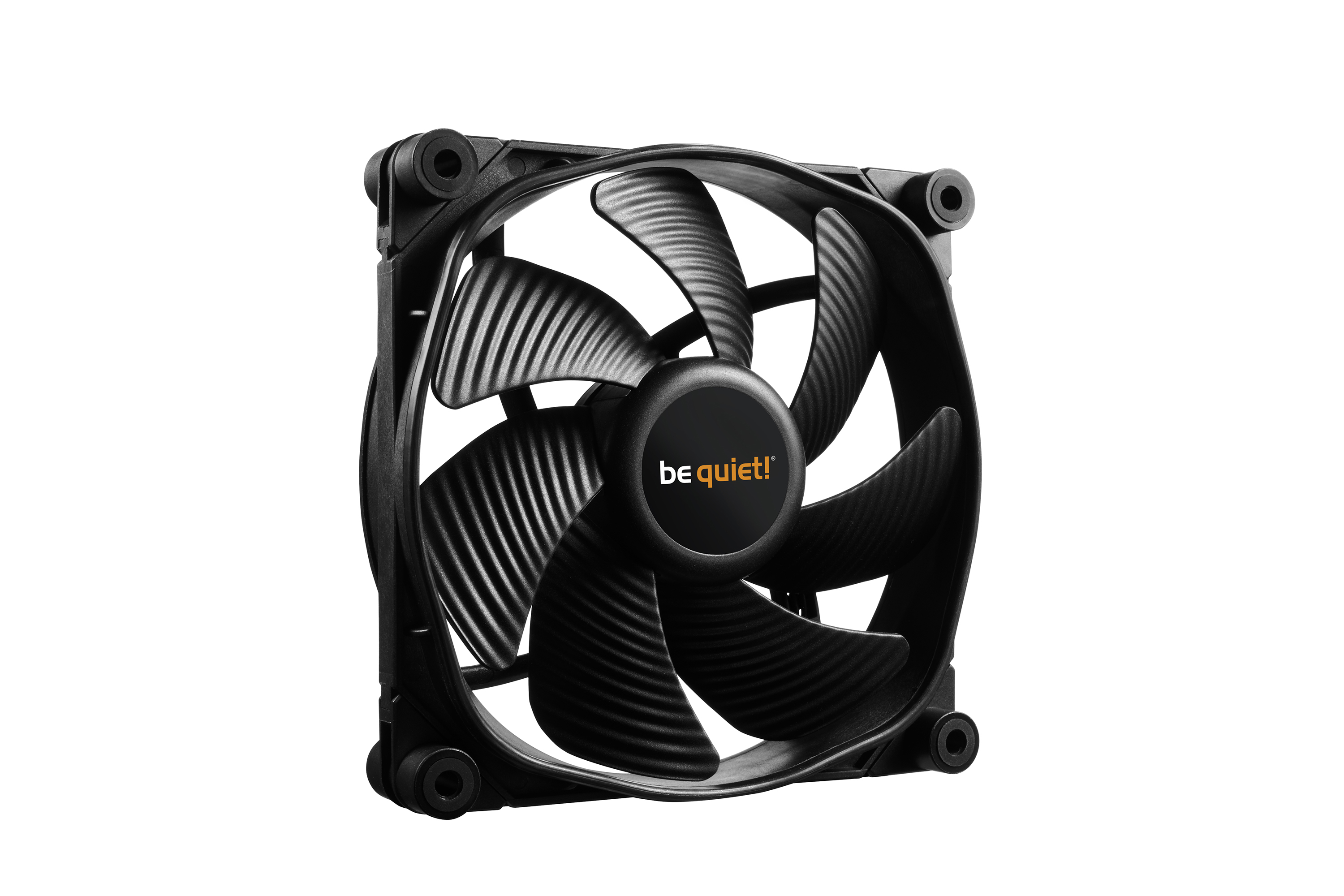

be quiet! Silent Wings 3 120mm stands for state-of-the-art technology, virtually inaudible operation and superior cooling. It meets all the requirements to be a perfect choice for heat sinks, PC cases and radiators.
- Virtually inaudible operation at max. 16.4dB(A)
- 6-pole fan motor for less power consumption and vibration
- Fluid-dynamic bearing enables super-long life span of 300,000h
- Fan frame with funnel-shaped air inlets for extremely high air pressure
- Seven fan blades offer an optimized airflow
- German product conception, design and quality control
- Three years manufacturer’s warranty
Characteristics
6-POLE FAN MOTOR
State-of-the-art technology6-pole fan motor with three phases for very low power consumption, less vibration and therefore quiet operation of max. 16.4dB(A).
IC MOTOR CONTROLLER
Silence optimized operationAdvanced high-quality IC motor controller reduces electrical noise.
SURFACE-OPTIMIZED FAN BLADES
For even better coolingSeven fan blades with an optimized surface structure ensure virtually inaudible operation and excellent airflow.

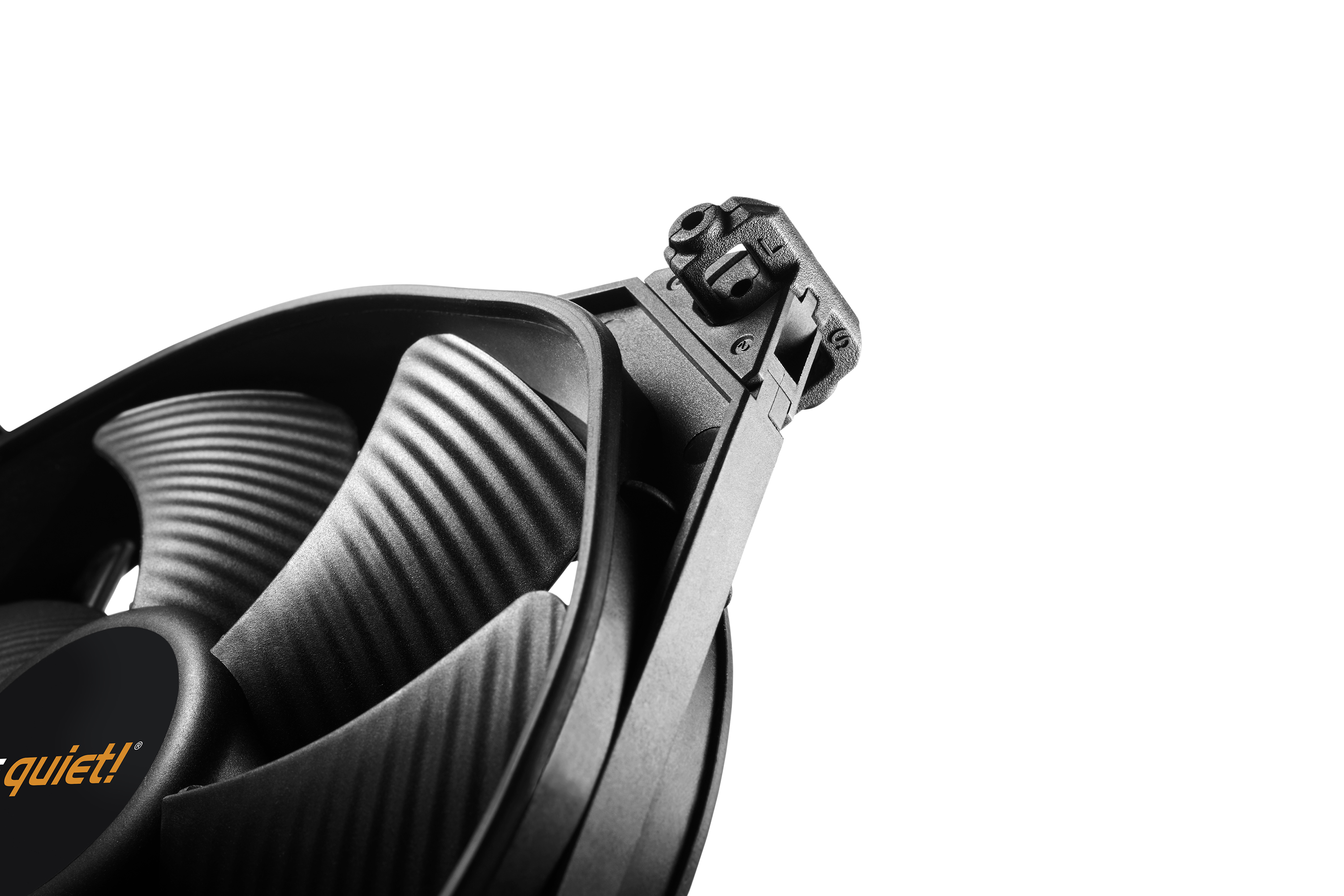

ANTI-VIBRATION MOUNTINGS
Virtually inaudible operationRemovable anti-vibration mountings on all four edges of the fan reduce vibrations transmitted to the PC case to an absolute minimum.
INGENIOUS FAN FRAME
A design for even greater performanceThe rubberized fan frame is equipped with funnel-shaped air inlets for excellent air circulation and extremely high air pressure, which makes the fan the perfect choice for gaming and multimedia PCs, overclocked systems and for use with radiators.
DURABLE FLUID-DYNAMIC BEARING
For a super long life spanThe advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours and greatly reduced operating noise.
General data
| Model | Silent Wings 3 120mm |
| Dimensions (mm) | 120 |
| +SilentWings | ✓ |
| Fan speed @ 100% PWM / 12V (rpm) | 1450 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 50.5 / 80.47 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.79 |
| Noise level @ 100% PWM / 12V (dB(A)) | 16.4 |
| Color option | Black |

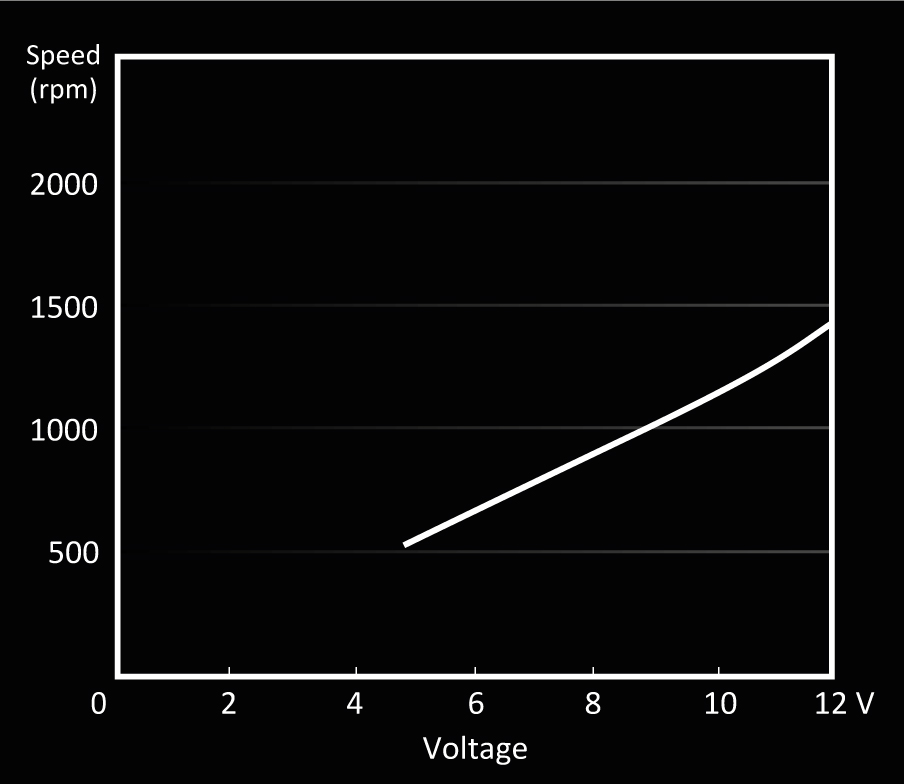

Infographics
Mechanical specifications
| Dimensions (L x W x H), (mm) | 120 x 120 x 25 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Weight incl. fixed cables (kg) | 0.137 |
| Push pin fixing | ✓ |
| Screw fixing | ✓ |
Cables / Connectors
| Connector | 3-pin |
| Cable length (mm) | 500 |
| Cable sleeve | ✓ |
Performance / Noise
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 50.5 / 80.47 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 1.79 |
| Noise level @ 100% PWM / 12V (dB(A)) | 16.4 |
| Lifespan (h / 25°C) | 300,000 |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.12 |
| Input power (W) | 1.44 |

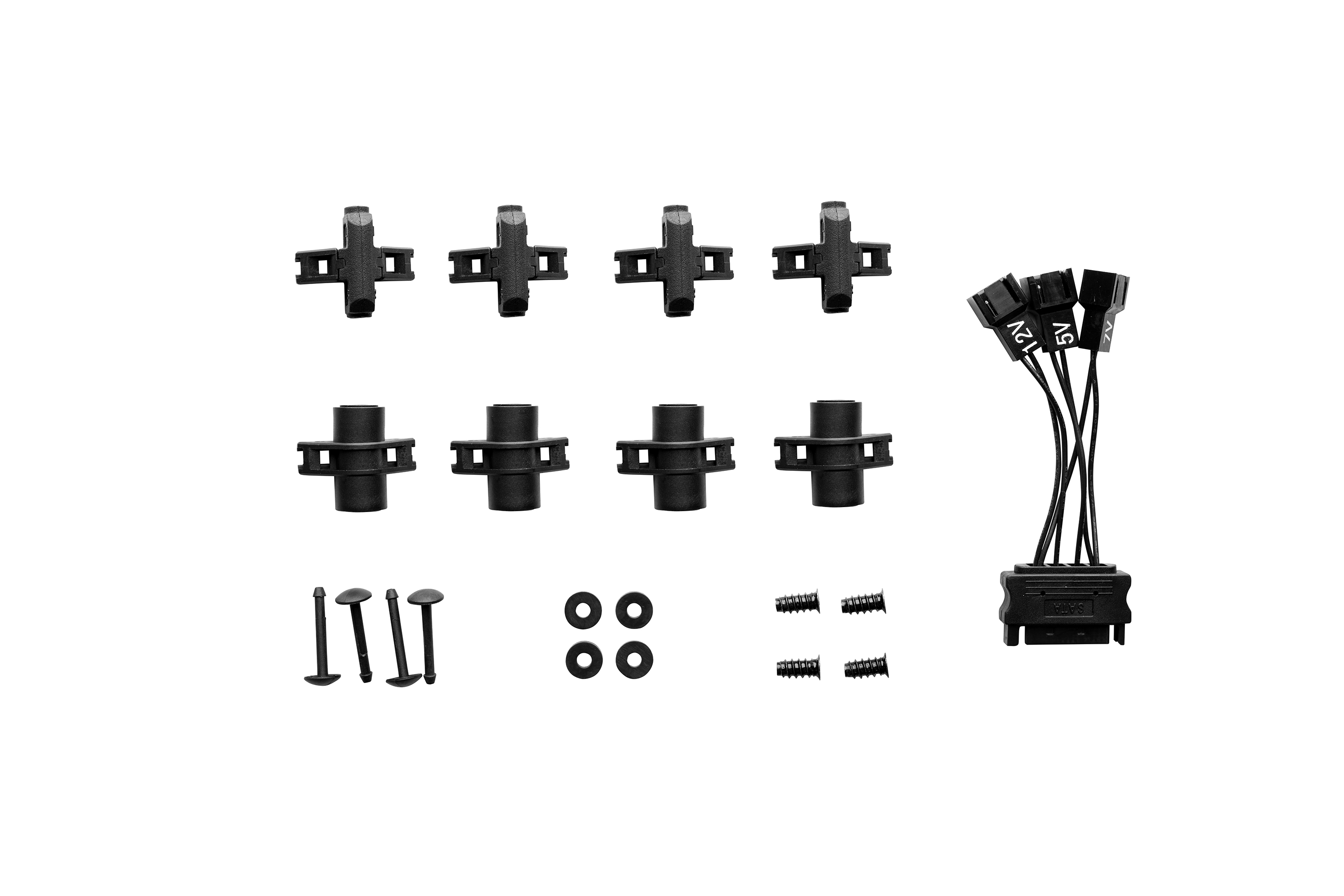

Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | ✓ |
| 12V to 5V adapter | ✓ |
| Screws | 5 |
| Push pins | 5 |
| Silica gel washer | 5 |
| Others | rubber & hard plastic mountings |
Safety certification
| Approvals | CE / RoHs / WEEE / RU / Tüv |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data, RRP
| Article number | BL064 |
| EAN code | 4260052184240 |
| Dimensions, package (L x W x H), (mm) | 191.2 x 140.7 x 31.4 |
| Gross weight, package (kg) | 0.314 |
| Pieces per packaging unit | 40 |
| Dimensions, shipping box (L x W x H), (mm) | 417 x 372 x 325 |
| Gross weight, shipping box (kg) | 12.61 |
| RRP (€) | 22.90 |
