Article number: BK003

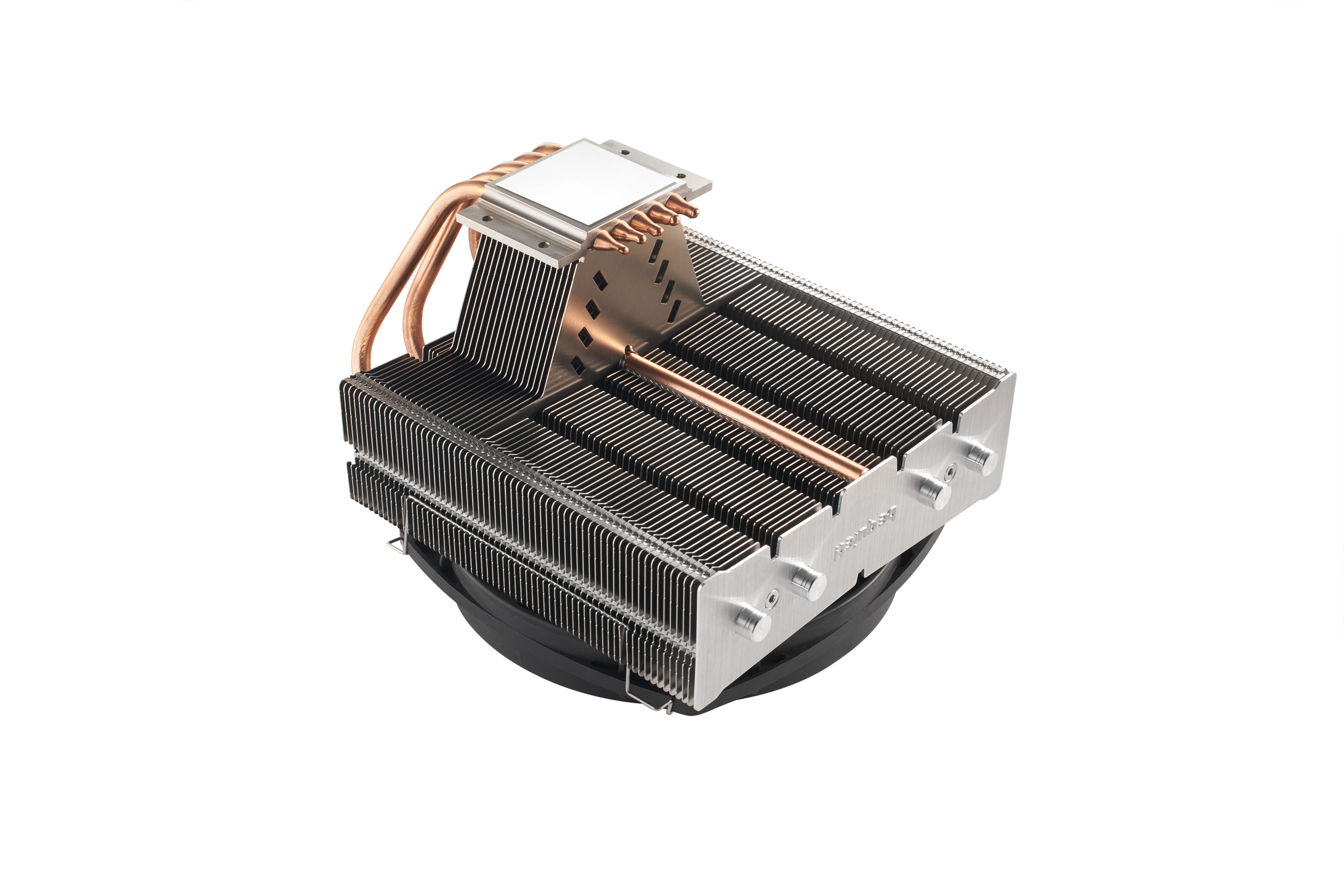

SHADOW ROCK TF 2

Compact Cooling, Significantly Quiet

Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.

  • Space-saving top-flow construction
  • Very high cooling capacity of 160W TDP
  • Direct connection of baseplate to cooling fins for fast heat transfer
  • Small, diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket
  • Silence-optimized 135mm be quiet! fan (max. 24.4dB(A)) with durable rifle-bearing technology
  • Five high-performance 6mm heat pipes
  • Compatibility with Intel® and AMDTM sockets
  • 3-year manufacturer’s warranty

HIGH-PERFORMANCE HEATPIPES

Offering the system an impressive cooling performance

Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.

DIRECT CONNECTION OF BASE PLATE AND FINS

For highly effective cooling power

An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.

EXTREMELY SILENCE-OPTIMIZED OPERATION

Even at 100% fan speed the overall noise is merely 24.4dB(A)

Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the nine airflow-optimized fan blades and durable rifle-bearing technology.

SMALL, DIAGONALLY ARRANGED FINS

Produce the perfect airflow

The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.

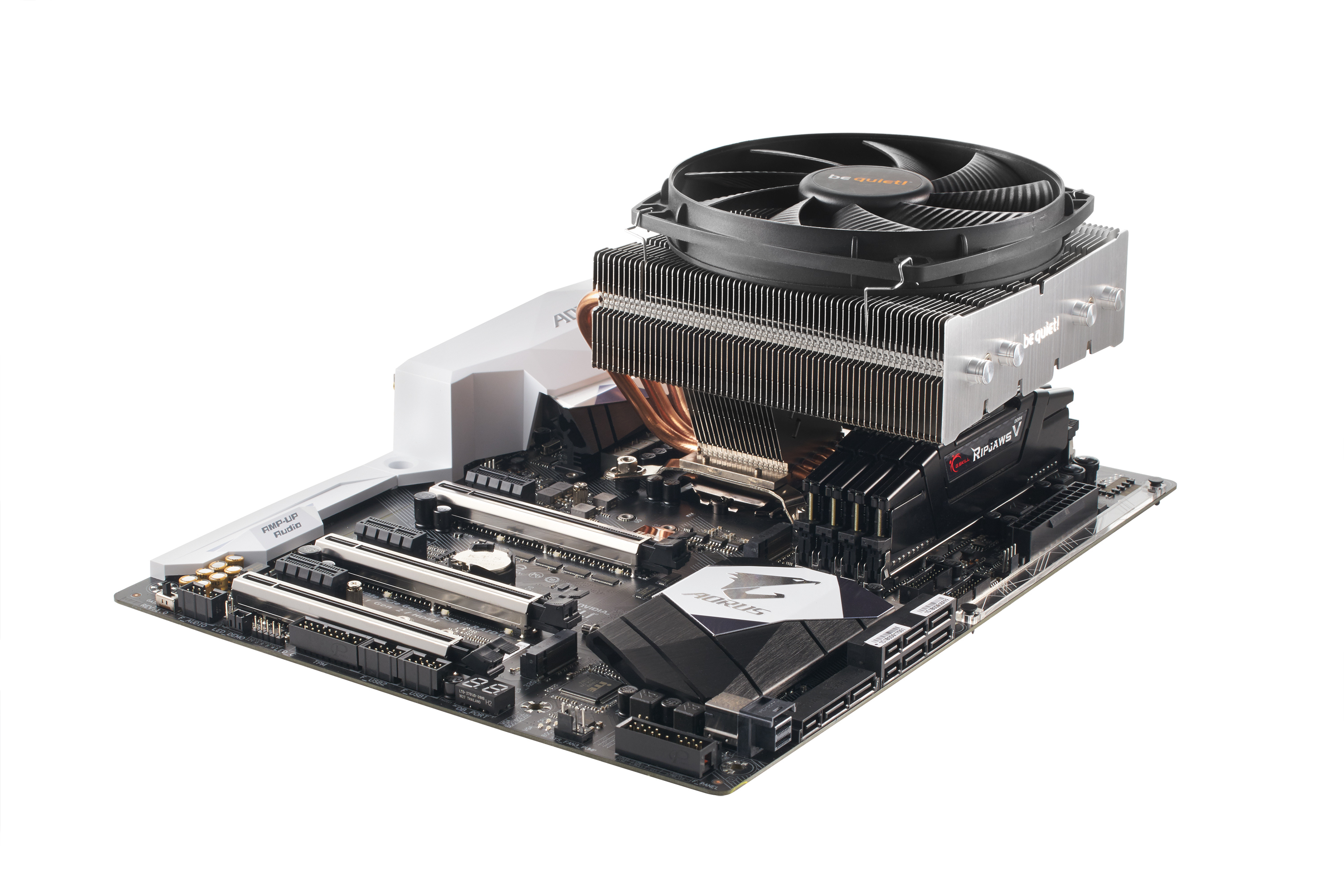

SPACE-SAVING TOP-FLOW DESIGN

Benefit from this highly functional concept

The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem.

All models at a glance:

Features

General data

Model Shadow Rock TF 2
Overall dimensions without mounting material (L x W x H), (mm) 137 x 165 x 112
Total weight (kg) 0.68
TDP (W) 160
Socket compatibility Intel: LGA 775 / 115x / 1366 / 2011(-3) Square ILM / 2066
AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
Backplate mounting
Fan model, number 1x silence-optimized be quiet! fan
Decoupled fan mounting -
Overall noise level (dB(A)) @ 50/75/100% (rpm) 11.9 / 19.3 / 24.4

Infographics

open all / close all

Heatsink specifications

Dimensions (L x W x H), (mm) 137 x 165 x 87
Number of fins 57
Fin material Aluminum
Base material Copper
CPU contact surface CNC machined
Heatpipe number / Diameter (mm) 5, 6
Surface treatment -

Fan specifications

Fan dimensions (mm) 135 x 135 x 22
+SilentWings -
Speed @ 100% PWM (rpm) 1,400
Air flow @ 12V (cfm / m3/h) 67.8, 113.8
Air pressure @ 12V (mm H2O) 2.1
Bearing technology Rifle
Motor technology 4-pole fan motor
Rated voltage (V) 12
Input current (A) 0.11
Input power (W) 1.32
Connector 4-pin PWM
Cable length (mm) 200
Lifespan (h / 25°C) 80,000

Accessories

Thermal grease (g) - (already applied)
Backplate mounting set Intel & AMD
Y-Cable -
User manual languages DE, EN, FR, PL, ES, RU

Service

Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Article number BK003
Range SHADOW ROCK
EAN code 4260052185391
Dimensions, package (L x W x H), (mm) 203 x 178 x 130
Gross weight, package (kg) 1.09
Pieces per packaging unit 12
Dimensions, shipping box (L x W x H), (mm) 551 x 422 x 282
Gross weight, shipping box (kg) 13.08
RRP (€) 60
