Article number: BK013

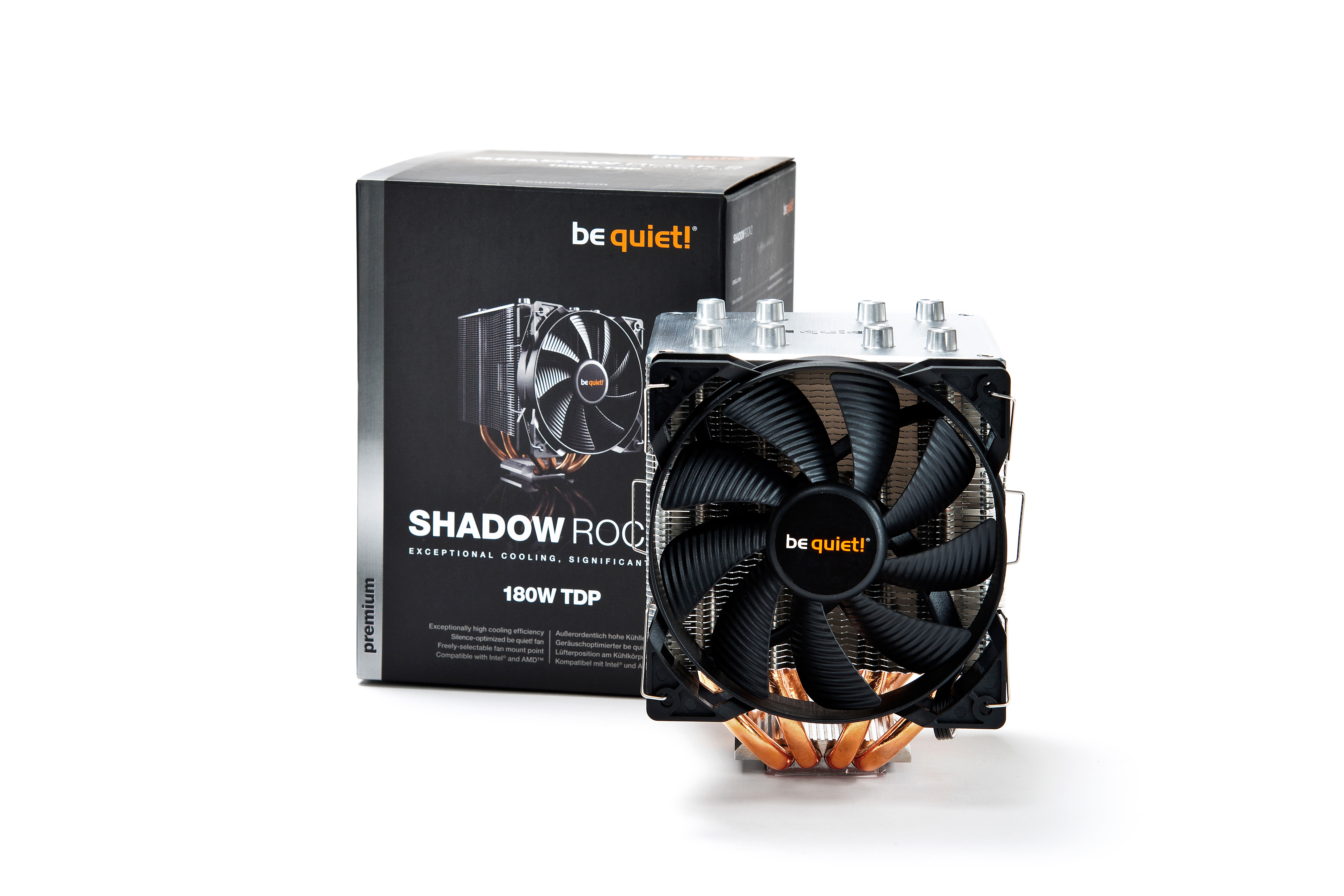

SHADOW ROCK 2

Exceptional Cooling, Significant Quiet

Shadow Rock 2 is a top choice among premium CPU Coolers, with exceptionally high performance and a category-beating price.

Among its unmatched features are:

  • Exceptionally high cooling capacity (180W TDP)
  • Turbulence-reducing wave design on cooling fins reduces noise-generation
  • Well-known be quiet! low noise operations
  • Freely-selectable four-directional fan mounting
  • Four high-performance 8mm heatpipes
  • Brushed aluminum finish on top cover
  • Three year warranty

For the best possible mix of performance and price in the premium CPU cooler segment, Shadow Rock 2 has to be your choice.



EXCEPTIONAL COOLING EFFICIENCY

Premium cooling performance

Shadow Rock 2 offers a remarkably high cooling power for all kinds of systems with an impressive rating of 180W TDP.

ACHIEVES TOP PERFORMANCE

Unmatched for its class

The four high-performance 8mm heatpipes carry heat to optimum locations on the cooling fins. The turbulence-reducing wave design on the fins reduces noise generated by the airflow. This combination of premium features is unmatched.

SUPER SILENT OPERATION

Even at 100% PWM function, noise is a mere 25.4dB(A)

The Shadow Rock 2 provides extremely low-noise operation. Its silence-optimized 120mm be quiet! fan with PWM function delivers the best balance of cooling performance and quiet operation.

SMART AND INGENIOUS DESIGN

German product conception at its best

Highly versatile and functional: With a square, single-tower design it saves space and permits fan mounting in any of four directions for the best heat convection. You can freely choose the fan mounting point, which is especially important for AMDTM users.

All models at a glance:

Features

General data

Model SHADOW ROCK 2
Overall dimensions without mounting material (L x W x H), (mm) 147 x 122 x 160
Total weight (kg) 1.12
TDP (W) 180
Socket compatibility Intel: LGA 775 / 115x / 1366 / 2011(-3) Square ILM / 2066
AMD: 754 / 939 / 940 / AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
Backplate mounting
Fan model, number 1x Pure Wings 2 PWM 120mm
Decoupled fan mounting -
Overall noise level (dB(A)) @ 50/75/100% (rpm) 15.3 / 19.8 / 25.4

Infographics

open all / close all

Heatsink specifications

Dimensions (L x W x H), (mm) 122 x 122 x 160
Number of fins 51
Fin material Aluminium
Base material Copper
CPU contact surface CNC machined
Heatpipe number / Diameter (mm) 4 / 8
Surface treatment -

Fan specifications

Fan dimensions (mm) 120 x 120 x 25
+SilentWings -
Speed @ 100% PWM (rpm) 1,600
Air flow @ 12V (cfm / m3/h) 51 / 87
Air pressure @ 12V (mm H2O) 1.40
Bearing technology Rifle
Motor technology 4-pole fan motor
Rated voltage (V) 12
Input current (A) 0.24
Input power (W) 2.88
Connector 4-pin PWM
Cable length (mm) 220
Lifespan (h / 25°C) 80,000

Accessories

Thermal grease (g) SC-102 / 1
Backplate mounting set Intel & AMD
Y-Cable -
User manual languages DE, EN, FR, ES, PL

Service

Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Article number BK013
Range SHADOW ROCK
EAN code 4260052183311
Dimensions, package (L x W x H), (mm) 190 x 170 x 145
Gross weight, package (kg) 1.47
Pieces per packaging unit 12
Dimensions, shipping box (L x W x H), (mm) 450 x 420 x 360
Gross weight, shipping box (kg) 18.90
RRP (€) 49.90
