Article number: BK035

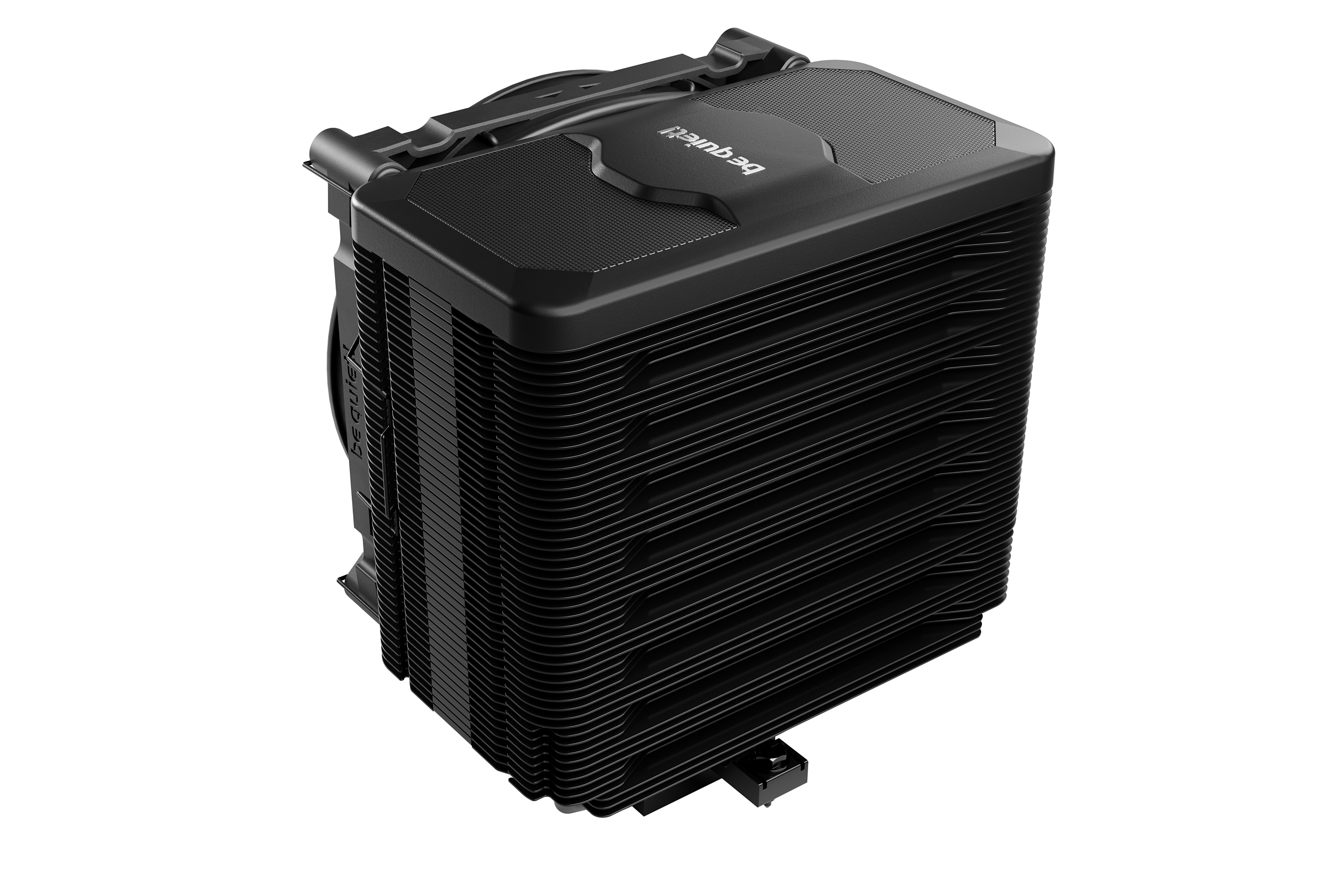

Dark Rock 5 is ready for modern flagship CPUs like Intel's Core i9 or AMD's Ryzen 9 series.

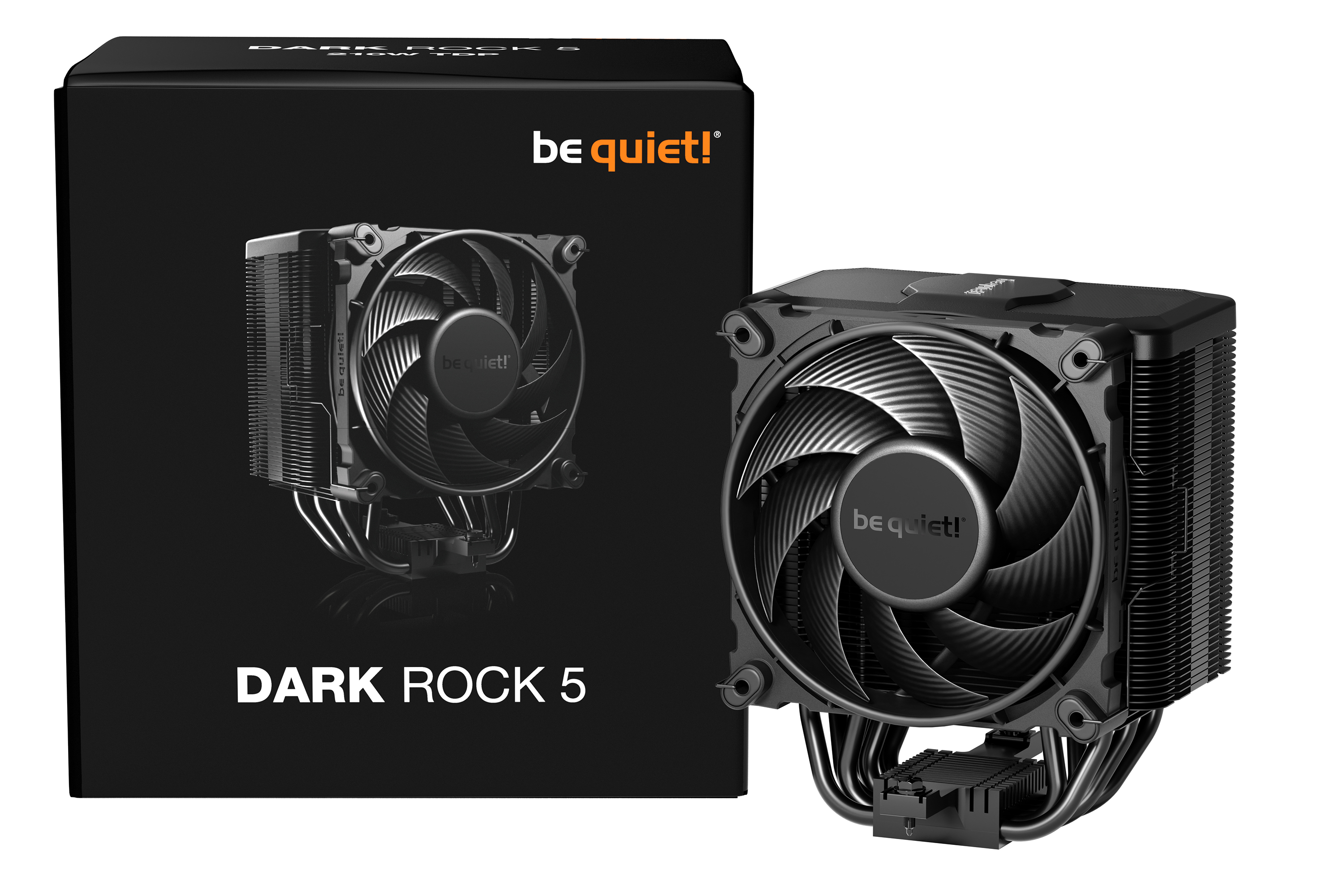

More information.DARK ROCK 5
Unleashed performance and compatibility

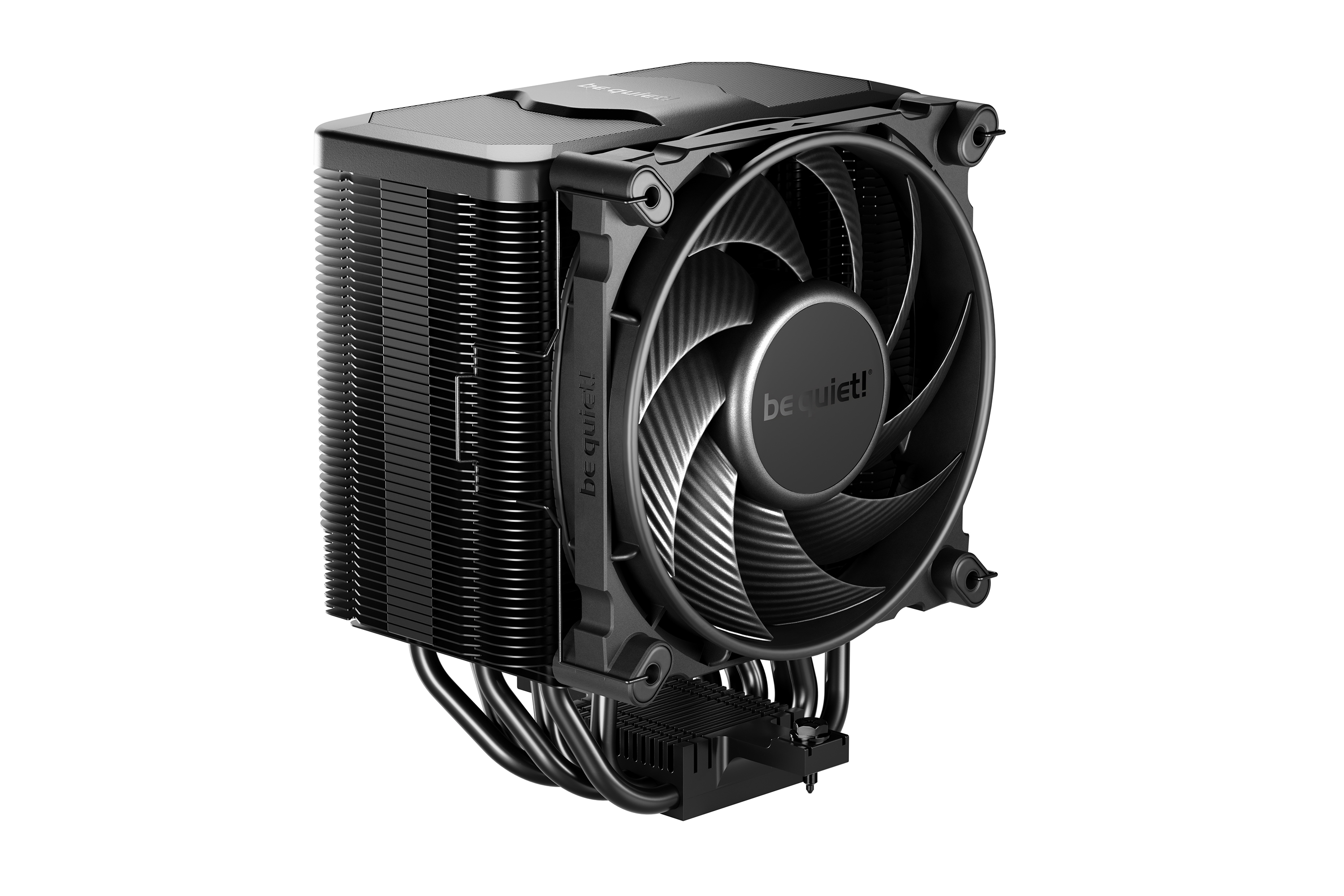

Dark Rock 5 is the compact embodiment of performance and high compatibility. With effortless installation and a silent fan, it is designed for passionate gamers of all kinds.
- 6 advanced high-performance heat pipes
- Silent Wings 4 120mm PWM fan for perfect air pressure and virtually inaudible operation
- High RAM and VRM cooler compatibility thanks to an asymmetrical design and cut-outs on the heat sink
- Achieves only 29.8dB(A) at maximum fan speed
- Special black coating with ceramic particles enables perfect heat transfer and elegant look
- A second fan can optionally be installed at the exhaust for even higher air pressure
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
EXTREME COOLING POWER

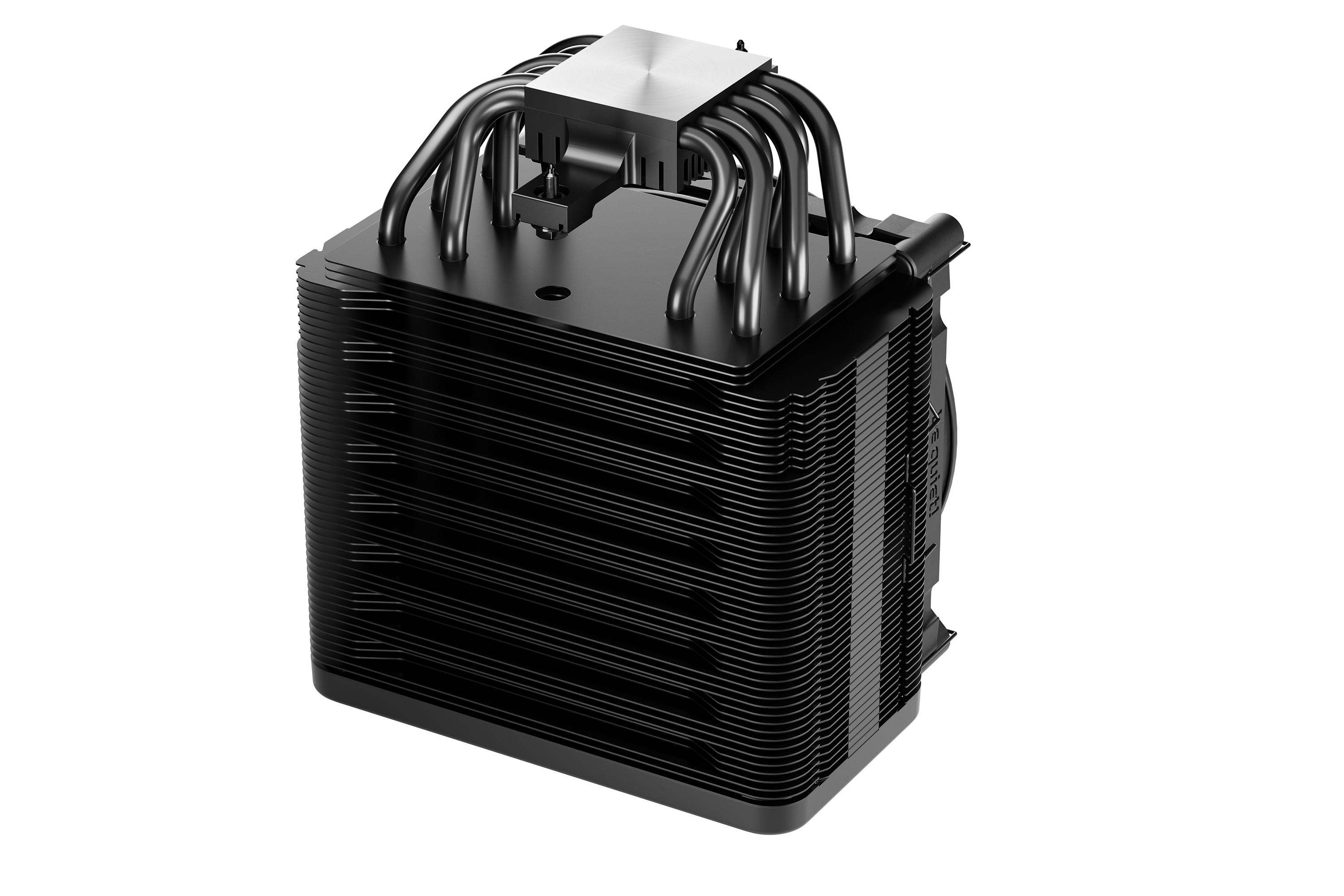

Superior heat dissipationWith 6 high-performance copper heat pipes and a dense aluminum fin array, Dark Rock 5 offers robust cooling. A special black coating with ceramic particles enables perfect heat transfer from the heat sink to the air, keeping your system cool under the most intense workloads.
SILENT WINGS PWM FAN
For high performance and virtually inaudible operationThe Silent Wings 4 120mm PWM fan features an advanced fluid-dynamic bearing, smooth 6-pole motor and airflow-optimized fan blades. Thanks to a tight tip clearance between fan blade and frame, the front fan provides extremely high air pressure. A funnel-shaped frame outlet enables ideal air distribution. The rubberized fan frame prevents vibrations from transferring to the heat sink, reducing overall noise.
UNMATCHED COMPATIBILITY

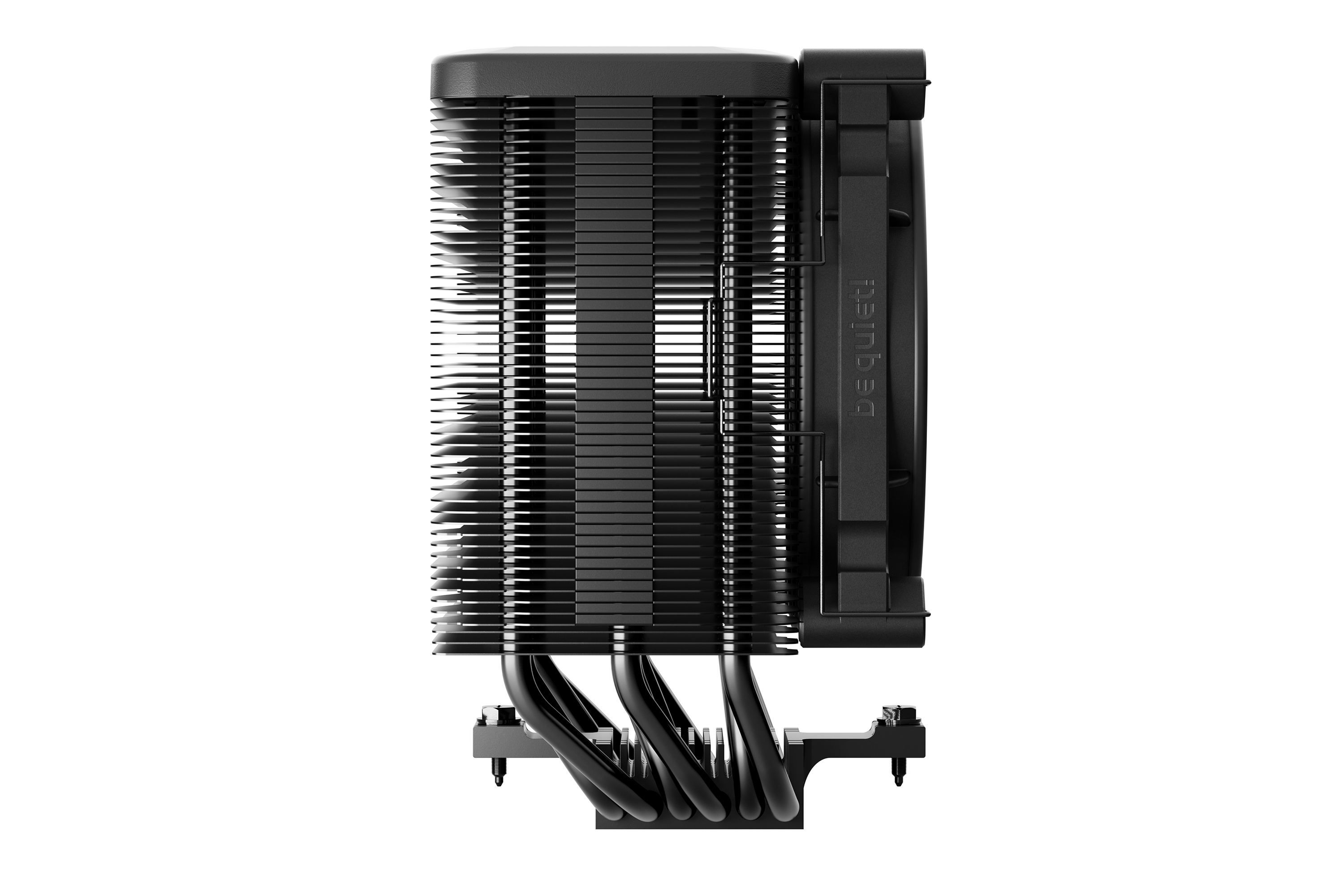

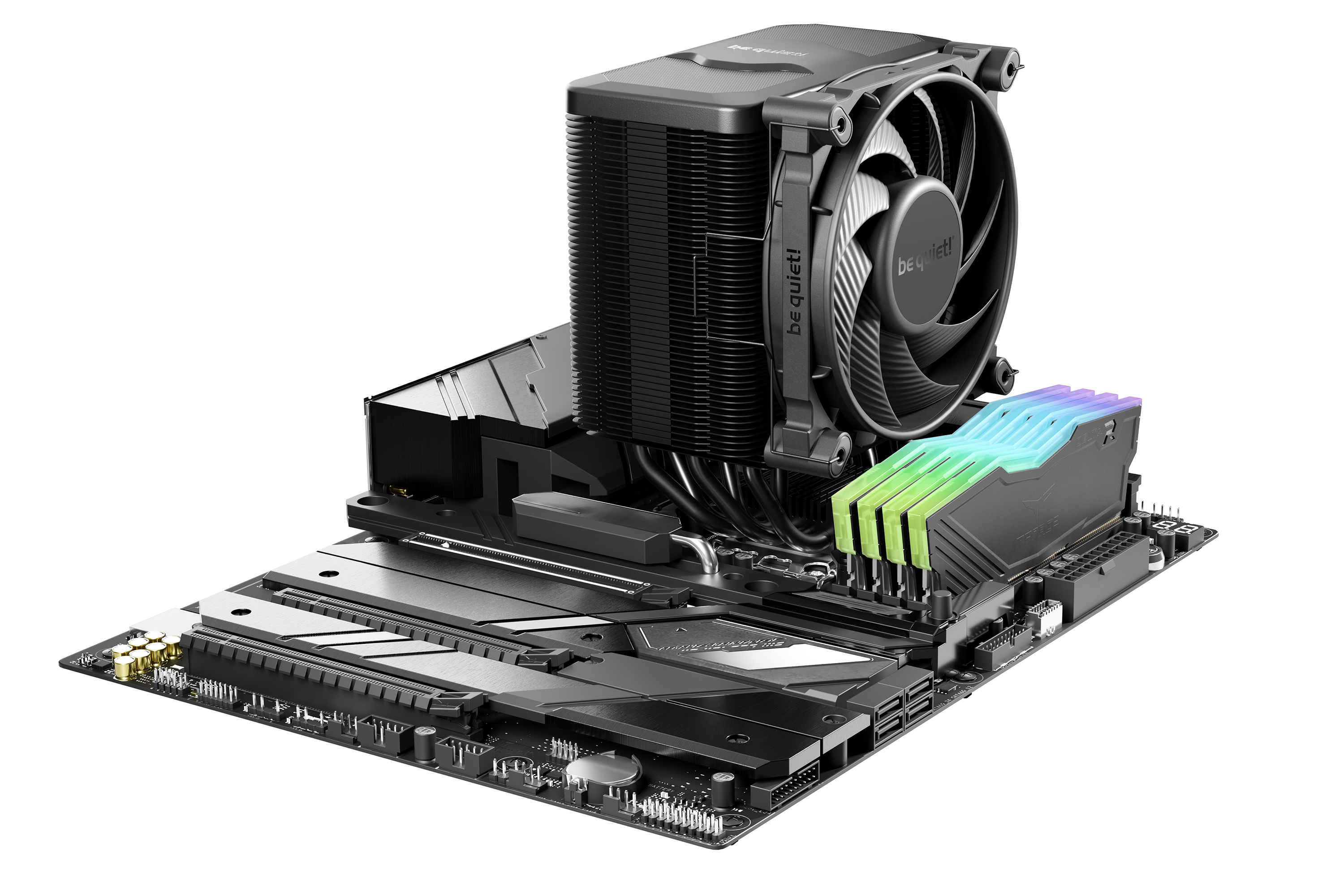

Designed for all kinds of RAM and VRM coolersThe Dark Rock 5's asymmetrical design and heat sink cut-outs increase RAM and VRM cooler compatibility significantly and enable limitless memory height. Optionally, a second fan can be installed at the exhaust for an extra performance boost, making Dark Rock 5 a versatile marvel.
CONVENIENT HANDLING
Installation is a breezeInstallation is easier than ever with the Dark Rock 5. Thanks to its convenient, preinstalled mounting bridge and a firm yet gentle fixing method, cooler attachment is a breeze. To sweeten the deal, a long-neck screwdriver is included in the scope of delivery.
ICONIC DESIGN
Aesthetics meet functionalityDark Rock 5 does not compromise on style. A magnetic mesh top cover masks heat pipe ends and the screw hole, providing a sleek, clean design as Dark Rock 5 cools your CPU.
COMPATIBLE WITH LIQUID METAL THERMAL GREASE
Cooling power beyond beliefThanks to a nickel-plated base, Dark Rock 5 is compatible with liquid metal thermal grease such as DC2 Pro. The properties of liquid metal compound combined with Dark Rock 5 allow high-end CPUs to perform at even higher levels.
"As a passionate gamer, I love Dark Rock 5! I simply have more FPS here and can really immerse myself in my gaming sessions while the cooler takes care of my CPU."
Stefanie Pirsich, Social Media Manager & Content Creator
All models at a glance:
General data
| Model | Dark Rock 5 |
| TDP (W) | 210 |
| Color option | Black |

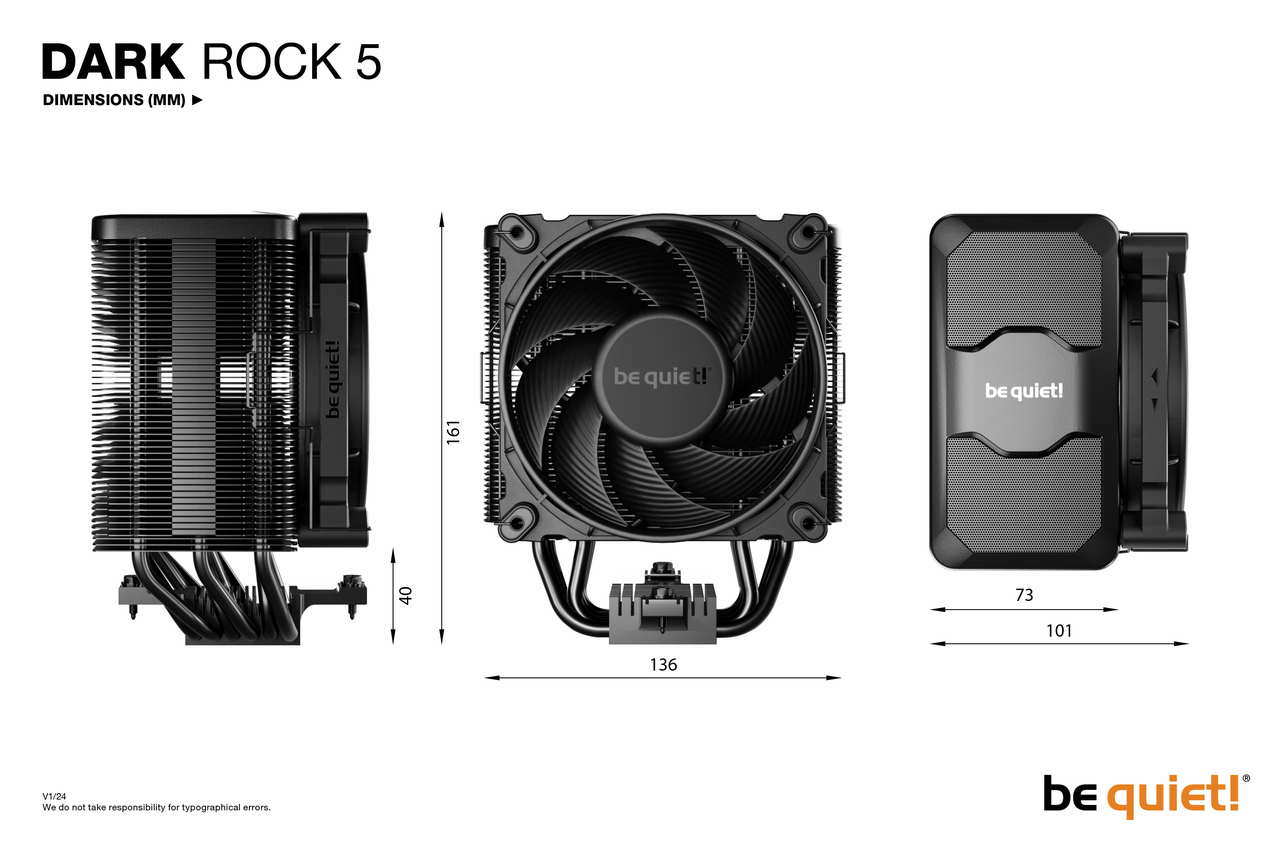

| Overall dimensions without mounting material (L x W x H), (mm) | 101 x 136 x 161 |
| Total weight (kg) | 1.03 |
| Socket compatibility Intel | 1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 11.9 / 23.2 / 29.8 |
| Number of fans | 1 |
| Lighting connector | - |
Infographics
Heatsink specifications
| Dimensions (L x W x H), (mm) | 76 x 136 x 161 |
| Fin material | Aluminum |
| Surface treatment | Ceramic coating |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 6 / 6 |
| Decoupled fan mounting | - |
Fan specifications
| Fan model | Silent Wings 4 120mm PWM |
| Fan dimensions (mm) | 120 x 120 x 25 |

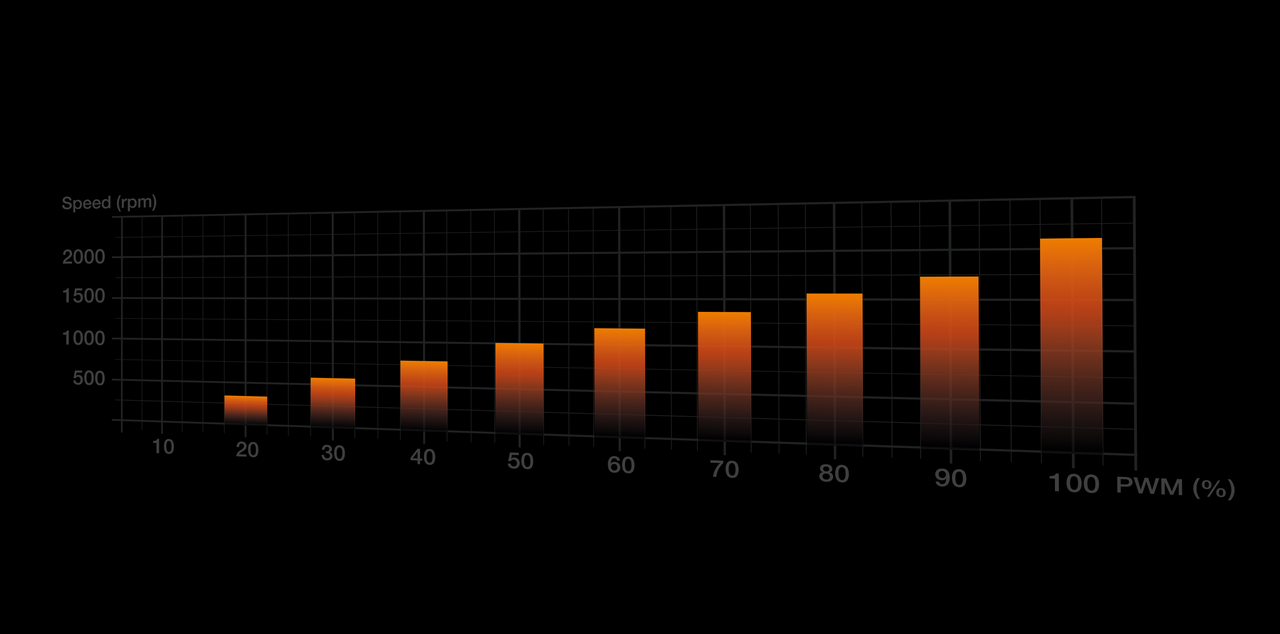

| Speed @ 100% PWM (rpm) | 2100 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 55.0 / 93.5 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.73 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.10 |
| Safety current (A) | 0.20 |
| Input power (W) | 2.4 |
| Connector | 4-pin PWM |
| Lighting connector | - |
| Cable length (mm) | 220 |
| Lifespan (h / 25°C) | 300,000 |
| Y-Cable | - |

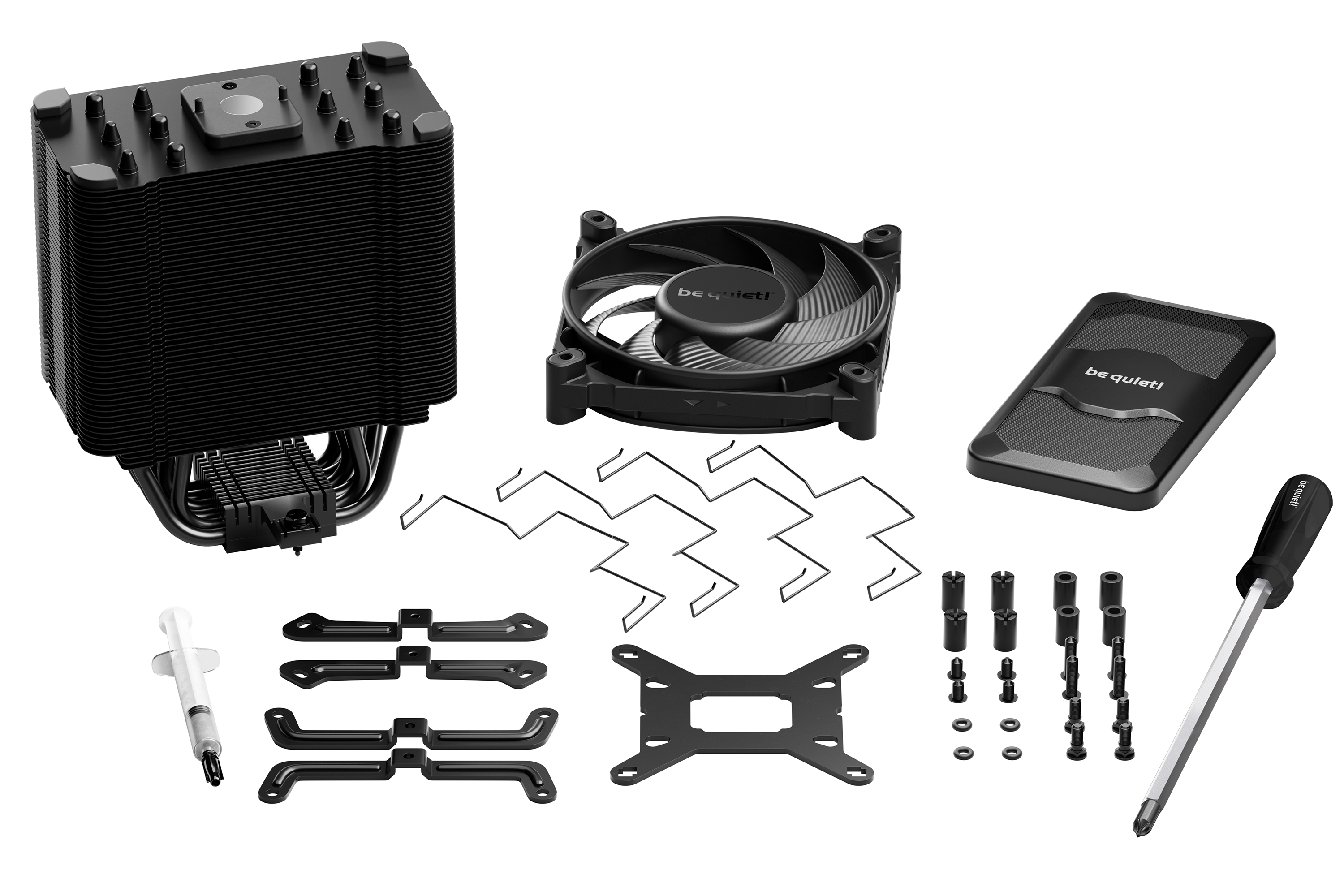

Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel & AMD |
| Screwdriver | ✓ |
| Y-Cable | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety certification
| Approvals | CE, UKCA, UL, TÜV |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BK035 |
| EAN code | 4260052190739 |
| Dimensions, package (L x W x H), (mm) | 198 x 146 x 224 |
| Gross weight, package (kg) | 1.5 |
| Pieces per packaging unit | 12 |
| Dimensions, shipping box (L x W x H), (mm) | 610 x 310 x 483 |
| Gross weight, shipping box (kg) | 18.6 |
| RRP (€) | 69.90 |
