Article number: BK046

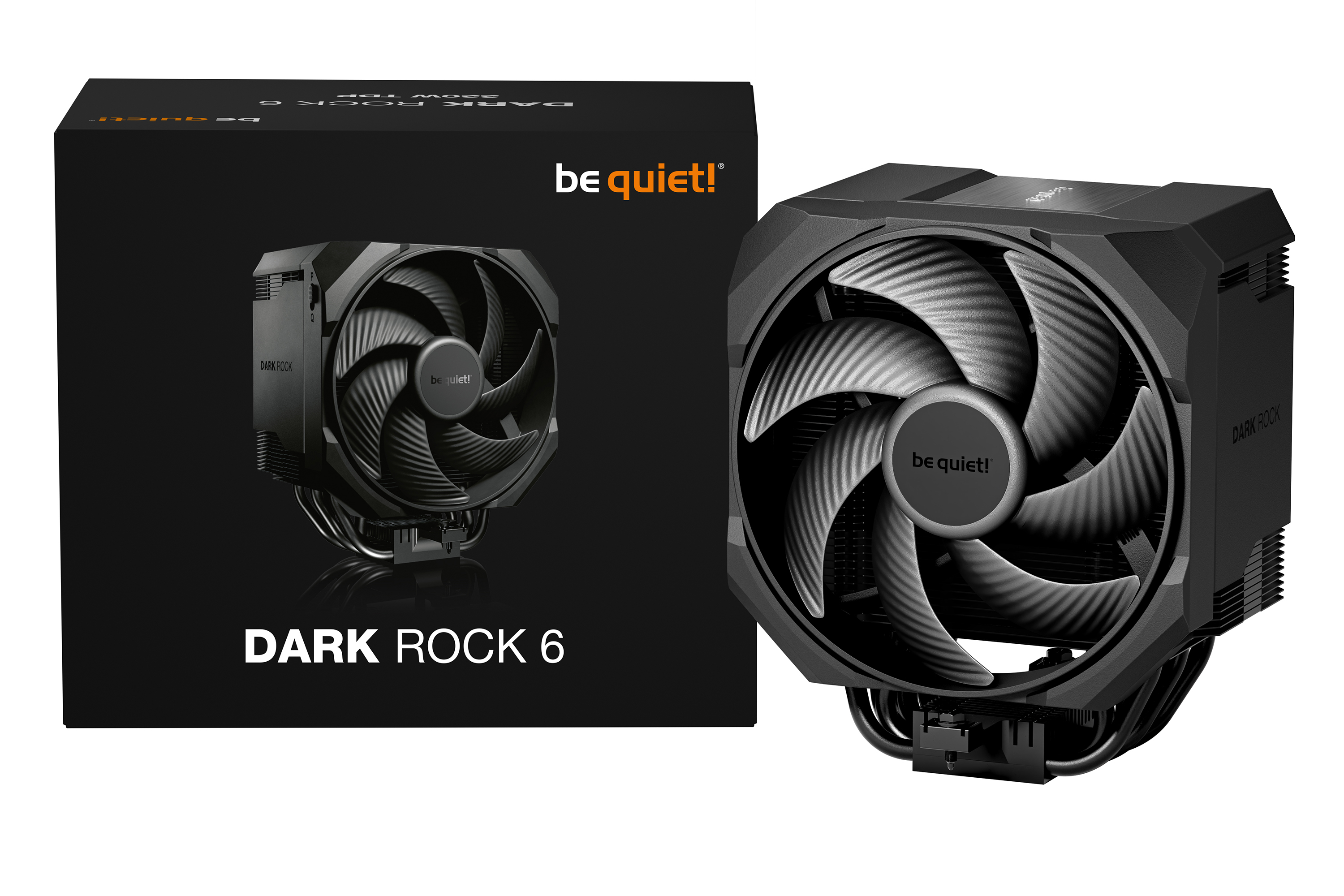

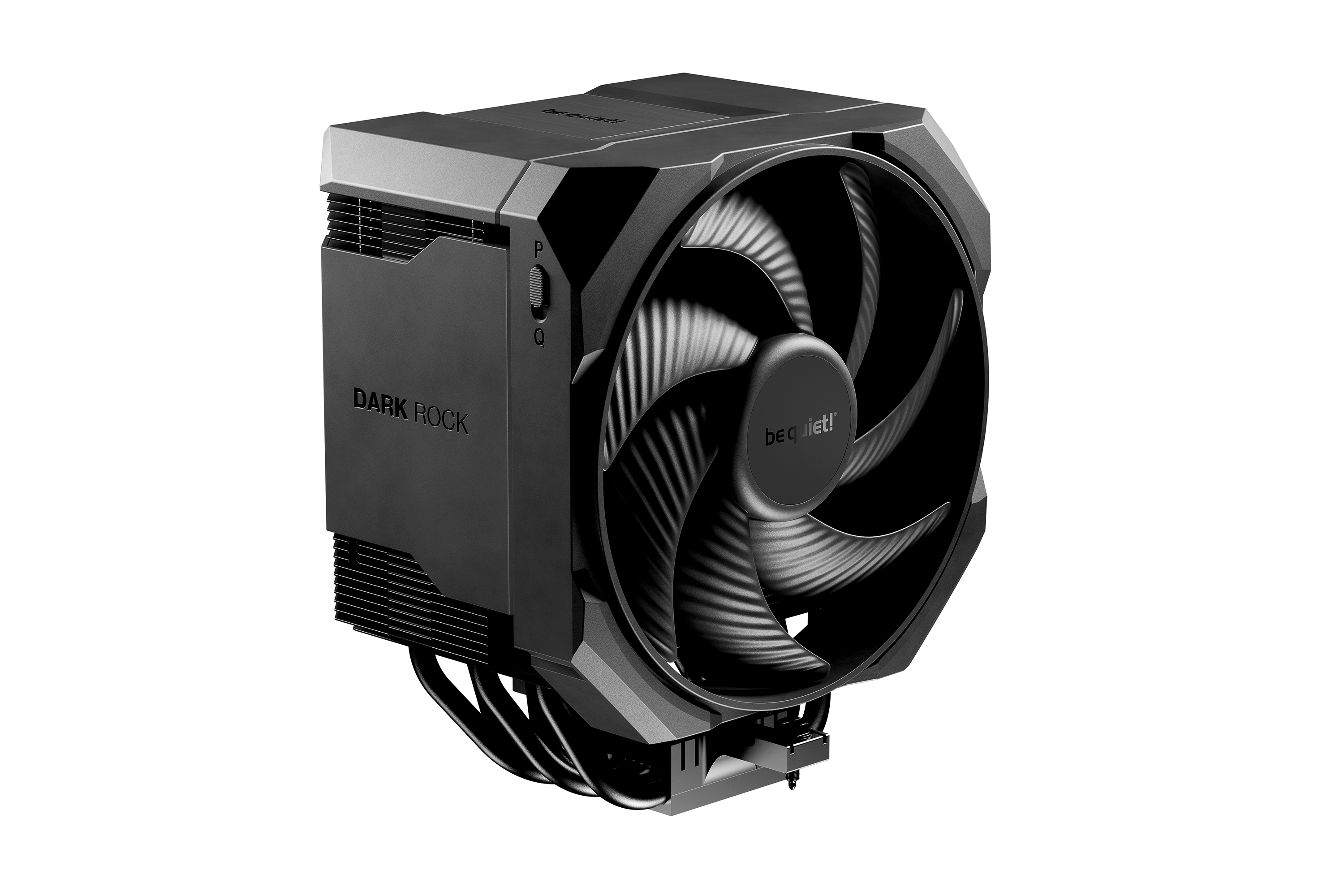

DARK ROCK 6
Silent performance and compatibility
Dark Rock 6 delivers powerful cooling in a compact design, offering high compatibility and virtually inaudible operation for an impressive gaming experience.
- Semi-passive quiet mode with full fan stop for completely silent operation

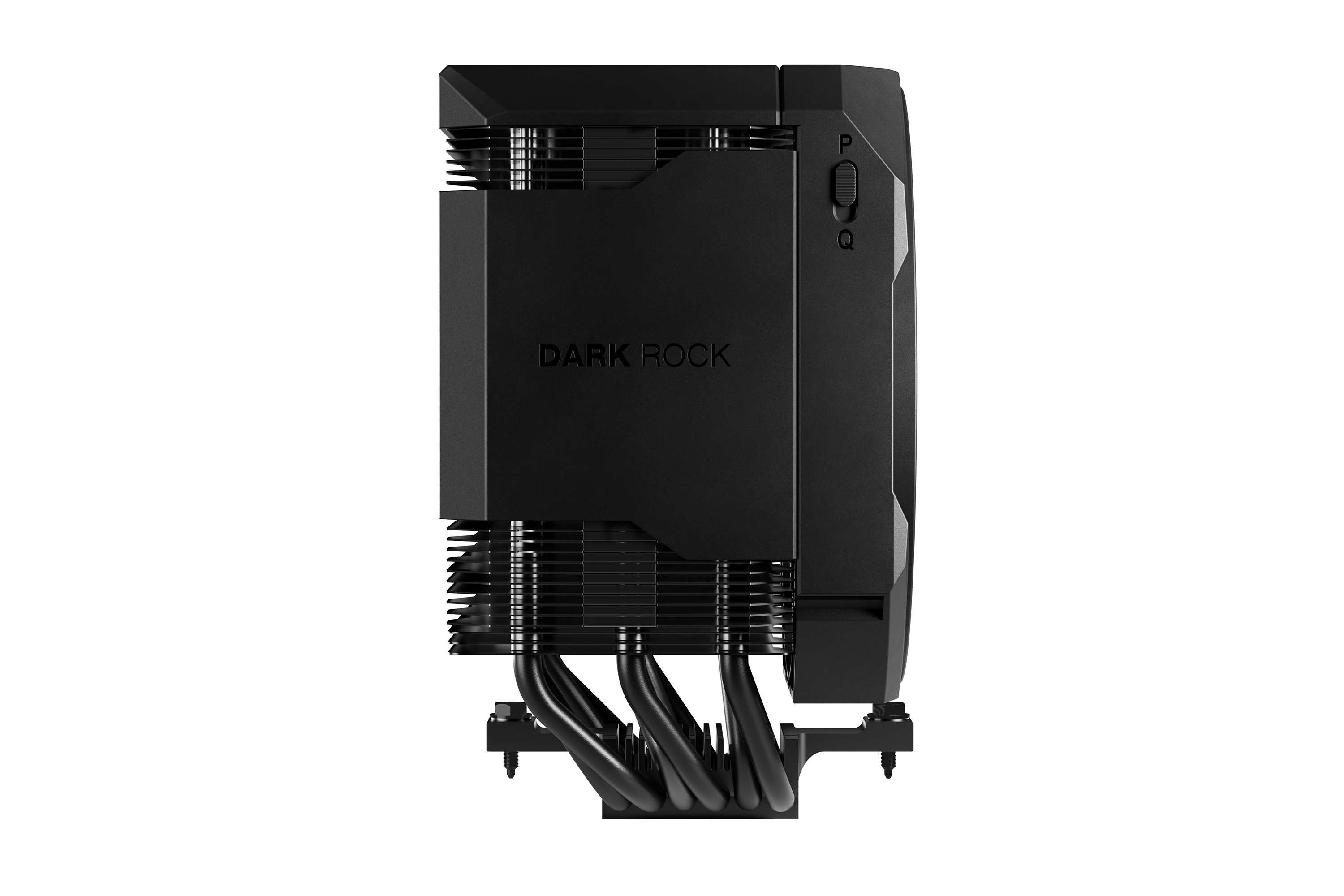

- Hardware switch to toggle between performance and quiet modes
- 6 optimized high-performance heat pipes
- Silent Wings 135mm PWM fan for perfect air pressure and virtually inaudible operation
- Only 31.1dB(A) at maximum fan speed
- High RAM and VRM cooler compatibility thanks to an asymmetrical design and cut-outs on the heat sink
- Easy mounting system for fan and heat sink
- Elegant be quiet! look with magnetic top cover
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
KEEP IT COOL AND QUIET

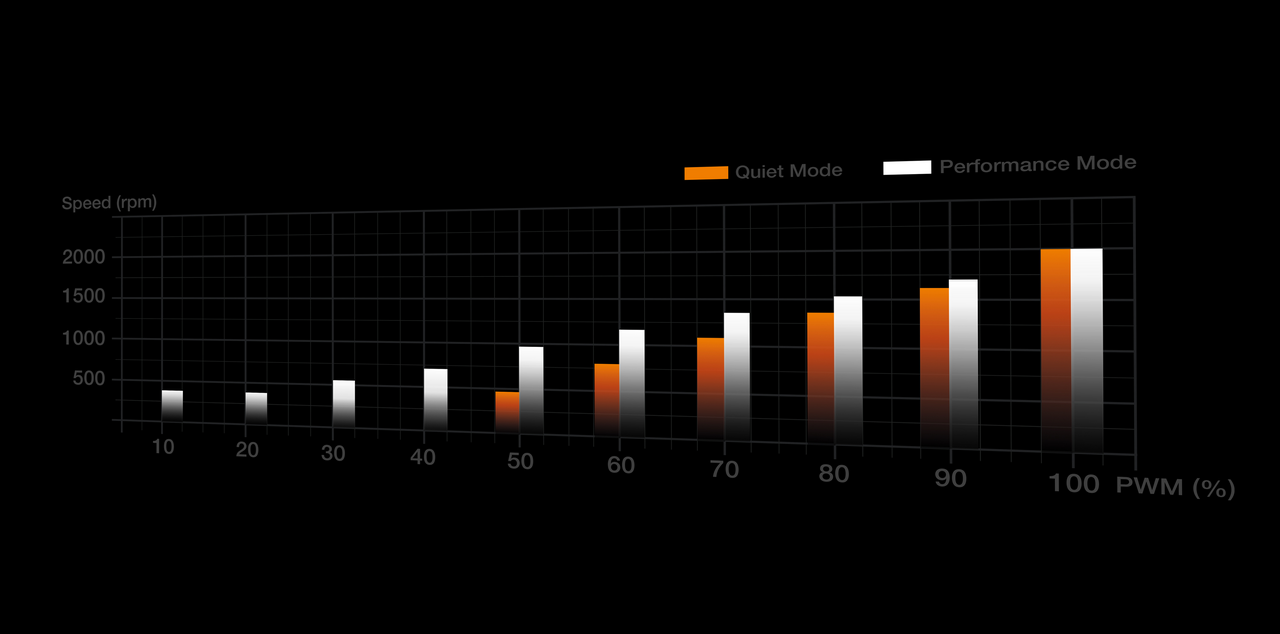

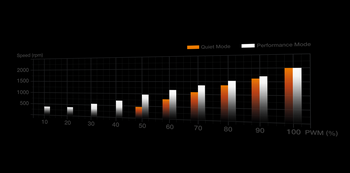

Semi-passive quiet and active performance modeDark Rock 6 raises the bar for silent cooling. Its mode switch lets you choose either active performance mode for advanced cooling power or semi-passive quiet mode, keeping the fan off below 40% PWM. Both modes ensure quiet and reliable performance in any workload.
HIGH COOLING POWER

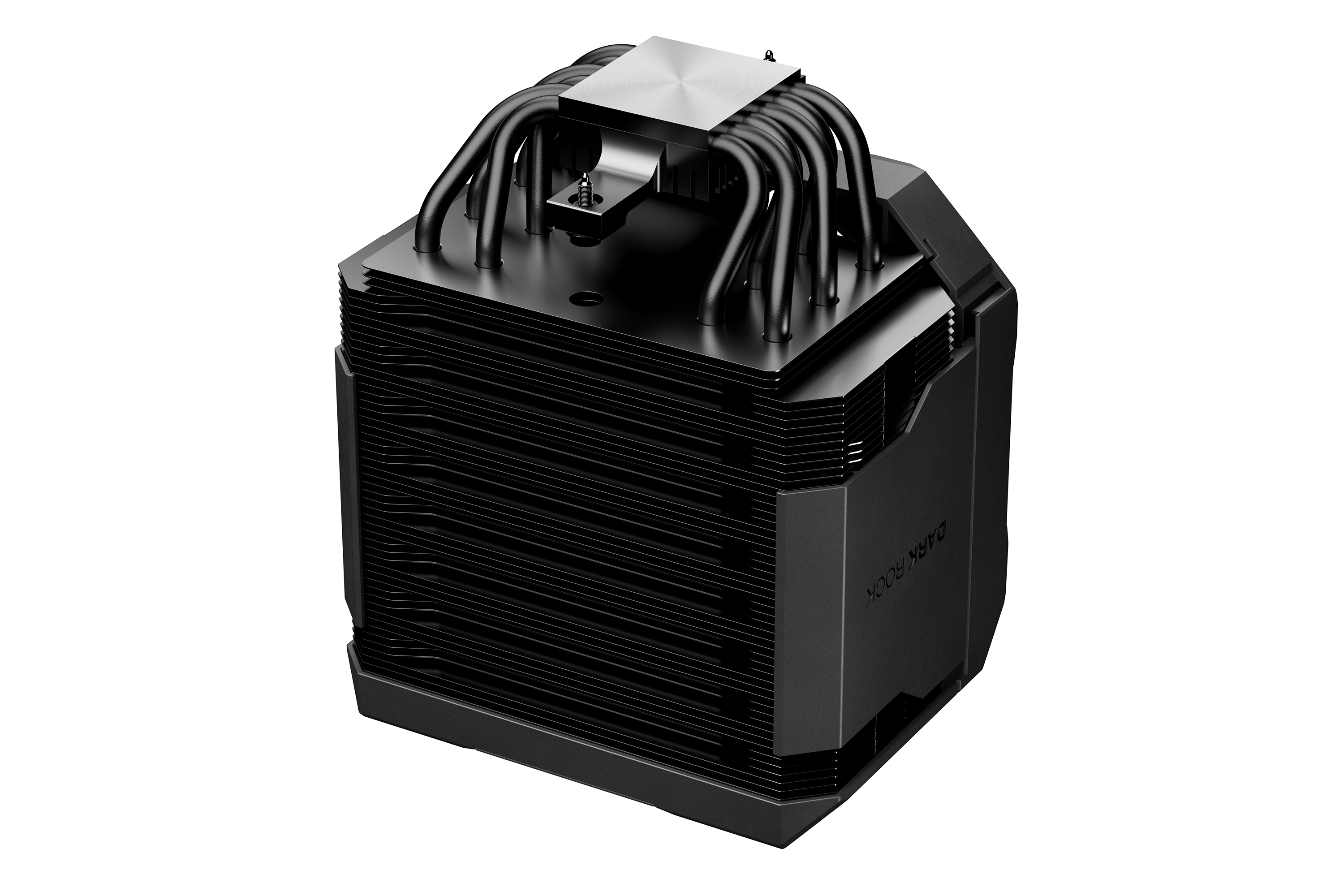

Superior heat dissipationWith 6 optimized high-performance copper heat pipes and a dense aluminum fin array, Dark Rock 6 offers robust cooling. A special black coating with ceramic particles enables perfect heat transfer from the heat sink to the air, keeping your system cool.
SPECIAL SILENT WINGS 135MM PWM FAN
For high performance and virtually inaudible operationThe custom-designed Silent Wings 135mm PWM fan uses an advanced fluid-dynamic bearing, a smooth 6-pole motor and optimized blades. Thanks to the tight tip clearance, it boosts air pressure and improves the airflow.
UNMATCHED COMPATIBILITY

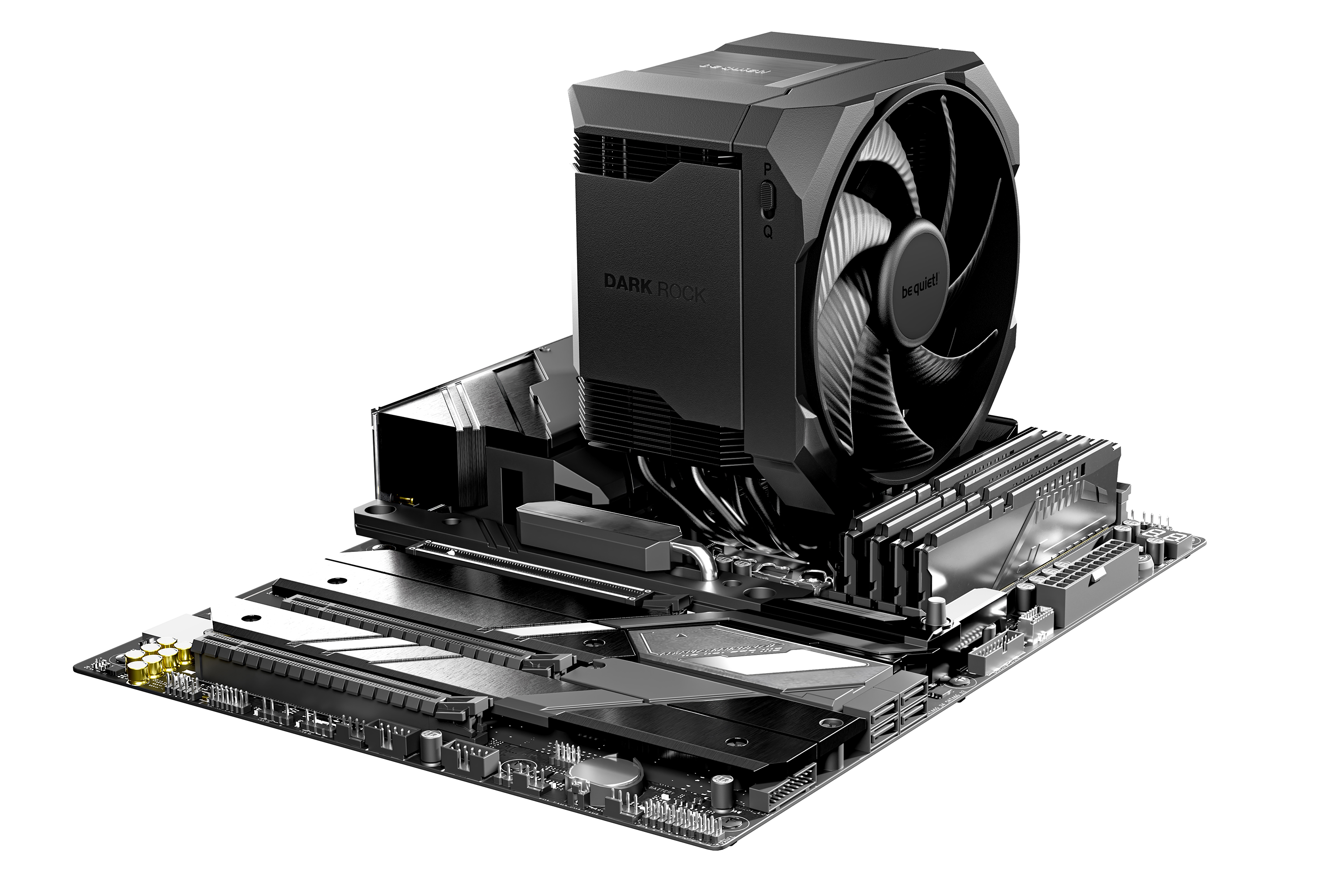

Designed for all kinds of RAM and VRM coolersDark Rock 6's asymmetrical design and heat sink cut-outs increase RAM and VRM cooler compatibility significantly and enable limitless memory height.
EASY MOUNTING
Installation is a breezeThanks to its convenient, preinstalled mounting bridge and a firm yet gentle fixing method, cooler attachment is a breeze. The fan uses an efficient rail system for mounting, so installation is easier than ever with Dark Rock 6.
ICONIC DESIGN
Aesthetics meet functionalityDark Rock 6 does not compromise on style. A magnetic top cover masks heat pipe ends and the screw hole. Side covers complete the sleek, clean signature be quiet! design for Dark Rock CPU air coolers.
COMPATIBLE WITH LIQUID METAL THERMAL GREASE
Cooling power beyond beliefThanks to a nickel-plated base, Dark Rock 6 is compatible with liquid metal thermal grease such as DC2 Pro. The properties of the liquid metal compound combined with Dark Rock 6 allow high-end CPUs to perform at even higher levels.
All models at a glance:
General data
| Model | DARK ROCK 6 |
| TDP (W) | 220 |
| Color option | - |

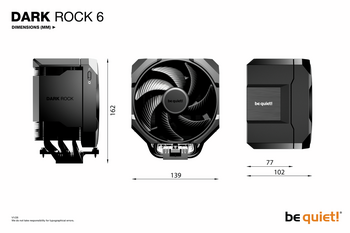

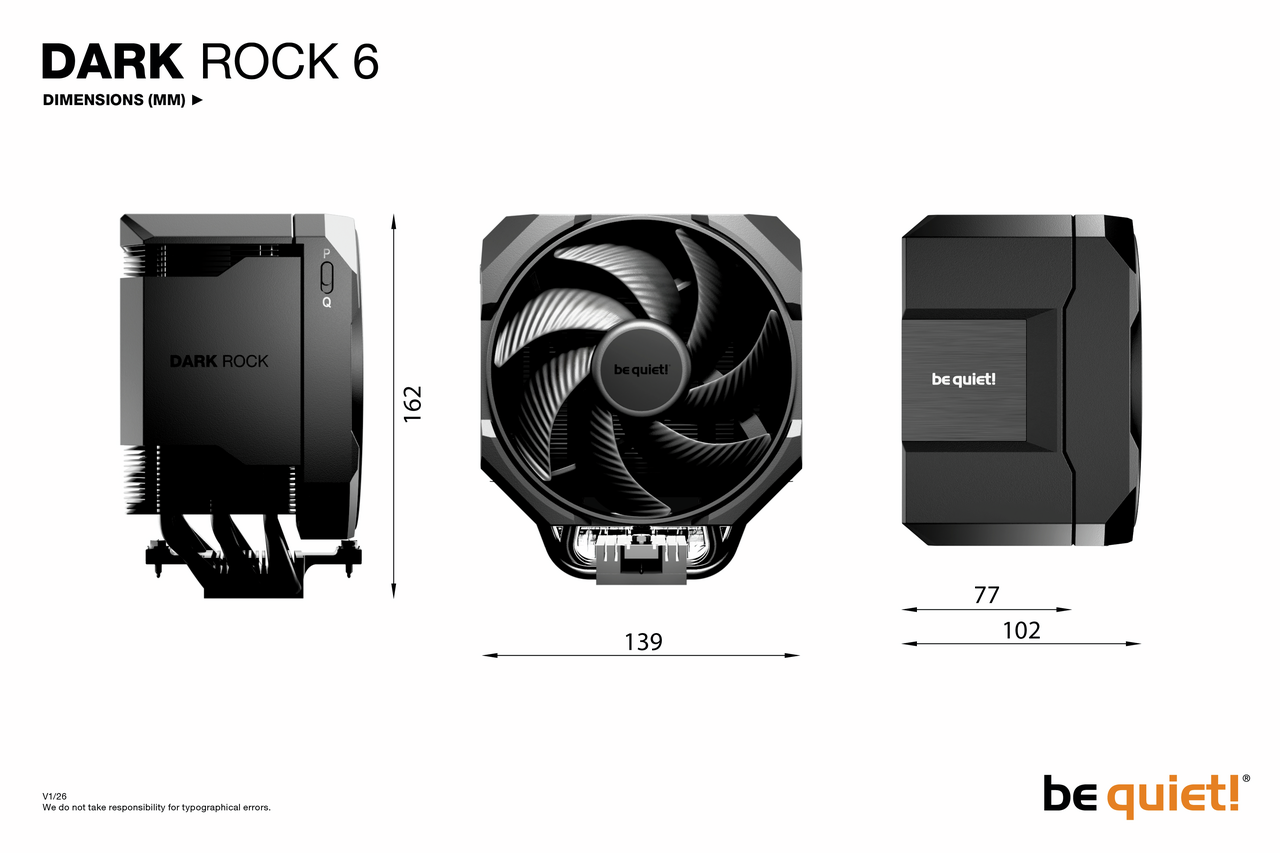

| Overall dimensions without mounting material (L x W x H), (mm) | 102.4 x 139 x 162 |
| Total weight (kg) | 1.01 |
| Socket compatibility Intel | 1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 11.9 / 23.2 / 31.1 |
| Number of fans | 1 |
| Lighting connector | - |
Infographics
Heatsink specifications
| Dimensions (L x W x H), (mm) | 77.4 x 139 x 162 |
| Fin material | Aluminum |
| Surface treatment | Ceramic coating |
| Base material | Copper / nickel plating |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 6 / 6 |
| Decoupled fan mounting | - |
Fan specifications
| Fan model | 135 x 135 x 25 |
| Fan dimensions (mm) | Silent Wings PWM |
| Speed @ 100% PWM (rpm) | 2000 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 52.94 / 89.95 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.48 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.16 |
| Safety current (A) | 0.4 |
| Input power (W) | 4.8 |
| Connector | 4-pin PWM |
| Lighting connector | - |
| Cable length (mm) | 220 |
| Lifespan (h / 25°C) | 300,000 |
| Y-Cable | - |

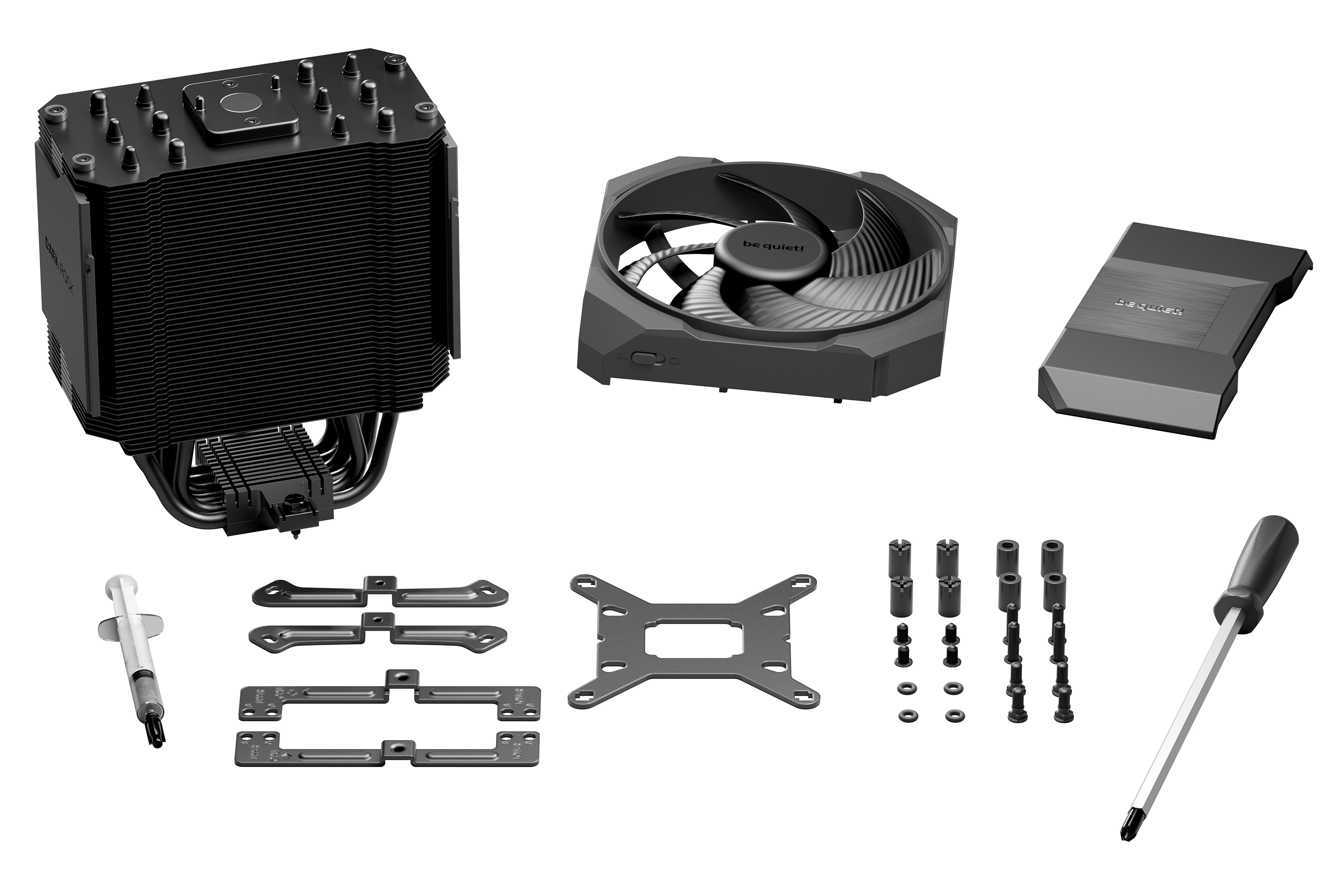

Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel & AMD |
| Screwdriver | ✓ |
| Y-Cable | - |
| User manual languages | -CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety certification
| Approvals | CE, UKCA, UL, RCM |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BK046 |
| EAN code | 4260052193143 |
| Dimensions, package (L x W x H), (mm) | 230 x 202 x 144 |
| Gross weight, package (kg) | 1.7 |
| Pieces per packaging unit | 12 |
| Dimensions, shipping box (L x W x H), (mm) | 639 x 492 x 324 |
| Gross weight, shipping box (kg) | 21.72 |
| RRP (€) | 89.90 |
