Article number: BN338

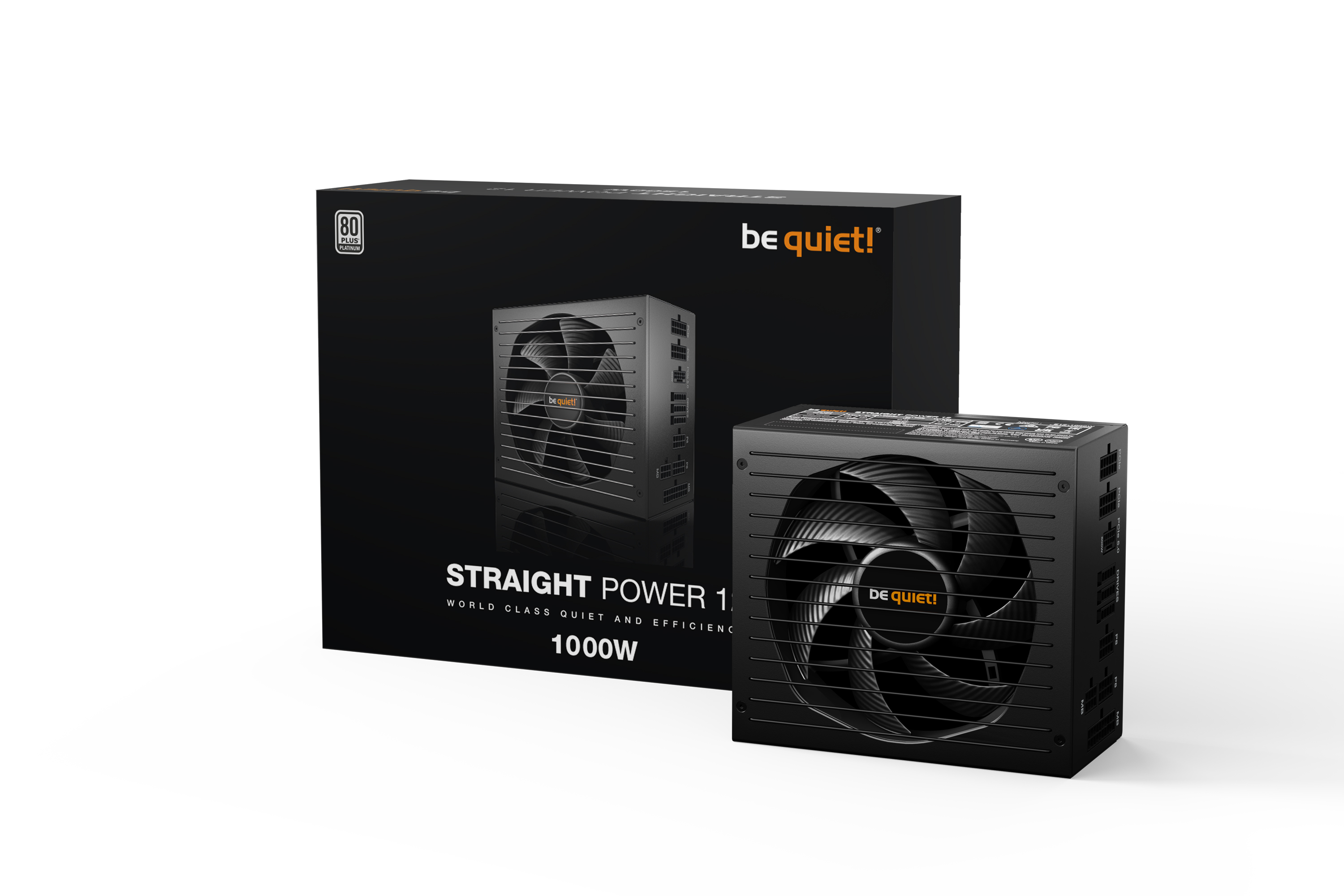

STRAIGHT POWER 12

1000W

Buy online

Add to comparison

PSU calculator

Support

Further models

STRAIGHT POWER 12

1000W

World class quiet and efficiency

Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS^® Platinum certification and virtually inaudible operation.

80 PLUS Platinum efficiency (up to 93,9%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
Handles massive power excursions
Virtually inaudible Silent Wings 135mm fan
Funnel-shaped fan opening on PSU case for high airflow intake
Full bridge LLC technology for unmatched signal stability
One massive high-performance 12V-rail
Japanese 105°C capacitors ensure highest stability and reliability
Modular cable management for maximum convenience
10-year manufacturer’s warranty

Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. .

Characteristics

80 PLUS^® PLATINUM CERTIFIED

Highly efficient operation

Straight Power 12 1000W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.

FUTURE-PROOF YOUR SYSTEM

Fulfills all ATX 3.0 specifications

Straight Power 12 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER

For massive transient loads

Straight Power 12 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

SILENT WINGS FAN

Provides virtually inaudible operation

The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.

FLAWLESS COOLING CONCEPT

For a longer lifespan

The funnel-shaped fan inlet of the Straight Power 12 1000W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.

STATE-OF-THE-ART TECHNOLOGIES

Rock-steady signal stability and efficiency

With full bridge LLC Straight Power 12 1000W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

JAPANESE 105° CAPACITORS

A testament to high quality

Only premium components are used in Straight Power 12 1000W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

CONVENIENCE AND CONNECTIVITY

Maximum utility

Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.

“With Straight Power we are aiming for sophisticated users and PC builders. We understand Straight Power as the PSU of choice for all who are not dependent on the sheer overwhelming feature set of a Dark Power, yet do not want to miss out on premium technology.”

Christian Joppien, Head of Global Product Management

All models at a glance:

Product Series

General data

Model	Straight Power 12 1000W
Continuous power (W)	1000
Peak power (W)	1070
Form factor	Version 3.0
Form factor EPS 12V	Version 2.92
Topology	Full bridge + LLC + SR + DC/DC
Digitally controlled	-
Voltage (Vac)	100 - 240
Frequency (Hz)	50 - 60
Input current (A)	13 / 6.5
Power factor at 100% load	>0.99
Modern standby	✓
Power consumption in standby (W)	0.14
Average life time (h / 25°C)	>100,000
Operating temperature up to (°C)	40

Infographics

open all / close all

						Efficiency

									80 PLUS certificationPlatinum

									Efficiency (%) at 230V, 2% load64.0

									Efficiency (%) at 230V, 10% load88.1

									Efficiency (%) at 230V, 20% load92.2

									Efficiency (%) at 230V, 50% load93.9

									Efficiency (%) at 230V, 100% load91.8

						Fan and cooling technology

									FanSilent Wings

									Fan size (mm)135

									Bearing technologyFDB

									Motor technology6-pole fan motor

									Max. fan speed (rpm)2100

									dB(A) at 10% load7.7

									dB(A) at 20% load7.7

									dB(A) at 50% load8

									dB(A) at 100% load28.9

						Output

									Multi-rail operation (12V rails)-

									12V single rail operation✓

									Overclocking key-

									+3.3V (A)25

									+5V (A)25

									+12V1 (A)83.3

									+12V2 (A)-

									+12V3 (A)-

									+12V4 (A)-

									+12V5 (A)-

									+12V6 (A)-

									-12V (A)0.5

									+5Vsb (A)3

									Max. combined power 12V (W)999.6

									Max. combined power 12VHPWR (W)600

									Max. combined power 3.3V + 5V (W)150

									Hold-up time at 100% load (ms)25.3

									Hold-up time at 80% load (ms)-

									Power good signal (ms)100 - 150

						Cables and connectors

									Modular cables✓

									Sleeved cables✓

									Flat cables-

									Maximum cable length (cm)100

									Cable length to motherboard (cm)60

									No. of cables9

									ATX-Motherboard (20+4-pin)1

									P4+4 (CPU)1

									P8 (CPU)1

									P4 (CPU)-

									12VHPWR cables1

									PCI-e 6+2-pin (GPU)4

									PCI-e 6-pin (GPU)-

									SATA9

									PATA2

									FDD (Floppy)-

						Protection

									OTP (over temperature protection)✓

									OCP (over current protection)✓

									OPP (over power protection)✓

									SCP (short circuit protection)✓

									OVP (over Voltage protection)✓

									UVP (under Voltage protection)✓

									SIP (Surge & Inrush protection)✓

						Safety certification

									BSMI✓

									CB✓

									CCC✓

									CE✓

									cRUus-

									cTUVus✓

									CU✓

									FCC✓

									RCM✓

									TÜV✓

									UKCA✓

						Environmental directives

									Energy Star8.0

									ErP✓

									WEEE✓

									RoHS✓

									Triman✓

						Scope of delivery

									Thumb screws-

									Screws✓

									Cable ties✓

									Velcro cable ties-

									User manual languagesCN, DE, EN, ES, FR, JP, PL, RU, TW, KR

									OCK slot bracket with switch / OCK jumper-

									SFX-to-ATX adapter bracket-

						Casing

									Dimensions without cable (L x W x H), (mm)160 x 150 x 86

									Weight (kg)1.85

									ColorBlack

						Service

									Warranty (Years)10

									Express replacement service in first yearDE, FR

									International hotline / free of charge✓ / DE, FR, US

						Logistics data and RRP

									Article numberBN338

									EAN code4260052189436

									Dimensions, package (L x W x H), (mm)328 x 248 x 102

									Gross weight, package (kg)3.6

									Pieces per packaging unit6

									Dimensions, shipping box (L x W x H), (mm)651 x 282 x 346

									Gross weight, shipping box (kg)22.9

									RRP (€)219.90

Upgrade Check

You are already using a be quiet! power supply and want to upgrade your system with a new STRAIGHT POWER 12 | 1000W ? Check here which cables are compatible and don't need to be replaced.
