Article number: BN228

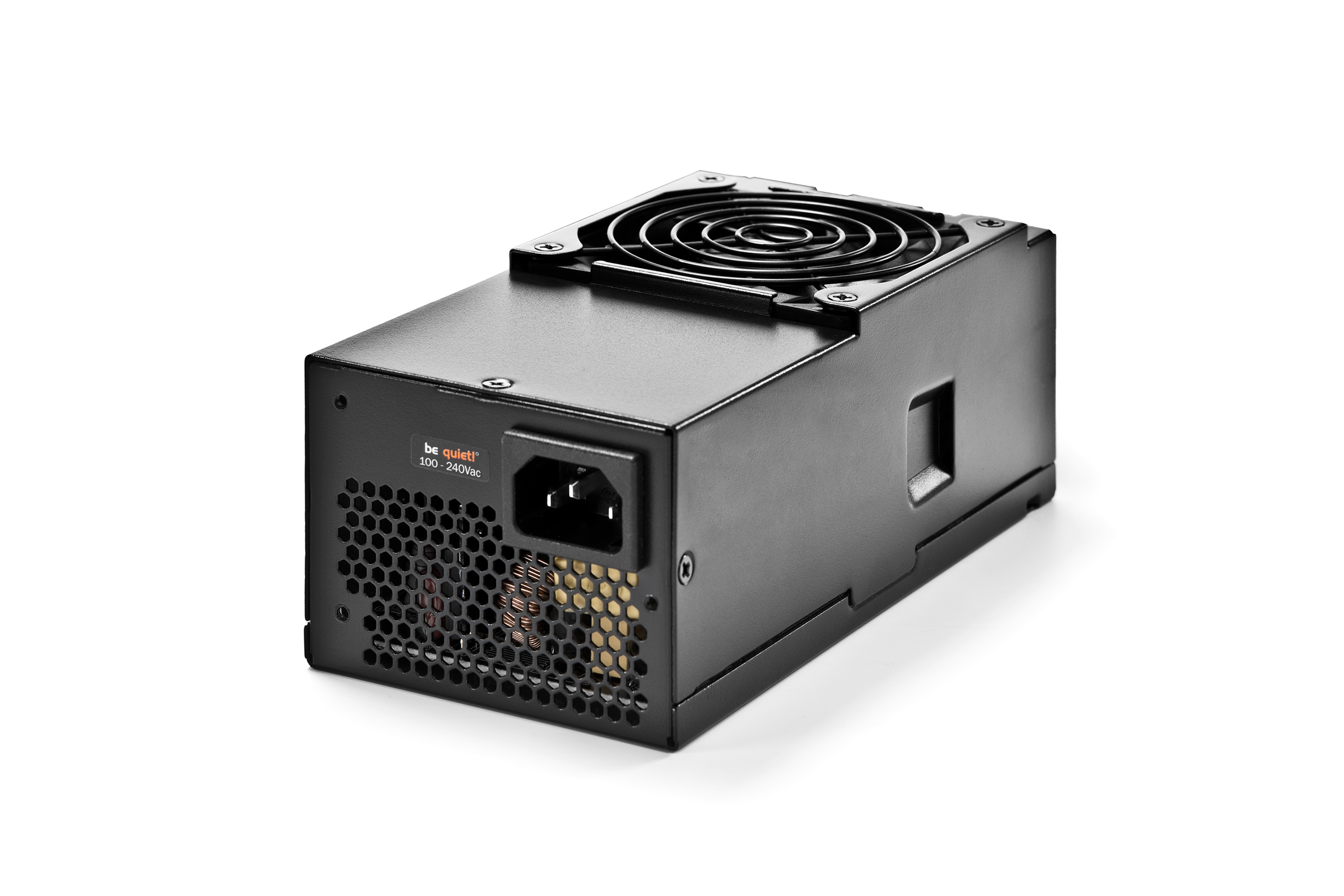

TFX POWER 2

300W BRONZE

Compact and Silent Energy

TFX Power 2 300W Bronze, the advanced and compact be quiet! PSU, gives you more for your mini or media PC. It is the perfect upgrade for any PC chassis demanding a TFX form factor PSU. Designed for higher efficiency, it supports Energy Star 5.2 requirements, ErP 2014, and 80PLUS Bronze (up to 87%), while providing solid voltages and power to support a PCIe graphics card (6-pin connector included).

For compact PC systems that perform beyond the ordinary, with the best combination of features, power, efficiency, be quiet! reliability and quietness, choose TFX Power 2 300W Bronze.


  • Strong dual 12V-rail design supports high stability and a PCIe connector for peripherals that need more power, like a PCIe graphics card
  • 300 watts of continuous power provide strong reserves to ensure steady operation even when your PC meets an unexpectedly heavy load
  • 80PLUS Bronze certification and up to 87% power conversion efficiency let you use the provided energy more efficiently and reduces your power bills
  •  Product conception, design and quality control in Germany

Energy Efficiency

  • 80PLUS Bronze certification independently verifies the high operating efficiency (up to 87%) of this design
  • High efficiency means cost savings, because your PC draws less power from the mains. It also means less wasted heat, less cooling required and an overall quieter operation
  • Standby drain of less than 0.25 watts
  • Meets Energy Star 6.0 guidelines
  • Fulfills ErP 2014 guidelines
  • Zero Load design and support of Intel’s Deep Power Down C6/C7 mode



Engineering

  • Use of the latest technology ensures premium performance and reliability
  • Supports the latest Intel® and AMD™ CPUs
  • Dual independent 12V-rails improve power signal stability
  • Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, and overloads, thus safeguarding your valuable components



Low-Noise Operation

  • An automatically temperature-regulated 80mm high-quality fan
  • Assured balance between cooling performance and quiet operation



Highly Compatible and Convenient

  • Sleeved cable lengths up to 65cm offer improved cooling and are perfect for mini PC cases
  • Features 10 connectors for flexible system builds
  • Connectors are compatible with older components as well as those still on the drawing board
  • PCIe connector supports discrete graphics card
  • Clearly labeled plugs enable simple installation



Product Conception, Design and Quality Control in Germany

  • 2-year warranty
  • Quick support is available via our international hotline,
    Mondays to Fridays from 9:00 am to 5:30 pm German local time: +49 (0) 40-736 76 86 - 98



All models at a glance:

Features

General data

Model TFX Power 2 300W Bronze
Continuous power (W) 300
Peak power (W) 330
Form factor ATX 12V TFX 12V Version 2.4
Form factor EPS 12V -
Modular cable management -
Topology -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 4 / 2
PFC active
Power factor at 100% load >0.97
Compliant to Intel C6/C7
Power consumption in standby (W) <0.15
Average life time (h / 25°C) 100.000
Operating temperature up to (°C) 40

Infographics

open all / close all

Output

12V rails (multi-rail operation) 2
12V single rail operation -
Overclocking key -
+3.3V (A) 21
+5V (A) 15
+12V1 (A) 13
+12V2 (A) 13
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.3
+5Vsb (A) 2
Max. combined power 12V (W) 264
Max. combined power 3.3V + 5V (W) 103
Hold-up time (ms @ 100%) >16

Fan / Cooling technology

Fan type high-quality fan
+SilentWings -
Motor technology 4-pole fan motor
Bearing technology Sleeve
Fan size (mm) 80
Max. fan speed (rpm), temperature-dependent 2,003
Temperature control for case fans
dB(A) at 20% load 11.7
dB(A) at 50% load 14.6
dB(A) at 100% load 31.4

Protection

OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection) -
OPP (over power protection)

Safety certification

CE
CB
TÜV
Nemko (N) -
Semko (S) -
Fimko (FI) -
Demko (D) -
FCC -
cRUus -
cTUVus -
RCM (Australia) -
BSMI -
CU (Russia) -

Eco / Efficiency

80PLUS certification Bronze
Efficiency (%) at 230V, 20% load 84.7
Efficiency (%) at 230V, 50% load 87.3
Efficiency (%) at 230V, 100% load 91.6

Environmental directives

ENERGY STAR 6.0
ErP
WEEE
RoHS

Cable management / Connectors

Multi-GPU ready -
Modular cable management -
Fully modular -
Sleeved cables
Flat cables -
Cable length to mainboard (cm) 35
Cable length to first connector (cm) 35
Maximum cable length (cm) 65
All-in-one cable (SATA/PATA/FDD) -
No. of cables 5
ATX-Motherboard (20+4-pin) 1
P8 (CPU) -
P4+4 (CPU) -
P4 (CPU) 1
PCI-E 6-pin (GPU) 1 (via adapter)
PCI-E 6+2-pin (GPU) -
PATA 4 pin 2
SATA 15-pin (HDD, Drives) 4
FDD (Floppy) 1
Mainboard connector (PATA 4-pin) -
External fan connectors -

Casing

Dimensions without cable (L x W x D), (mm) 175 x 85 x 70
Weight (kg) 1.2
Color black

Accessories

Thumb screws -
Screws
Cable ties
Velcro cable ties -
AC power cord (mm) 1.500
Box/Bag for PSU/Cables -
User manual languages DE, EN, FR, PL, ES
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -

Service

Warranty (Years) 2
Express replacement service in first year -
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Range TFX Power
Article number BN228
EAN code 4260052183731
Dimensions, package (L x W x H), (mm) 195x80x159
Gross weight, package (kg) 1.5
Pieces per packaging unit 6
Dimensions, shipping box (L x W x H), (mm) 430x275x195
Gross weight, shipping box (kg) 10
RRP (€) 63.00
