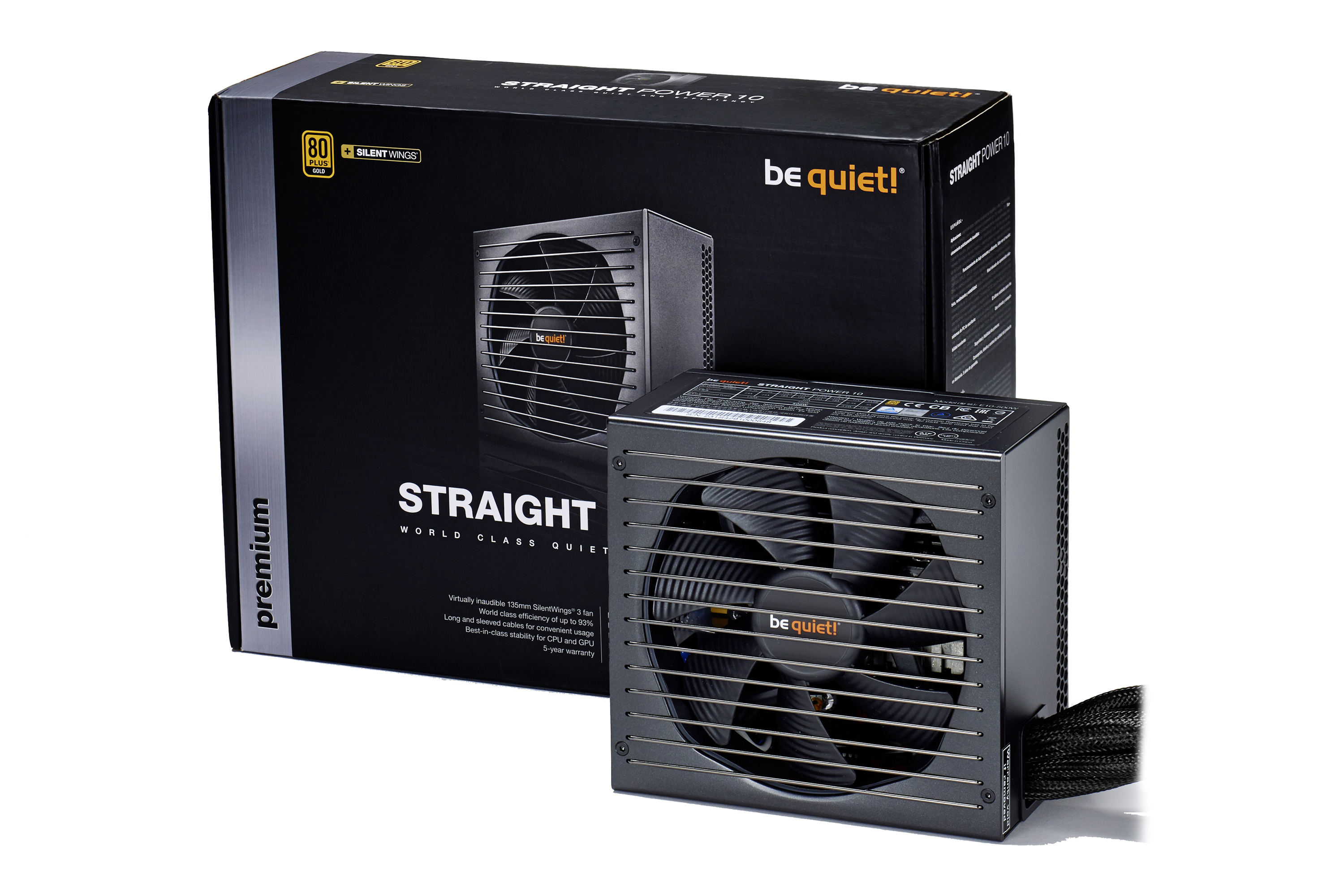

Article number: BN230

STRAIGHT POWER 10

400W

World Class Quiet and Efficiency

be quiet! Straight Power 10 400W provides a new level of silent performance for systems that demand whisper-quiet operation and efficiency without compromising on power quality.

Improved cooling with use of a 135mm SilentWings® 3 fan with an advanced fan frame ensures operation that is extraordinarily quiet.
Improved power circuit technology delivers 80PLUS® Gold power efficiency (up to 93%) and stability unmatched in its class.

Powerful GPU support and reliability enhanced by premium 105°C-rated parts make this PSU a ‘Best Choice’ whether you are building a new system or seeking a better, quieter replacement for an existing system

  • Virtually inaudible operation achieved through a broad array of meticulous optimizations, including use the of a be quiet! SilentWings® 3 135mm fan
  • SilentWings® 3 fan features an advanced fan frame, an airflow-optimized fan blade, fluid-dynamic bearing with copper core and a high-quality 6-pole motor for less vibration
  • The funnel-shaped fan opening of the PSU case is significant big and allows high airflow intake
  • 400 Watts of continuous power with stable four 12V-rail design
  • 80PLUS® Gold certification and up to 93% power conversion efficiency
  • Sleeved cable lengths for improved cooling and more attractive appearance
  • Product conception, design and quality control in Germany

Virtually Inaudible Operation

  • Installed SilentWings® 3 135mm fan includes a wide array of electronic and mechanical optimizations for best-of-class airflow with very low noise production, including:
    • unique airflow-optimized fan blade design reduces noise-generating fan turbulence
    • advanced fluid-dynamic bearing with copper core provides for greatly reduced operating noise and super-long life
    • 6-pole fan motor with high-quality IC controller reduces electrical noise, power consumption, and vibration. Lower starting voltage of the fan reduces significantly the starting fan speed and noise level at low load conditions
  • Funnel-shaped fan opening of the PSU case is significant big and allows high airflow intake
  • SilentWings® 3 fan is decoupled from the PSU body with special mount, further reducing transmission of vibration and noise
  • Optimized PSU airflow design generates superior cooling at lower fan speeds and reduces turbulence around components, thus allowing even quieter operation
  • Variable fan speed is optimally governed to strike the best balance between proper cooling and deep quietness


Energy Efficiency

  • 80PLUS® Gold certification independently verifies the extremely high operating efficiency (up to 93%) of this design
  • High efficiency means money savings, because your PC draws less power from the mains to do its work. This means less waste heat, less cooling required, and overall quieter operation
  • Standby drain of less than 0.25 Watts (</= 0.15W)
  • Meets Energy Star 6.0 guidelines
  • Fulfills ErP 2014 guidelines
  • Zero Load design supports Intel’s Deep Power Down C6 and C7 modes



Engineering

  • Improved integrated circuit power conversion design features Active Clamp and Synchronous Rectifier (SR) technology plus DC-to-DC voltage stepdown for amazing signal stability, voltage regulation (main output rails are </= 2%) and power efficiency
  • Premium quality capacitors rated to 105°C for maximum performance, reliability and operating life
  • Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads, thus safeguarding your valuable components
  • Three independent 12V-rails improve power signal stability



Maximum Compatibility and Convenience

  • Sleeved cable lengths up to 115cm allow for improved cooling and are perfect for large PC cases
  • Connectors are compatible with older components as well as those still on the drawing board
  • Individual P4 and P8 plugs on longer cables support all common mainboard types and allow routing behind motherboards for improved airflow
  • Two PCIe connectors for powerful multi-GPU configurations
  • Clearly labeled plugs and clever accessories promote simple installation



Outstanding Service and Support

  • 5-year manufacturer's warranty
  • Quick support is available via our international hotline, Mondays to Fridays from 9:00am to 5:30pm CET : +49 (0) 40-736 76 86 – 98



All models at a glance:

Features

General data

Model STRAIGHT POWER 10 400W
Continuous power (W) 400
Peak power (W) 450
Form factor ATX 12V Version 2.4
Form factor EPS 12V -
Modular cable management -
Topology Active Clamp + SR + DC/DC
Wire-free design (DC-side) -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 6 / 3
PFC active
Power factor at 100% load >0.99
Compliant to Intel C6/C7
Power consumption in standby (W) <0.16
Average life time (h / 25°C) 100.000
Operating temperature up to (°C) 40

Infographics

open all / close all

Output

12V rails (multi-rail operation) 3
12V single rail operation -
Overclocking key -
+3.3V (A) 24
+5V (A) 17
+12V1 (A) 18
+12V2 (A) 18
+12V3 (A) 18
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 384
Max. combined power 3.3V + 5V (W) 120
Hold-up time (ms @ 100%) 17

Fan / Cooling technology

Fan type be quiet! SilentWings 3
+SilentWings
Motor technology 6-pole fan motor
Bearing technology FDB
Fan size (mm) 135
Max. fan speed (rpm), temperature-dependent 1,200
Temperature control for case fans -
dB(A) at 20% load 10.4
dB(A) at 50% load 10.4
dB(A) at 100% load 11.7

Protection

OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)

Safety certification

CE
CB
TÜV
Nemko (N) -
Semko (S) -
Fimko (FI) -
Demko (D) -
FCC
cRUus -
cTUVus
RCM (Australia) -
BSMI
CU (Russia) -

Eco / Efficiency

80PLUS certification Gold
Efficiency (%) at 230V, 20% load 90.3
Efficiency (%) at 230V, 50% load 93.0
Efficiency (%) at 230V, 100% load 92.0

Environmental directives

ENERGY STAR 6.0
ErP
WEEE
RoHS

Cable management / Connectors

Multi-GPU ready
Modular cable management -
Fully modular -
Sleeved cables
Flat cables -
Cable length to mainboard (cm) 60
Cable length to first connector (cm) 55
Maximum cable length (cm) 115
All-in-one cable (SATA/PATA/FDD)
No. of cables 6
ATX-Motherboard (20+4-pin) 1
P8 (CPU) -
P4+4 (CPU) 1
P4 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 2
PATA 4 pin 3
SATA 15-pin (HDD, Drives) 6
FDD (Floppy) 1
Mainboard connector (PATA 4-pin) -
External fan connectors -

Casing

Dimensions without cable (L x W x D), (mm) 160 x 150 x 86
Weight (kg) 2.02
Color black

Accessories

Thumb screws -
Screws
Cable ties
Velcro cable ties -
AC power cord (mm) 1.500
Box/Bag for PSU/Cables -
User manual languages EN, DE, FR, PL, ES, RU
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -

Service

Warranty (Years) 5
Express replacement service in first year DE, FR
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Range Straight Power
Article number BN230
EAN code 4260052184288
Dimensions, package (L x W x H), (mm) 328 x 248 x 102
Gross weight, package (kg) 2.59
Pieces per packaging unit 6
Dimensions, shipping box (L x W x H), (mm) 661 x 282 x 358
Gross weight, shipping box (kg) 17.29
RRP (€) 80.00
