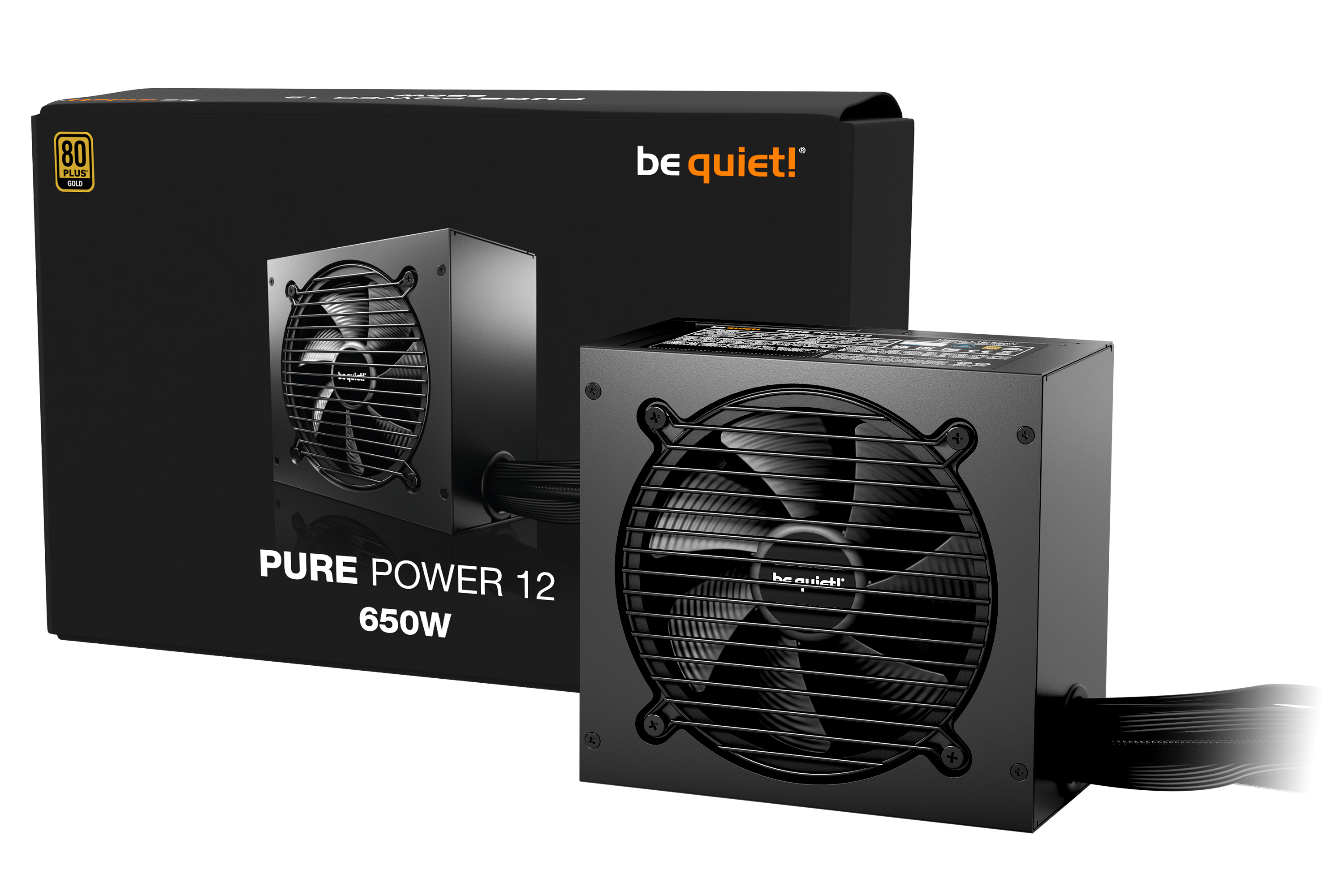

Pure Power 12 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Pure Power 12 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 650W is always the correct choice for quiet systems and gaming PCs!
Pure Power 12 650W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 2 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
Pure Power 12 offers 650W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 12 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.
With its LLC topology Pure Power 12 650W provides best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs.

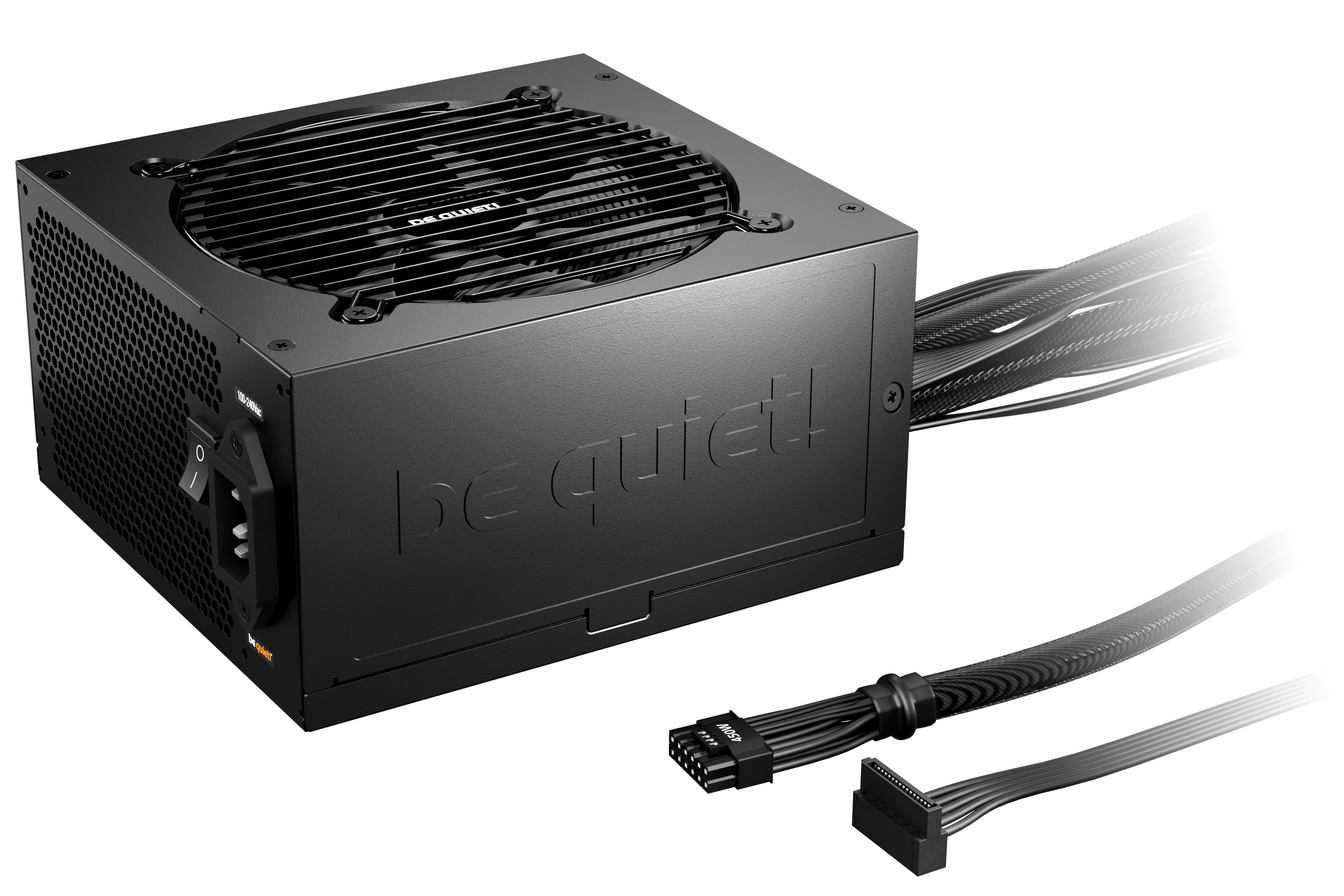

Pure Power 12 650W is certainly an eye-catcher. Motherboard and 12V-2x6 cables are finished with high quality black sleeves. The remaining premium black flat cables simplify installation and keep the system tidy. This results in increased airflow and improved cooling.
“Ever since the first Pure Power, uncountable amounts of it have found their way into the PCs – and most likely hearts – of users worldwide.”
Aaron Licht, Chief Executive Officer
Model | Pure Power 12 650 W |
Continuous power (W) | 650 |
Peak power (W) | 720 |
Form factor | Version 3.1 |
Form factor EPS 12V | Version 2.92 |
Topology | LLC + SR + DC/DC |
Digitally controlled | - |
Voltage (Vac) | 100 - 240 |
Frequency (Hz) | 50 - 60 |
Input current (A) | 10 / 5 |
Power factor at 100% load | >0.98 |
Modern standby | ✓ |
Power consumption in standby (W) | <0.1 |
Average life time (h / 25°C) | >100,000 |
Operating temperature up to (°C) | 40 |
80 PLUS certification | Gold |
Efficiency (%) at 230V, 2% load | 65.8 |
Efficiency (%) at 230V, 10% load | 87.8 |
Efficiency (%) at 230V, 20% load | 91.6 |
Efficiency (%) at 230V, 50% load | 92.7 |
Efficiency (%) at 230V, 100% load | 91 |
Fan | Silence-optimized be quiet! fan |
Fan size (mm) | 120 |
Bearing technology | Rifle |
Motor technology | 4-pole fan motor |
Max. fan speed (rpm) | 1800 |
dB(A) at 10% load | 8.8 |
dB(A) at 20% load | 9.1 |
dB(A) at 50% load | 9.2 |
dB(A) at 100% load | 18.2 |
Multi-rail operation (12V rails) | 0 |
12V single rail operation | ✓ |
Overclocking key | - |
+3.3V (A) | 20 |
+5V (A) | 20 |
+12V1 (A) | 54.1 |
+12V2 (A) | - |
+12V3 (A) | - |
+12V4 (A) | - |
+12V5 (A) | - |
+12V6 (A) | - |
-12V (A) | 0,3 |
+5Vsb (A) | 3 |
Max. combined power 12V (W) | 650 |
Max. combined power 12VHPWR (W) | 450 |
Max. combined power 3.3V + 5V (W) | 120 |
Hold-up time at 100% load (ms) | 16.86 |
Hold-up time at 80% load (ms) | 20.92 |
Power good signal (ms) | 100 - 150ms |
Modular cables | - |
Sleeved cables | ✓ |
Flat cables | ✓ |

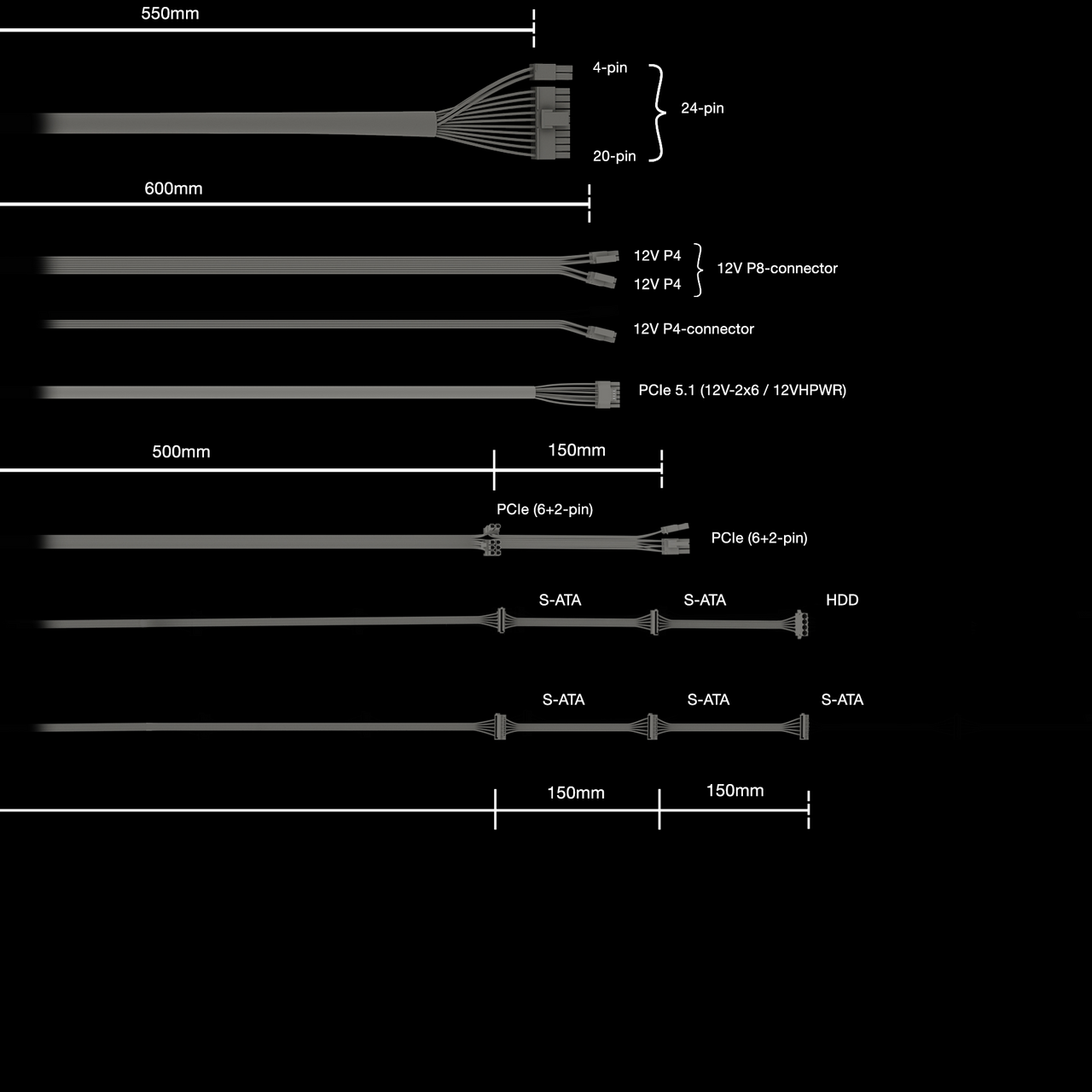

Maximum cable length (cm) | 55 |
Cable length to motherboard (cm) | 60 |
No. of cables | 7 |
ATX-Motherboard (20+4-pin) | 1 |
P4+4 (CPU) | P4+4 (CPU) |
P8 (CPU) | - |
P4 (CPU) | 1 |
12VHPWR cables | 1 |
PCI-e 6+2-pin (GPU) | 2 |
PCI-e 6-pin (GPU) | - |
SATA | 5 |
PATA | 1 |
FDD (Floppy) | - |
OTP (over temperature protection) | ✓ |
OCP (over current protection) | ✓ |
OPP (over power protection) | ✓ |
SCP (short circuit protection) | ✓ |
OVP (over Voltage protection) | ✓ |
UVP (under Voltage protection) | ✓ |
SIP (Surge & Inrush protection) | ✓ |
BSMI | - |
CB | ✓ |
CCC | - |
CE | ✓ |
cRUus | - |
cTUVus | ✓ |
CU | ✓ |
FCC | ✓ |
RCM | - |
TÜV | ✓ |
UKCA | ✓ |
Energy Star | 8.0 |
ErP | ✓ |
WEEE | ✓ |
RoHS | ✓ |
Triman | ✓ |
Thumb screws | - |
Screws | ✓ |
Cable ties | ✓ |
Velcro cable ties | - |
User manual languages | DE, EN, ES, FR, PL, RU, UA |
OCK slot bracket with switch / OCK jumper | - |
SFX-to-ATX adapter bracket | - |
Dimensions without cable (L x W x H), (mm) | 160 x 86 x 150 |
Weight (kg) | 2.4 |
Color | Black |
Warranty (Years) | 10 |
Express replacement service in first year | - |
International hotline / free of charge | ✓ / DE, FR |
Article number | BP002U2 |
EAN code | 4260052191279 |
Dimensions, package (L x W x H), (mm) | 320 x 133 x 210 |
Gross weight, package (kg) | 2.8 |
Pieces per packaging unit | 6 |
Dimensions, shipping box (L x W x H), (mm) | 420 x 345 x 413 |
Gross weight, shipping box (kg) | 18.1 |
RRP (€) | 99.90 |
