Article number: BP028EU

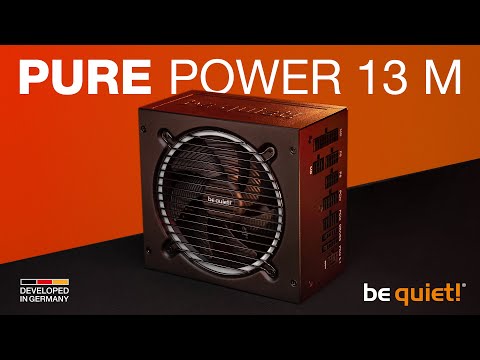

PURE POWER 13 M
1000WExceptional quiet, superior features
Pure Power 13 M 1000W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 1000W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 94.4%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent semi-passive 120mm be quiet! fan
- Semi-passive construction for quiet and energy-saving operation
- LLC technology for advanced stability and voltage regulation
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
80 PLUS® GOLD CERTIFIED
Very high operating efficiencyPure Power 13 M 1000W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 94.4%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 1000W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specificationsPure Power 13 M 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loadsPure Power 13 M offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silenceWhile under low load, the fan turns off completely until its services are needed again for more demanding operations. This feature, combined with the reliable be quiet! fan and its airflow-optimized fan blades, make Pure Power 13 M 1000W exceptionally silent in all load scenarios.
HIGH-CLASS TECHNOLOGIES
Rock-solid stabilityWith its LLC topology Pure Power 13 M 1000W provides best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs.
MODULAR CABLES
Utmost convenience and compatibilityThanks to their modularity, all unnecessary cables in the system are left out. Pure Power 13 M 1000W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
All models at a glance:
General data
| Model | Pure Power 13 M | 1000W |
| Continuous power (W) | 1000 |
| Peak power (W) | 1050 |
| Form factor | Version 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 12 / 6 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.1 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
Infographics
Efficiency
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | 72.6 |
| Efficiency (%) at 230V, 10% load | 91.2 |
| Efficiency (%) at 230V, 20% load | 93.9 |
| Efficiency (%) at 230V, 50% load | 94.4 |
| Efficiency (%) at 230V, 100% load | 92.5 |
Fan and cooling technology
| Cybenetics Noise Rating | - |
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2000 |
| dB(A) at 10% load | - |
| dB(A) at 20% load | 13.6 |
| dB(A) at 50% load | 14.1 |
| dB(A) at 100% load | 30.3 |
Output
| Multi-rail operation (12V rails) | - |
| 12V single rail operation | ✓ |
| Overclocking key | - |
| +3.3V (A) | 22 |
| +5V (A) | 22 |
| +12V1 (A) | 83.4 |
| +12V2 (A) | N/A |
| +12V3 (A) | N/A |
| +12V4 (A) | N/A |
| +12V5 (A) | N/A |
| +12V6 (A) | N/A |
| -12V (A) | 0,3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 1000 |
| Max. combined power 12V-2x6 (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 21.09 |
| Hold-up time at 80% load (ms) | 28.62 |
| Power good signal (ms) | 100 - 150 |
Cables and connectors
| Modular cables | ✓ |
| Sleeved cables | ✓ |
| Flat cables | ✓ |
| Maximum cable length (cm) | 95 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 8 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 1 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 2 |
| FDD (Floppy) | - |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
Safety certification
| BSMI | ✓ |
| CB | ✓ |
| CCC | ✓ |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | ✓ |
| IRAM | - |
Environmental directives
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | - |
Scope of delivery
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
Casing
| Dimensions without cable (L x W x H), (mm) | 160 x 150 x 86 |
| Weight (kg) | 2.64 |
| Color | Black |
Service
| Warranty (Years) | 10 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BP028EU |
| EAN code | 4260052192207 |
| Dimensions, package (L x W x H), (mm) | 320 x 210 x 133 |
| Gross weight, package (kg) | 3.4 |
| Pieces per packaging unit | 6 |
| Dimensions, shipping box (L x W x H), (mm) | 580 x 325 x 233 |
| Gross weight, shipping box (kg) | 22.7 |
| RRP (€) | 169.90 |
Upgrade Check
You are already using a be quiet! power supply and want to upgrade your system with a new PURE POWER 13 M | 1000W ? Check here which cables are compatible and don't need to be replaced.
