Article number: BN272

PURE POWER 10

400W

Exceptionally Quiet, Superior Reliability, Great Value

Pure Power 10 400W offers peerless dependability and best-in-class features with 80PLUS® Silver efficiency (up to 91%), a silence-optimized 120mm be quiet! fan and high-quality sleeved cables. It supports multiple GPUs with two PCIe connectors and offers stable operation thanks to use of DC-to-DC power conversion technology.

Whether you’re assembling a very quiet system, building a multi-GPU gaming system, or upgrading an existing PC, your build will benefit from this PSU that simply has the best combination of features at a very popular prize.

POWER AND COMPATIBILITY FOR YOUR SYSTEM

The best combination of features and performance at a very popular price

Pure Power 10 offers 400W of continuous power with two independent 12Vrails for signal stability and two PCI express connectors for multi-GPU systems. It is suited to very quiet systems, for upgrading or building multimedia or multi-GPU gaming systems.

80PLUS SILVER CERTIFICATION

Very high operating efficiency

Pure Power 10 400W is certified 80PLUS® Silver with an efficiency rating of up to 91% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.

INNOVATIVE TECHNOLOGIES

DC-to-DC, Active Clamp and Synchronous Rectifier

The use of Active Clamp and Synchronous Rectifier technologies provides very stable operation. The PSU is equipped with DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions. This ensures secure operation for next generation processors and graphics cards.

EXCEPTIONALLY SILENT OPERATION

Achieved by a silence-optimized 120mm be quiet! fan

The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.

HIGH-QUALITY SLEEVED CABLES

Keeping your system tidy and good-looking

Pure Power 400W is exquipped with high-quality sleeved cables that simplify component installation, increase airflow and improve cooling. The All-in-one cable has a convenient easy-plug HDD connector.

All models at a glance:

Features

General data

Model PURE POWER 10 | 400W
Continuous power (W) 400
Peak power (W) 450
Form factor ATX 12V Version 2.4
Form factor EPS 12V -
Modular cable management -
Topology Active Clamp + SR + DC/DC
Wire-free design (DC-side) -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 6 / 4
PFC active
Power factor at 100% load >0.99
Compliant to Intel C6/C7
Power consumption in standby (W) 0.10
Average life time (h / 25°C) 100.000
Operating temperature up to (°C) 40

Infographics

open all / close all

Output

12V rails (multi-rail operation) 2
12V single rail operation -
Overclocking key -
+3.3V (A) 24
+5V (A) 15
+12V1 (A) 24
+12V2 (A) 20
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.3
+5Vsb (A) 3
Max. combined power 12V (W) 384
Max. combined power 3.3V + 5V (W) 120
Hold-up time (ms @ 100%) 30

Fan / Cooling technology

Fan type Silence-optimized be quiet! fan
+SilentWings -
Motor technology 4-pole fan motor
Bearing technology Rifle
Fan size (mm) 120
Max. fan speed (rpm), temperature-dependent 960
Temperature control for case fans -

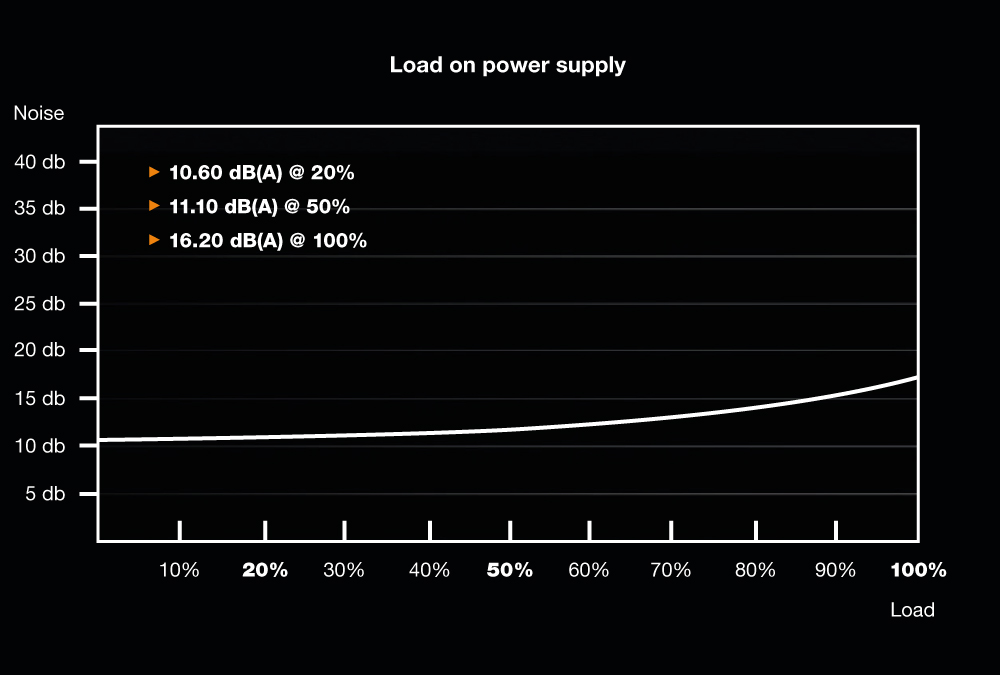

dB(A) at 20% load 10.6
dB(A) at 50% load 11.1
dB(A) at 100% load 16.2

Protection

OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)

Safety certification

CE
CB
TÜV
Nemko (N) -
Semko (S) -
Fimko (FI) -
Demko (D) -
FCC
cRUus -
cTUVus
RCM (Australia)
BSMI
CU (Russia)

Eco / Efficiency

80PLUS certification Silver
Efficiency (%) at 230V, 20% load 89.5
Efficiency (%) at 230V, 50% load 91.3
Efficiency (%) at 230V, 100% load 90.1

Environmental directives

ENERGY STAR 6.0
ErP
WEEE
RoHS

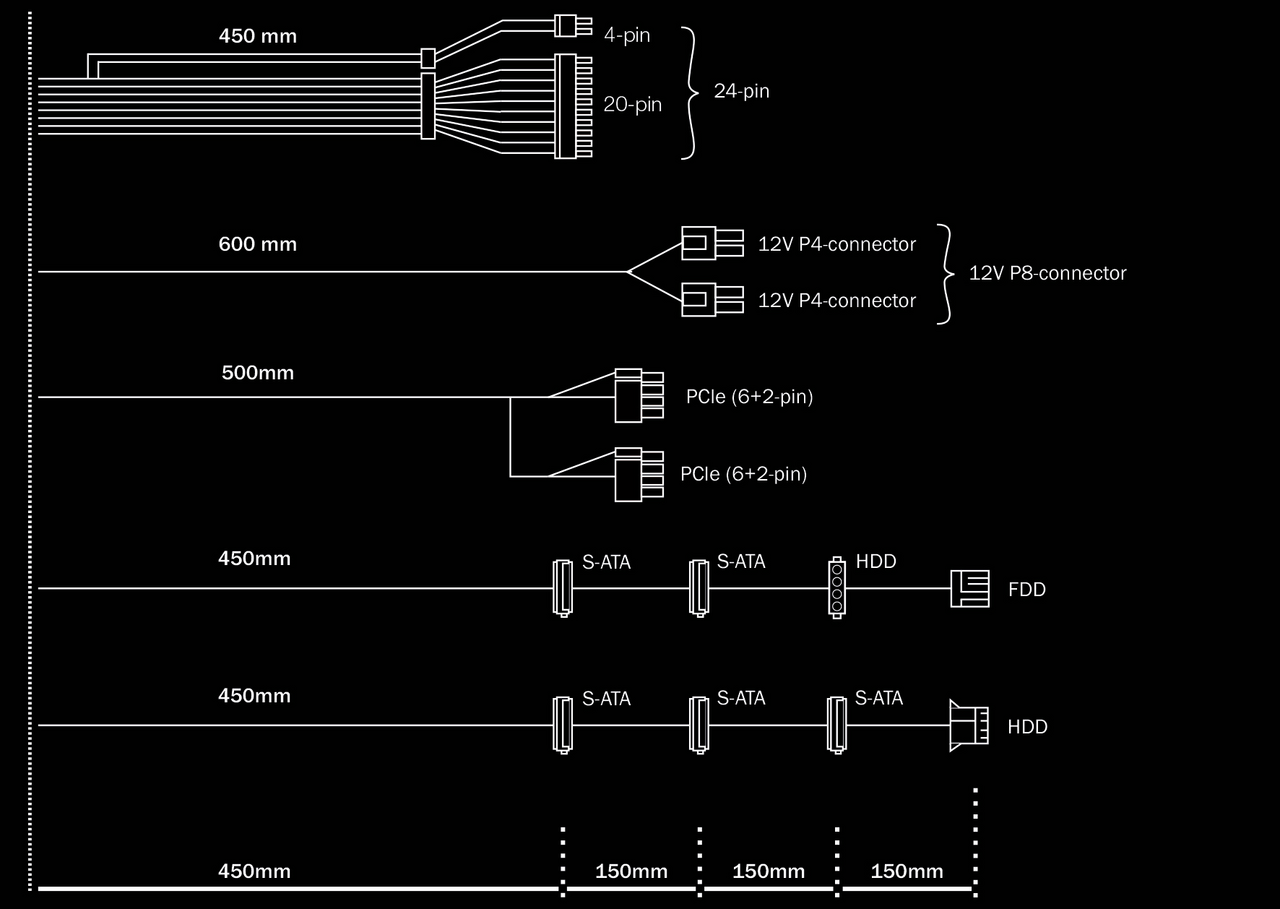

Cable management / Connectors

Multi-GPU ready
Modular cable management -
Fully modular -
Sleeved cables
Flat cables -
Cable length to mainboard (cm) 45
Cable length to first connector (cm) 45
Maximum cable length (cm) 90
All-in-one cable (SATA/PATA/FDD)
No. of cables 5
ATX-Motherboard (20+4-pin) 1
P8 (CPU) -
P4+4 (CPU) 1
P4 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 2
PATA 4 pin 2
SATA 15-pin (HDD, Drives) 5
FDD (Floppy) 1
Mainboard connector (PATA 4-pin) 2
External fan connectors -

Casing

Dimensions without cable (L x W x D), (mm) 150 x 150 x 86
Weight (kg) 1.86
Color Black

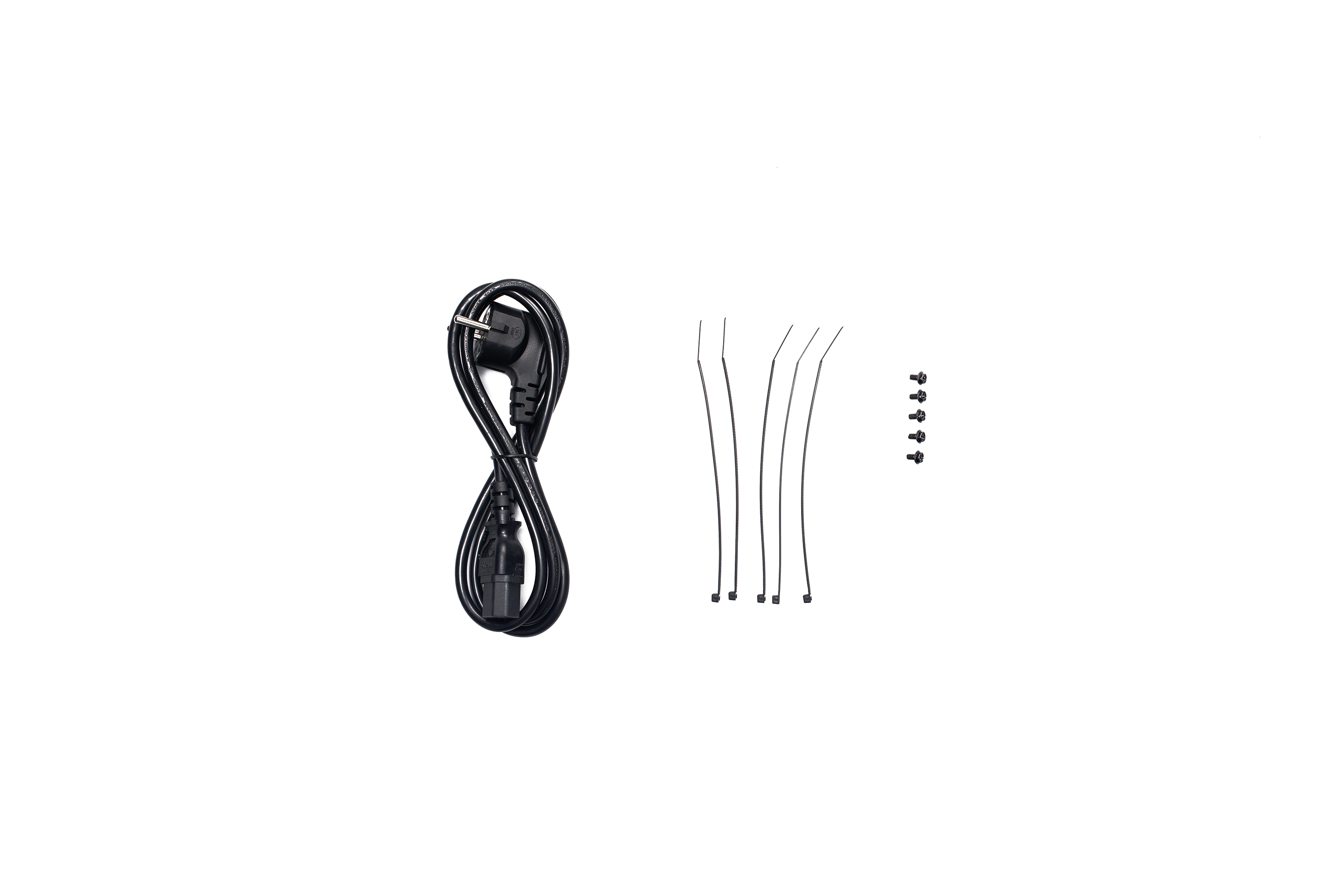

Accessories

Thumb screws -
Screws
Cable ties
Velcro cable ties -
AC power cord (mm) 1.500
Box/Bag for PSU/Cables -
User manual languages EN, DE, FR, PL, ES, RU
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -

Service

Warranty (Years) 3
Express replacement service in first year -
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Range Pure Power
Article number BN272
EAN code 4260052185315
Dimensions, package (L x W x H), (mm) 260 x 202 x 98
Gross weight, package (kg) 2.42
Pieces per packaging unit 6
Dimensions, shipping box (L x W x H), (mm) 550 x 325 x 233
Gross weight, shipping box (kg) 14.53
RRP (€) 59.90
