Article number: BN270

PURE POWER 10

300W

Exceptionally Quiet, Superior Reliability, Great Value

Pure Power 10 300W offers peerless dependability and best-in-class features with 80PLUS® Bronze efficiency (up to 87%), a silence-optimized 120mm be quiet! fan and high-quality sleeved cables. It features two 12V-rails and meets the latest Intel C6/C7, ErP and Energy Star guidelines.

Whether you’re assembling a very quiet system or upgrading an existing PC, your build will benefit from this PSU that simply has the best combination of features at a very popular prize.

POWER AND COMPATIBILITY FOR YOUR SYSTEM

The best combination of features and performance at a very popular price

Pure Power 10 offers 300W of continuous power with two independent 12Vrails for signal stability and one PCI express connector  for GPU card support.

80PLUS BRONZE CERTIFICATION

Very high operating efficiency

Pure Power 10 300W is certified 80PLUS® Bronze with an efficiency rating of up to 87% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs, and cooler, quieter operation.

EXCEPTIONALLY SILENT OPERATION

Achieved by a silence-optimized 120mm be quiet! fan

The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.

HIGH-QUALITY SLEEVED CABLES

Keeping your system tidy and good-looking

Pure Power xxxW is exquipped with high-quality sleeved cables that simplify component installation, increase airflow and improve cooling. The All-in-one cable has a convenient easy-plug HDD connector.

All models at a glance:

Features

General data

Model PURE POWER 10 | 300W
Continuous power (W) 300
Peak power (W) 350
Form factor ATX 12V Version 2.4
Form factor EPS 12V -
Modular cable management -
Topology -
Wire-free design (DC-side) -
Voltage (Vac) 100 - 240
Frequency (Hz) 50 - 60
Input current (A) 5 / 2.5
PFC active
Power factor at 100% load >0.99
Compliant to Intel C6/C7
Power consumption in standby (W) 0.10
Average life time (h / 25°C) 100.000
Operating temperature up to (°C) 40

Infographics

open all / close all

Output

12V rails (multi-rail operation) 2
12V single rail operation -
Overclocking key -
+3.3V (A) 21
+5V (A) 15
+12V1 (A) 18
+12V2 (A) 18
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.3
+5Vsb (A) 2.5
Max. combined power 12V (W) 288
Max. combined power 3.3V + 5V (W) 103
Hold-up time (ms @ 100%) 17

Fan / Cooling technology

Fan type Silence-optimized be quiet! fan
+SilentWings -
Motor technology 4-pole fan motor
Bearing technology Rifle
Fan size (mm) 120
Max. fan speed (rpm), temperature-dependent 760
Temperature control for case fans -
dB(A) at 20% load 10.6
dB(A) at 50% load 10.8
dB(A) at 100% load 13.2

Protection

OCP (over current protection)
OVP (over voltage protection)
UVP (under voltage protection)
SCP (short circuit protection)
OTP (over temperature protection)
OPP (over power protection)

Safety certification

CE
CB
TÜV
Nemko (N) -
Semko (S) -
Fimko (FI) -
Demko (D) -
FCC
cRUus -
cTUVus
RCM (Australia)
BSMI
CU (Russia)

Eco / Efficiency

80PLUS certification Bronze
Efficiency (%) at 230V, 20% load 84
Efficiency (%) at 230V, 50% load 87
Efficiency (%) at 230V, 100% load 84

Environmental directives

ENERGY STAR 6.0
ErP
WEEE
RoHS

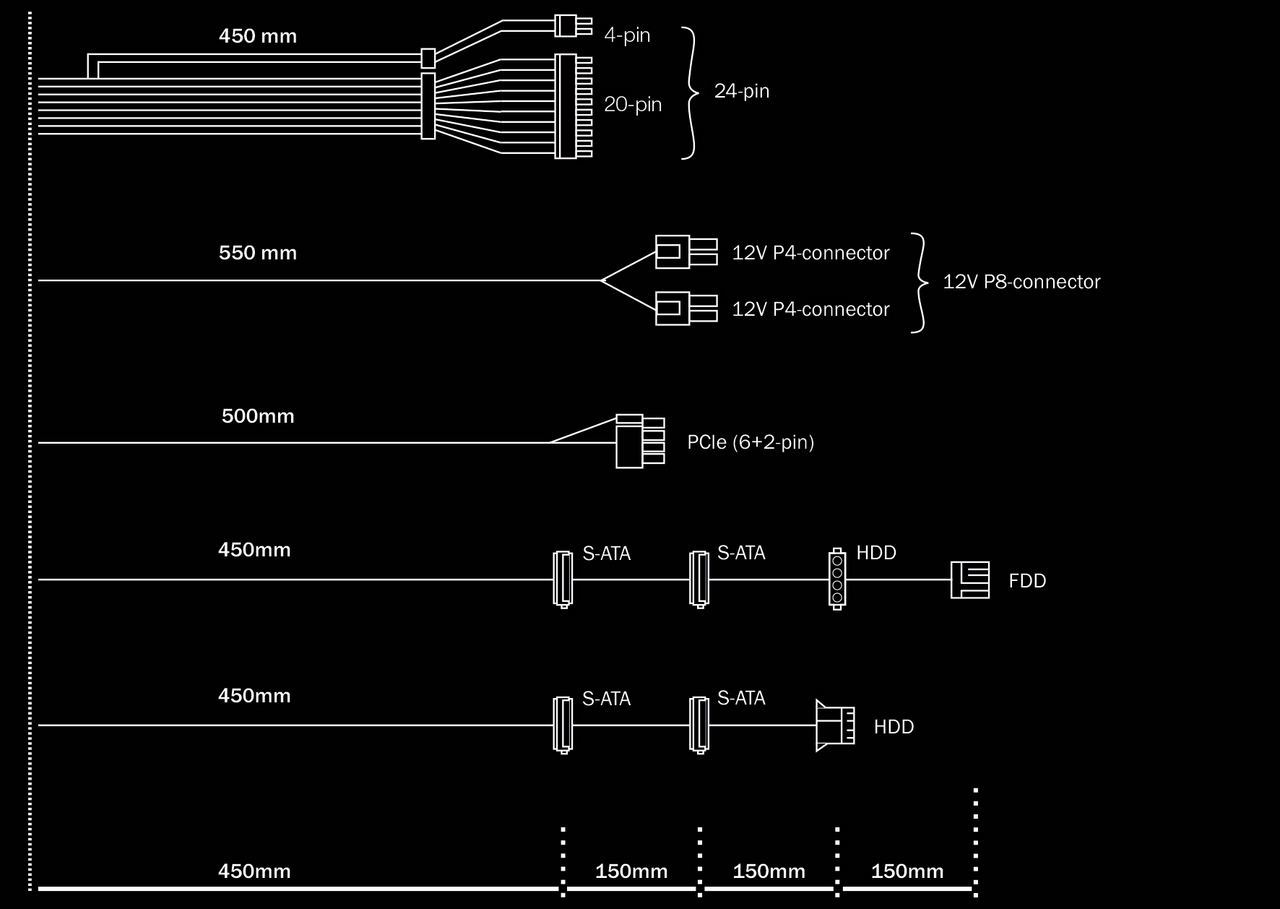

Cable management / Connectors

Multi-GPU ready -
Modular cable management -
Fully modular -
Sleeved cables
Flat cables -
Cable length to mainboard (cm) 45
Cable length to first connector (cm) 45
Maximum cable length (cm) 90
All-in-one cable (SATA/PATA/FDD)
No. of cables 5
ATX-Motherboard (20+4-pin) 1
P8 (CPU) -
P4+4 (CPU) 1
P4 (CPU) -
PCI-E 6-pin (GPU) -
PCI-E 6+2-pin (GPU) 1
PATA 4 pin 2
SATA 15-pin (HDD, Drives) 4
FDD (Floppy) 1
Mainboard connector (PATA 4-pin) 2
External fan connectors -

Casing

Dimensions without cable (L x W x D), (mm) 150 x 150 x 86
Weight (kg) 1.78
Color Black

Accessories

Thumb screws -
Screws
Cable ties
Velcro cable ties -
AC power cord (mm) 1.500
Box/Bag for PSU/Cables -
User manual languages EN, DE, FR, PL, ES, RU
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -

Service

Warranty (Years) 3
Express replacement service in first year -
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Range Pure Power
Article number BN270
EAN code 4260052185292
Dimensions, package (L x W x H), (mm) 260 x 202 x 98
Gross weight, package (kg) 2.25
Pieces per packaging unit 6
Dimensions, shipping box (L x W x H), (mm) 550 x 325 x 233
Gross weight, shipping box (kg) 13.53
RRP (€) 49.90

PURE POWER 10 | 300W
Article number: BN270
