Article number: BW004

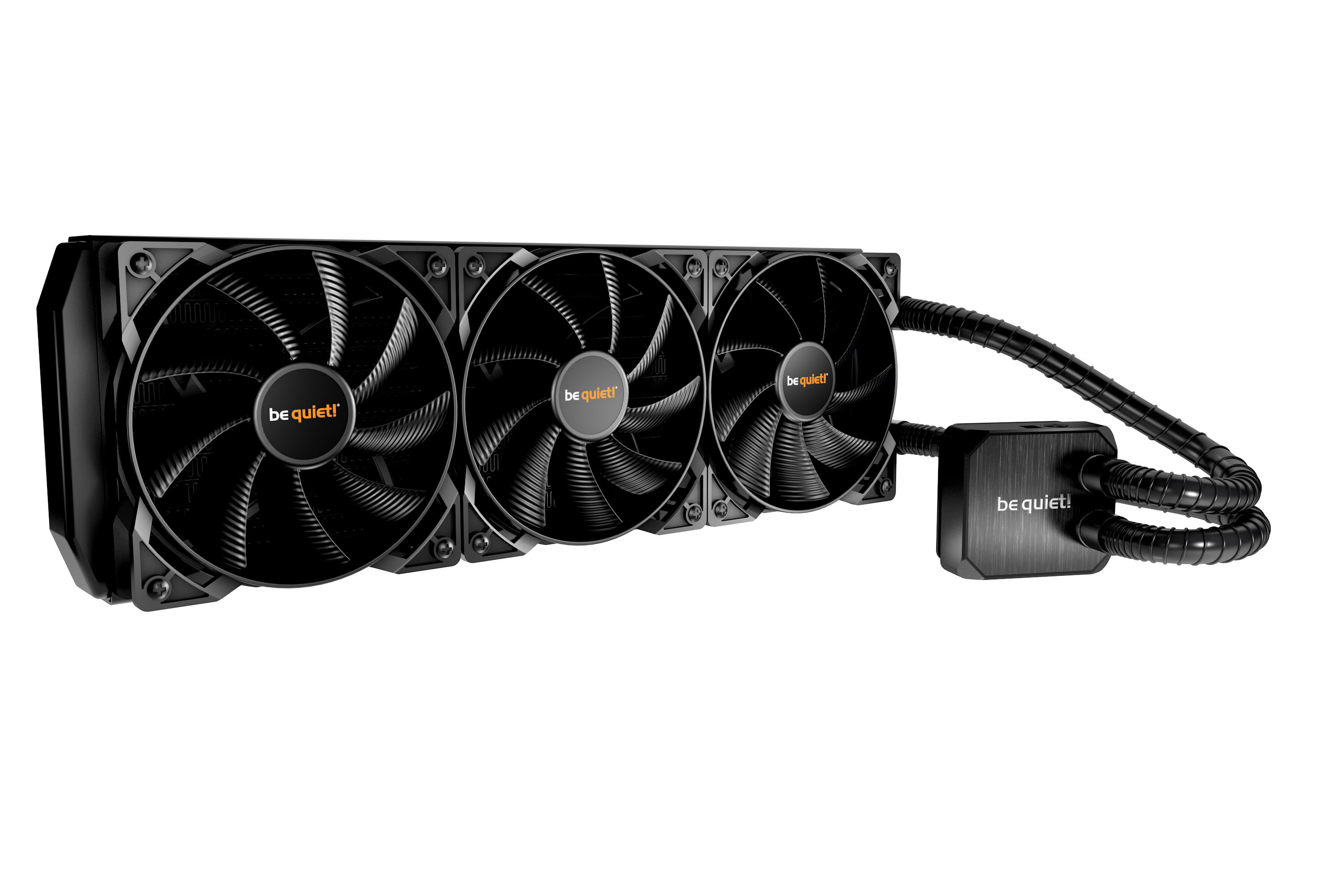

SILENT LOOP 360MM

Superior Cooling and Silence

Silent Loop 360mm brings the famous be quiet! whisper-silent technology to the world of All-in-One water cooling.

  • Innovative decoupled reverse-flow pump practically eliminates noise and vibration
  • Full copper radiator for an impressive cooling performance
  • Three Pure Wings 2 120mm PWM fans provide quiet operation with high air pressure
  • Convenient features such as flexible bend-protection tubes and a refill port
  • Nickel-plated cold plate allows optimum use of heat-conducting metallic paste
  • 3-year manufacturer’s warranty
  • German product conception, design and quality control

No compromise is required when choosing to water-cool demanding systems and heavily overclocked CPUs.

Product not available in your country.

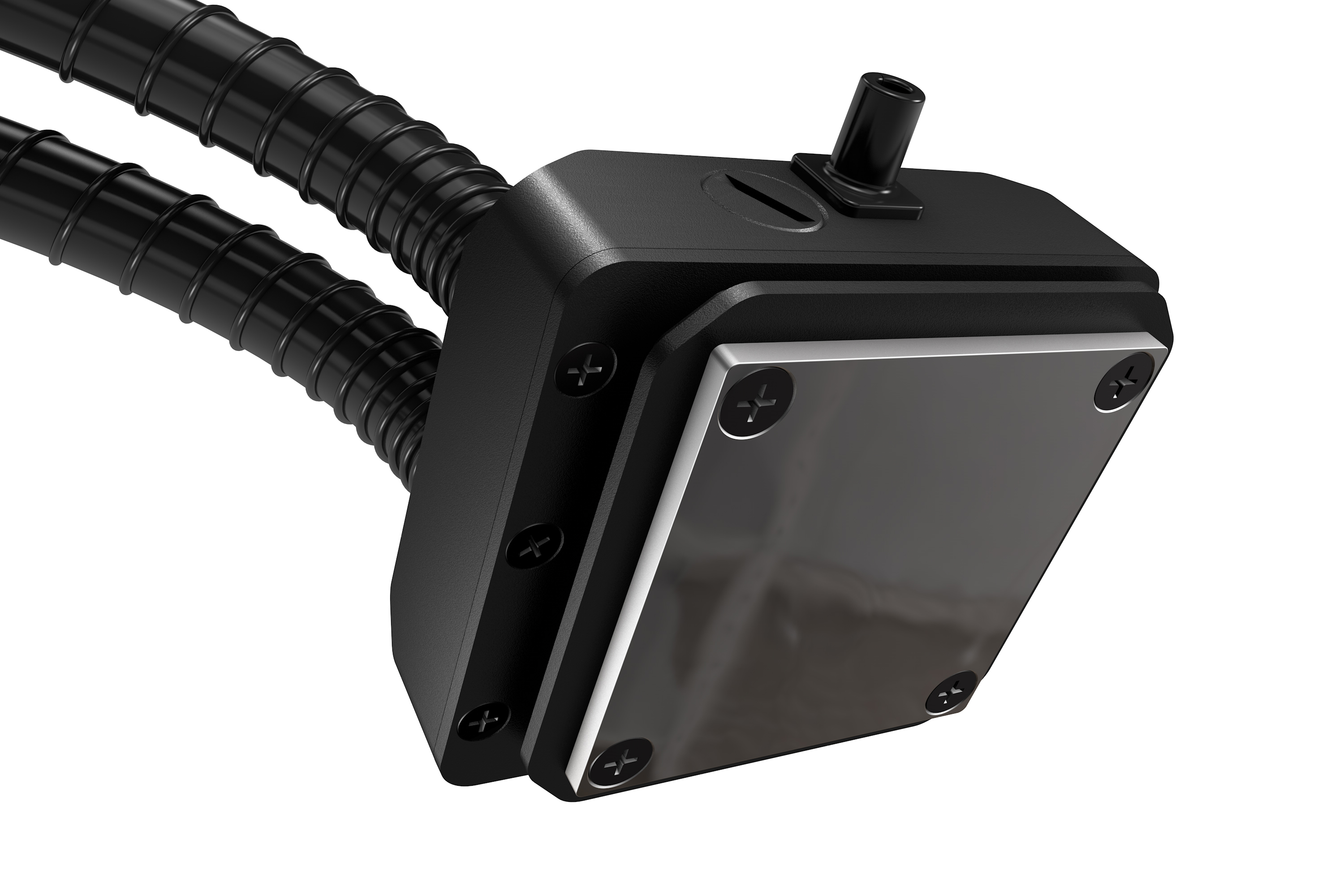

REVERSE-FLOW PUMP

Pumped with innovation

This innovative, decoupled pump assures excellent cooling efficiency and whisper-quiet operation. The pump’s “reverse-flow” technique draws the liquid coolant from an outer cavity of the pump housing across the base plate, discharging the warmed coolant through a second level inside. This is key to guaranteeing the silent be quiet! operation.

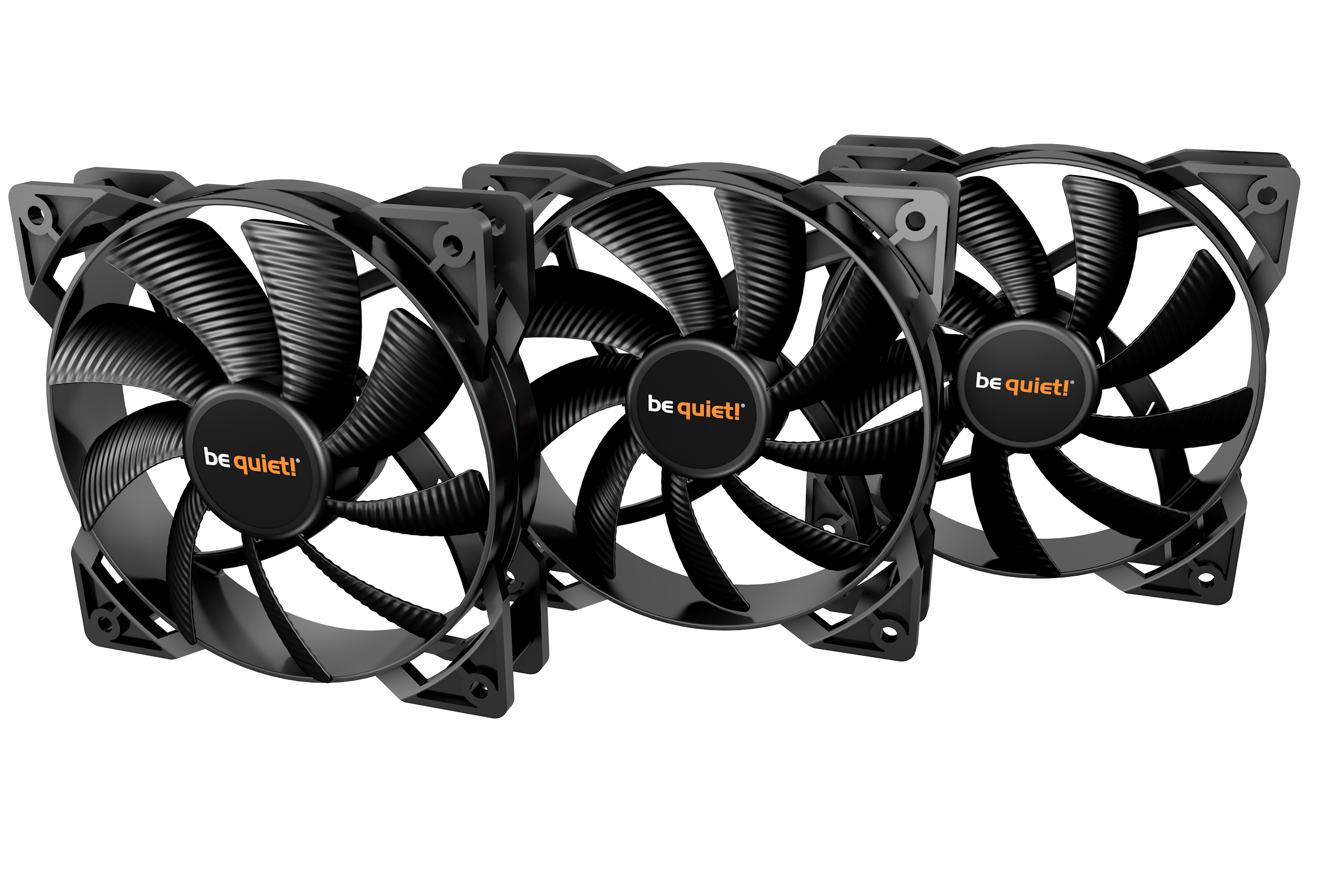

PURE WINGS 2 FANS

Outstandingly silent and effective cooling

The three high-quality be quiet! Pure Wings 2 120mm PWM fans combine outstanding reliability and silent cooling. Their silence-optimized fan blades reduce noise-generating turbulences while simultaneously increasing air pressure. This makes the fans the perfect partner for be quiet! Silent Loops high-performance full copper radiator.

REFILL PORT AND BEND-PROTECTION TUBES

For a super long life span

Flexible tubes that are bend- and pinch-protected take the worry out of routing the supply lines. The refill port and tubes help extend the product’s life span and make handling easier.

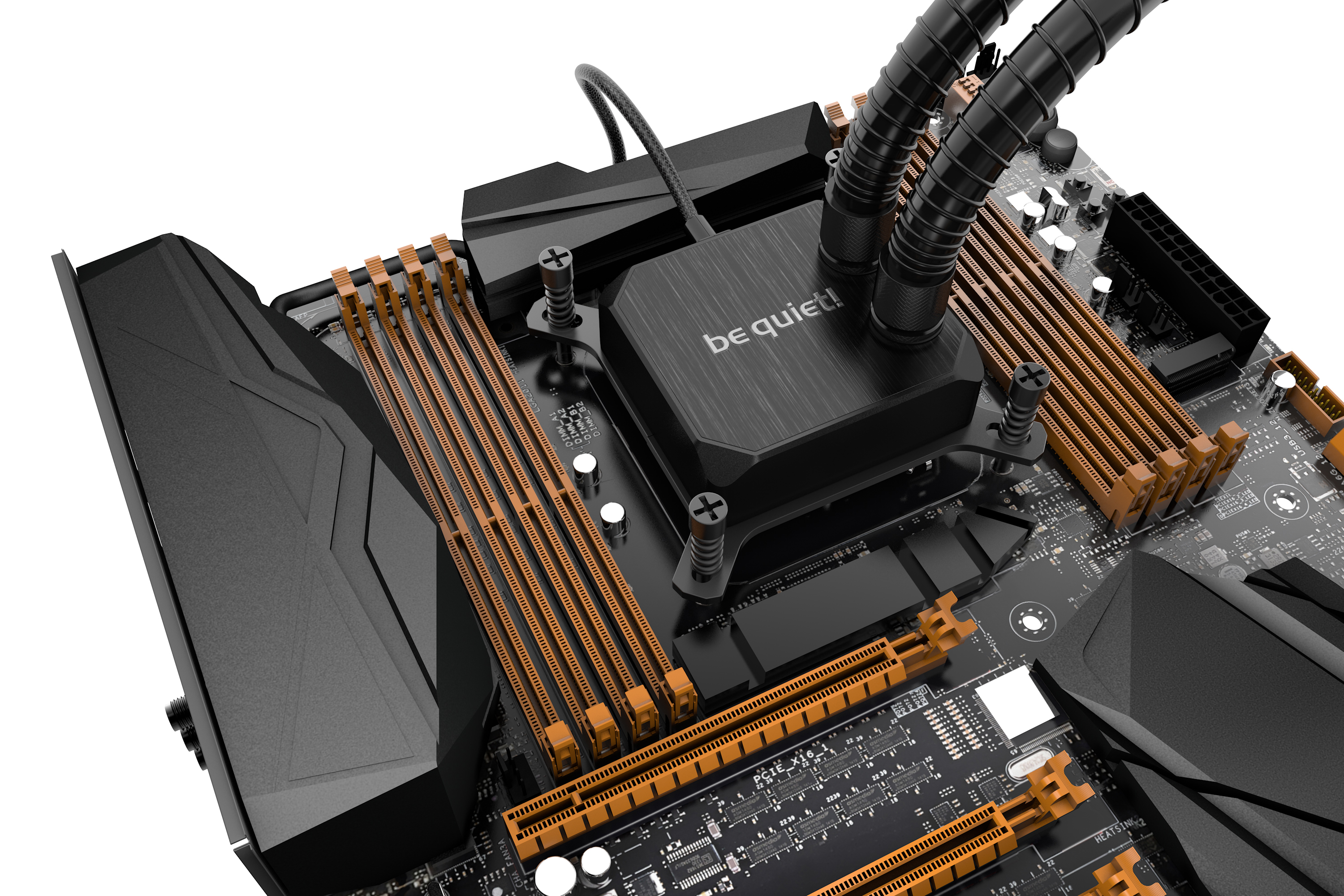

EASY MOUNTING OPTIONS

Maximum compatibility and convenience

The compact and well thought out design of the heat exchanger enables full use of available RAM slots and is compatible to all current CPU sockets. Convenient radiator mounting is compatible with most case designs.

COMPATIBLE WITH THE AMD RYZEN THREADRIPPER

The TR4 mounting kit available in stores

Silent Loop is compatible with the most powerful of AMD processors - the Ryzen™ Threadripper™. To be able to install it in their PC, users also have to order the special TR4 mounting kit bz007. It’s the perfect water cooling solution for gamers and graphic artists needing the utmost performance.

All models at a glance:

Features

General data

Model SILENT LOOP | 360mm
Dimensions radiator, incl. fan (H x W x D), (mm) 397 x 124 x 55
Total weight (kg) 1.7
Socket compatibility Intel®: LGA 775 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011(-3) Square ILM / 2066
AMD™: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+) / TR4 (+ mounting kit bz007)
Maximum power capacity (W TDP) 450
Backplate mounting
Fan model, number 3x Pure Wings 2 | 120mm PWM
Pump type reverse-flow pump
Pump speed (rpm) 2,200
Pump connector 3-pin
Tube length 390
Bend-protection tubes
Refill port

open all / close all

Radiator specifications

Dimensions (H x W x D), (mm) 397 x 124 x 30
Radiator material / finish copper / black spray painted
Base material / finish copper / dark nickel plated
CPU contact surface CNC machined
Surface treatment mirror polished

Fan specifications

Fan dimensions (mm) 120 x 120 x 25
Noise level (dB(A)) @ 25 % / 50% /100% rpm 16.1 / 23.8 / 36.9
Speed @ 100% PWM (rpm) 2,000
Air flow @ 12V (cfm / m3/h) 65.51 / 111.3
Air pressure @ 12V (mm H2O) 2.23
Bearing technology Rifle
Motor technology 4-pole fan motor
Rated voltage (V) 12
Input current (A) 0.3
Input power (W) 3.6
Connector 4-pin PWM
Cable length (mm) 450
Lifespan (h / 25°C) 80,000

Accessories

Thermal grease (g) 1
Backplate mounting set Intel & AMD
User manual languages DE, EN, FR, ES, PL, RU

Service

Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Article number BW004
Range SILENT LOOP
EAN code 4260052185476
Dimensions, package (L x W x H), (mm) 435 x 260 x 140
Gross weight, package (kg) 2.9
Pieces per packaging unit 4
Dimensions, shipping box (L x W x H), (mm) 550 x 460 x 310
Gross weight, shipping box (kg) 12.7
RRP (€) -
