essential
Article number: BW007

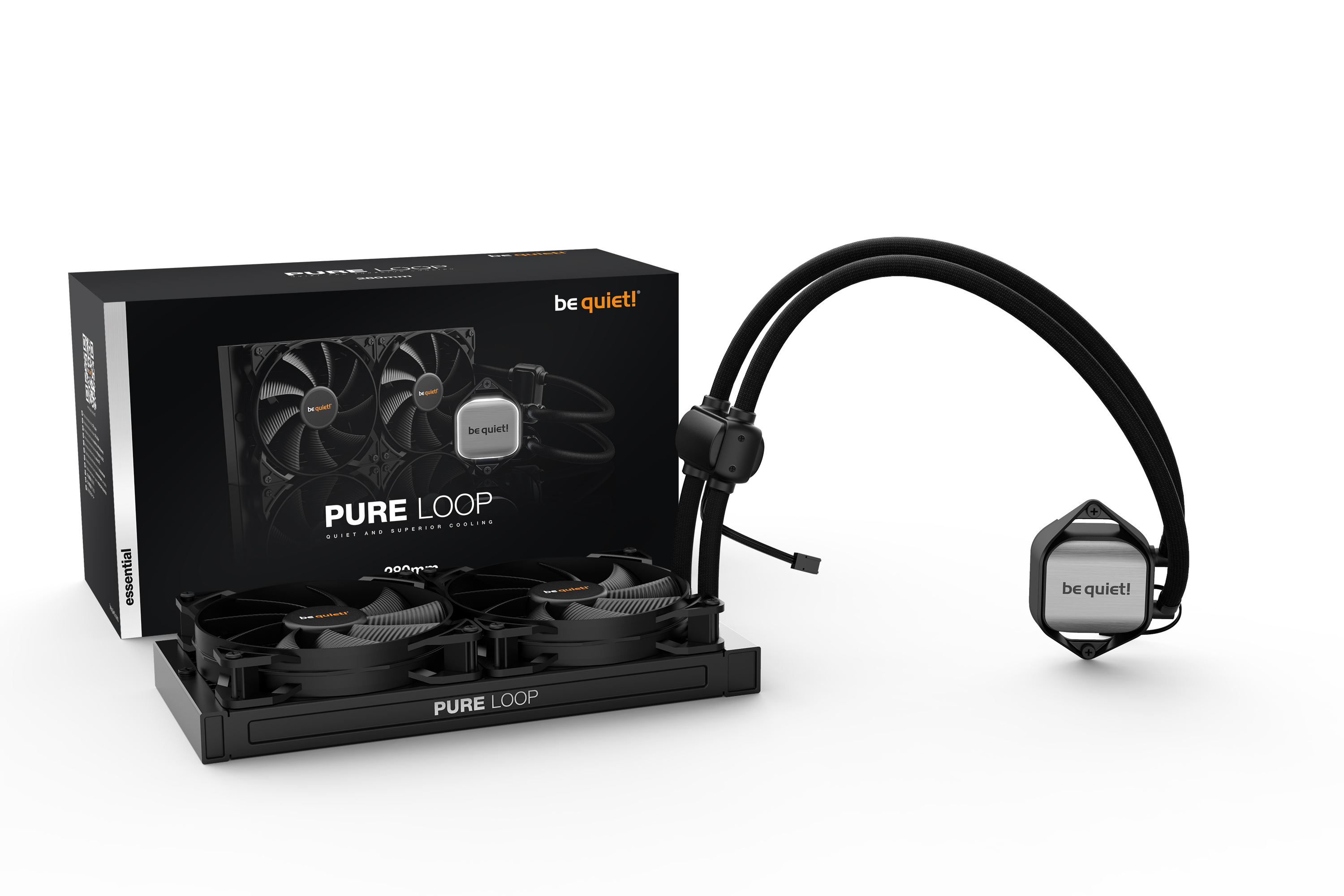

PURE LOOP

280mm

Quiet And Superior Cooling

Pure Loop 280mm is the new impressively high-performing and silent All-in-One water cooling unit of be quiet! for price-conscious users with overclocked systems.

  • Impressively high cooling performance
  • Doubly decoupled pump for quiet operation and minimal vibration
  • Pure Wings 2 140mm PWM fans combine quiet operation with high air pressure
  • White LED illumination, all-black design and aluminum-style for unmistakable and stylish look
  • Easy-to-access refill port and included coolant bottle guarantee a long lifespan
  • Flexible sleeved tubes and a convenient mounting ensure easy handling
  • Nickel-coated coldplate allows optimum use of liquid metal thermal compound
  • 3-year manufacturer’s warranty

IMPRESSIVELY HIGH COOLING PERFORMANCE

Reliable cooling power for sophisticated applications

With Pure Loop even the most demanding applications can be used reliably. An immense cooling power provides low temperatures even during periods of peak CPU performance.

DOUBLY DECOUPLED PUMP

Smooth and silent operation

Thanks to the effective damping the pump causes only minimal noise and vibration. This is the key to guarantee the famously silent be quiet! operation.

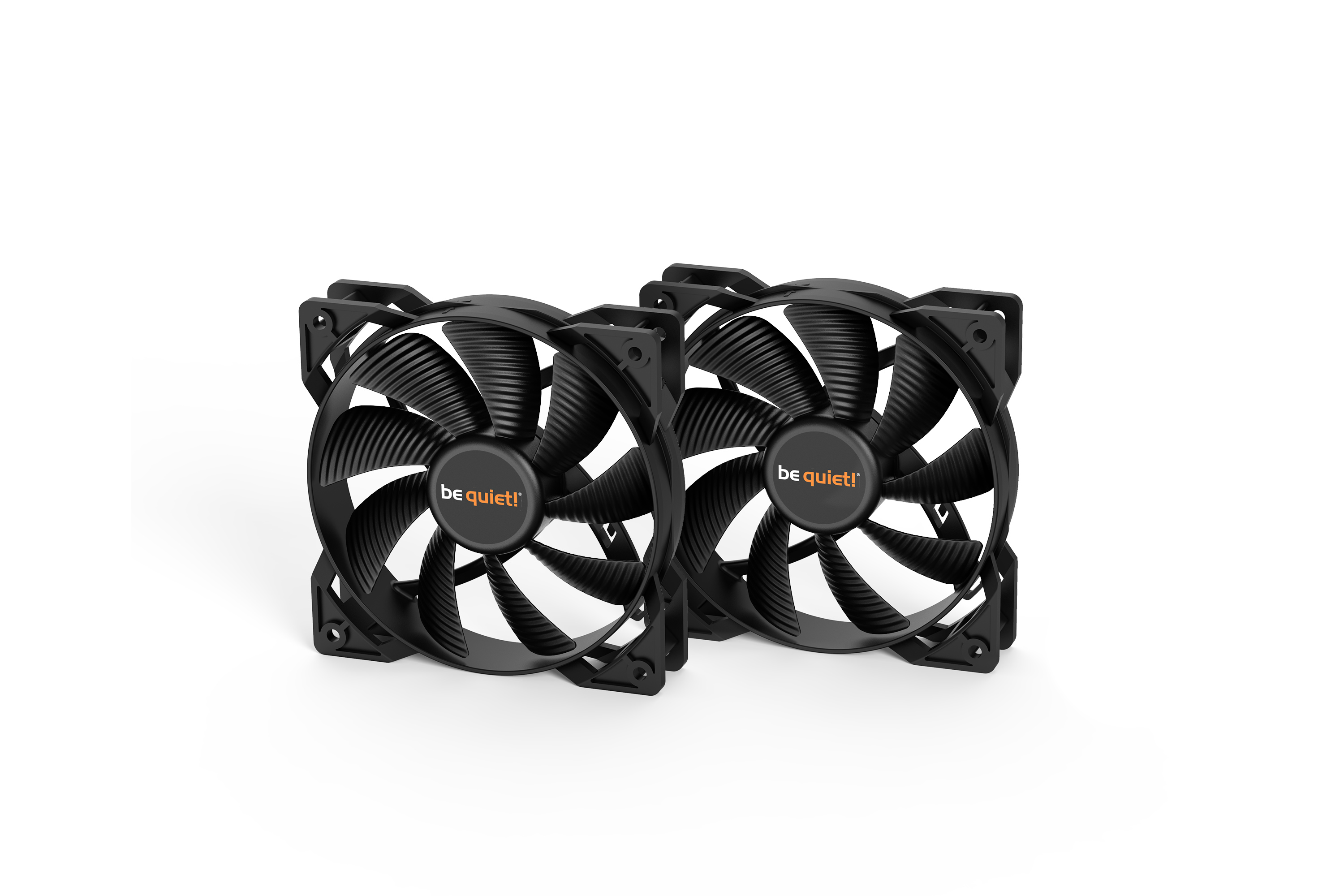

PURE WINGS 2 FANS

Outstanding reliability and reduced noise-generating turbulence

The Pure Wings 2 140mm fan provides very quiet operation and high cooling performance. Its nine airflow-optimized fan blades make the Pure Wings 2 the ideal fan for Pure Loop’s aluminum radiator.

EASY TO REFILL

Simplified refilling process and a long lifespan

The refill port is easy to access which makes refilling safe and comfortable. The included coolant bottle additionally guarantees a long lifespan.

ALL-BLACK DESIGN AND WHITE LED ILLUMINATION

An unmistakable and stylish look

An all-black design in combination with white LED illumination makes for an elegant look. This is further underlined by the aluminum-style cooling block that guarantees the Pure Loop to look good in any system.

All models at a glance:

Features

General data

ModelPure Loop 280mm
Dimensions radiator, incl. fan (H x W x D), (mm)317 x 140 x 52
Total weight (kg)1.22
Socket compatibilityIntel 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) square ILM; AMD: AM4 / AM3(+)
Fan model, number2x Pure Wings 2 140mm PWM high-speed
Noise level (dB(A)) @ 25 % / 50% /100% rpm22.5 / 26.8 / 38.1
Pump speed (rpm)5500
Pump connector3-pin
Tube length (mm)400
Refill port

Infographics

open all / close all

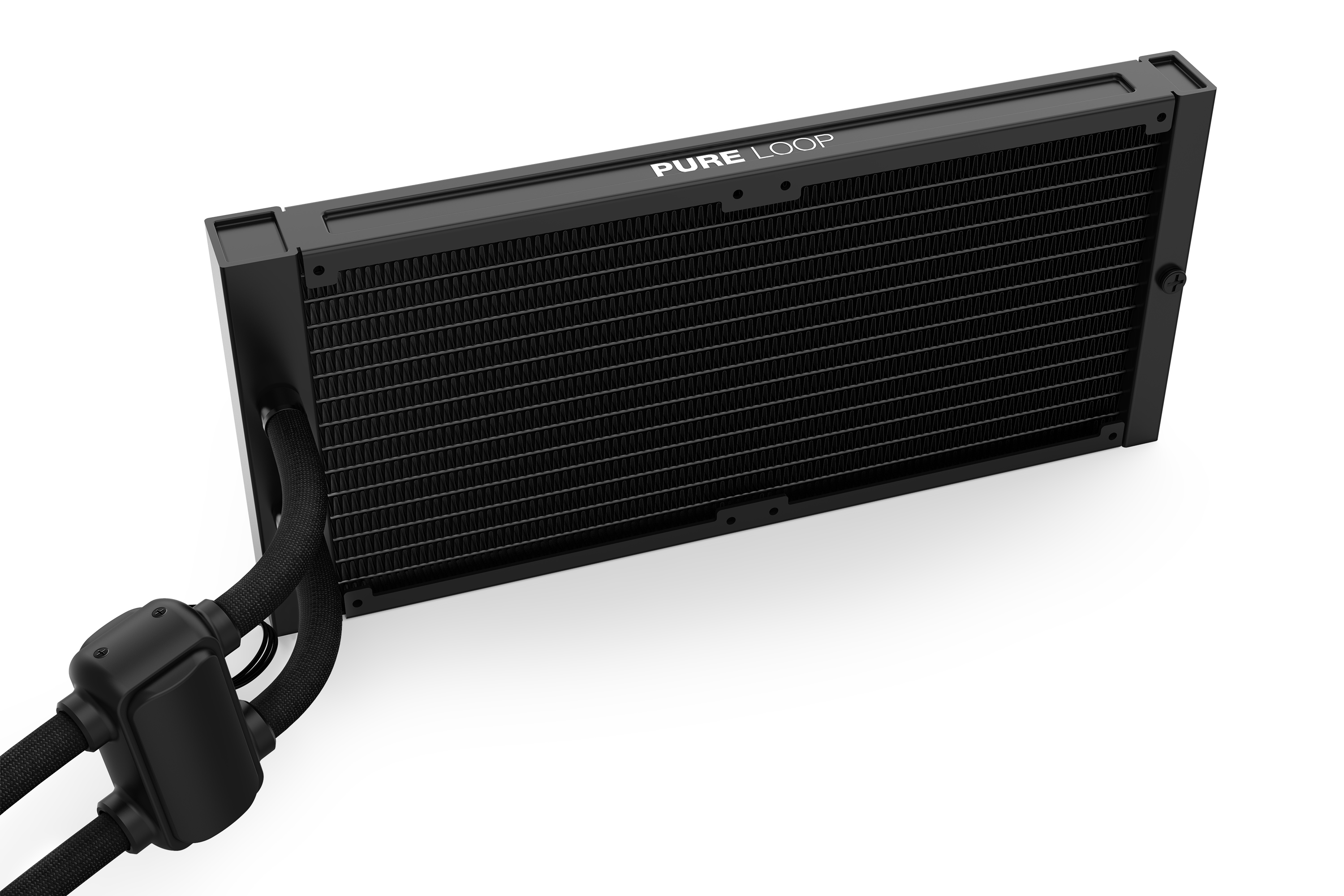

Radiator specifications

Dimensions (H x W x D), (mm)317 x 140 x 27
Radiator material / finishAluminum / Black spray painted
Base material / finishCopper / Nickel plated

Fan specifications

Fan dimensions (mm)140 x 140 x 25
Speed @ 100% PWM (rpm)1600
Bearing technologyRifle
Motor technology4-pole fan motor
Rated Voltage (V)12
Input current (A)0.50
Input power (W)6.0
Connector4-pin PWM
Cable length (mm)420
Lifespan (h / 25°C)80,000

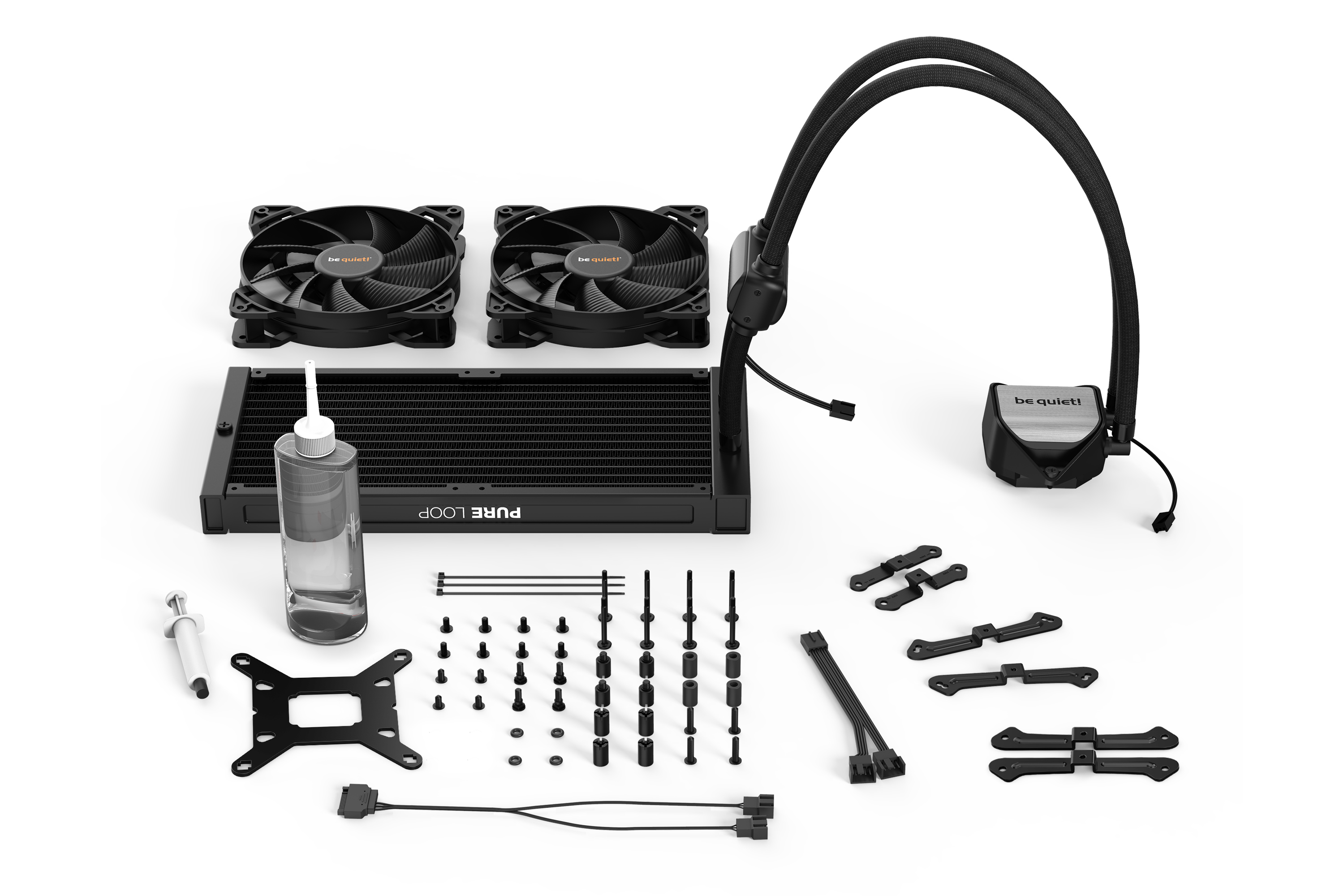

Accessories

Thermal greaseIncluded
Mounting setIntel & AMD
User manual languagesCN, DE, EN, ES, FR, JP, PL, RU, TW
Y-cable for fans
Y-SATA Power adaptor for pump & light
Bottle of coolant (ml)✓ / 100

Service

Warranty (Years)3
International hotline / free of charge✓ / DE, FR

Logistics data, RRP

Article numberBW007
EAN code4260052187906
Dimensions, package (L x W x H), (mm)365 x 152 x 205
Gross weight, package (kg)2.14
Pieces per packaging unit6
Dimensions, shipping box (L x W x H), (mm)658 x 296 x 508
Gross weight, shipping box (kg)14.9
RRP (€)104.90

Pure Loop | 280mm
Article number: BW007

Properties
