Pure Loop 120mm is the new high-performing and silent All-in-One water cooling unit of be quiet! for price-conscious users without overclocked systems.
With Pure Loop even the most demanding applications can be used reliably. An immense cooling power provides low temperatures even during periods of peak CPU performance.
Thanks to the effective damping the pump causes only minimal noise and vibration. This is the key to guarantee the famously silent be quiet! operation.
The Pure Wings 2 120mm fan provides very quiet operation and high cooling performance. Its 9 airflow-optimized fan blades make the Pure Wings 2 the ideal fan for Pure Loop’s aluminum radiator.
The refill port is easy to access which makes refilling safe and comfortable. The included coolant bottle additionally guarantees a long lifespan.
An all-black design in combination with white LED illumination makes for an elegant look. This is further underlined by the aluminum-style cooling block that guarantees the Pure Loop to look good in any system.
“We always liked the idea of an affordable AiO with the very quiet operation be quiet! is known for. Pure Loop is the result of those thoughts, and we are certain: we meet the high expectations our customers have.”
Tim Carstensen, R&D Department BU Cooling
|Model||Pure Loop 120mm|

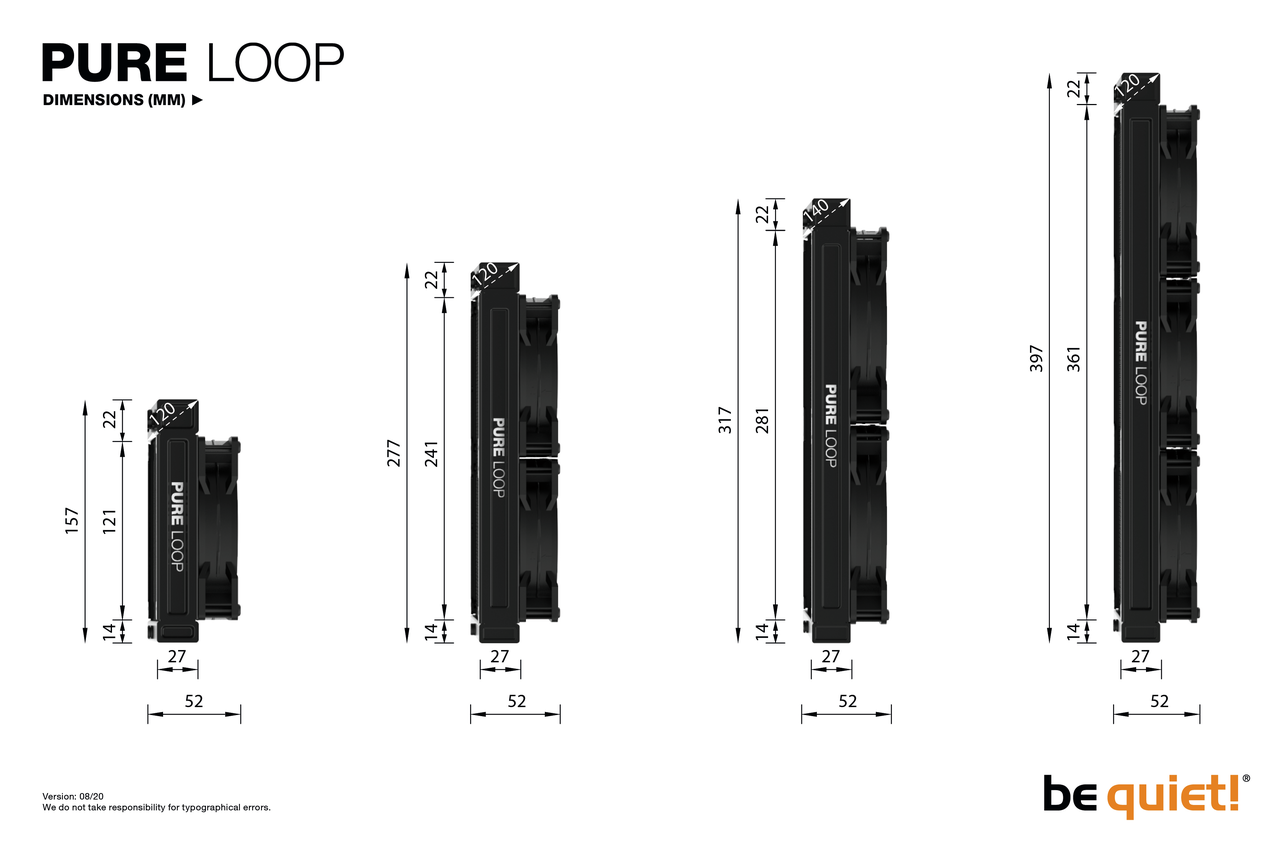

|Dimensions radiator, incl. fan (H x W x D), (mm)||157 x 120 x 52|
|Dimensions Cooling block (H x W x D), (mm)||94.5 x 83 x 42|
|Total weight (kg)||0.78|
|Socket compatibility Intel||1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM|
|Socket compatibility AMD||AM5 / AM4|
|Noise level (dB(A)) @ 50% / 75% /100% rpm||16.9 / 26.3 / 33.1|
|Number of fans||1|
|Lighting Connector||3-pin 12V|
|Tube length (mm)||400|
|Pump speed (rpm)||5500|
|Pump adjustable (rpm)||-|
|Dimensions (L x W x H), (mm)||120 x 157 x 27|
|Radiator material / finish||aluminum / black spray painted|
|Base material / finish||copper / nickel plated|
|Fan model||1x Pure Wings 2 120mm PWM high-speed|
|Fan dimensions (mm)||120 x 120 x 25|
|Speed @ 100% PWM (rpm)||2000|
|Motor technology||4-pole fan motor|
|Rated Voltage (V)||12|
|Input current (A)||0.3|
|Input power (W)||3.6|
|Cable length (mm)||420|
|Lifespan (h / 25°C)||80,000|
|Thermal grease (Type)||Included|
|Mounting set||Intel & AMD|
|Bottle of coolant (ml)||✓ / 100|
|ARGB controller with SATA cable||-|
|User manual languages||CN, DE, EN, ES, FR, JP, PL, RU, TW|
|Approvals||CE, FCC, UKCA, UL|
|International hotline / free of charge||✓ / DE, FR|
|Dimensions, package (L x W x H), (mm)||240 x 321 x 140|
|Gross weight, package (kg)||1.66|
|Pieces per packaging unit||8|
|Dimensions, shipping box (L x W x H), (mm)||658 x 296 x 508|
|Gross weight, shipping box (kg)||14.7|
