Article number: BW022
LIGHT LOOP
360mmPeak performance and lighting

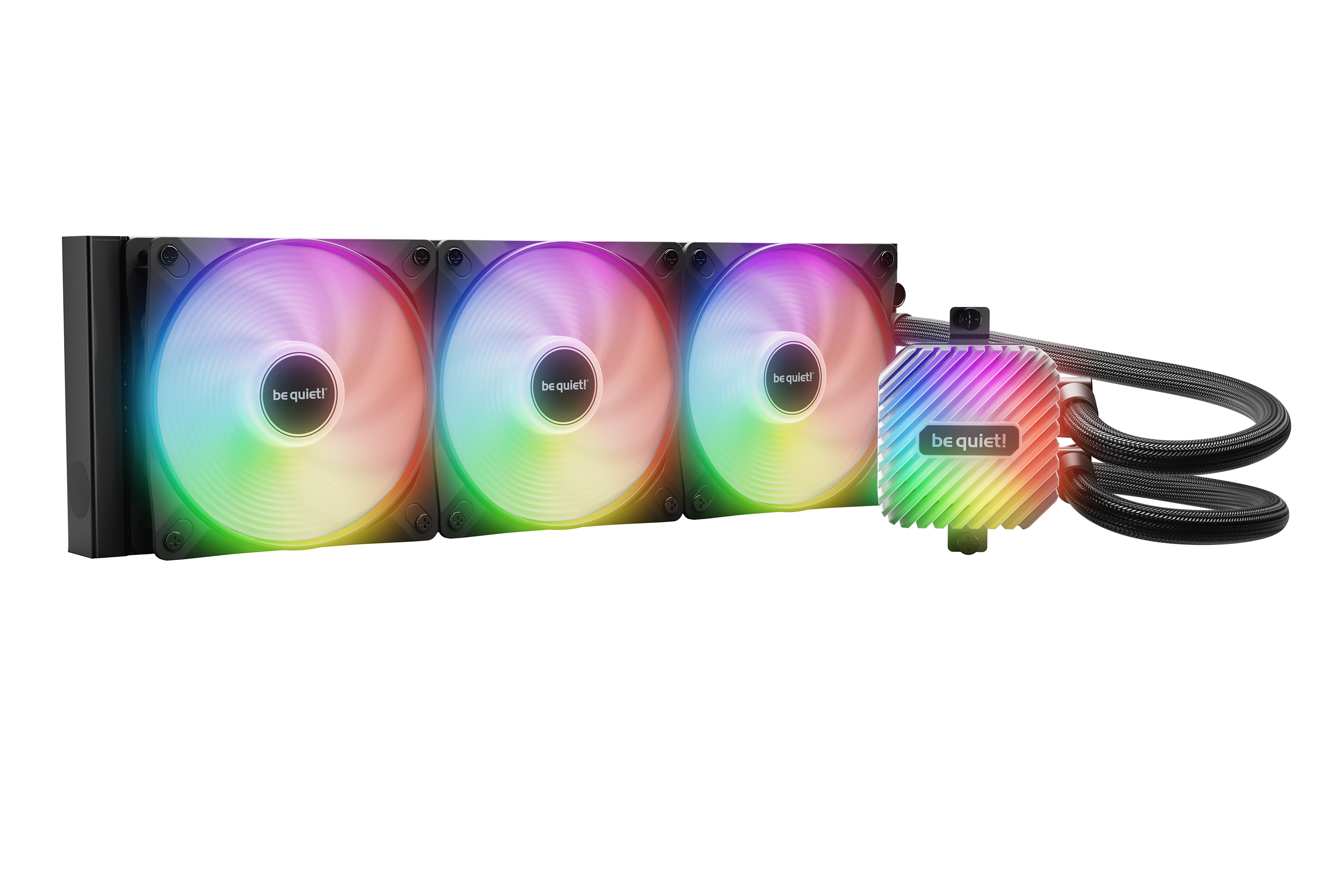

Light Loop 360mm Black is an extremely high-performing All-in-One water cooling unit with uniquely illuminated ARGB cooling block for users with heavily overclocked systems.
- Stylish ARGB cooling block features lots of illumination options for stunning visual effects
- 3 Light Wings LX PWM high-speed fans for colorful and vibrant cooling
- Extremely high cooling performance for all consumer CPUs
- State-of-the-art pump with progressive IC
- Specially designed jet plate and cold plate for superior performance
- ARGB-PWM-Hub enables synchronization of up to 6 ARGB components and PWM fans
- Easy-to-access refill port and included coolant bottle for a long lifespan
- 3-year manufacturer's warranty
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
TRUE COLORS
Unrivalled ARGB lightingLight Loop 360mm Black features 64 LEDs in total, leading to stunning visuals. Since your PC is not like any other, you can individualize your build with numerous colors and illumination options. The uniquely illuminated cooling block and Light Wings LX fans make Light Loop 360mm Black an undisputed highlight in any system.
LIGHT WINGS LX FANS
Performant, yet quiet operationLight Loop 360mm Black features 3 Light Wings LX 120mm PWM high-speed fans. They come with 16 LEDs that perfectly scatter across the fan blades and are key for the stunning visuals Light Loop 360mm Black offers. The fan’s 9 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure that Light Wings LX 120mm PWM high-speed provides the performance that is needed, even in demanding scenarios.
EXTREMELY HIGH COOLING PERFORMANCE
Designed for intensive gaming sessionsWith Light Loop 360mm Black even the most demanding applications can be used reliably. An immense cooling power provides low temperatures even during periods of peak CPU performance. Perfectly suited for your next session!

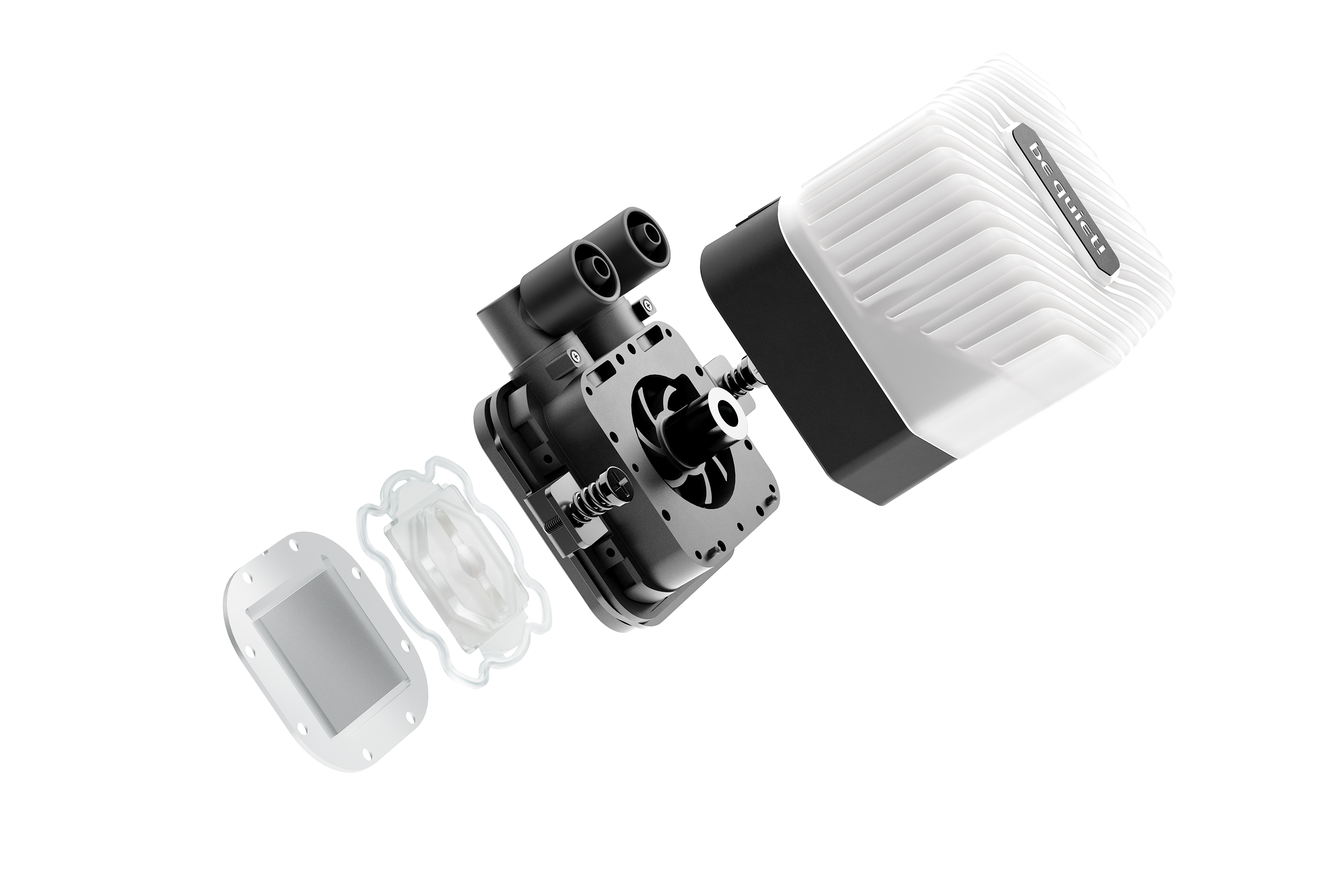

ADVANCED TECHNOLOGIES
One step ahead in every aspectJet plate, pump and the cold plate of Light Loop 360mm Black are designed for peak performance. The metal jet plate increases flow speed of the cooling liquid, leading to an enhanced performance. A cold plate with a high-density fin stack increases cooling performance on modern flagship and high-end CPUs. Finally, a progressive IC in the motor reduces switching noise, ensuring the noise of the pump stays at a low level.

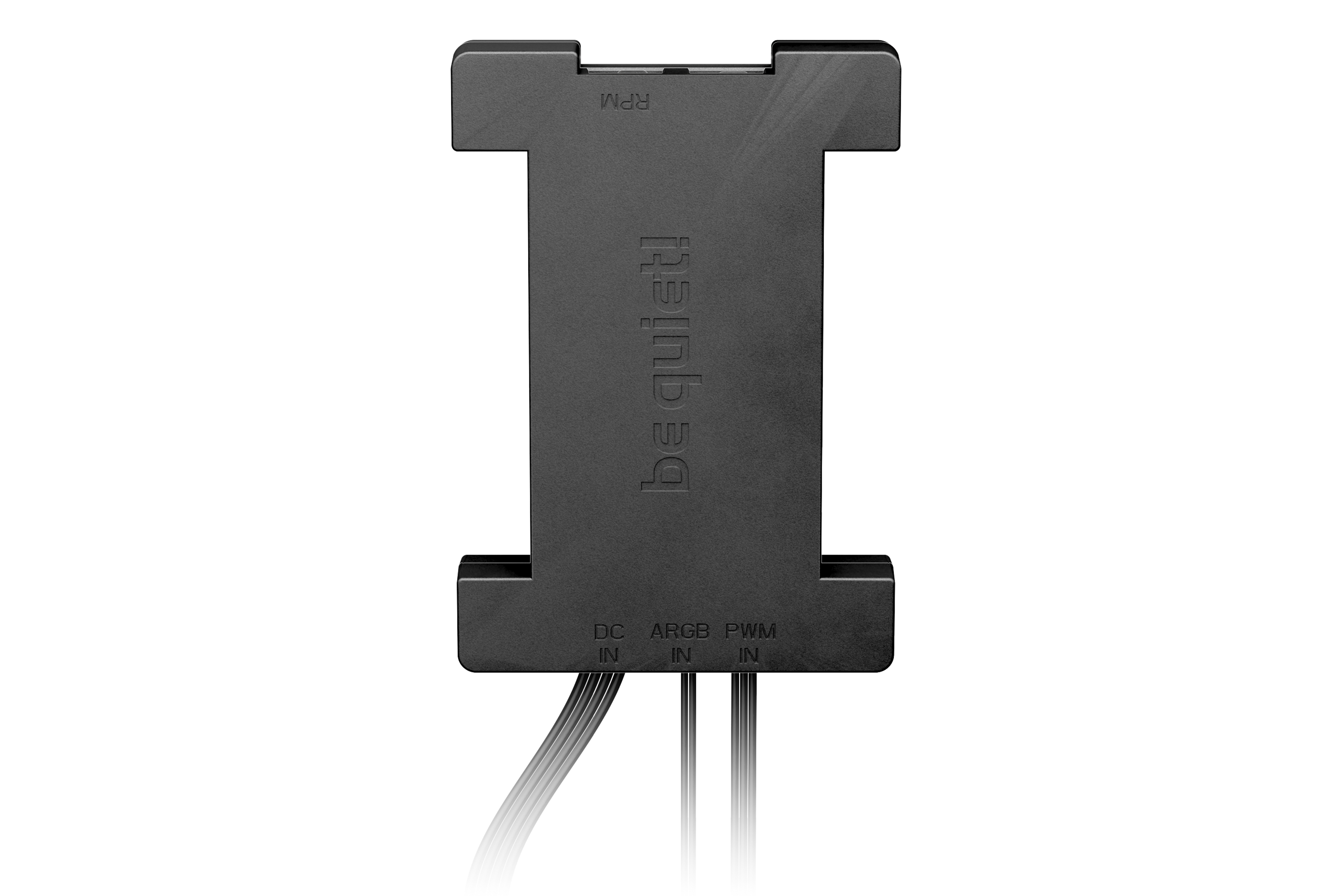

ONE HUB, MANY POSSIBILITIES
Synchronization of up to 6 ARGB-componentsThe ARGB-PWM-Hub enables synchronization of up to 6 PWM fans and 6 ARGB components. This allows you to control all your cooling and lighting gear with just one PWM and one ARGB header on your motherboard. It can be positioned anywhere inside the case with adhesive tape or screw holes that match a 2.5” SSD mounting.
EASY TO REFILL
For a long lifespanThe refill port is easy to access which makes refilling safe and comfortable. The coolant bottle included in scope of delivery makes it easy to achieve a long lifespan.
BLACK BEAUTY
Stunning designLight Loop 360mm Black complements all-black systems best, thanks to its uniform black aesthetics. The integrated ARGB LED lighting within the cooling block and fans allows the vibrant lighting to take center stage.
"Take everything an AiO needs for gamers - and turn it up to 11! That is what Light Loop is to me."
Aaron Licht, Chief Executive Officer
All models at a glance:
General data
| Model | Light Loop 360mm |
| Color option | Black |

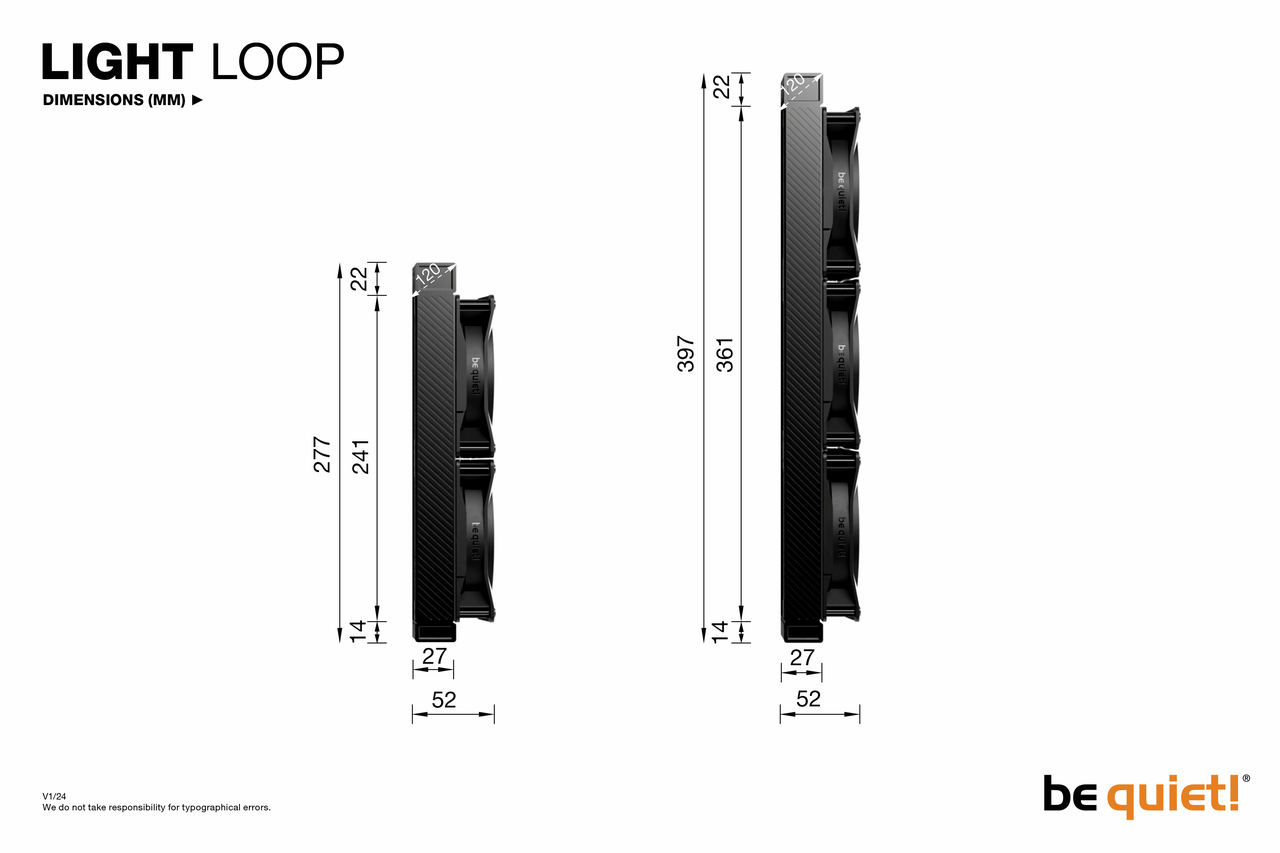

| Dimensions radiator, incl. fan (H x W x D), (mm) | 397 x 120 x 52 |
| Dimensions cooling block (H x W x D), (mm) | 75 x 94 x 82 |
| Total weight (kg) | 1.48 |
| Socket compatibility Intel | 1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Noise level (dB(A)) at 50% / 75% /100% rpm | 17.2 / 29.1 / 36.8 |
| Number of fans | 3 |
| Lighting connector | 3 Pin 5V Adressable |
| Tube length (mm) | 400 |
| Refill port | ✓ |
Infographics
Pump specifications
| Pump speed (rpm) | 2900 |
| Pump adjustable (rpm) | 1500 - 2900 |
| Pump connector | 4-pin PWM |

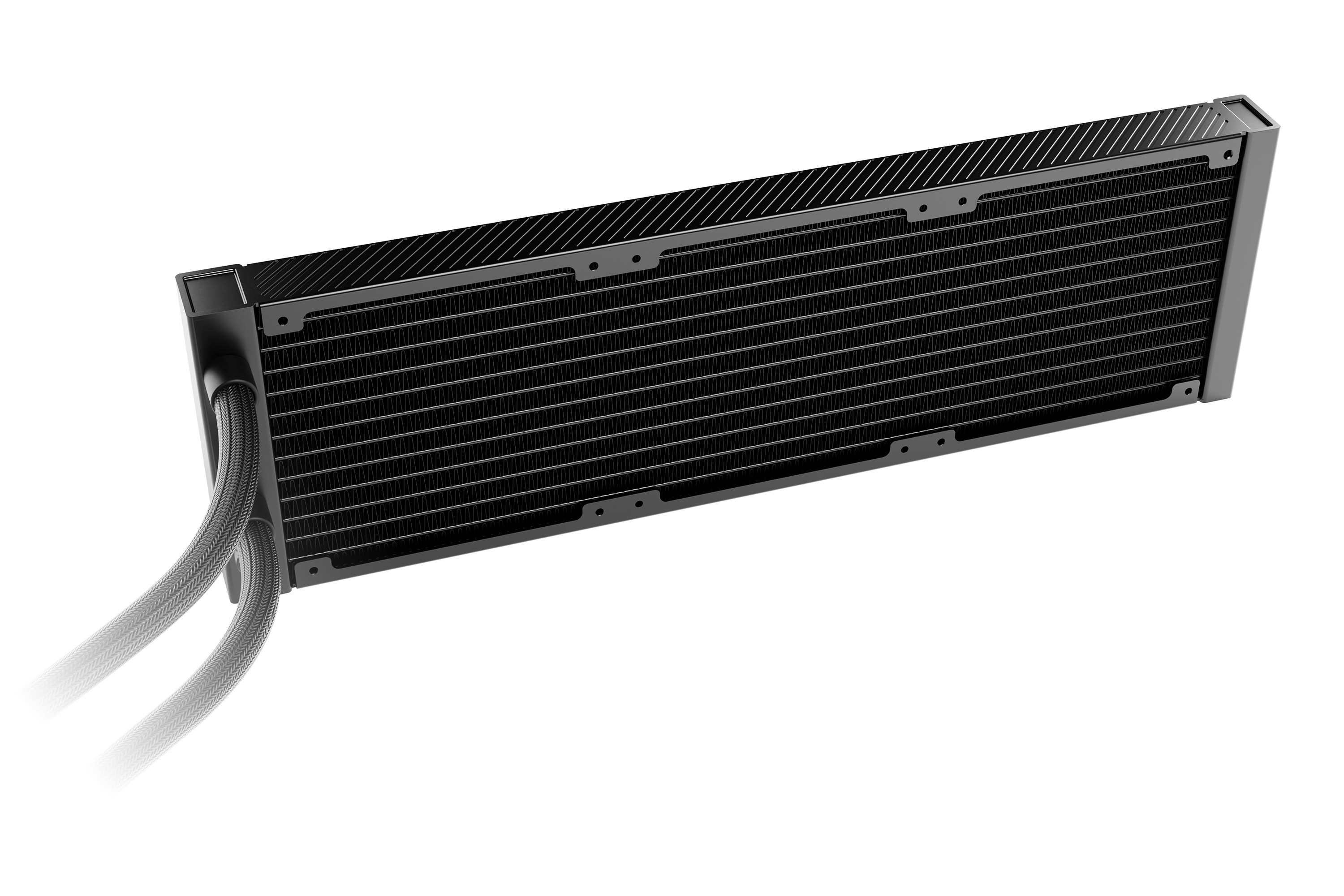

Radiator specifications
| Dimensions (L x W x H), (mm) | 397 x 120 x 27 |
| Radiator material / finish | aluminum / black spray painted |
| Base material / finish | copper / nickel plated |
Fan specifications
| Fan model | Light Wings LX 120mm PWM high-speed |
| Fan dimensions (mm) | 120 x 120 x 25 |
| Speed at 100% PWM (rpm) | 2100 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 61.8 / 105.1 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.51 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.17 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Connector | 4-pin PWM |
| Cable length (mm) | 500 |
| Lifespan (h / 25°C) | 60,000 |

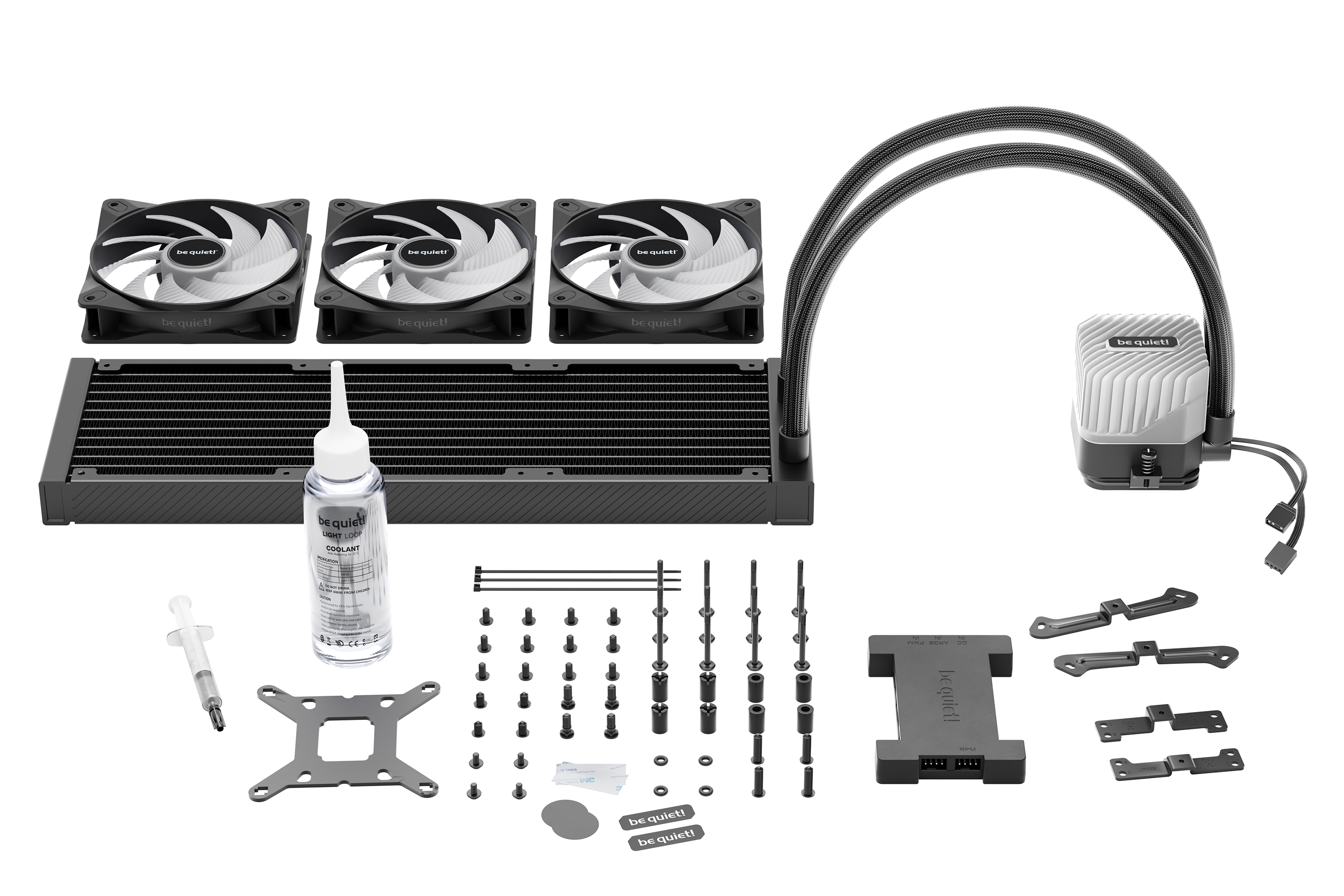

Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel, AMD |
| Adapter cables | - |
| Bottle of coolant (ml) | ✓/ 100 |
| ARGB controller with SATA cable | - |
| ARGB-PWM-Hub | ✓ |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW, UA |
Safety certifications
| Approvals | CE, FCC, UKCA |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓/ DE, FR |
Logistics data and RRP
| Article number | BW022 |
| EAN code | 4260052191132 |
| Dimensions, package (L x W x H), (mm) | 448 x 205 x 137 |
| Gross weight, package (kg) | 2.6 |
| Pieces per packaging unit | 4 |
| Dimensions, shipping box (L x W x H), (mm) | 470 x 300 x 460 |
| Gross weight, shipping box (kg) | 11.3 |
| RRP (€) | 159.90 |
