Article number: BW031US
Pure Loop is ready for modern flagship CPUs like Intel's Core i9 or AMD's Ryzen 9 series, with room for overclocking.

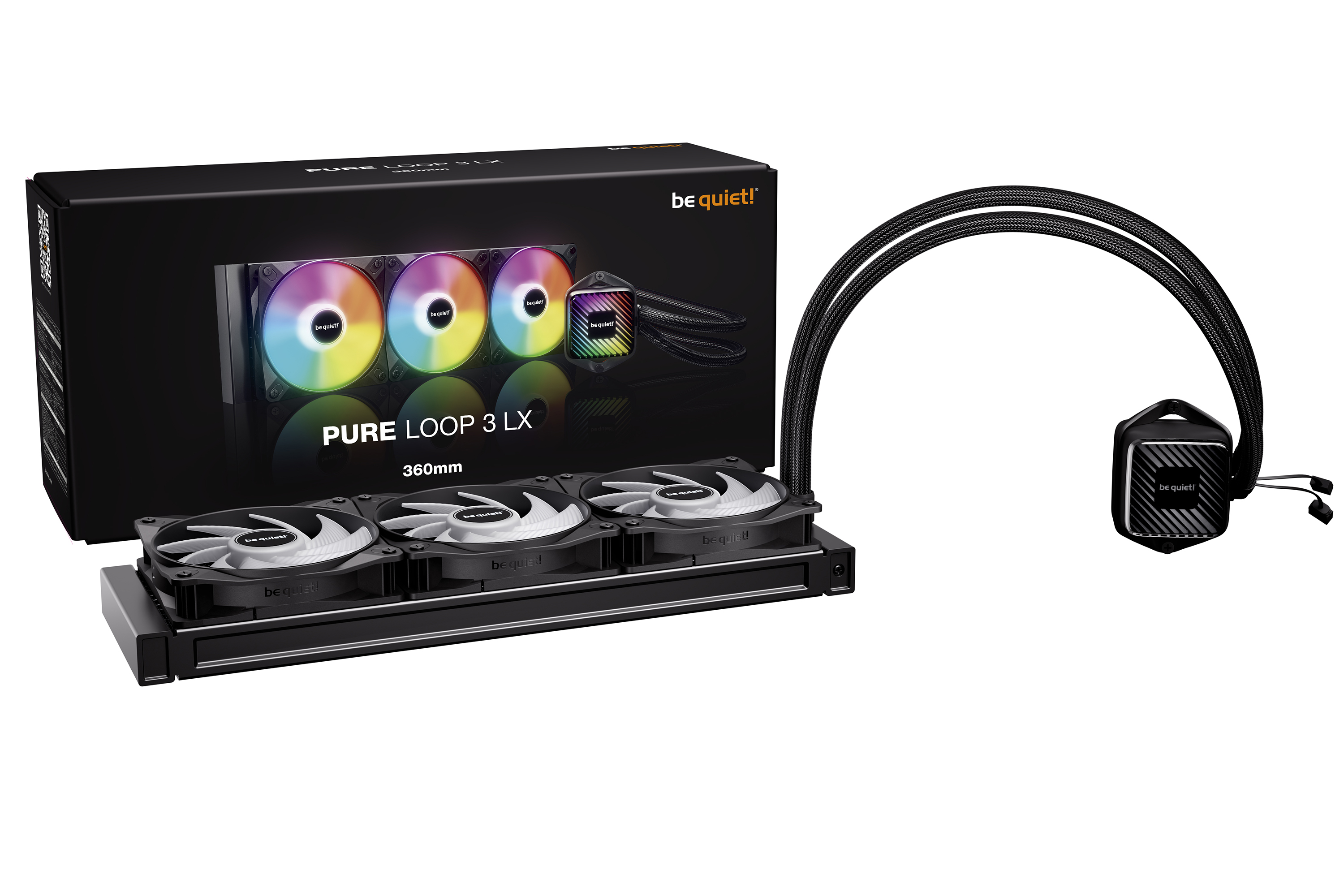

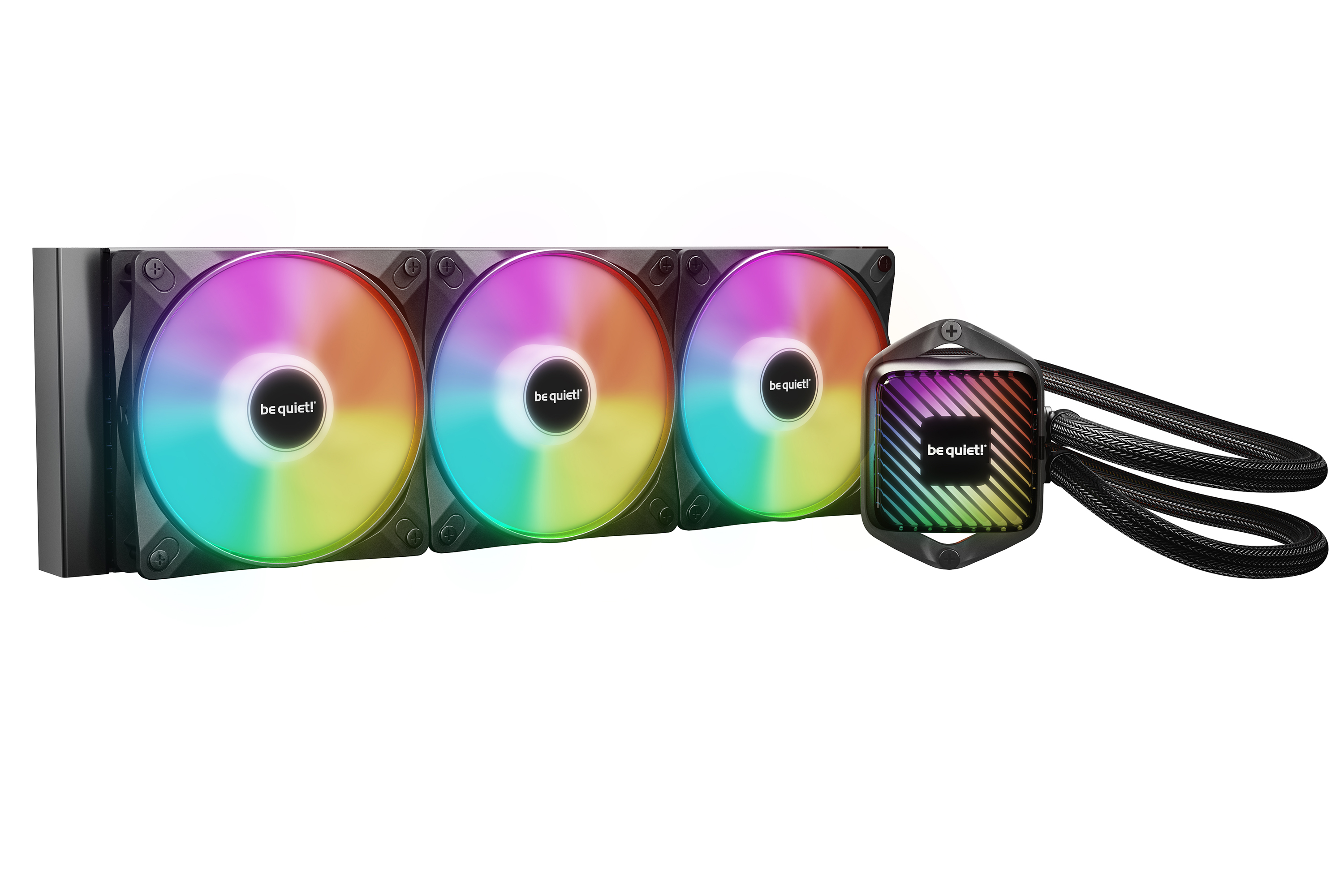

More information.PURE LOOP 3 LX
360mmDYNAMIC LIGHTING, SUPREME COOLING
Pure Loop 3 LX 360mm boasts vibrant lighting, stunning customization options and an extremely high cooling performance.
- Stylish ARGB cooling block featuring 10 included lighting foils for extensive illumination options and breathtaking visual effects
- Incomparable options for individualization
- 3 Light Wings LX PWM high-speed fans with funnel-shaped air outlets for colorful and vibrant cooling
- Daisy-chained PWM fans for maximum convenience
- Impressively high cooling performance for all consumer CPUs
- State-of-the-art PWM pump with 6-pole motor reduces vibrations to an absolute minimum
- Easy-to-access refill port for convenient handling
- Unique design language
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
MAKE IT YOUR PURE LOOP 3 LX!
You are S.P.E.C.I.A.L.Switch between the 10 included lighting foils as often as you like with Pure Loop 3 LX 360mm. Each foil changes the impressive ARGB effect of the cooling block. You can replace foils with minimal effort.
LIGHT WINGS LX FANS
Performant, yet quiet operationPure Loop 3 LX 360mm features 3 Light Wings LX 120mm PWM high-speed fans. They come with 16 LEDs that perfectly scatter across the fan blades and are key for the stunning visuals Pure Loop 3 LX 360mm offers. The fan’s 9 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure that Light Wings LX 120mm PWM high-speed provides the performance that is needed, even in demanding scenarios. A specially designed, funnel shaped air outlet is more than just the icing on the cake: it maximizes the airflow over the fins. The fans also come with a “closed loop motor” function. This feature always keeps a steady fan speed, no matter the resistance – ideal for radiators.
DAISY CHAIN
No need for a fan hubIf you want to connect more fans than your system has headers for, you are in for a problem. A water cooling system with pump and 3 fans on top of the case fans can hit the maximum available on a motherboard easily. The daisy chain function of Pure Loop 3 LX 360mm allows all fans to be connected in series. We provide fewer and shorter cables to help you achieve a cleaner look.
IMPRESSIVELY HIGH COOLING PERFORMANCE
Yes, it can run CrysisWith Pure Loop 3 LX 360mm even the most demanding applications can be used reliably. An immense cooling power provides low temperatures even during periods of peak CPU performance.
SUPERIOR PUMP DESIGN
With state-of-the-art technologyA powerful PWM pump ensures the very high-performance of Pure Loop 3 LX 360mm and is whisper-quiet at the same time. The 6-pole 3-phase motor provides a smooth and consequently silent operation, whether at high or low rpm.
EASY AND INTUITIVE HANDLING
We got your backWho says water coolers are harder to maintain? We most certainly do not! Pure Loop 3 LX 360mm features flexible tubes, so installing it becomes a breeze. The refill port is easily accessible, making refilling this AiO an easy task, if and when it is required.
All models at a glance:
General data
| Model | Pure Loop 3 LX 360mm |
| Color option | - |

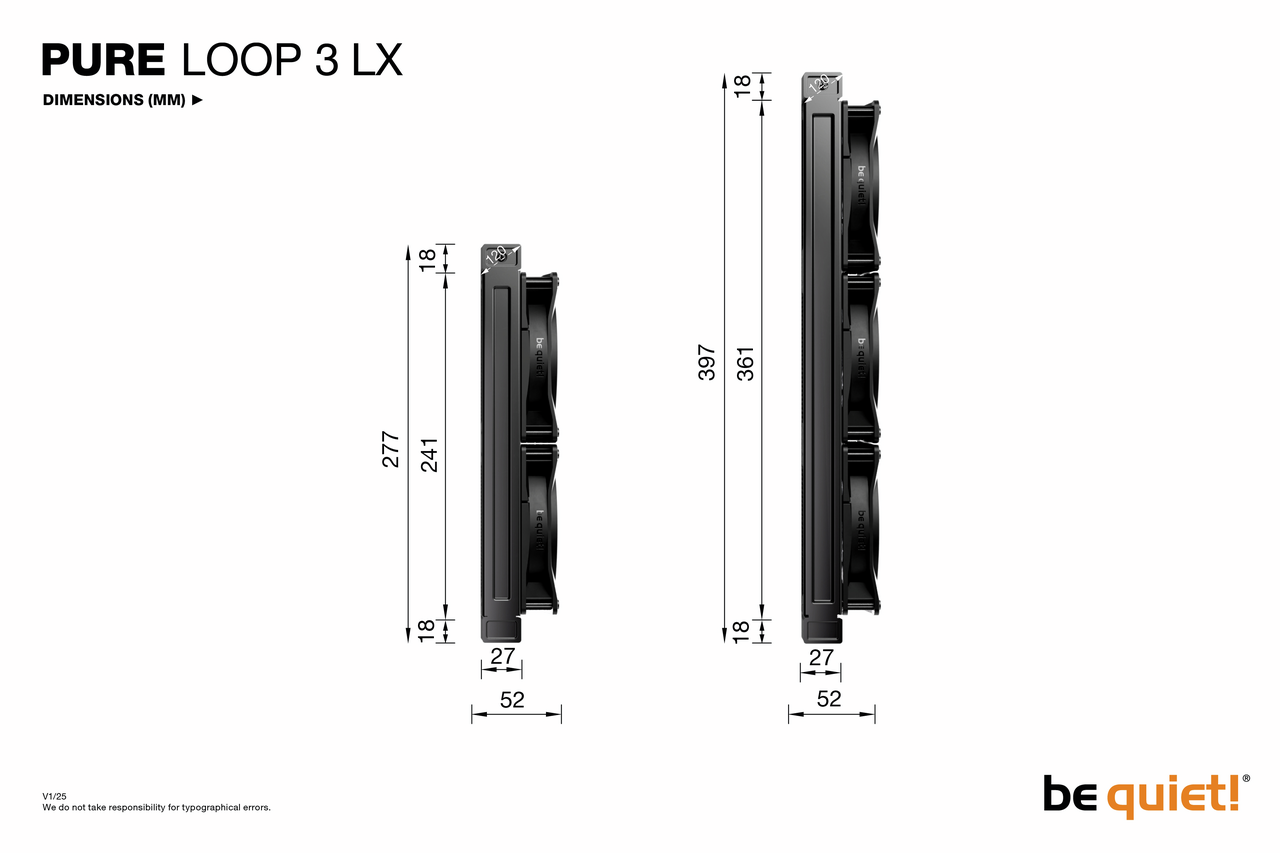

| Dimensions radiator, incl. fan (H x W x D), (mm) | 397 x 120 x 52 |
| Dimensions cooling block (H x W x D), (mm) | 68.5 x 93.4 x 48.7 |
| Total weight (kg) | 1.280 |
| Socket compatibility Intel | 1851 / 1700 / 1200 / 1151 / 1150 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Noise level (dB(A)) at 50% / 75% /100% rpm | 17.3 / 29.4 / 36.9 |
| Number of fans | 3 |
| Lighting connector | ✓ |
| Tube length (mm) | 400 |
| Refill port | ✓ |
Infographics
Pump specifications
| Pump speed (rpm) | 5500 |
| Pump adjustable (rpm) | 3000 - 5500 |
| Pump connector | 4-pin PWM |

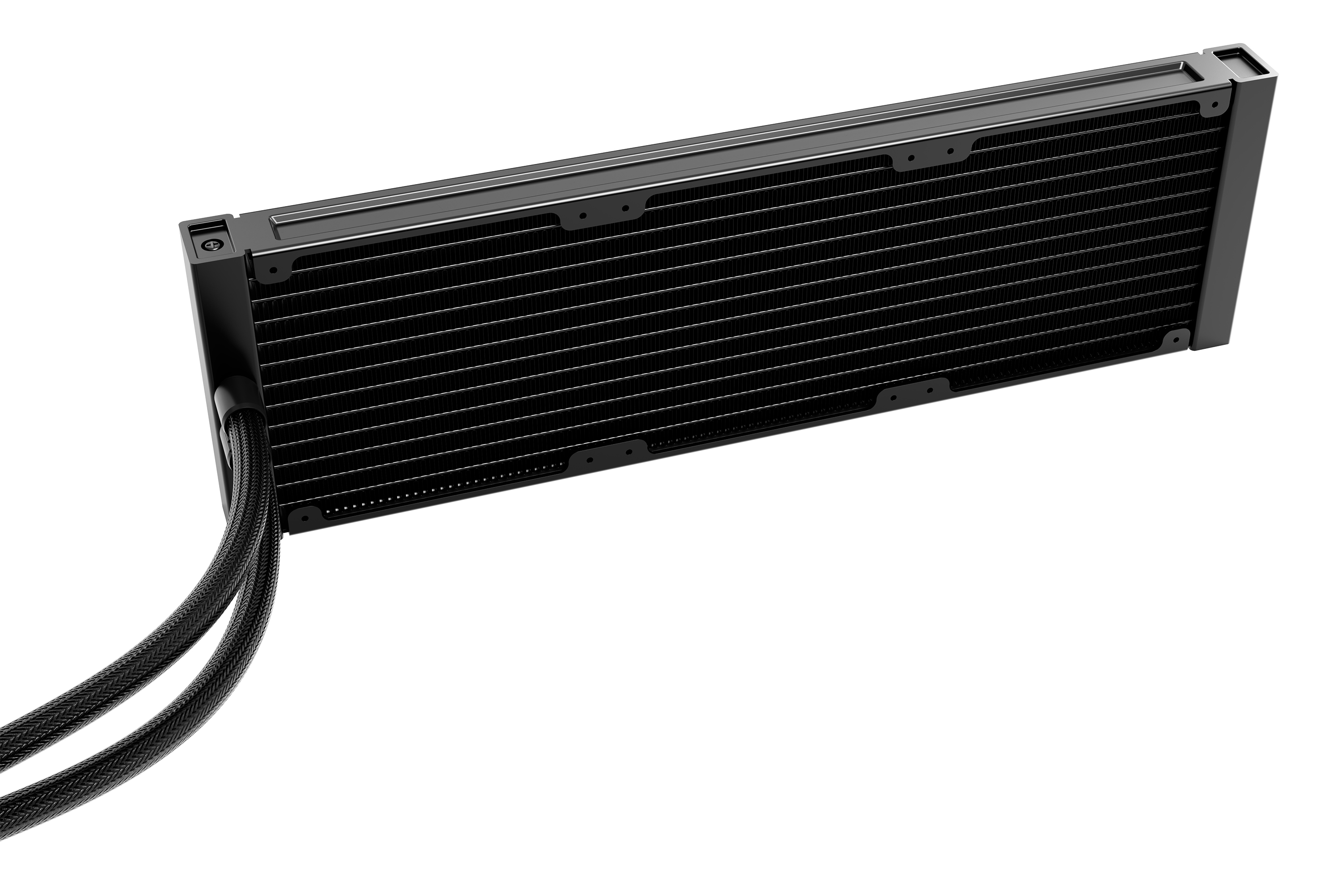

Radiator specifications
| Dimensions (L x W x H), (mm) | 397 x 120 x 27 |
| Radiator material / finish | Aluminum |
| Base material / finish | copper |
Fan specifications
| Fan model | Light Wings LX 120mm PWM high-speed |
| Fan dimensions (mm) | 120 x 25 x 120 |
| Speed at 100% PWM (rpm) | 2100 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 61.8 / 105.1 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.51 |
| Bearing technology | Rifle |
| Motor technology | 4-pole |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.17 |
| Safety current (A) | 0.45 |
| Input power (W) | 5.4 |
| Connector | proprietary |
| Cable length (mm) | 20 / 100 + daisy chain |
| Lifespan (h / 25°C) | 60,000 |

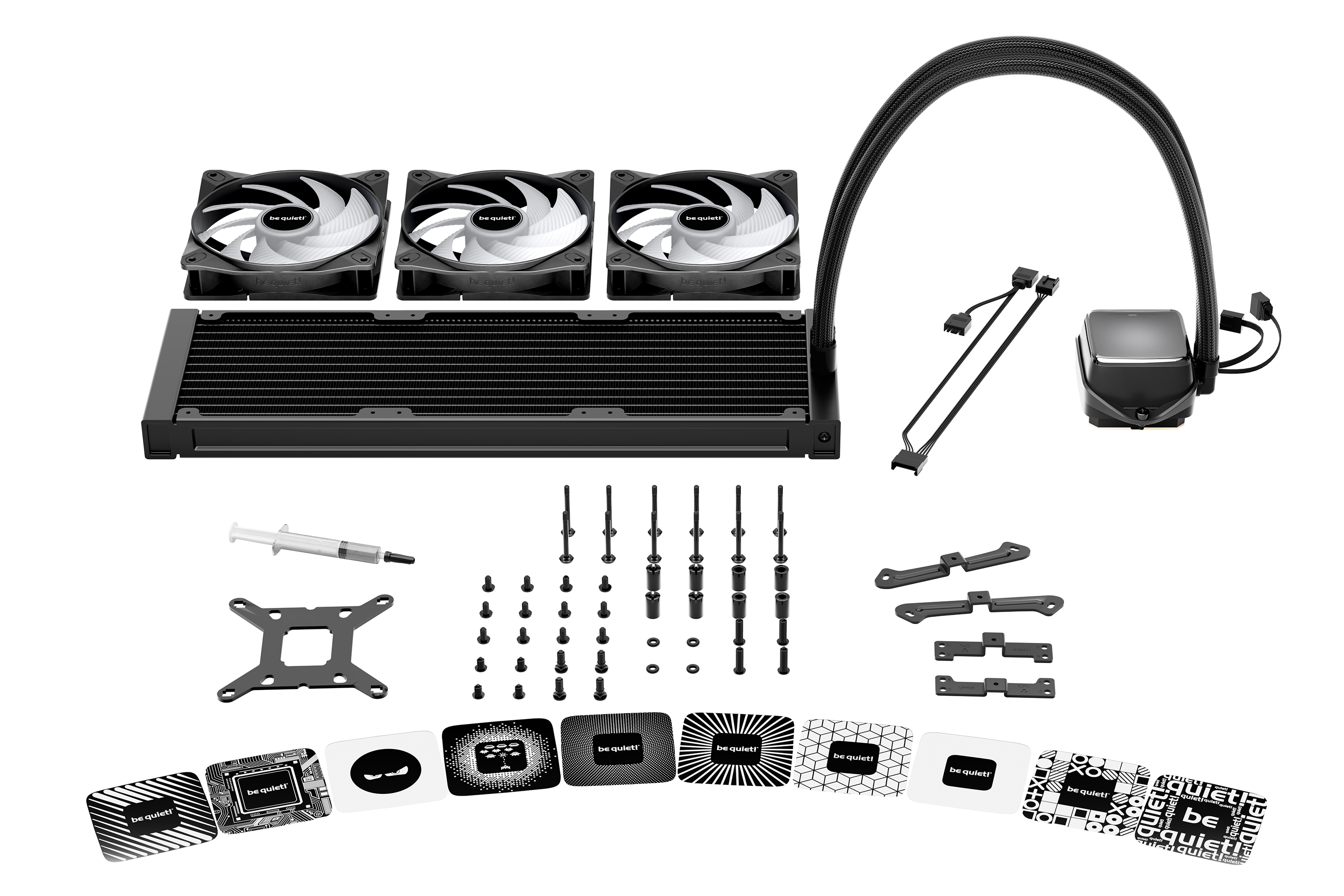

Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel, AMD |
| Adapter cables | PWM/ARGB extension |
| Bottle of coolant (ml) | - |
| ARGB controller with SATA cable | - |
| ARGB-PWM-Hub | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety certifications
| Approvals | CE, UKCA, FCC |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
Service
| Warranty (Years) | 3 |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BW031US |
| EAN code | 4260052193396 |
| Dimensions, package (L x W x H), (mm) | 461 x 206 x 138 |
| Gross weight, package (kg) | 2.15 |
| Pieces per packaging unit | 4 |
| Dimensions, shipping box (L x W x H), (mm) | 476 x 430 x 305 |
| Gross weight, shipping box (kg) | 9.9 |
| RRP (€) | 129,90 |
