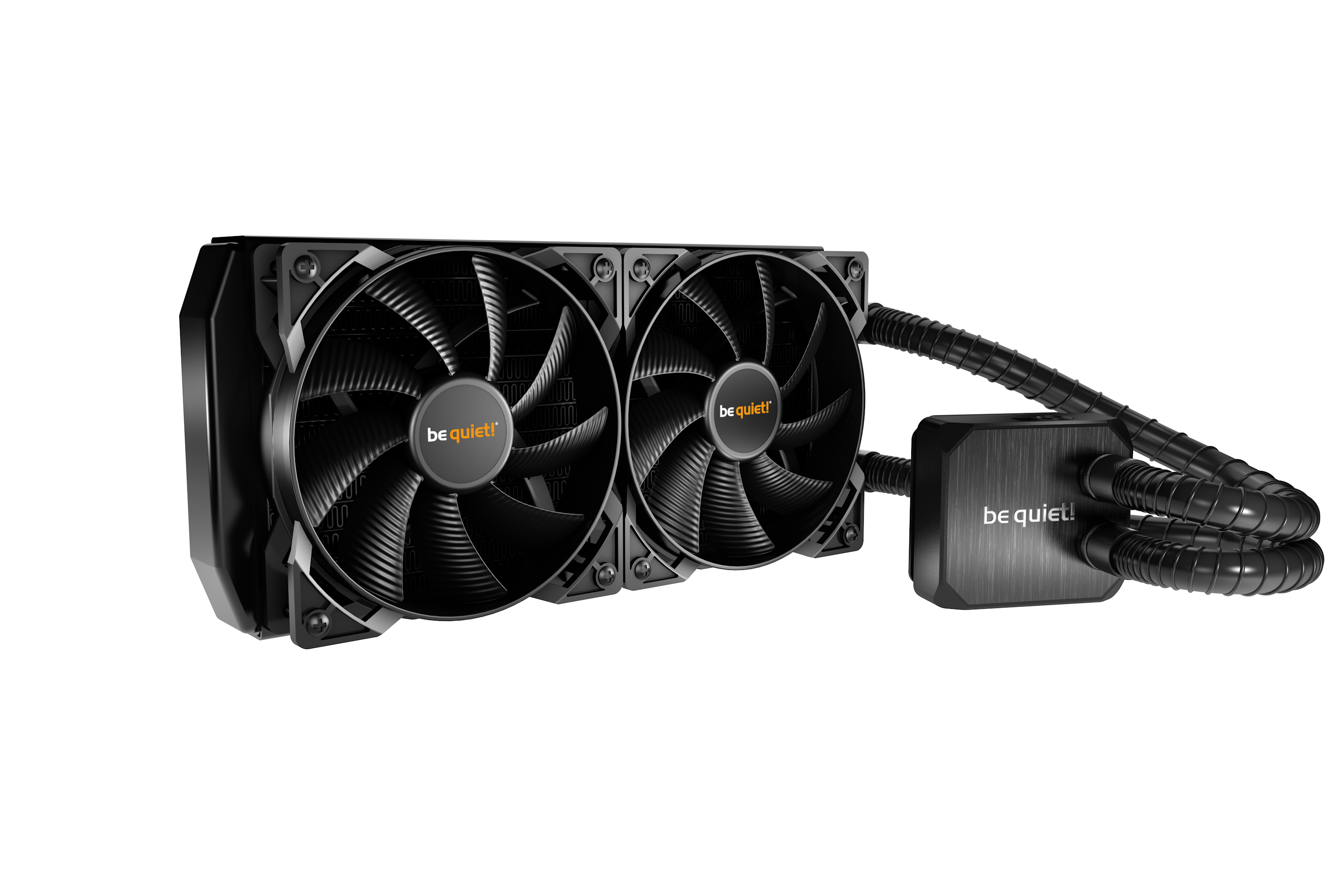

SILENT LOOP 240MM
Superior Cooling and Silence
Silent Loop 240mm brings the famous be quiet! whisper-silent technology to the world of all-in-one water cooling.
- Innovative decoupled reverse-flow pump practically eliminates noise and vibration

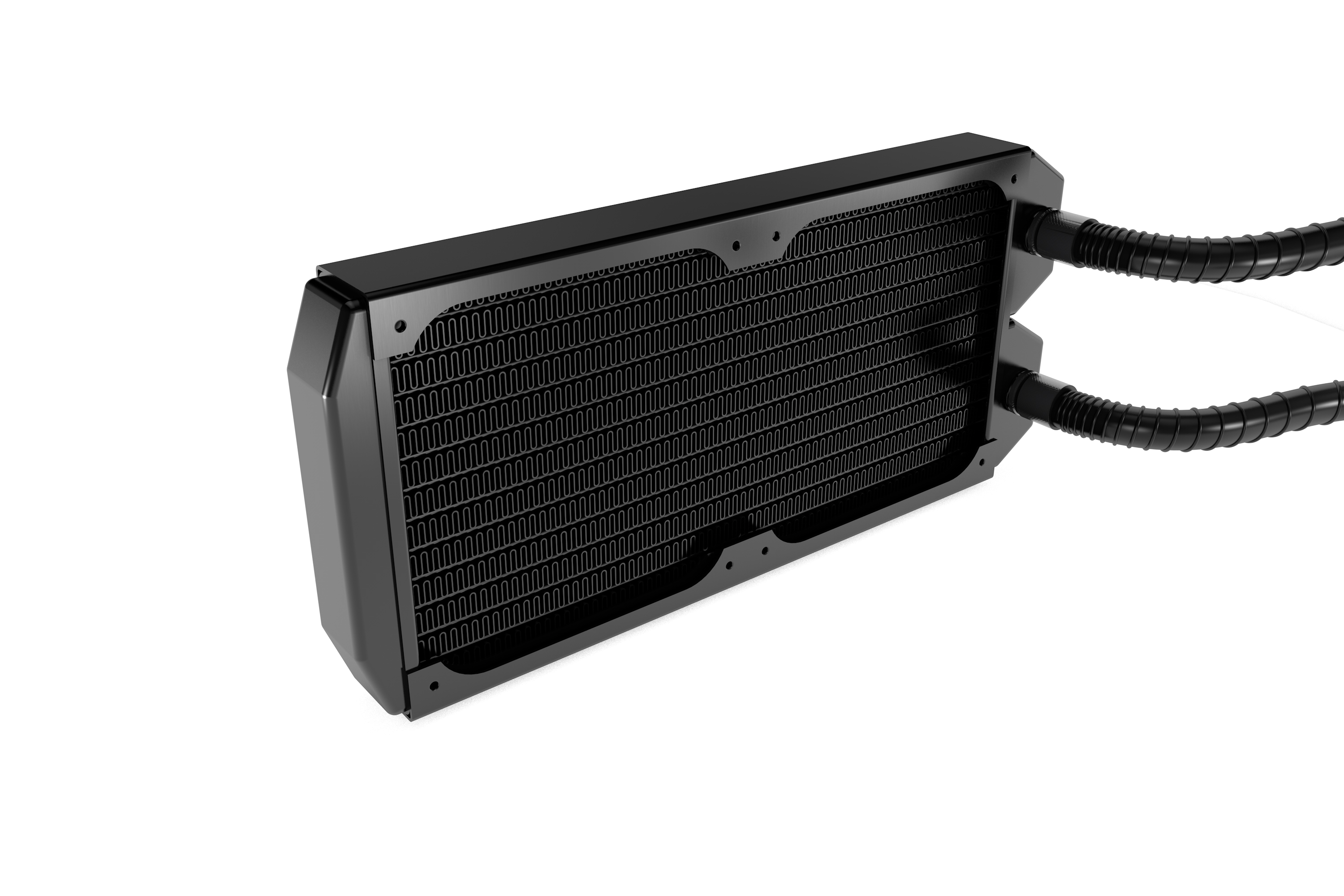

- Full copper radiator for an impressive cooling performance
- Two Pure Wings 2 120mm PWM fans provide quiet operation with high air pressure
- Convenient features such as flexible bend-protection tubes and a refill port
- Nickel-plated cold plate allows optimum use of heat-conducting metallic paste
- 3-year manufacturer’s warranty
- German product conception, design and quality control
No compromise is required when choosing to water-cool demanding systems and heavily overclocked CPUs.

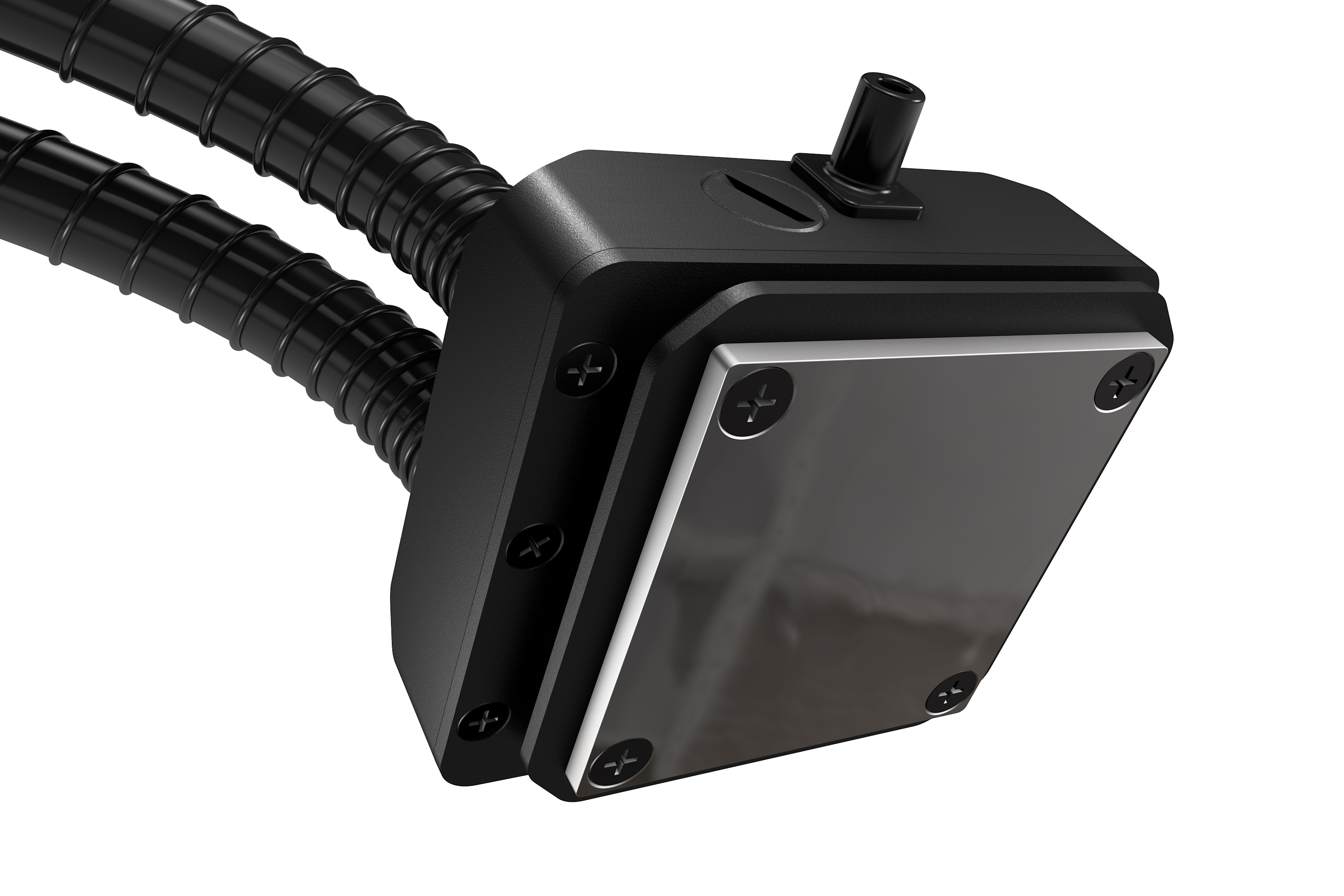

REVERSE-FLOW PUMPPumped with innovation
This innovative, decoupled pump assures excellent cooling efficiency and whisper-quiet operation. The pump’s “reverse-flow” technique draws the liquid coolant from an outer cavity of the pump housing across the base plate, discharging the warmed coolant through a second level inside. This is key to guaranteeing the silent be quiet! operation.

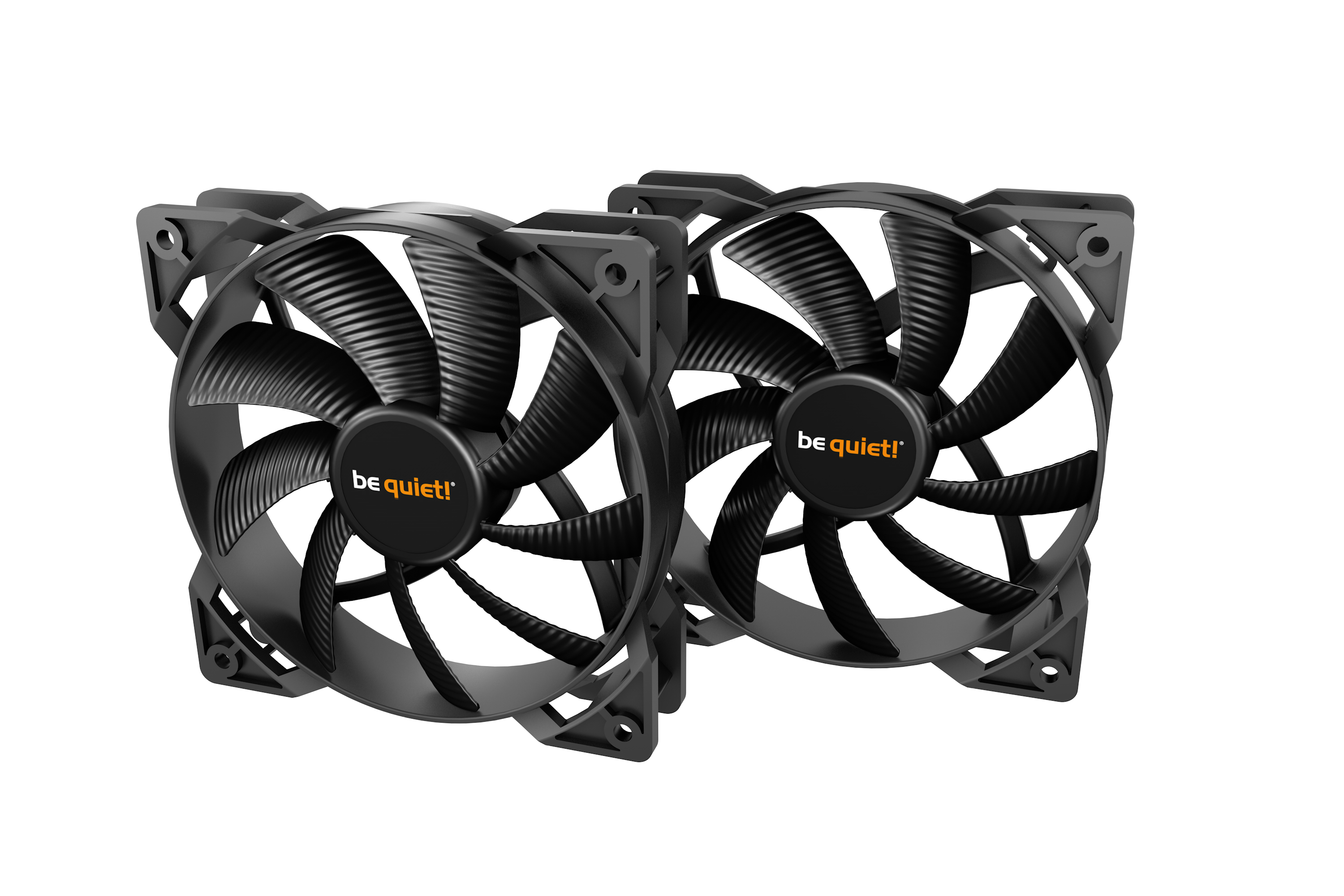

PURE WINGS 2 FANSOutstandingly silent and effective cooling
The two high-quality be quiet! Pure Wings 2 120mm PWM fans combine outstanding reliability and silent cooling. Their silence-optimized fan blades reduce noise-generating turbulences while simultaneously increasing air pressure. This makes the fans the perfect partner for be quiet! Silent Loops high-performance full copper radiator.
REFILL PORT AND BEND-PROTECTION TUBESFor a super long life span
Flexible tubes that are bend- and pinch-protected take the worry out of routing the supply lines. The refill port and tubes help extend the product’s life span and make handling easier.

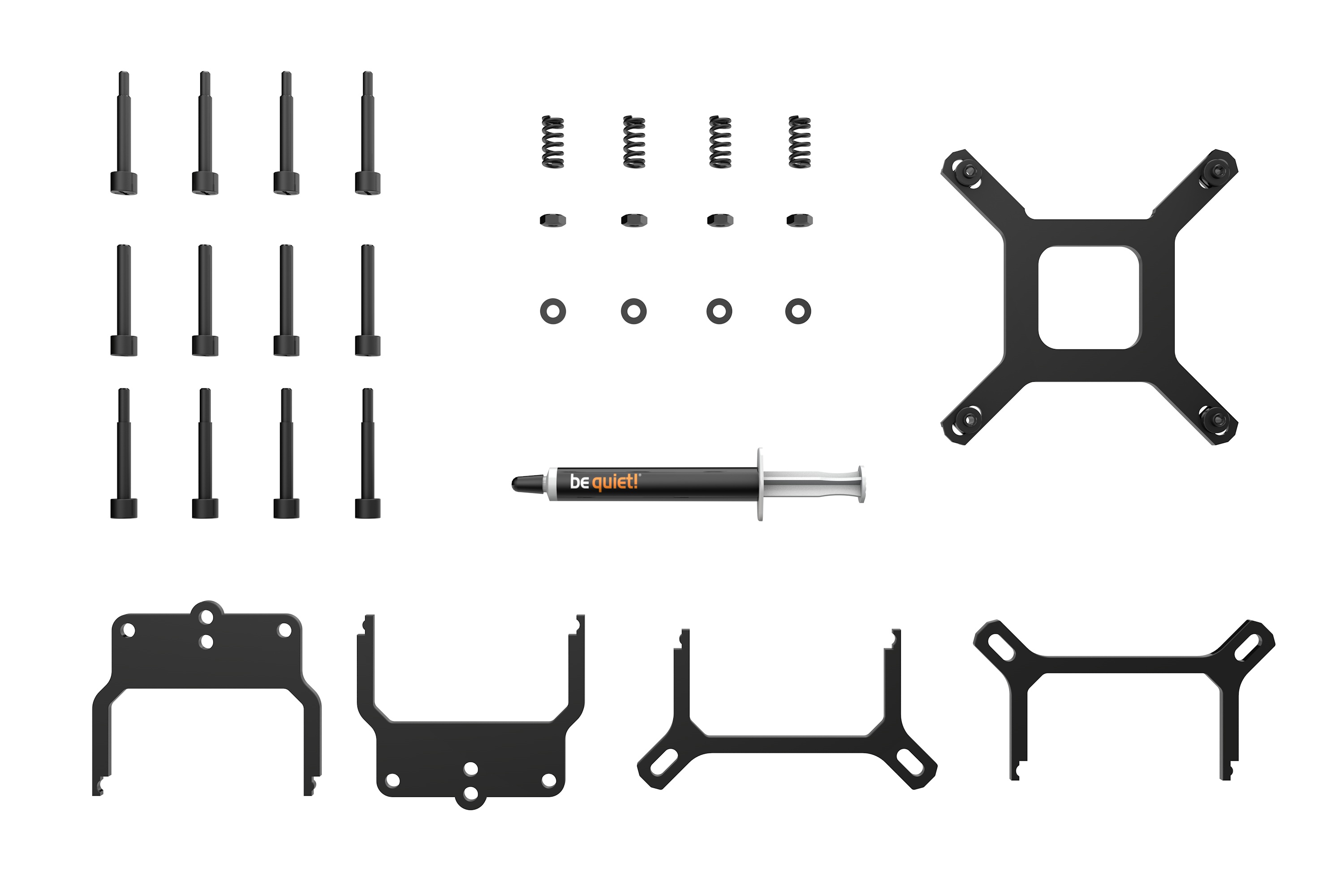

EASY MOUNTING OPTIONSMaximum compatibility and convenience

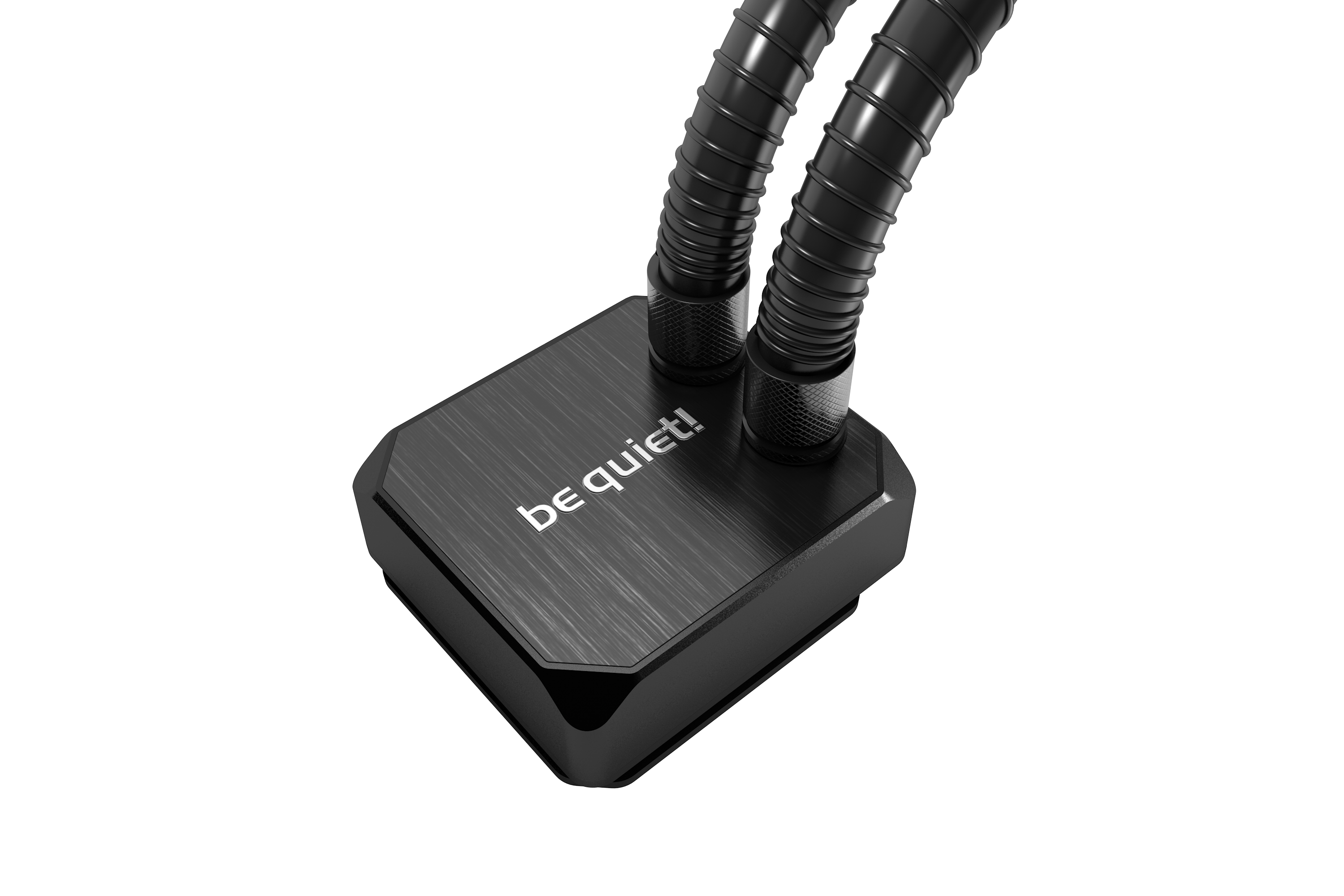

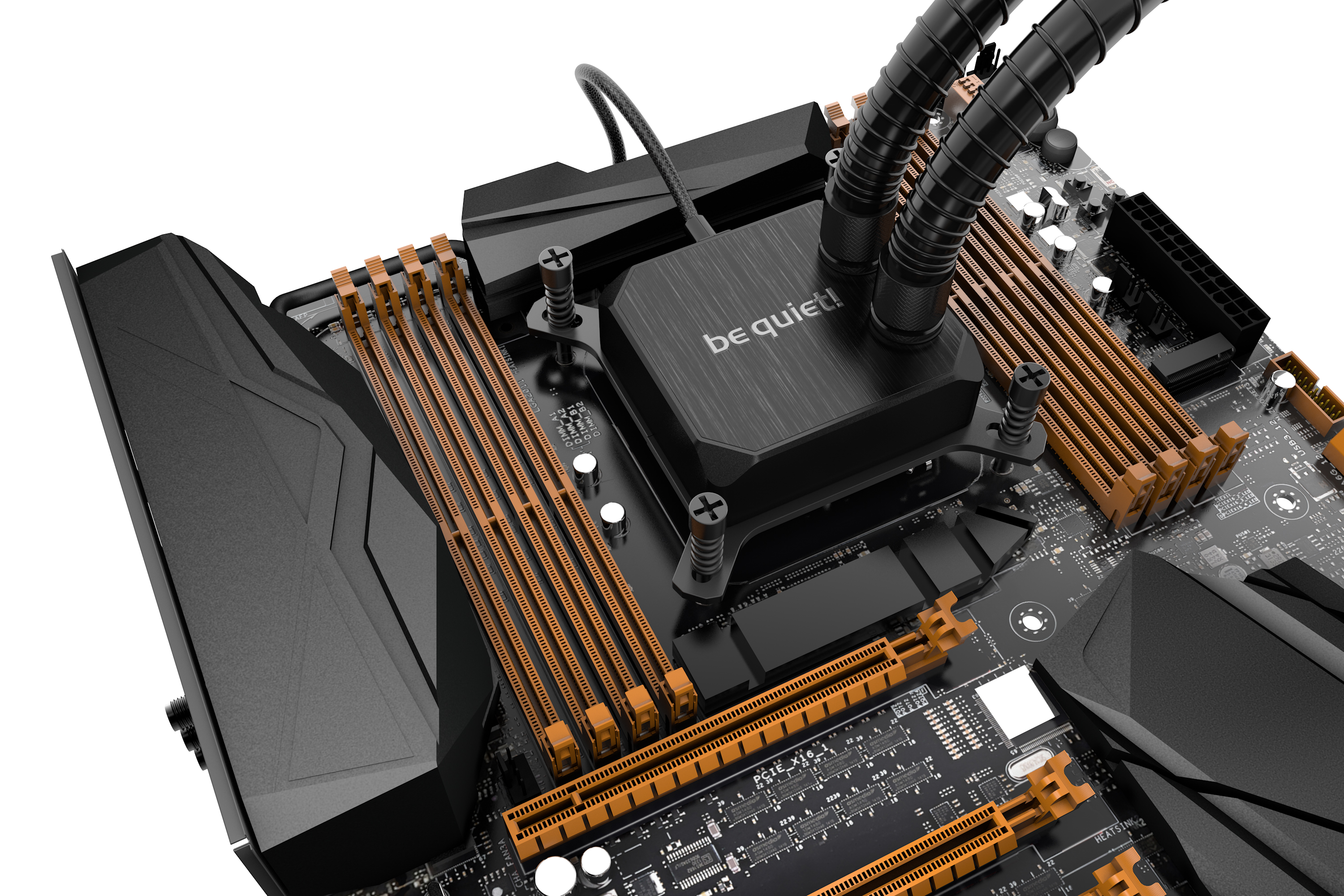

The compact and well thought out design of the heat exchanger enables full use of available RAM slots and is compatible to all current CPU sockets. Convenient radiator mounting is compatible with most case designs.
COMPATIBLE WITH THE AMD RYZEN THREADRIPPERThe TR4 mounting kit available in stores
Silent Loop is compatible with the most powerful of AMD processors - the Ryzen™ Threadripper™. To be able to install it in their PC, users also have to order the special TR4 mounting kit bz007. It’s the perfect water cooling solution for gamers and graphic artists needing the utmost performance.
|Model||SILENT LOOP | 240mm|
|Dimensions radiator, incl. fan (H x W x D), (mm)||277 x 124 x 55|
|Total weight (kg)||1,349|
|Socket compatibility||Intel®: LGA 775 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011(-3) Square ILM / 2066
AMD™: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+) / TR4 (+ mounting kit bz007)
|Maximum power capacity (W TDP)||350|
|Fan model, number||2x Pure Wings 2 | 120mm PWM|
|Pump type||reverse-flow pump|
|Pump speed (rpm)||2,200|
|Dimensions (H x W x D), (mm)||277 x 124 x 30|
|Radiator material / finish||copper / black spray painted|
|Base material / finish||copper / dark nickel plated|
|CPU contact surface||CNC machined|
|Surface treatment||mirror polished|
|Fan dimensions (mm)||120 x 120 x 25|
|Noise level (dB(A)) @ 25 % / 50% /100% rpm||16.1 / 23.8 / 36.9|
|Speed @ 100% PWM (rpm)||2,000|
|Air flow @ 12V (cfm / m3/h)||65.51 / 111.3|
|Air pressure @ 12V (mm H2O)||2.23|
|Motor technology||4-pole fan motor|
|Rated voltage (V)||12|
|Input current (A)||0.3|
|Input power (W)||3.6|
|Cable length (mm)||450|
|Lifespan (h / 25°C)||80,000|
|Thermal grease (g)||1|
|Backplate mounting set Intel & AMD||✓|
|User manual languages||DE, EN, FR, ES, PL, RU|
|International hotline / free of charge||✓ / DE, FR|
Logistics data, RRP
|Dimensions, package (L x W x H), (mm)||345 x 14 x 255|
|Gross weight, package (kg)||2.33|
|Pieces per packaging unit||4|
|Dimensions, shipping box (L x W x H), (mm)||54 x 365 x 30|
|Gross weight, shipping box (kg)||10.28|
