Article number: BP017EU

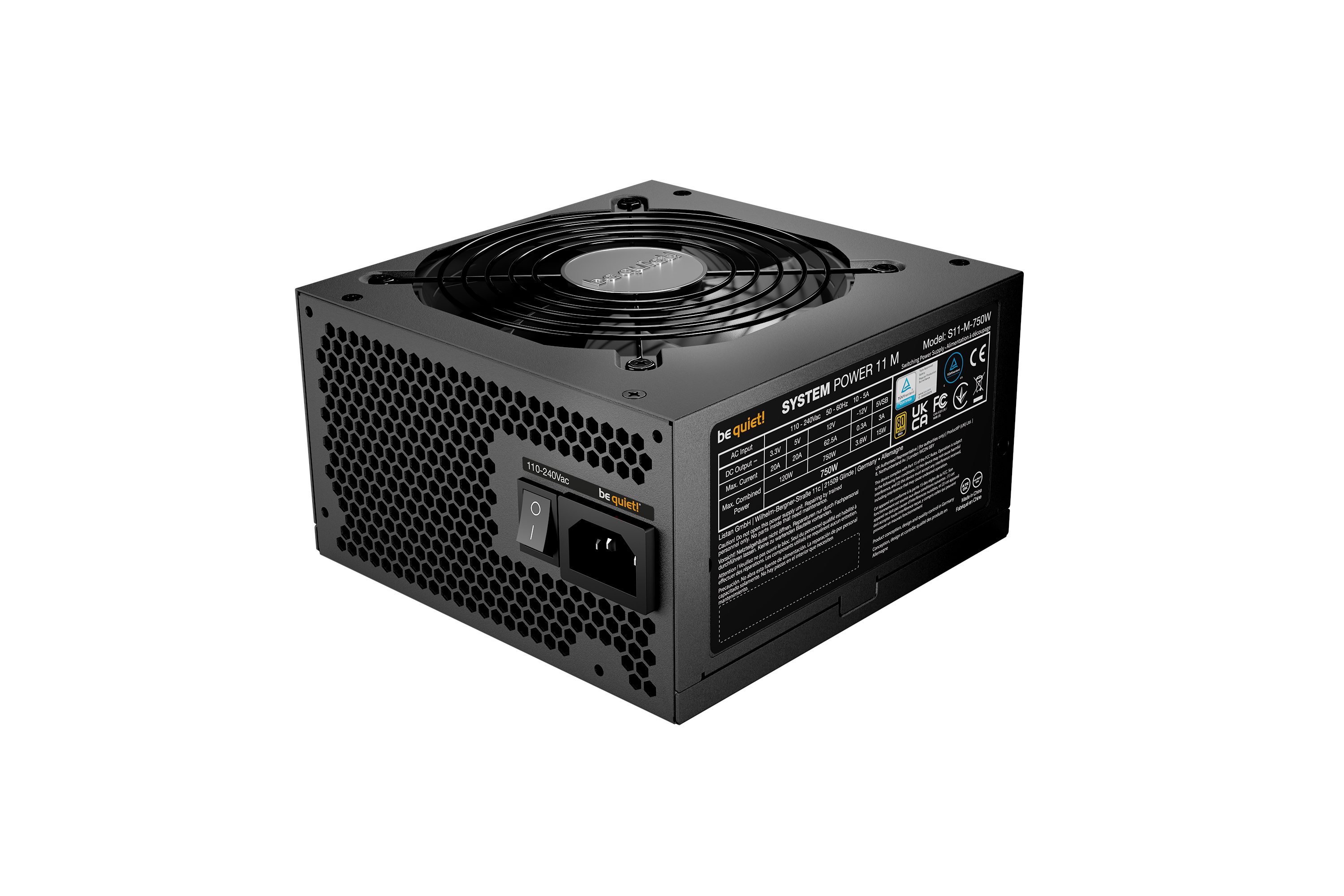

SYSTEM POWER 11 M
750W
SYSTEM POWER 11 M
750WProven reliability, quiet operation
System Power 11 M 750W is a modular ATX 3.1 PSU for value-oriented PC builders who do not want to pass on reliability and quietness.
- 80 PLUS® Gold efficiency (up to 91.3%)
- ATX 3.1 PSU with support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Temperature-controlled 120mm quality fan reduces system noise
- Rock-solid stability with a strong 12V-rail
- Tight voltage regulation using DC-to-DC technology
- Modular black sleeved and flat cables
- One PCIe 5.1 12V-2x6 600W and 3 PCIe 6-2 connectors for high-end GPUs
- Stand-by drain of less than 0.1 watts
Characteristics
80 PLUS® GOLD CERTIFICATION
Very high operating efficiencySystem Power 11 M 750W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 91.3%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. System Power 11 M 750W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specificationsSystem Power 11 M 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. It handles power excursions up to double its rated power with ease. This makes the PSU versatile and the perfect choice for systems of today and the ones to come.
VERY QUIET OPERATION

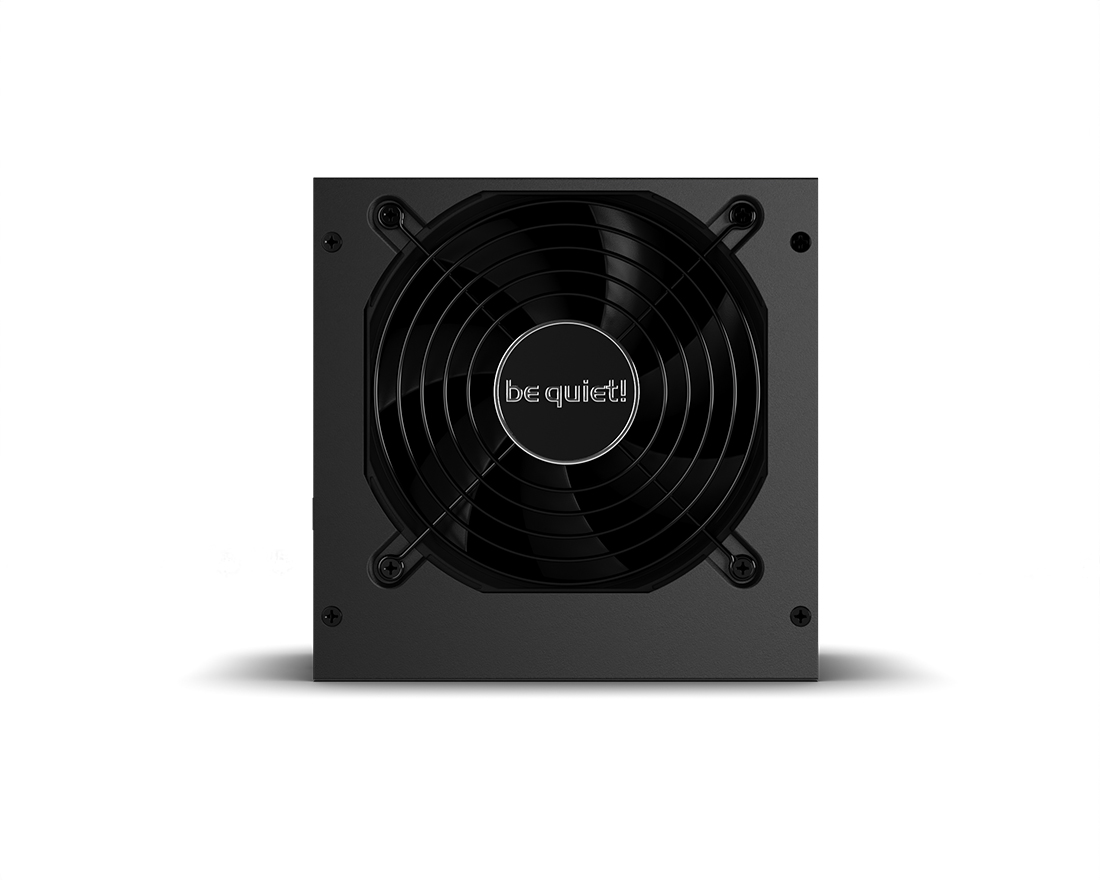

High-quality fan for low noiseSystem Power 11 M 750W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPUSystem Power 11 M 750W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
STRONG 12V RAIL
For a stable PCIe graphics supportSystem Power 11 M 750W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits, and overloads, thus keeping your valuable components safe.
MODULAR CABLES
Utmost convenience and compatibilityThanks to their modularity, all unnecessary cables in the system are left out. System Power 11 M 750W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
“System Power is the entry to silent PC building, which still offers up to 80PLUS® Gold efficiency. With System Power we offer you everything you need for a reliable and cost-efficient operation.”
Christian Berndt, Product Compliance Manager
All models at a glance:
General data
| Model | System Power 11 M 750W |
| Continuous power (W) | 750 |
| Peak power (W) | - |
| Form factor | Version 3.1 |
| Form factor EPS 12V | Version 2.92 |
| Topology | DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 110 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 10/5 |
| Power factor at 100% load | >0.98 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.1 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
Infographics
Efficiency
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | 61.8 |
| Efficiency (%) at 230V, 10% load | 83.7 |
| Efficiency (%) at 230V, 20% load | 88.9 |
| Efficiency (%) at 230V, 50% load | 91.3 |
| Efficiency (%) at 230V, 100% load | 90.0 |
Fan and cooling technology
| Cybenetics Noise Rating | - |
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2100 |
| dB(A) at 10% load | 12.9 |
| dB(A) at 20% load | 12.9 |
| dB(A) at 50% load | 13.2 |
| dB(A) at 100% load | 30.2 |
Output
| Multi-rail operation (12V rails) | - |
| 12V single rail operation | ✓ |
| Overclocking key | - |
| +3.3V (A) | 20 |
| +5V (A) | 20 |
| +12V1 (A) | 62.5 |
| +12V2 (A) | N/A |
| +12V3 (A) | N/A |
| +12V4 (A) | N/A |
| +12V5 (A) | N/A |
| +12V6 (A) | N/A |
| -12V (A) | 0,3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 750 |
| Max. combined power 12V-2x6 (W) | 600 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 17.0 |
| Hold-up time at 80% load (ms) | 21.1 |
| Power good signal (ms) | 100 - 150ms |
Cables and connectors
| Modular cables | - |
| Sleeved cables | P24 |
| Flat cables | P4+4, P8, PCIe, drives |
| Maximum cable length (cm) | 55 |
| Cable length to motherboard (cm) | 81 |
| No. of cables | 8 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12V-2x6 cables | 1 |
| PCI-e 6+2-pin (GPU) | 3 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 1 |
| FDD (Floppy) | - |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
Safety certification
| BSMI | - |
| CB | ✓ |
| CCC | - |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | - |
| TÜV | ✓ |
| UKCA | ✓ |
| IRAM | - |
Environmental directives
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | - |
Scope of delivery
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | - |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
Casing
| Dimensions without cable (L x W x H), (mm) | 150x86x150 |
| Weight (kg) | 2.2 |
| Color | Black |
Service
| Warranty (Years) | 5 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR |
Logistics data and RRP
| Article number | BP017EU |
| EAN code | 4260052191996 |
| Dimensions, package (L x W x H), (mm) | - |
| Gross weight, package (kg) | - |
| Pieces per packaging unit | 6 |
| Dimensions, shipping box (L x W x H), (mm) | 591 x 433 x 185 |
| Gross weight, shipping box (kg) | 14.66 |
| RRP (€) | - |
