Article number: BK023

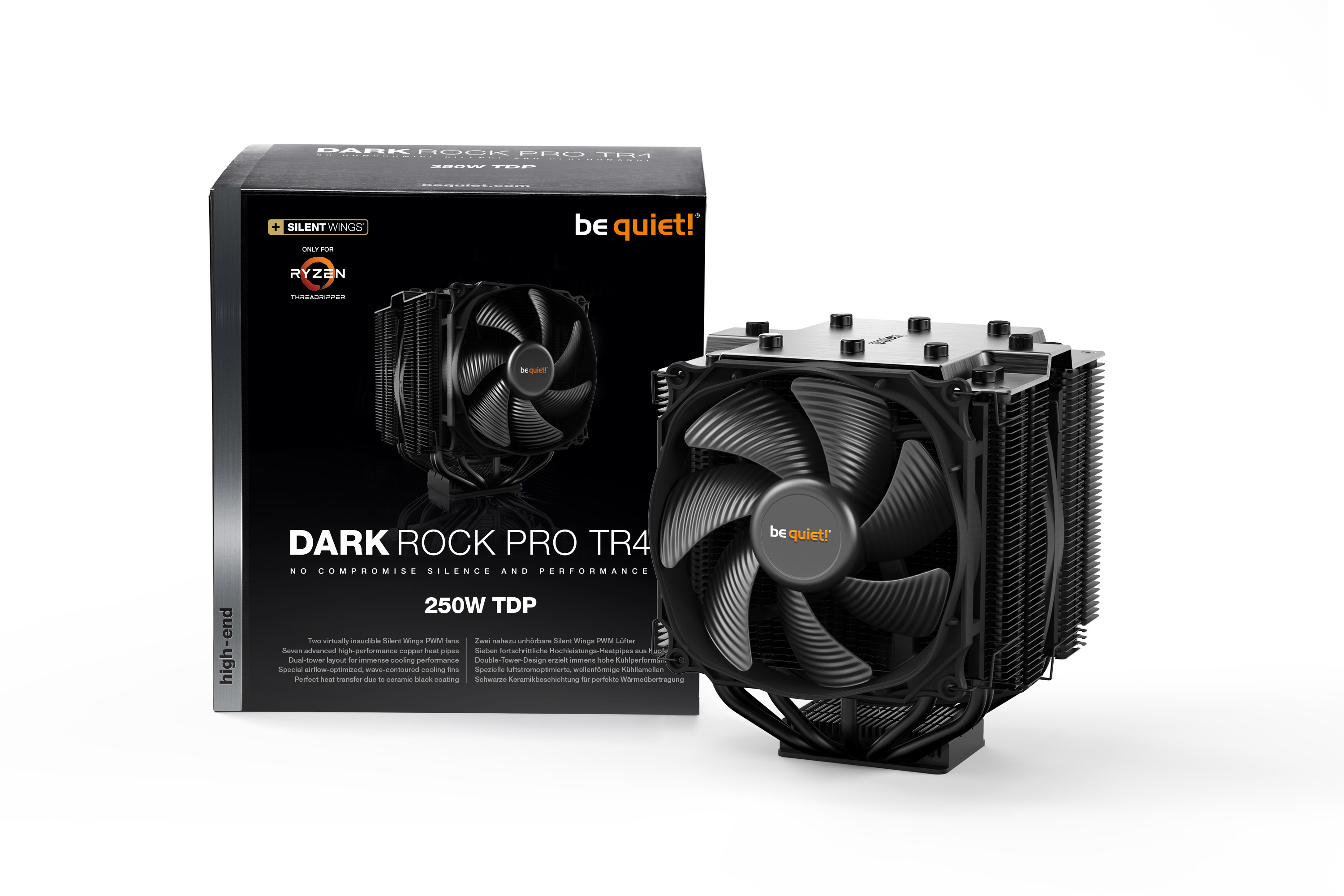

DARK ROCK PRO TR4

No Compromise Silence and Performance

Dark Rock Pro TR4 offers an immense cooling performance of 250W TDP and virtually inaudible operation. Excellent for high-end systems and demanding workstations.

  • Designed for AMD TR4 only
  • Two virtually inaudible Silent Wings PWM fans
  • Funnel-shaped frame of the front fan for high air pressure
  • Achieves only 24.3dB(A) at maximum fan speed
  • Seven high-performance copper heat pipes
  • Airflow-optimized cooling fins; cutouts enhance the RAM compatibility
  • Easily installable black installation kit can be mounted from above
  • Brushed aluminum top cover with diamond cut finish
  • 3-year manufacturer’s warranty

IMMENSE COOLING POWER

For AMD TR4 motherboards

No compromise in silence and performance for overclocked systems and demanding graphics applications! Dark Rock Pro TR4 is designed for AMD TR4 only and provides an impressive rating of 250W TDP.

VIRTUALLY INAUDIBLE OPERATION

Even at 100% PWM fan speed noise is an insignificant 24.3dB(A)

The two Silent Wings PWM fans feature advanced fluid-dynamic bearings, smooth six-pole motors and airflow-optimized fan blades. The front Silent Wings 3 fan provides extremely high air pressure, thanks to a funnel-shaped air inlet in the frame. Decoupled fan mounting with vibration-isolating elements on the heat sink.

HIGHLY ADVANCED DESIGN

The core features that result in high-end cooling

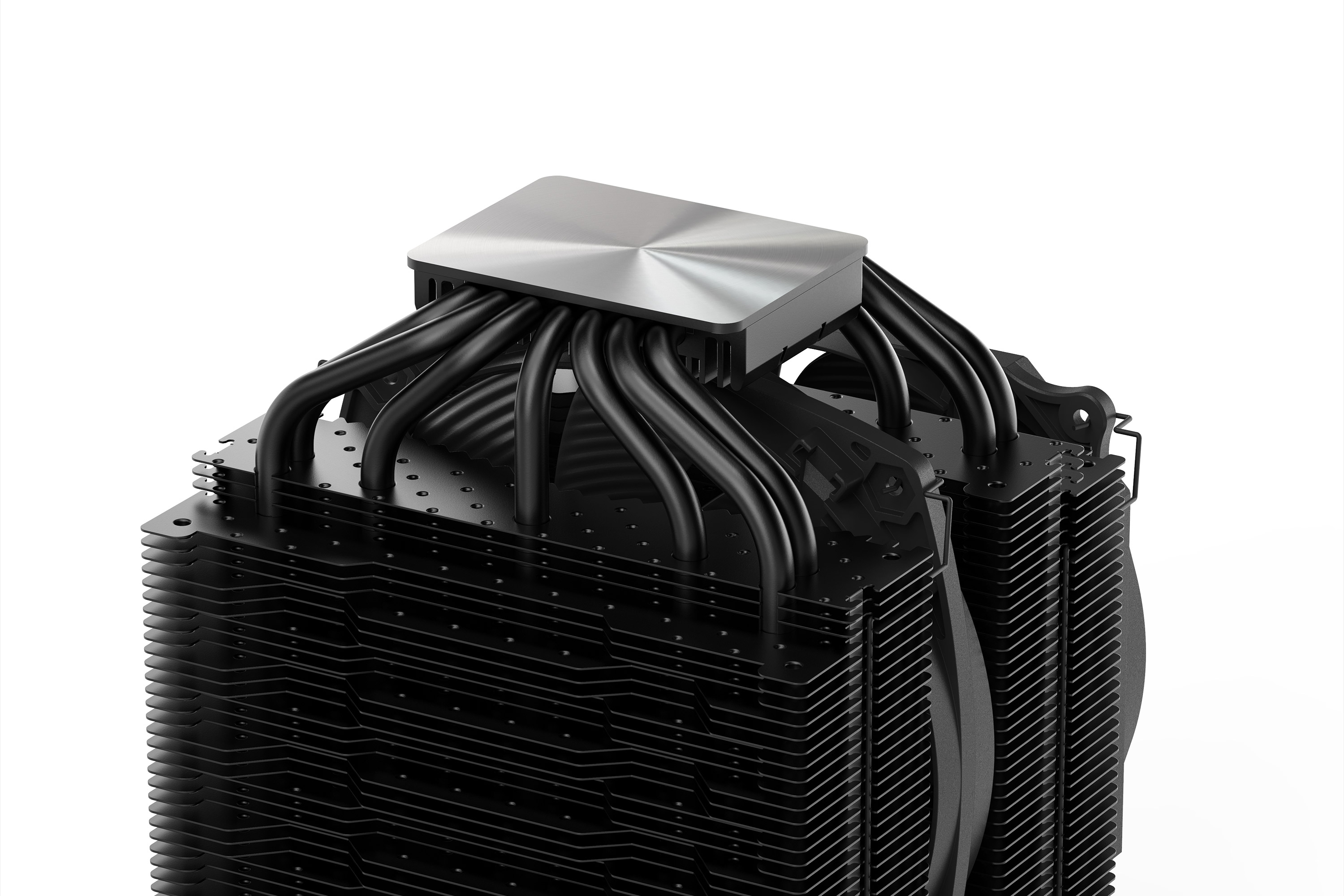

Dark Rock Pro TR4 is equipped with seven advanced technology 6mm copper heat pipes that maximize the heat conductance. Airflow-optimized, wave-contoured cooling fins with small dots on their surfaces increase the air circulation. The special black coating with ceramic particles makes a perfect transfer of heat possible.

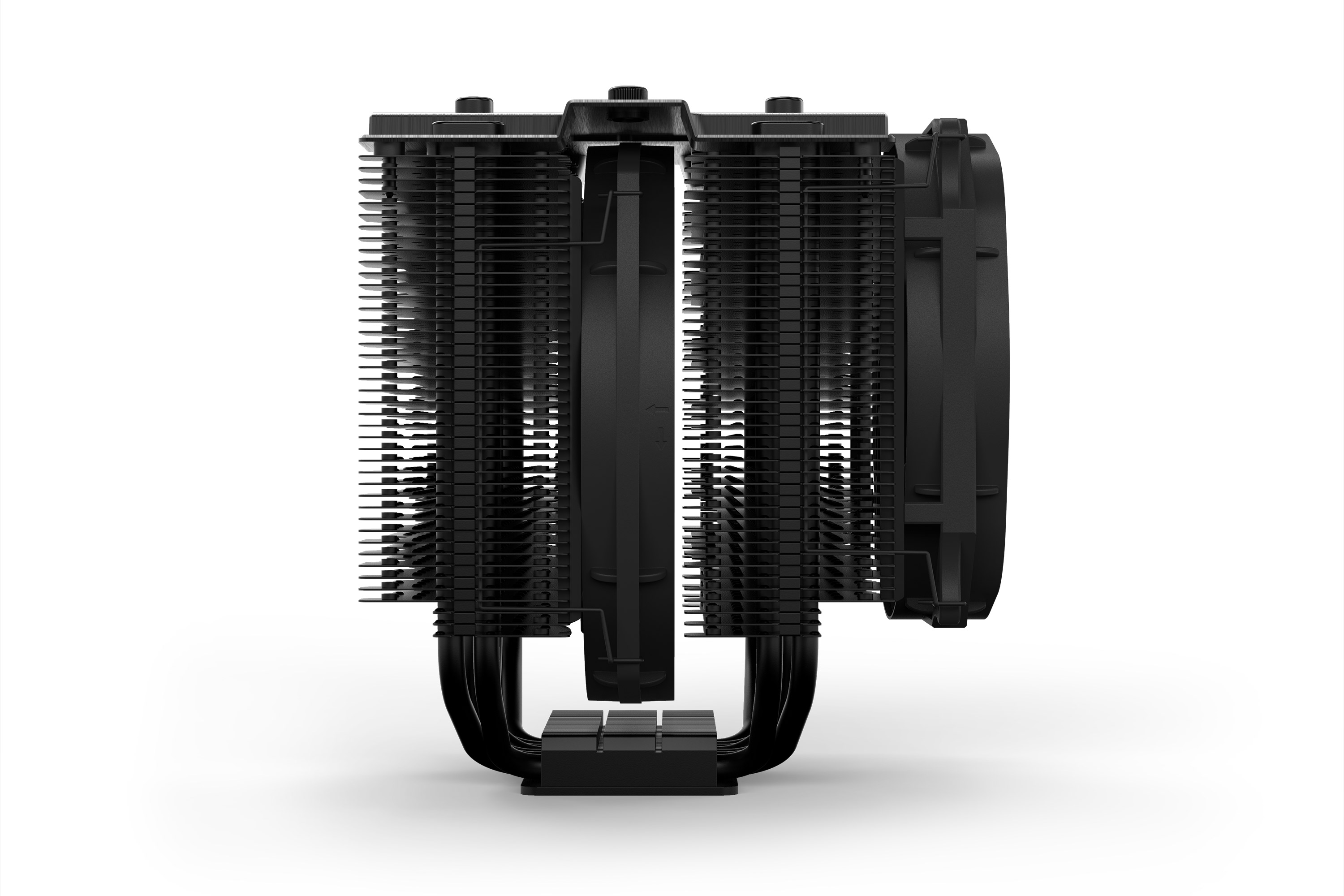

DOUBLE-TOWER LAYOUT

Powerful cooling for your components

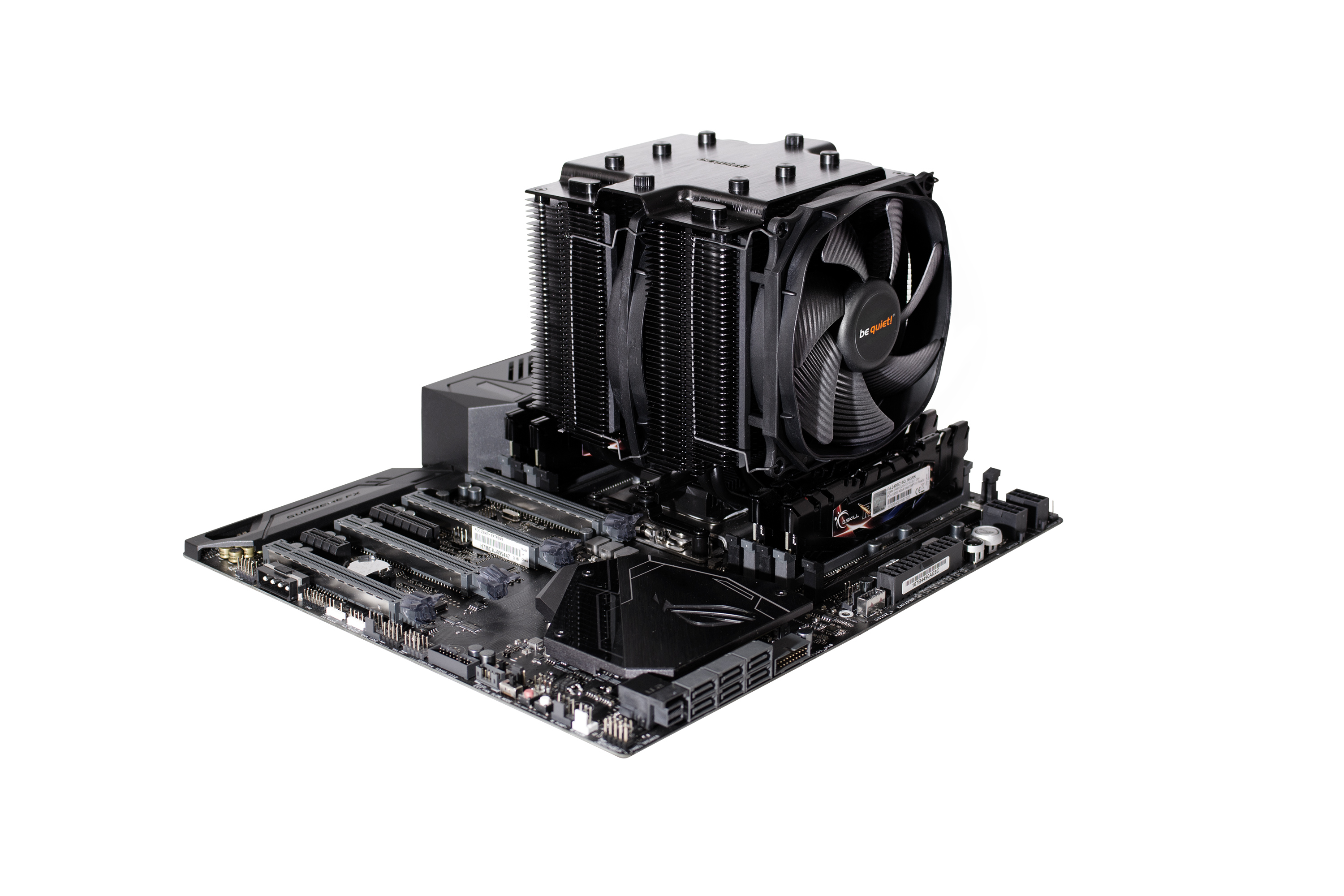

Dark Rock Pro TR4 contains two aluminum heat sinks. The cutouts provided enhance its RAM compatibility. Two fans are pre-installed. It is also possible to add another 120mm fan for even better cooling.

USER-FRIENDLY ELEGANCE

Stylish and easy to install

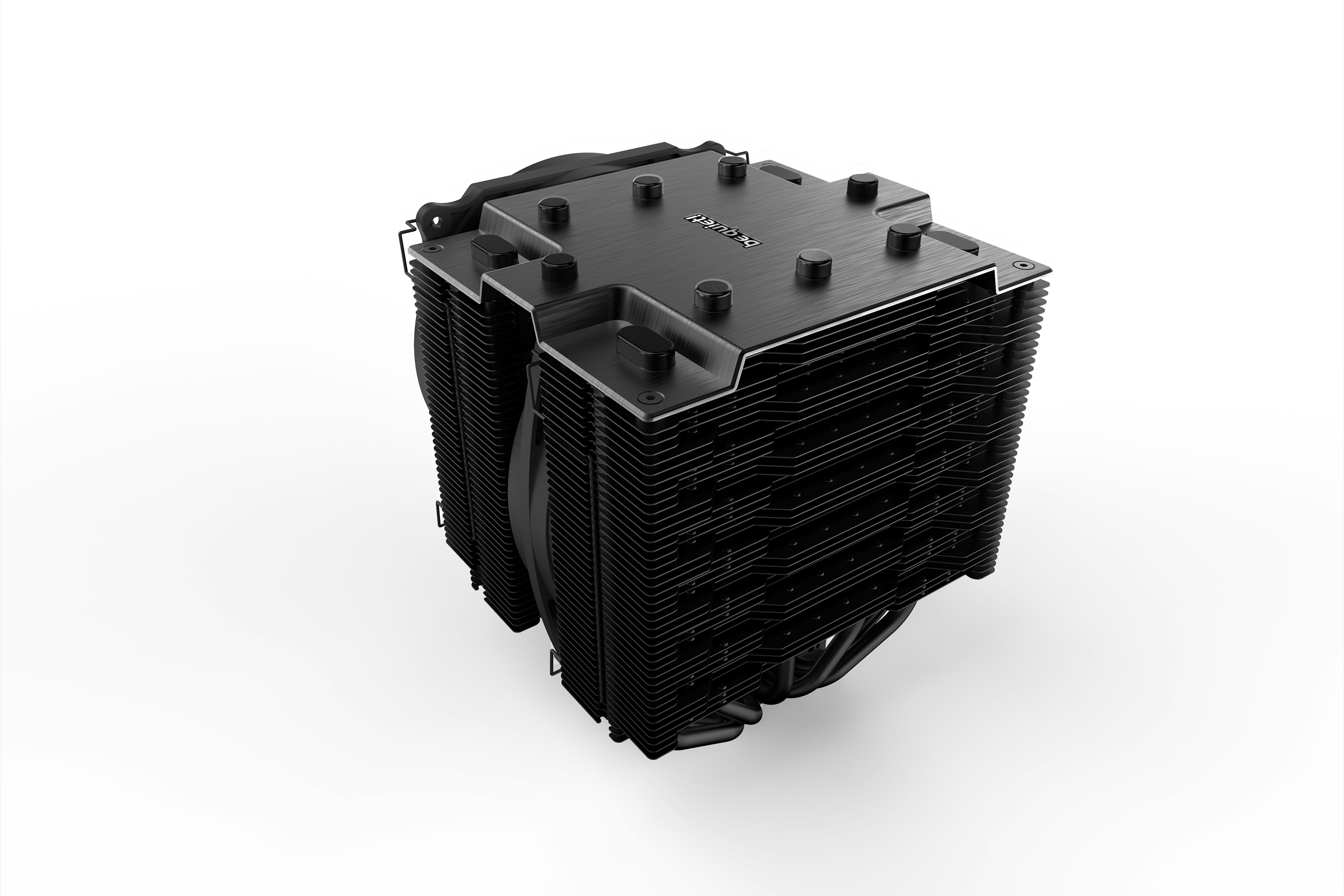

The mounting kit for the Dark Rock Pro TR4 cooler is completely black, perfectly matching the black design of the cooler itself. You can conveniently install the cooler on the motherboard from above. The brushed aluminum top cover with its diamond cut finish adds a touch of elegance to this high-end cooler.

All models at a glance:

Features

General data

Model Dark Rock Pro TR4
Overall dimensions without mounting material (L x W x H), (mm) 145.7 x 136 x 162.8
Total weight (kg) 1,18
TDP (W) 250
Socket compatibility AMD: TR4
Fan model, number 1x Silent Wings 3 120mm PWM, 1x Silent Wings 135mm PWM
Decoupled fan mounting
Overall noise level (dB(A)) @ 50/75/100% (rpm) 12.8 / 17.9 / 24.3

Infographics

open all / close all

Heatsink specifications

Dimensions (L x W x H), (mm) 162.8 x 136 x 120.7
Number of fins 90
Fin material Aluminum
Base material Copper
CPU contact surface CNC machined
Heatpipe number / Diameter (mm) 7 / 6
Surface treatment Aluminum / black ceramic spray painted

Fan specifications

Fan dimensions (mm) 135 x 135 x 22 / 120 x 120 x 25
+SilentWings
Speed @ 100% PWM /12V (rpm) 1,200 / 1,500
Bearing technology Fluid Dynamic Bearing
Motor technology 6-pole fan motor
Rated voltage (V) 12
Input current (A) 0.08 / 0.08
Input power (W) 0.96 / 0.96
Connector 4-pin PWM
Cable length (mm) 220 / 220
Lifespan (h / 25°C) 300,000

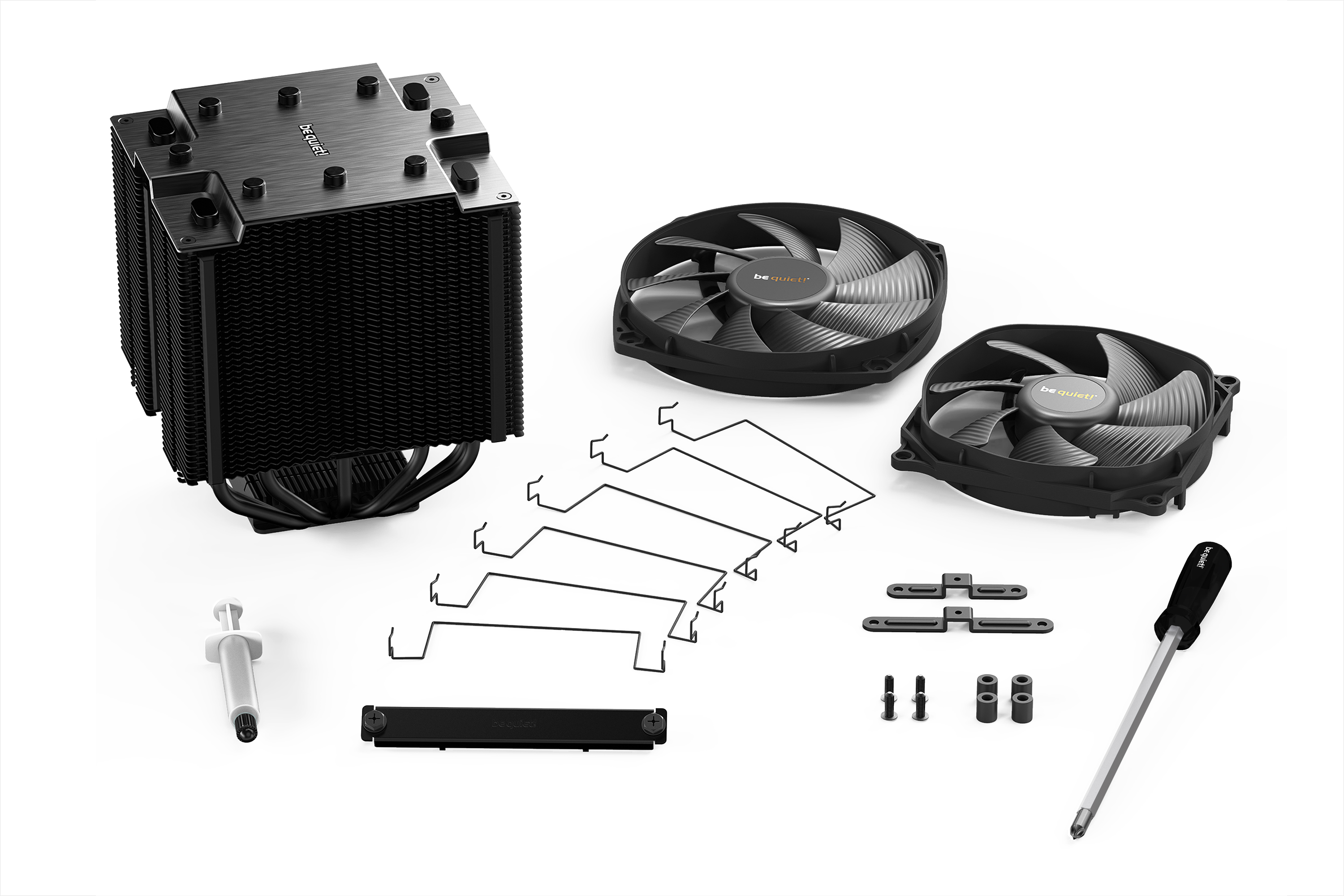

Accessories

Thermal grease (g) Corning TC-5121C / 2
Mounting set AMD TR4
Y-Cable
User manual languages DE, EN, FR, ES, PL, RU

Service

Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Article number BK023
EAN code 4260052186985
Dimensions, package (L x W x H), (mm) 181 x 205 x 212
Gross weight, package (kg) 1.58
Pieces per packaging unit 12
Dimensions, shipping box (L x W x H), (mm) 427 x 561 x 459
Gross weight, shipping box (kg) 20.75
RRP (€) 86.90
