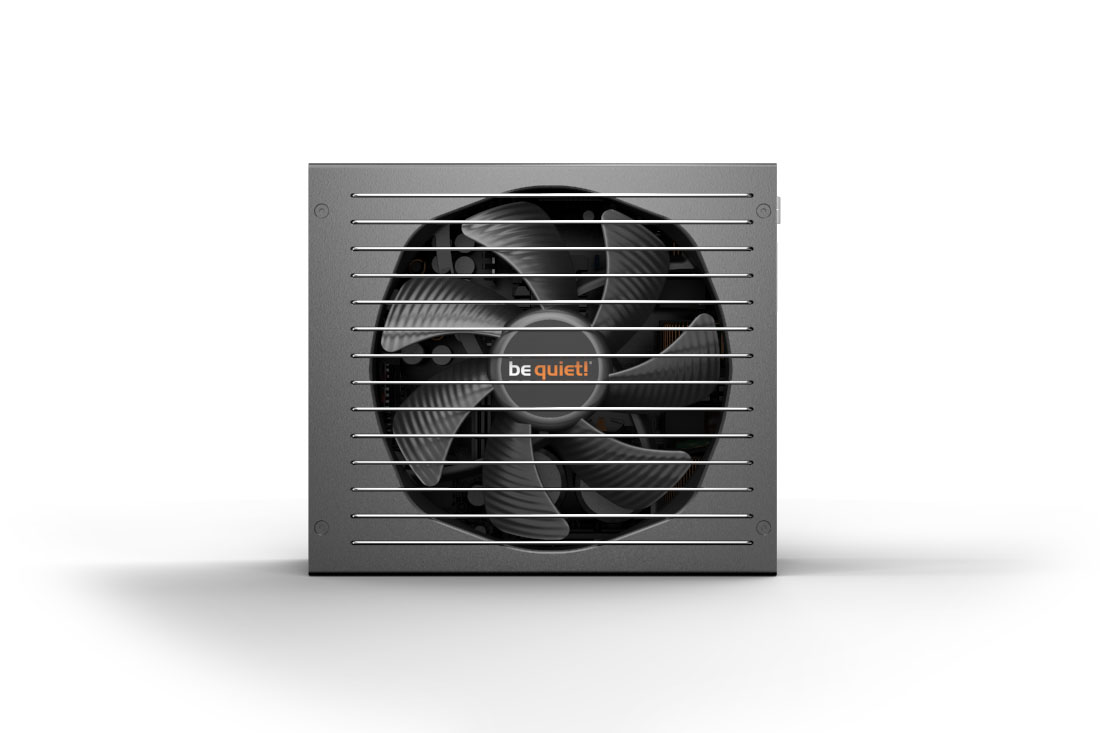

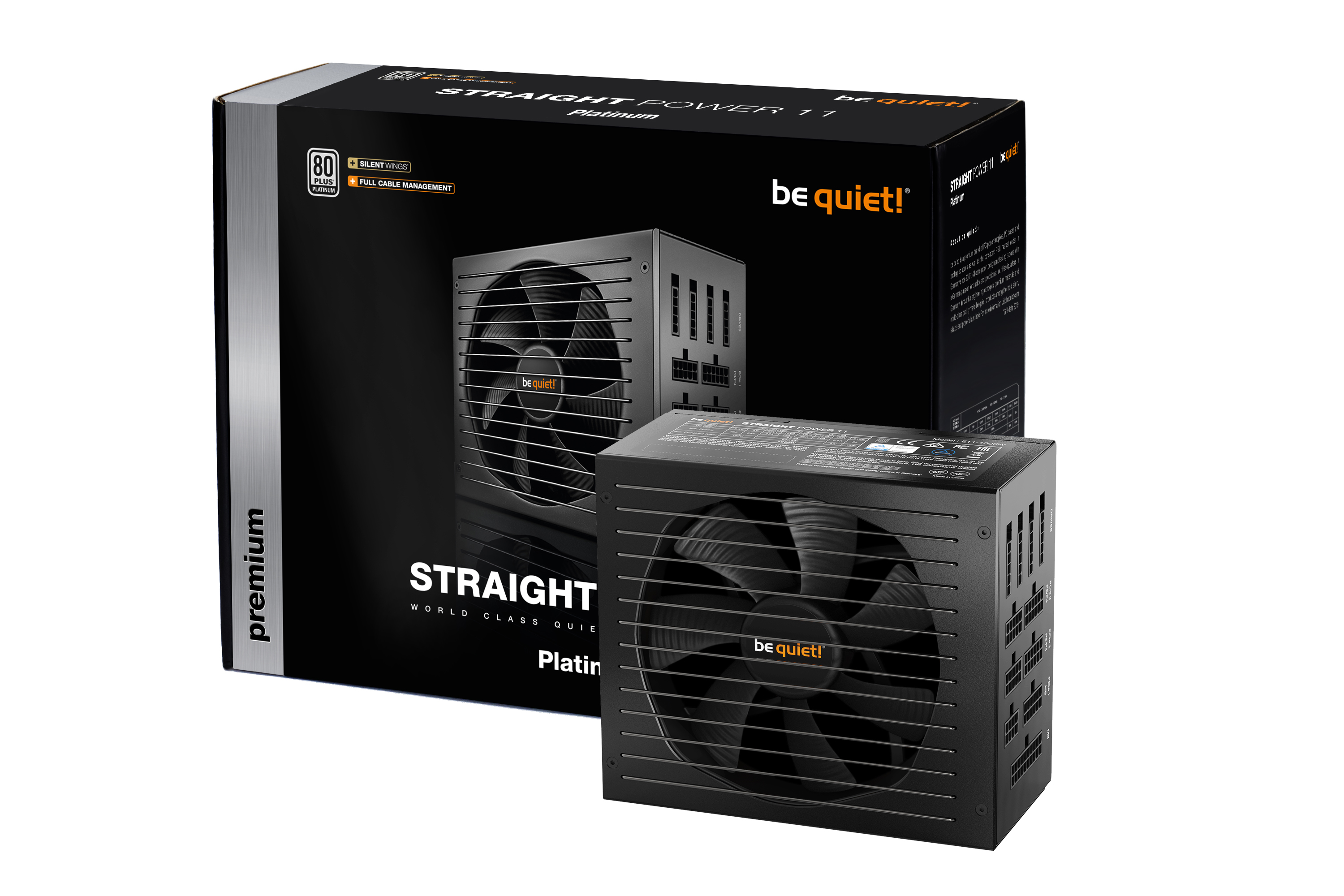

be quiet! Straight Power 11 Platinum 1000W raises the bar for systems that demand virtually inaudible operation and outstanding efficiency.
Straight Power 11 Platinum 1000W is certified with 80 PLUS Platinum efficiency, reaching up to 94.1%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and
minimal power consumption.
The fan inlet of the Straight Power 11 Platinum 1000W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.
An absolute innovation: The Straight Power 11 Platinum 1000W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

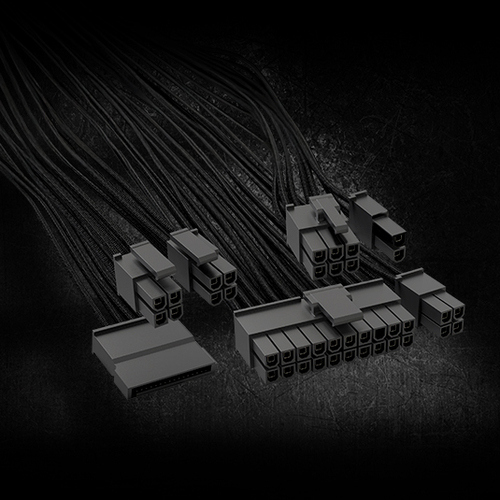

Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.
Experience the most technologically advanced power supply be quiet! has ever built! Using an advanced full bridge, LLC and Synchronous Rectifier (SR) technology it provides unmatched signal stability and unbeatable power efficiency. The DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions ensures reliable operation for the next generation of processors and graphics cards.
Only the best components are used in Straight Power 11 Platinum 1000W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.
“With Straight Power we are aiming for sophisticated users and PC builders. We understand Straight Power as the PSU of choice for all who are not dependent on the sheer overwhelming feature set of a Dark Power, yet do not want to miss out on premium technology.”
Christian Joppien, Head of Global Product Management
|Model||Straight Power 11 Platinum 1000W|
|Continuous power (W)||1000|
|Peak power (W)||1070|
|Form factor||Version 2.51|
|Form factor EPS 12V||Version 2.92|
|Topology||Full bridge + LLC + SR + DC/DC|
|Voltage (Vac)||100 - 240|
|Frequency (Hz)||50 - 60|
|Input current (A)||13 / 6.5|
|Power factor at 100% load||>0.99|
|Power consumption in standby (W)||0.16|
|Average life time (h / 25°C)||100,000|
|Operating temperature up to (°C)||40|
|80 PLUS certification||Platinum|
|Efficiency (%) at 230V, 2% load||-|
|Efficiency (%) at 230V, 10% load||89.4|
|Efficiency (%) at 230V, 20% load||92.8|
|Efficiency (%) at 230V, 50% load||94.1|
|Efficiency (%) at 230V, 100% load||92.4|
|Fan||Silent Wings 3|
|Fan size (mm)||135|
|Motor technology||6-pole fan motor|
|Max. fan speed (rpm)||2600|

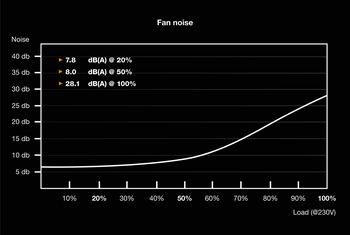

|dB(A) at 10% load||7.7|
|dB(A) at 20% load||7.8|
|dB(A) at 50% load||8|
|dB(A) at 100% load||28.1|
|Multi-rail operation (12V rails)||4|
|12V single rail operation||-|
|Max. combined power 12V (W)||999.6|
|Max. combined power 12VHPWR (W)||0|
|Max. combined power 3.3V + 5V (W)||150|
|Hold-up time at 100% load (ms)||20|
|Power good signal (ms)||100 - 150|
|Maximum cable length (cm)||115|
|Cable length to motherboard (cm)||60|
|No. of cables||11|
|PCI-e 6+2-pin (GPU)||6|
|PCI-e 6-pin (GPU)||-|
|OTP (over temperature protection)||✓|
|OCP (over current protection)||✓|
|OPP (over power protection)||✓|
|SCP (short circuit protection)||✓|
|OVP (over Voltage protection)||✓|
|UVP (under Voltage protection)||✓|
|SIP (Surge & Inrush Protection)||✓|
|Velcro cable ties||-|
|User manual languages||DE, EN, ES, FR, PL, RU|
|OCK slot bracket with switch / OCK jumper||-|
|SFX-to-ATX adapter bracket||-|
|Dimensions without cable (L x W x H), (mm)||170 x 150 x 86|
|Express replacement service in first year||DE, FR|
|International hotline / free of charge||✓ / DE, FR|
|Dimensions, package (L x W x H), (mm)||328 x 248 x 102|
|Gross weight, package (kg)||3.43|
|Pieces per packaging unit||6|
|Dimensions, shipping box (L x W x H), (mm)||651 x 282 x 346|
|Gross weight, shipping box (kg)||23.97|
You are already using a be quiet! power supply and want to upgrade your system with a new STRAIGHT POWER 11 | 1000W Platinum ? Check here which cables are compatible and don't need to be replaced.
