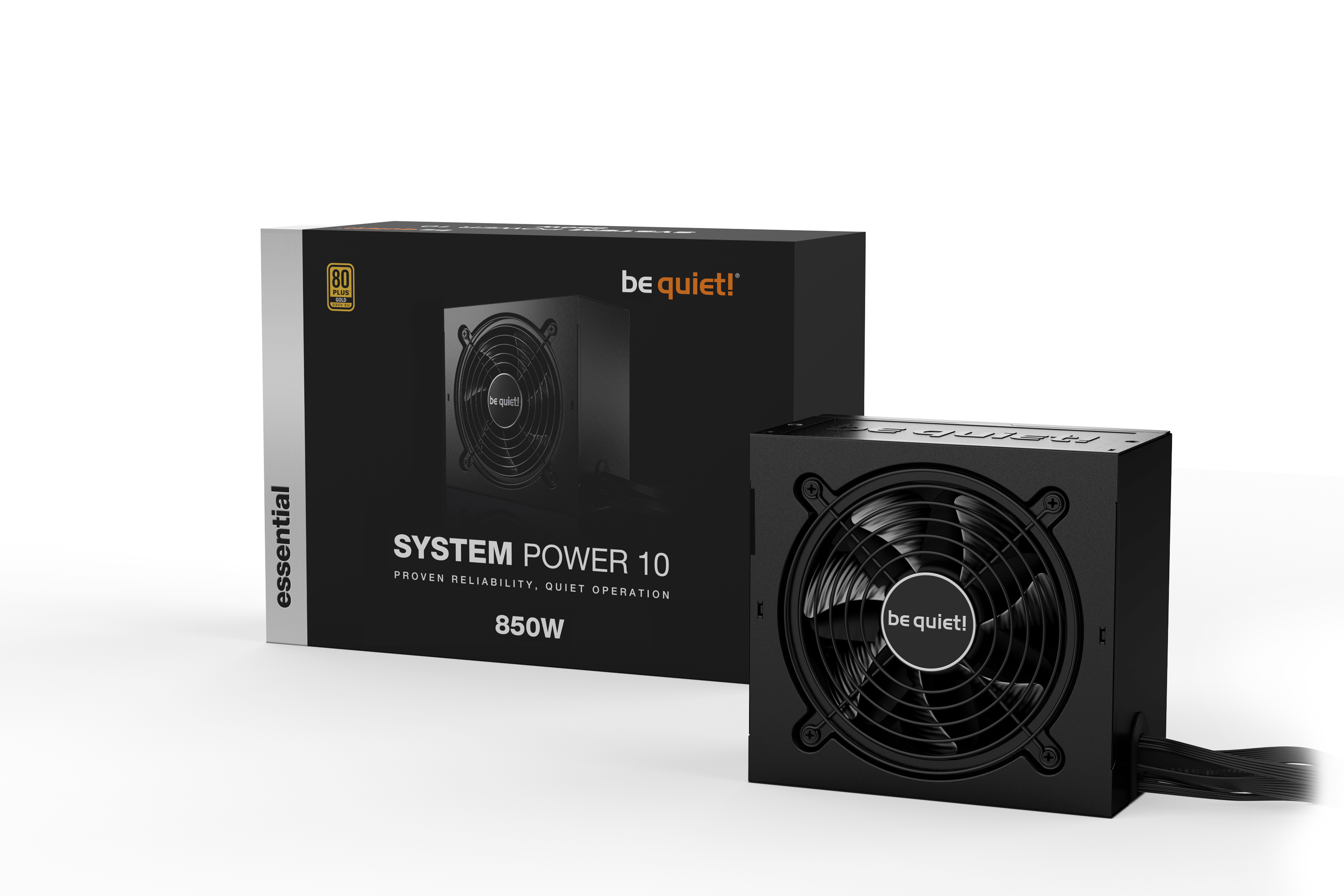

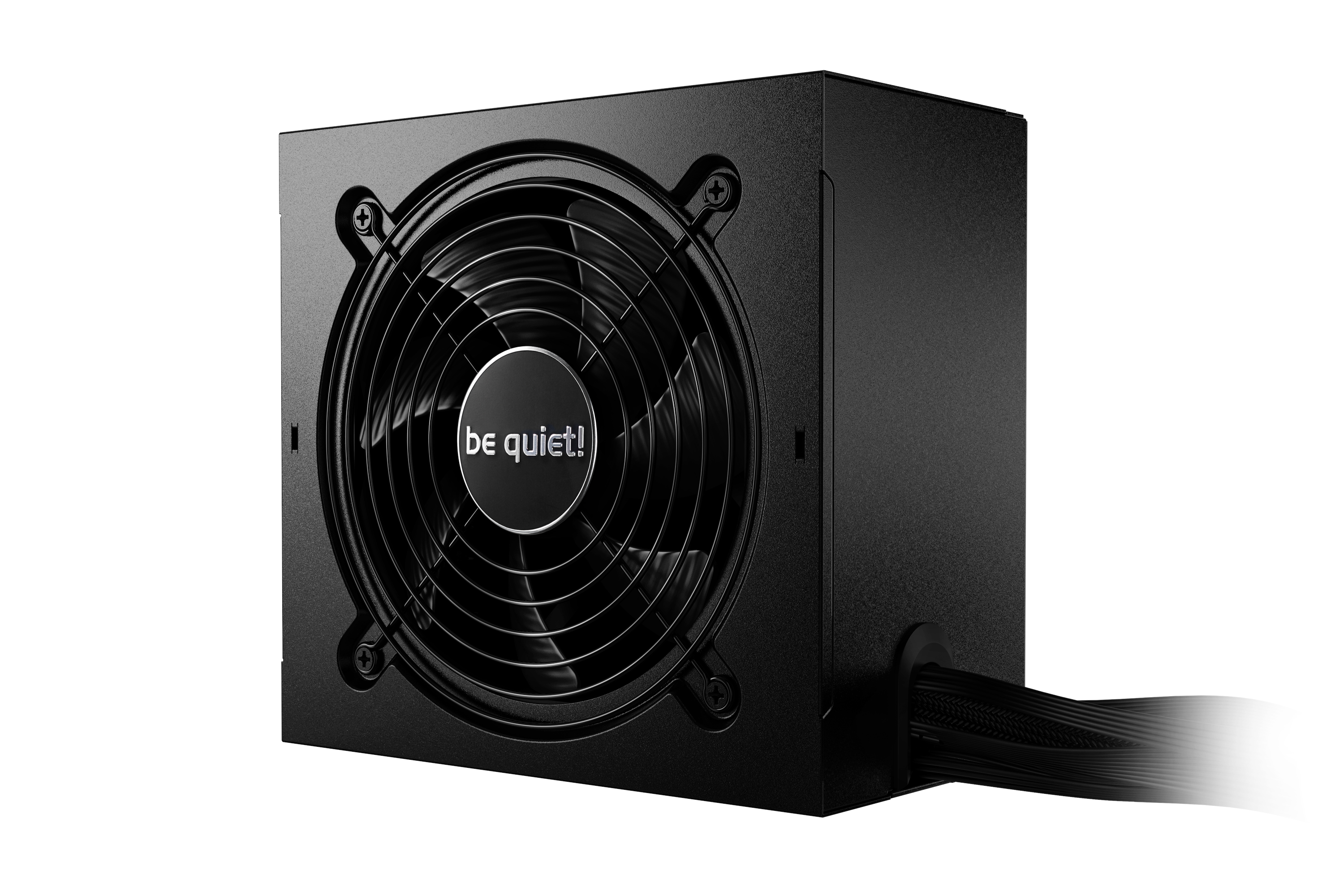

Article number: BN330

SYSTEM POWER 10

850W

Proven reliability, quiet operation

System Power 10 850W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Features such as LLC + SR + DC-to-DC topology and Dual-Rail operation underline the value System Power 10 850W offers even at entry-level.

  • 80 PLUS® Gold efficiency (up to 93.4%)
  • Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
  • Silence-optimized 120mm be quiet! fan reduces system noise
  • Rock-solid stability with 2 strong 12V-rails
  • Dependable operation to support powerful GPUs
  • Stand-by drain of less than 0.15 watts
  • Attractive black flat cables
  • Complete suite of top safety features
  • 5-year manufacturer’s warranty
No YouTube
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.

80 PLUS® GOLD CERTIFICATION

Very high operating efficiency

System Power 10 850W is certified 80 PLUS Gold with an efficiency rating of up to 93.4% – a truly outstanding level for this class of PSUs. The most compelling benefit is lower power consumption, lower costs, and cooler, quieter operation. Whether you are building a very quiet system or gaming system: System Power 10 850W is the price-conscious choice!

EXCEPTIONALLY SILENT OPERATION

Achieved by a silence-optimized 120mm be quiet! fan

The silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.

HIGH-CLASS TECHNOLOGIES

Compatibility for all systems

LLC and Synchronous Rectifier (SR) provide very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under
heavy cross-loading conditions.

HIGH PERFORMANCE FOR YOUR SYSTEM

Proven reliability for CPU and GPU

System Power 10 850W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 4 PCI express connectors for GPU support.

“System Power is the entry to silent PC building, which still offers up to 80PLUS® Gold efficiency. With System Power we offer you everything you need for a reliable and cost-efficient operation.”

Christian Berndt, Product Compliance Manager

All models at a glance:

Product Series

General data

ModelSystem Power 10 850W
Continuous power (W)850
Peak power (W)-
Form factorVersion 2.52
Form factor EPS 12VVersion 2.92
TopologyLLC + SR + DC/DC
Digitally controlled-
Voltage (Vac)200 - 240
Frequency (Hz)50
Input current (A)5
Power factor at 100% load>0.97
Modern standby
Power consumption in standby (W)<0.15
Average life time (h / 25°C)> 100,000
Operating temperature up to (°C)40

Infographics

open all / close all

Efficiency

80 PLUS certificationGold
Efficiency (%) at 230V, 2% load81.9
Efficiency (%) at 230V, 10% load86.2
Efficiency (%) at 230V, 20% load91.4
Efficiency (%) at 230V, 50% load93.4
Efficiency (%) at 230V, 100% load91.4

Fan and cooling technology

FanSilence-optimized be quiet! fan
Fan size (mm)120
Bearing technologyRifle
Motor technology4-pole fan motor
Max. fan speed (rpm)2000

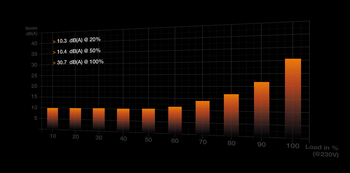

dB(A) at 10% load10.2
dB(A) at 20% load10.3
dB(A) at 50% load10.4
dB(A) at 100% load30.7

Output

Multi-rail operation (12V rails)2
12V single rail operation-
Overclocking key-
+3.3V (A)22
+5V (A)22
+12V1 (A)40
+12V2 (A)36
+12V3 (A)-
+12V4 (A)-
+12V5 (A)-
+12V6 (A)-
-12V (A)0.3
+5Vsb (A)3
Max. combined power 12V (W)849.6
Max. combined power 12VHPWR (W)0
Max. combined power 3.3V + 5V (W)120
Hold-up time at 100% load (ms)-
Hold-up time at 80% load (ms)23
Power good signal (ms)100 - 150

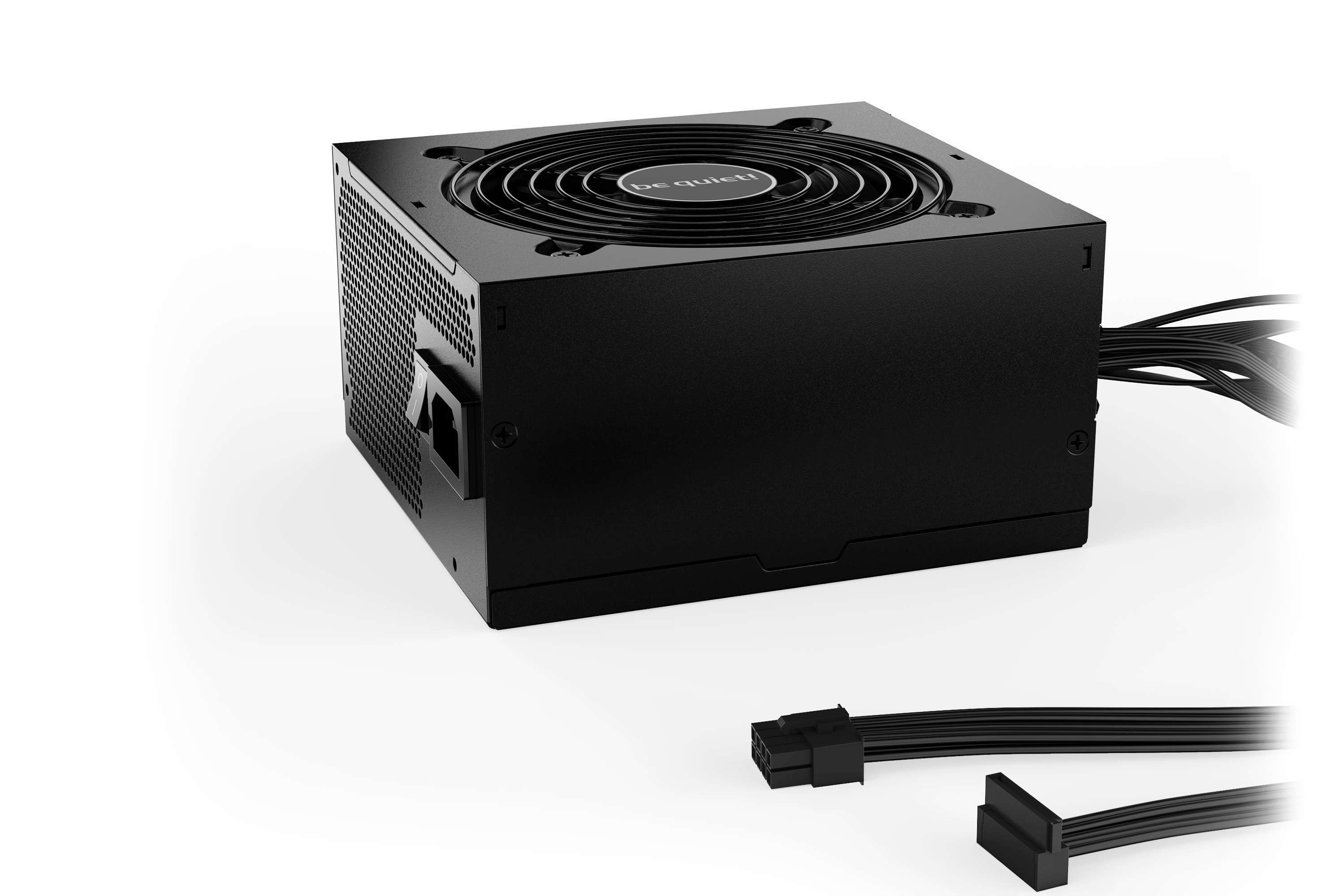

Cables and connectors

Modular cables-
Sleeved cablesP24
Flat cablesP4+4, P8, PCIe, drives
Maximum cable length (cm)81
Cable length to motherboard (cm)60
No. of cables7
ATX-Motherboard (20+4-pin)1
P4+4 (CPU)1
P8 (CPU)1
P4 (CPU)-
12VHPWR cables0
PCI-e 6+2-pin (GPU)4
PCI-e 6-pin (GPU)-
SATA6
PATA1
FDD (Floppy)-

Protection

OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush protection)

Safety certification

BSMI-
CB
CCC-
CE
cRUus-
cTUVus-
CU
FCC-
RCM-
TÜV
UKCA

Environmental directives

Energy Star8.0
ErP
WEEE
RoHS
Triman

Scope of delivery

Thumb screws-
Screws
Cable ties
Velcro cable ties-
User manual languagesDE, EN, ES, FR, PL, RU
OCK slot bracket with switch / OCK jumper-
SFX-to-ATX adapter bracket-

Casing

Dimensions without cable (L x W x H), (mm)150 x 160 x 86
Weight (kg)2.14
ColorBlack

Service

Warranty (Years)5
Express replacement service in first year-
International hotline / free of charge✓ / DE, FR, US

Logistics data and RRP

Article numberBN330
EAN code4260052189108
Dimensions, package (L x W x H), (mm)300 x 220 x 100
Gross weight, package (kg)2.6
Pieces per packaging unit4
Dimensions, shipping box (L x W x H), (mm)426 x 314 x 243
Gross weight, shipping box (kg)10.9
RRP (€)107.90
