Article number: BN690

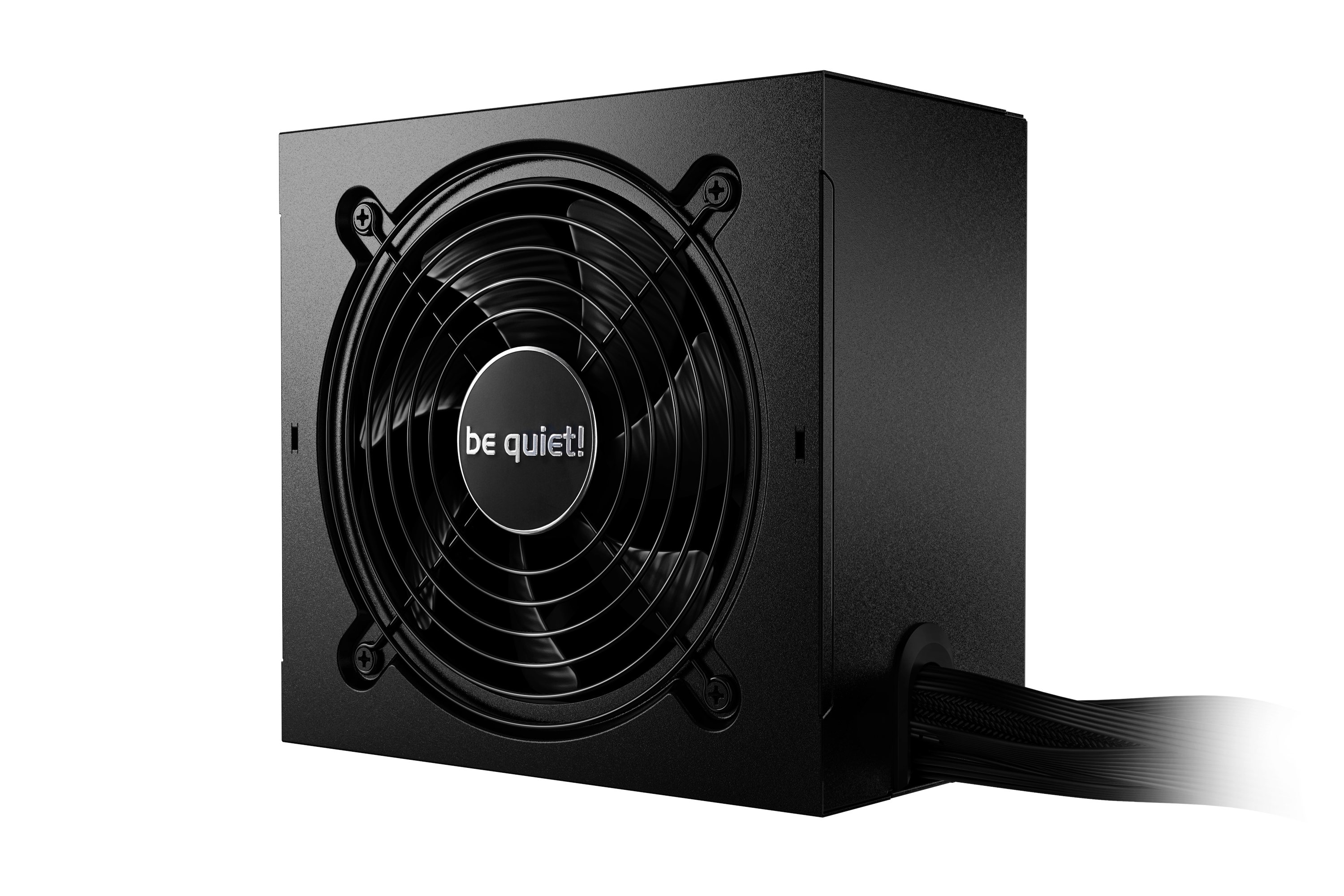

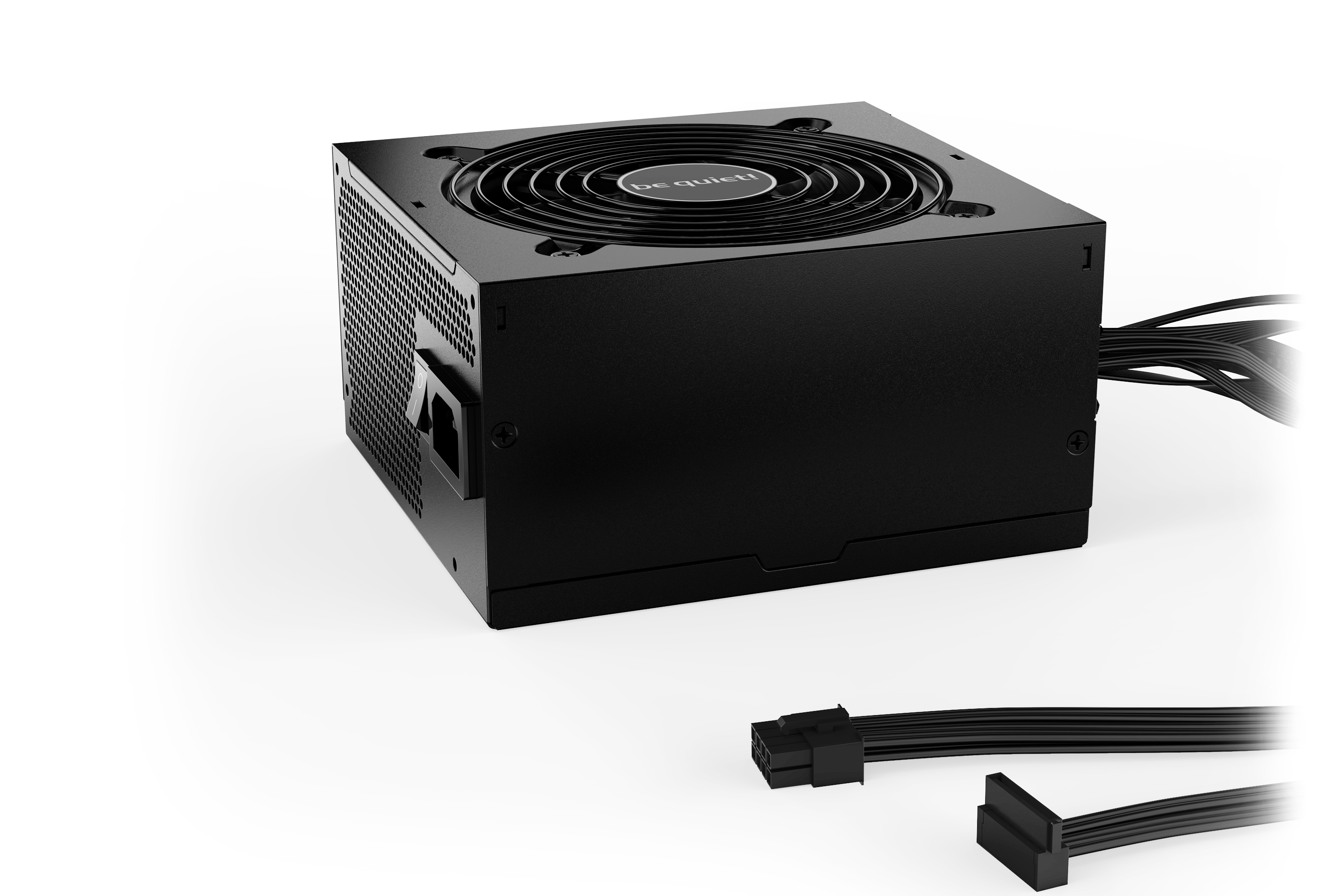

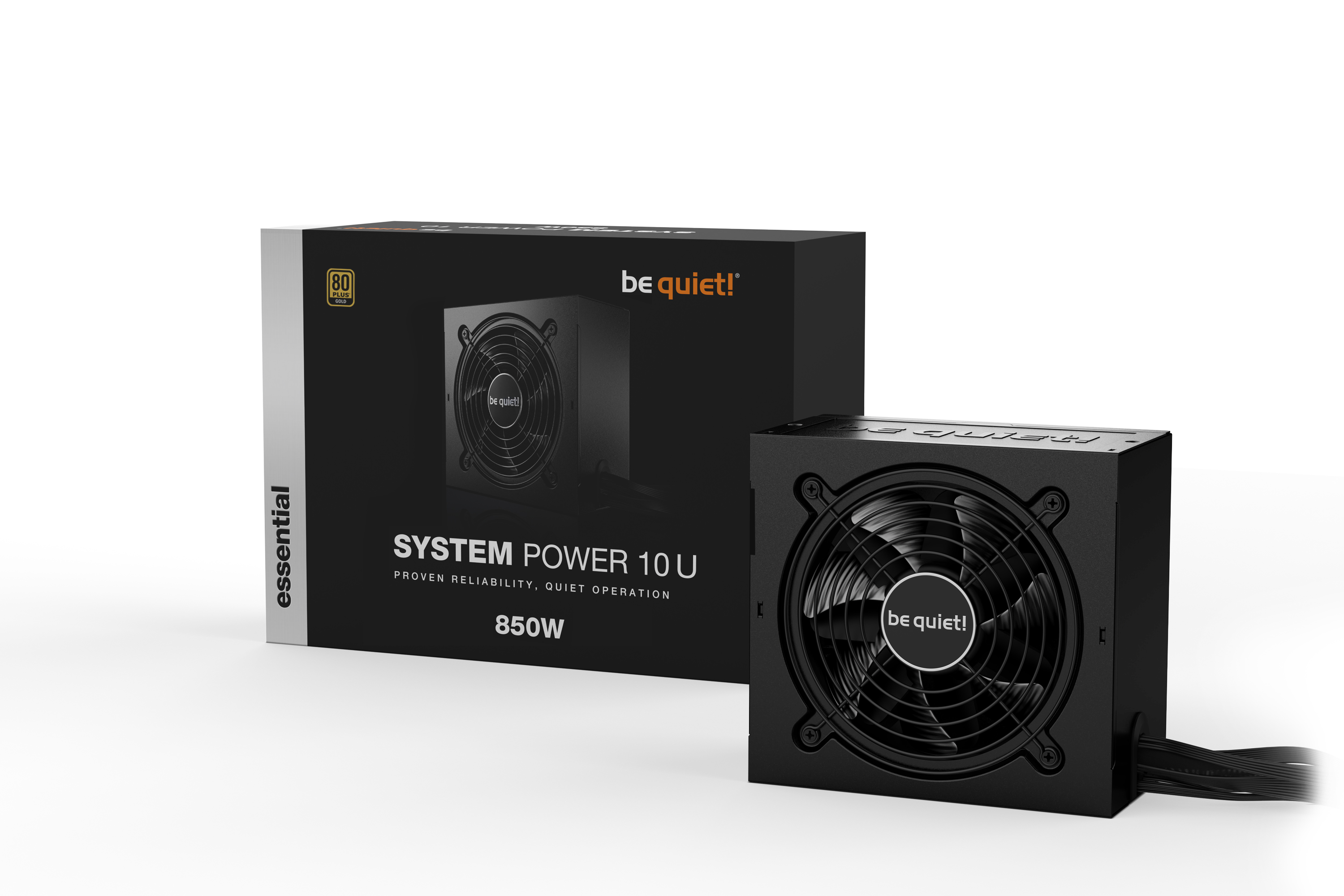

SYSTEM POWER 10 U
850WProven reliability, quiet operation
System Power 10 U 850W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Features such as LLC + SR + DC-to-DC topology and Dual-Rail operation underline the value System Power 10 U 850W offers even at entry-level.
- 80 PLUS® Gold efficiency (up to 93.3%)
- Advanced stability and voltage regulation thanks to LLC, SR and DC-to-DC
- Silence-optimized 120mm be quiet! fan reduces system noise
- Rock-solid stability with 2 strong 12V-rails
- Dependable operation to support powerful GPUs
- Stand-by drain of less than 0.15 watts
- Attractive black flat cables
- Complete suite of top safety features
- 5-year manufacturer’s warranty
Functionality cookies are not set.
You cannot proceed without functionality cookies. Please activate them. More information.
You cannot proceed without functionality cookies. Please activate them. More information.
Characteristics
80 PLUS® GOLD CERTIFICATION
Very high operating efficiencySystem Power 10 U 850W is certified 80 PLUS Gold with an efficiency rating of up to 93.3% – a truly outstanding level for this class of PSUs. The most compelling benefit is lower power consumption, lower costs, and cooler, quieter operation. Whether you are building a very quiet system or gaming system: System Power 10 U 850W is the price-conscious choice!
EXCEPTIONALLY SILENT OPERATION
Achieved by a silence-optimized 120mm be quiet! fanThe silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.
HIGH-CLASS TECHNOLOGIES
Compatibility for all systemsLLC and Synchronous Rectifier (SR) provide very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPUSystem Power 10 U 850W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 4 PCI express connectors for GPU support.
“System Power is the entry to silent PC building, which still offers up to 80PLUS® Gold efficiency. With System Power we offer you everything you need for a reliable and cost-efficient operation.”
Christian Berndt, Product Compliance Manager
All models at a glance:
General data
| Model | System Power 10 U 850W |
| Continuous power (W) | 850 |
| Peak power (W) | - |
| Form factor | Version 2.52 |
| Form factor EPS 12V | Version 2.92 |
| Topology | LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 10 / 5 |
| Power factor at 100% load | >0.97 |
| Modern standby | ✓ |
| Power consumption in standby (W) | <0.15 |
| Average life time (h / 25°C) | > 100,000 |
| Operating temperature up to (°C) | 40 |
Infographics
Efficiency
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 2% load | - |
| Efficiency (%) at 230V, 10% load | - |
| Efficiency (%) at 230V, 20% load | 91.7 |
| Efficiency (%) at 230V, 50% load | 93.3 |
| Efficiency (%) at 230V, 100% load | 91.7 |

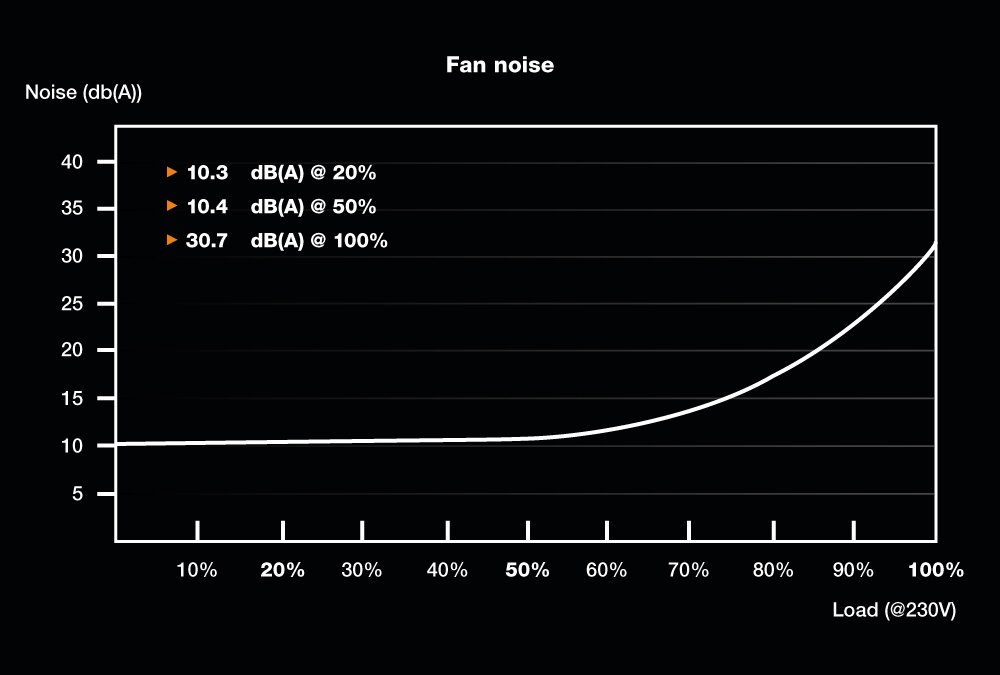

Fan and cooling technology
| Fan | Silence-optimized be quiet! fan |
| Fan size (mm) | 120 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2000 |
| dB(A) at 10% load | - |
| dB(A) at 20% load | 9.9 |
| dB(A) at 50% load | 10 |
| dB(A) at 100% load | 32.8 |
Output
| Multi-rail operation (12V rails) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 22 |
| +5V (A) | 22 |
| +12V1 (A) | 40 |
| +12V2 (A) | 36 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 849.6 |
| Max. combined power 12VHPWR (W) | 0 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time at 100% load (ms) | 17 |
| Hold-up time at 80% load (ms) | 24 |
| Power good signal (ms) | 100 - 150 |

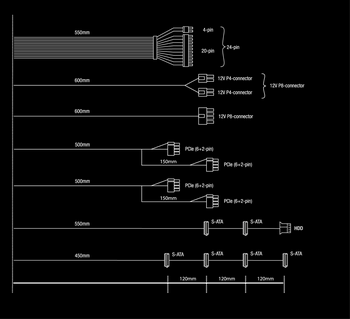

Cables and connectors
| Modular cables | - |
| Sleeved cables | ✓ |
| Flat cables | ✓ |
| Maximum cable length (cm) | 81 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 0 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 6 |
| PATA | 1 |
| FDD (Floppy) | - |
Protection
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | - |
Safety certification
| BSMI | ✓ |
| CB | ✓ |
| CCC | - |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | - |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | - |
Environmental directives
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | ✓ |
Scope of delivery
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | DE, EN, ES, FR, PL, RU |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
Casing
| Dimensions without cable (L x W x H), (mm) | 150 x 160 x 86 |
| Weight (kg) | 2.23 |
| Color | Black |
Service
| Warranty (Years) | 5 |
| Express replacement service in first year | - |
| International hotline / free of charge | ✓ / DE, FR, US |
Logistics data and RRP
| Article number | BN690 |
| EAN code | 4260052189184 |
| Dimensions, package (L x W x H), (mm) | 300 x 220 x 100 |
| Gross weight, package (kg) | 2.7 |
| Pieces per packaging unit | 4 |
| Dimensions, shipping box (L x W x H), (mm) | 426 x 314 x 243 |
| Gross weight, shipping box (kg) | 11.2 |
| RRP (€) | 109.90 |
